CF3 Stainless Steel RF Flange Electric Actuated Ball Valve American Standard

Product Description

Ball Valve Introduction

PRODUCT INTRODUCTION

• 90 quick opening and closing for easy operation
• Extremely low flow resistance (nearly equal to straight pipe)
• Compact structure, small size, light weight
• Reliable sealing, with zero leakage for soft-seated versions
• Wide range of applicable media (water, steam, oil, gas, corrosive media)
• Easy maintenance with replaceable sealing rings

TECHNICAL SPECIFICATIONS

BALL VALVE CLASSIFICATIONS

1. By Ball Support Structure

• Floating Ball Valve: The ball has no fixed shaft and relies on medium pressure to press against the seat for sealing. Simple structure, low cost, suitable for medium-low pressure (PN 16MPa) and small-to-medium diameters (DN 200). Common in urban water supply/drainage and general chemical pipelines.

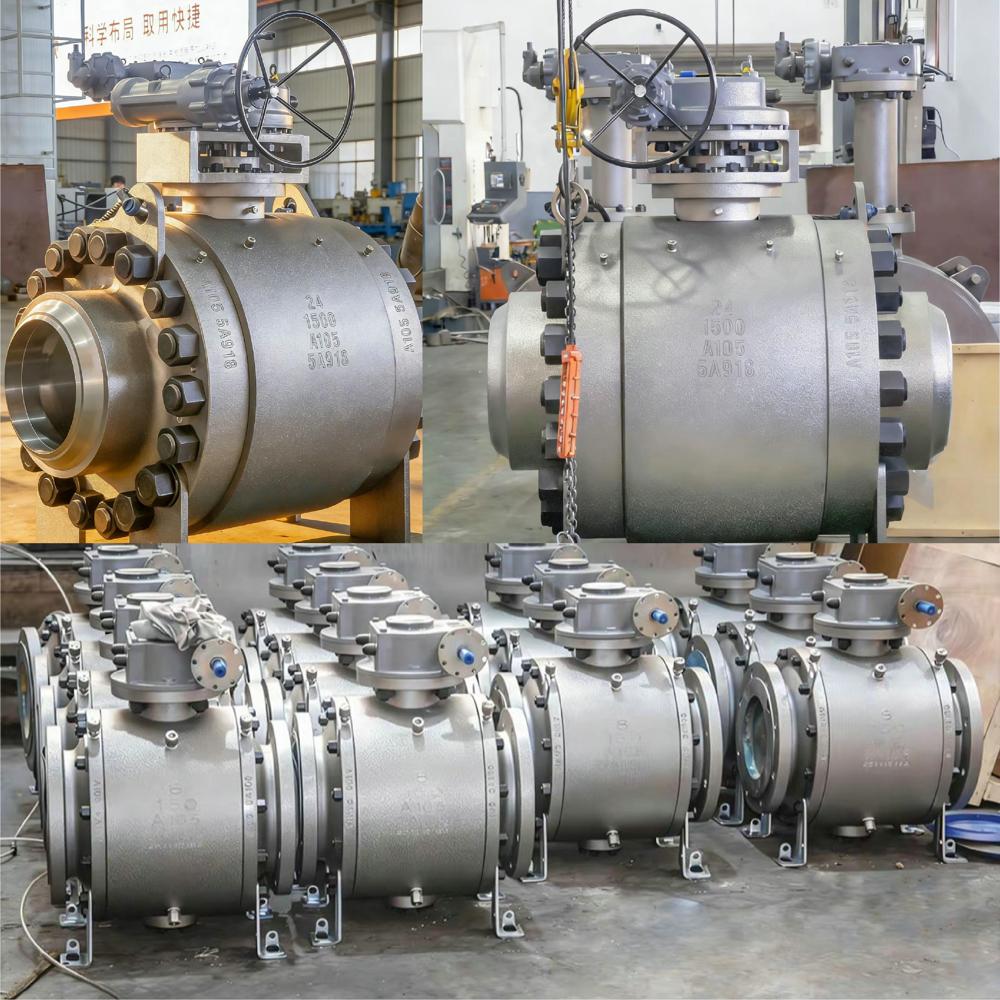

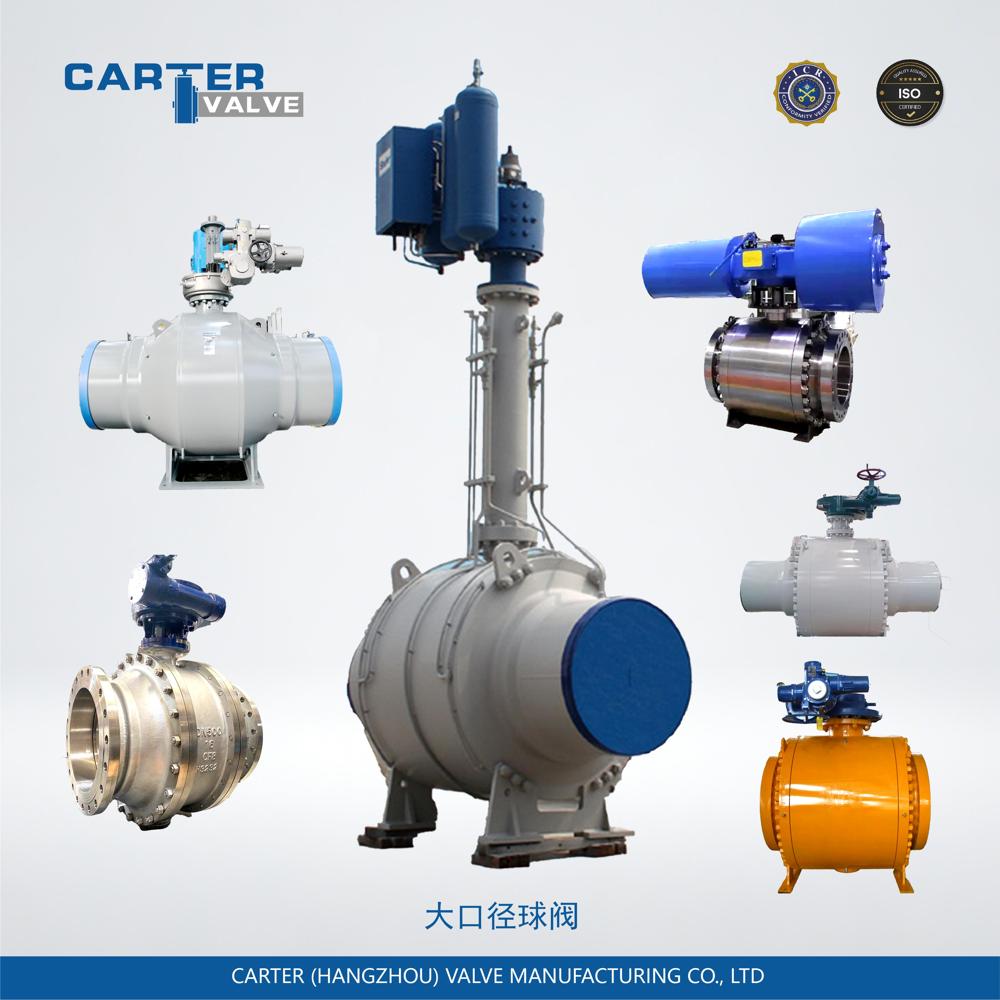

• Trunnion-Mounted Ball Valve: The ball is fixed by upper and lower trunnions, only rotating without displacement. Stable sealing, high pressure resistance and low torque, suitable for high pressure (PN 20MPa) and large diameters (DN 200). Ideal for natural gas long-distance pipelines and high-pressure oil & gas fields.

2. By Actuation Type

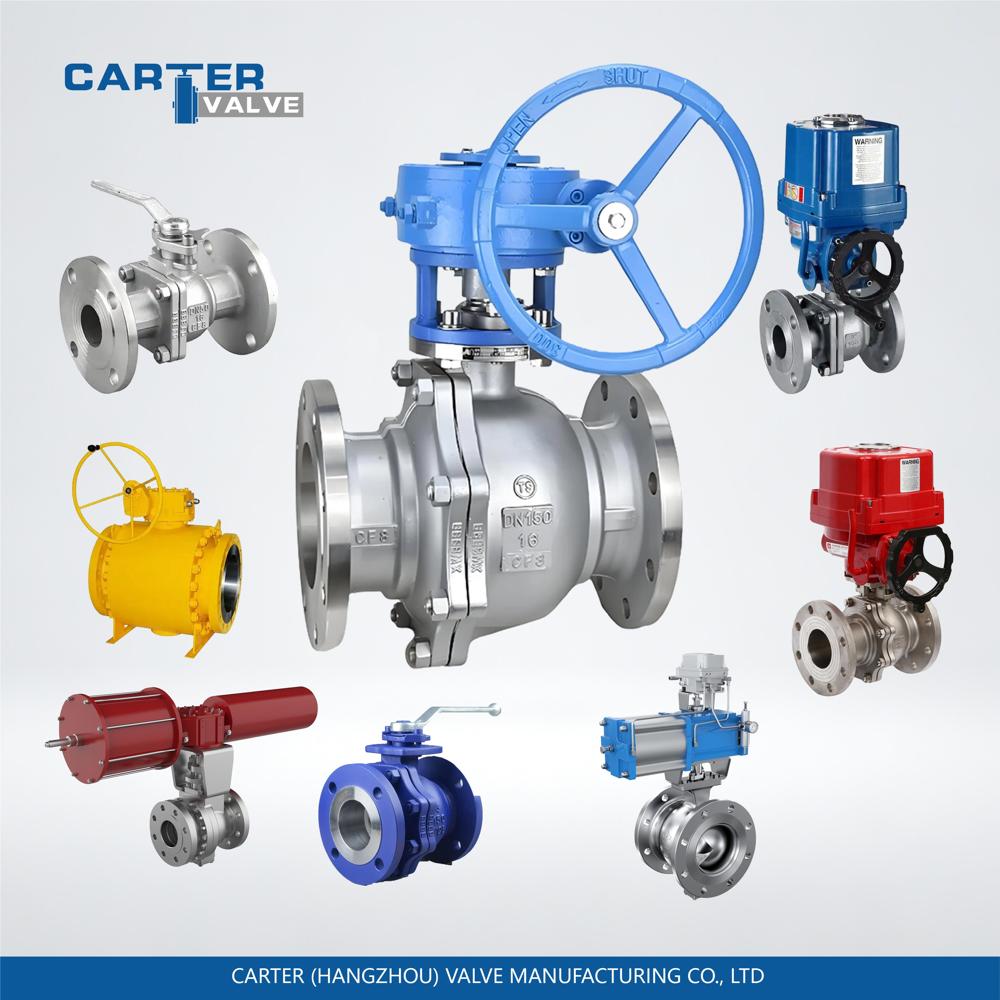

• Manual Ball Valve (Lever / Gear Operated): Manually operated, low cost, suitable for small-to-medium diameters and low-frequency switching. Commonly used in residential and small factory applications.

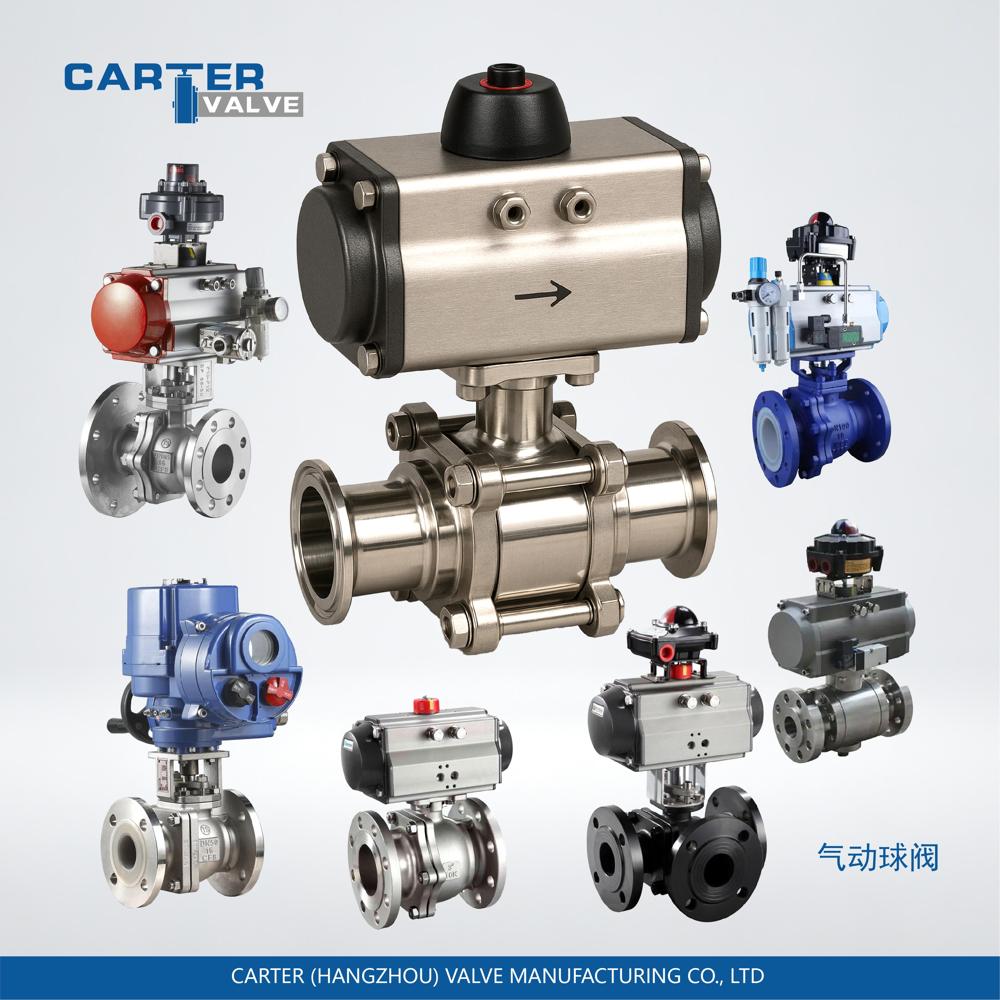

• Pneumatic Ball Valve: Driven by compressed air, fast response, and explosion-proof. Can be equipped with positioners for modulating control. Widely used in petrochemical and flammable/explosive environments.

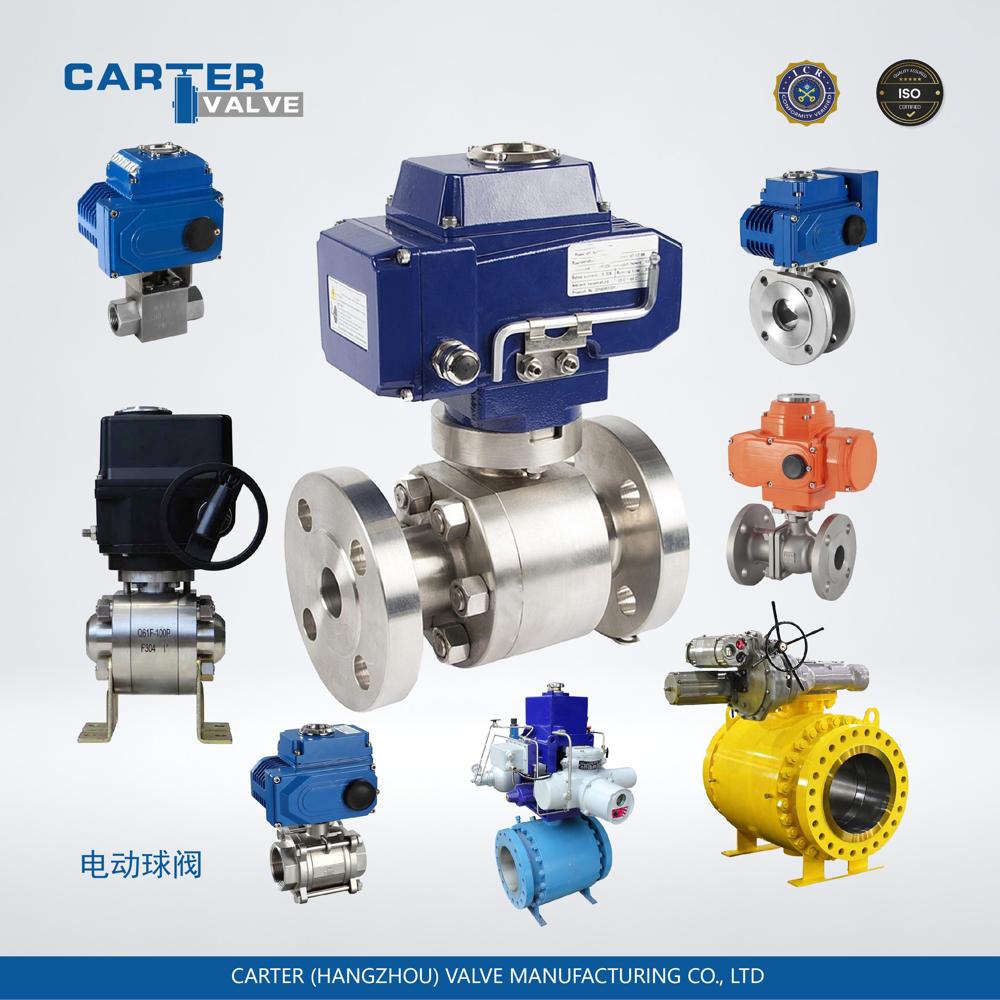

• Electric Ball Valve: Motor-driven, supporting remote/automatic control with high precision. Applied in building automation, power plants and water treatment systems.
• Hydraulic Ball Valve: Hydraulically driven with high output torque. Suitable for extra-large diameter and extremely high-pressure working conditions.

3. By Sealing Type

• Soft-Seated Ball Valve: Seats made of PTFE/RPTFE/rubber. Zero leakage, low torque, temperature 200-260. Suitable for water, gas and weakly corrosive media.
• Hard-Seated Ball Valve: Metal-to-metal sealing (e.g., stainless steel + hard alloy). High temperature resistance (up to 550), wear and erosion resistant. Suitable for high-temperature steam, particle-containing media and strong corrosive conditions.

4. By Port / Connection Type

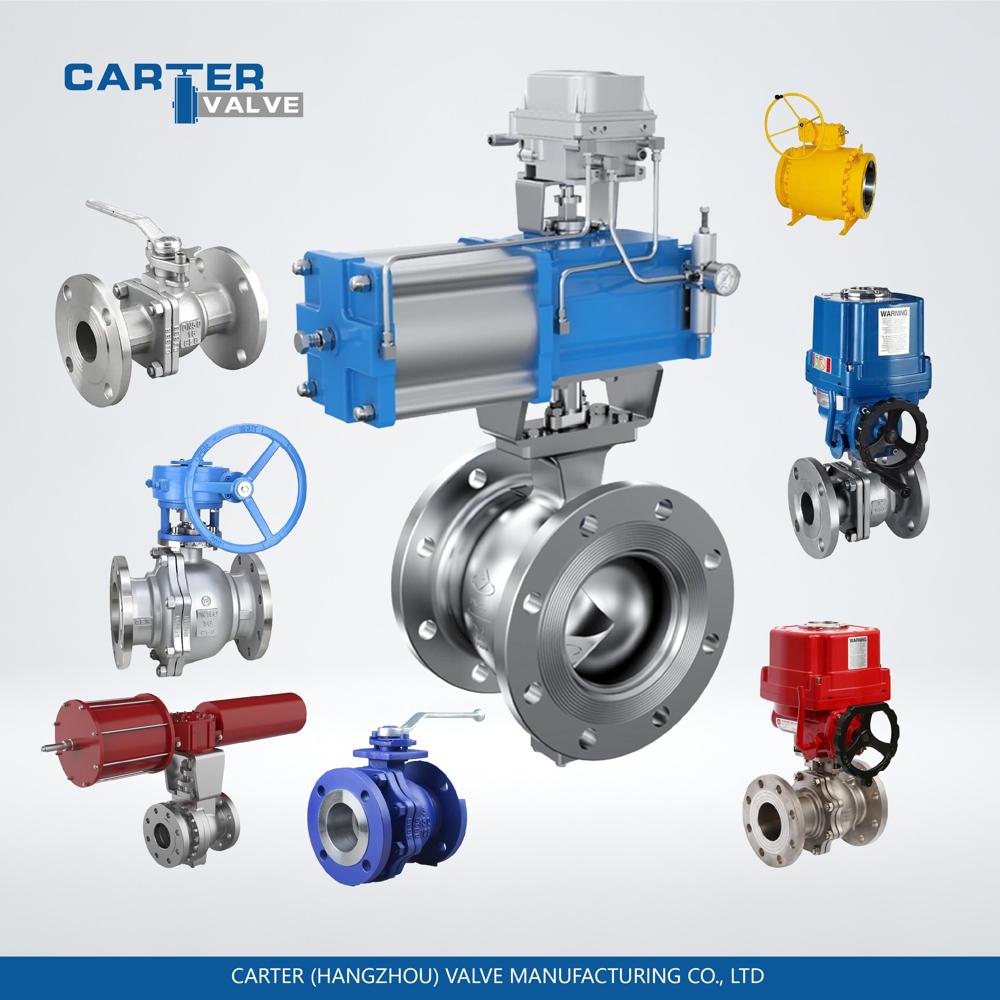

• Port Types: 2-way O-type (shut-off), 3-way L/T-type (diverting), V-type (modulating), full bore / reduced bore.
• Connection Types: Flanged, threaded, socket weld/butt weld, grooved, wafer.

APPLICATIONS

• Petrochemical: Oil & gas production, long-distance pipelines, refining units, tank farms (shut-off, diverting, emergency shutdown valves).
• Municipal: Tap water, sewage treatment, gas pipelines, heating networks.
• Power & Energy: Thermal/nuclear power cooling systems, steam pipelines, desulfurization and denitrification.
• Food & Pharmaceutical: Sanitary ball valves (clamp connection, mirror-polished) for clean fluid transmission.
• Metallurgy / Paper / Marine: Pipeline control for high-temperature, slag-containing and strongly corrosive media.
• Building / Civil: HVAC systems, water supply/drainage, gas distribution pipelines.
