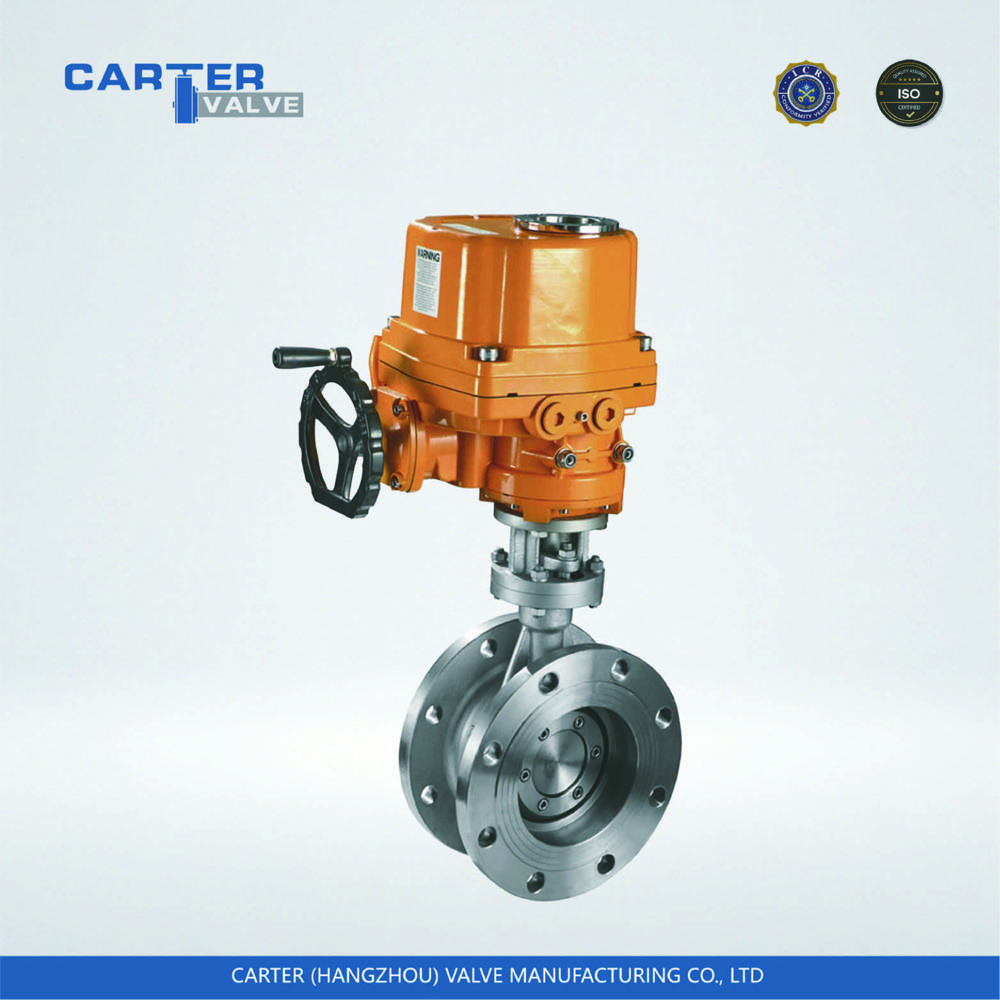

Electric Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Triple Eccentric Metal Seated Structure, Steam/Gas/Oil, API Standard

Electric Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Triple Eccentric Metal Seated Structure, Steam/Gas/Oil, API Standard

Name: Digital Metering Pump
Brand: UK BERT PUMPS INDUSTRY CO., LIMITED
Price: 80600.0 INR
Availability: InStock

1200.0 INR/Piece

Get a Price/Quote

Product Details:

Material Carbon steel, stainless steel, duplex stainless steel, alloy steel, nickel alloy steel
Valve Size DN50 DN3000 / NPS 2"~120"
Control System Multi-turn electric actuator, compact electric actuator, intelligent electric actuator; supports 4 20mA / 1 5V DC control signal, IP67 ingress protection, Exd BT4 explosion-proof, manual hand lever operation
Features Low operating torque, unobstructed flow passage, large flow capacity, long service life, zero leakage, easy maintenance, can be installed in any position, low-emission packing available to meet ISO 15848, extended stem design available
Valve Type Electric Triple-Eccentric Butterfly Valve
Connection Type Wafer, Flanged, Welded
Voltage 220V/50Hz, 380V/50Hz Volt (v)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Electric Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Triple Eccentric Metal Seated Structure, Steam/Gas/Oil, API Standard Price And Quantity

Minimum Order Quantity 1 Piece
Price 1200.0 INR/Piece

Electric Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Triple Eccentric Metal Seated Structure, Steam/Gas/Oil, API Standard Product Specifications

Type Flow regulation / fluid shut-off butterfly valve
Control System Multi-turn electric actuator, compact electric actuator, intelligent electric actuator; supports 4 20mA / 1 5V DC control signal, IP67 ingress protection, Exd BT4 explosion-proof, manual hand lever operation
Valve Size DN50 DN3000 / NPS 2"~120"
Media Water, Oil, Gas, Base, Acid
Material Carbon steel, stainless steel, duplex stainless steel, alloy steel, nickel alloy steel
Usage Industrial
Sealing Forced sealing, zero-leakage design; metal-to-nonmetal or metal-to-metal sealing types available
Size DN50 DN3000 / NPS 2"~120"
Temperature -29 ~ 350 (customizable for low/ultra-low temperature) Celsius (oC)
Voltage 220V/50Hz, 380V/50Hz Volt (v)
Port Size DN50 DN3000 / NPS 2"~120"
Product Type Electric Triple-Eccentric Butterfly Valve
Structure Butterfly
Valve Type Electric Triple-Eccentric Butterfly Valve
Connection Type Wafer, Flanged, Welded
Application Metallurgy, electric power, petrochemical, water supply & drainage, municipal construction, flow regulation and shut-off in industrial pipelines
Features Low operating torque, unobstructed flow passage, large flow capacity, long service life, zero leakage, easy maintenance, can be installed in any position, low-emission packing available to meet ISO 15848, extended stem design available
Pressure P, N, 0, , ~, 1, 5, 1, 0, , P, N, b, 1, 6, 0, ,, , C, l, a, s, s, , 1, 5, L, 0, 0, , L, b mpa

Product Description

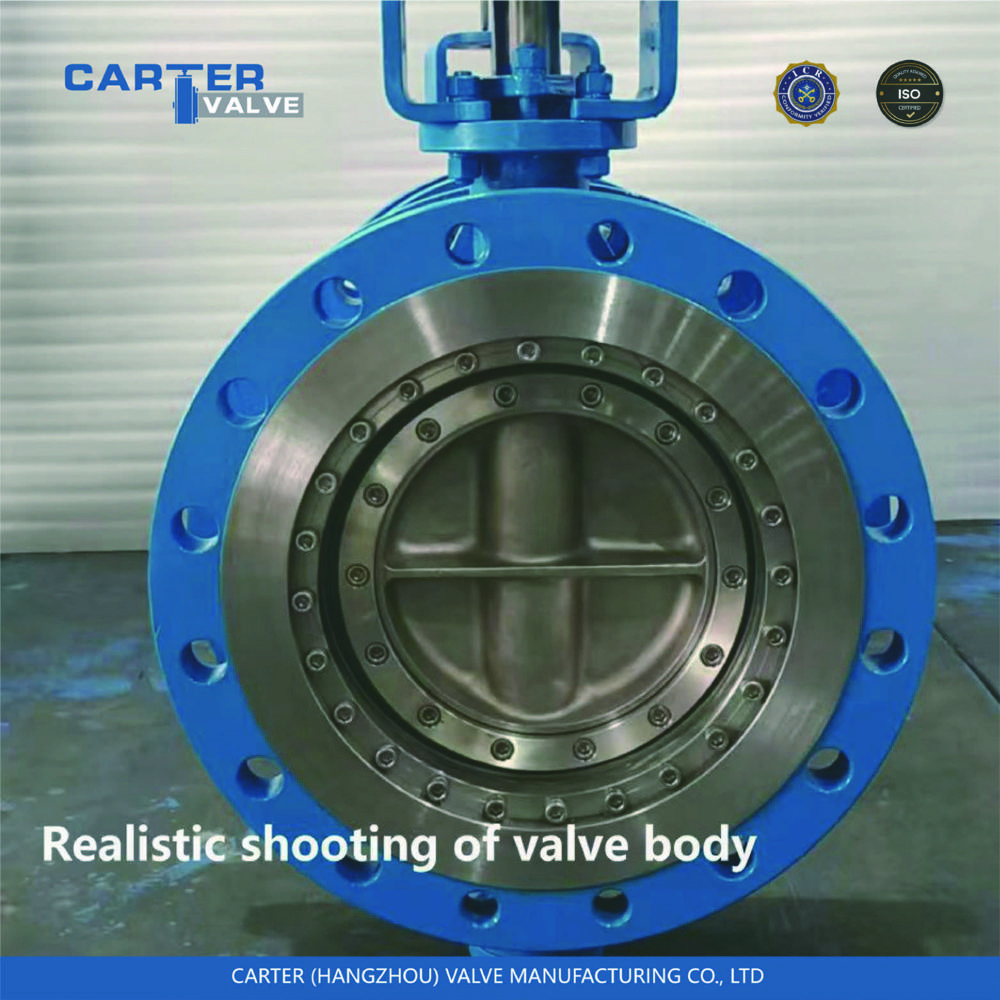

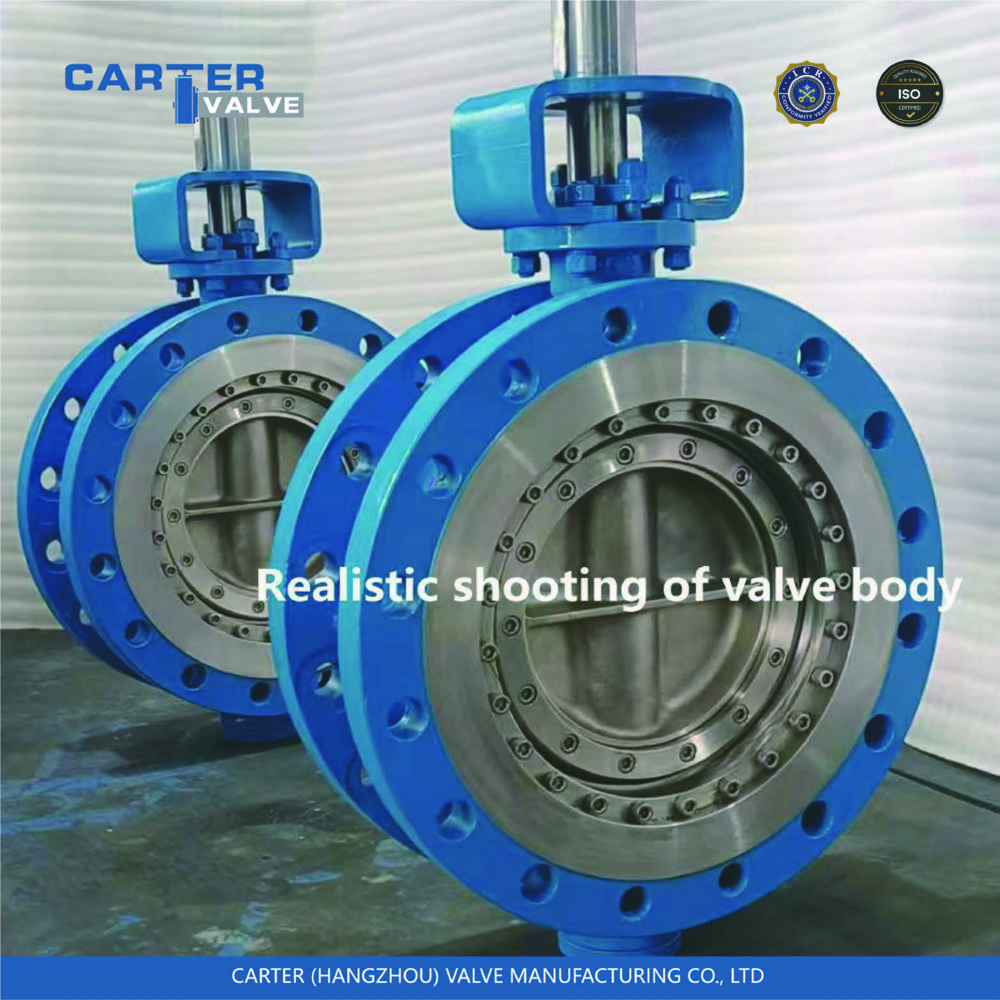

The electric triple-eccentric butterfly valve adopts an inclined cone angle by rotating the positive cone angle, which reduces the eccentricity between the valve stem and the valve body center, thus lowering the operating torque. It is widely used in industrial pipelines such as metallurgy, electric power, petrochemical industry, water supply and drainage, and municipal construction for flow regulation and fluid shut-off.

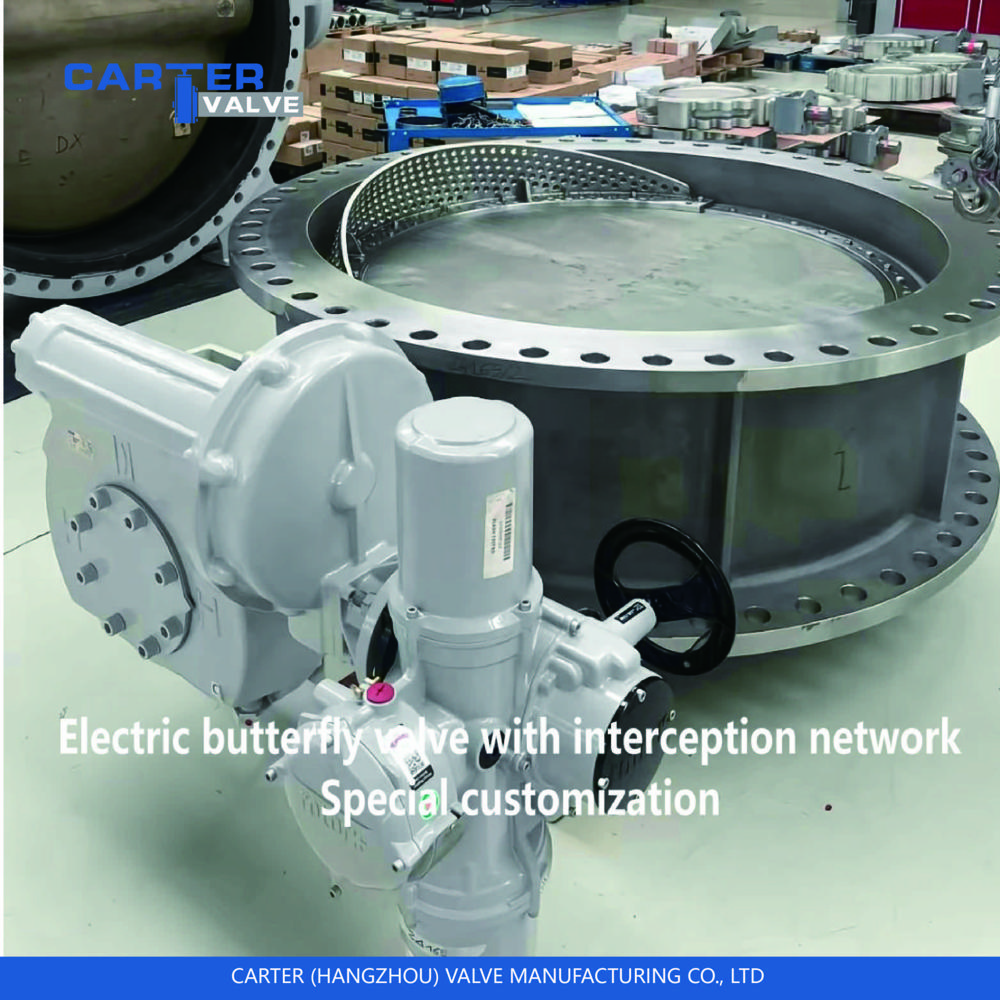

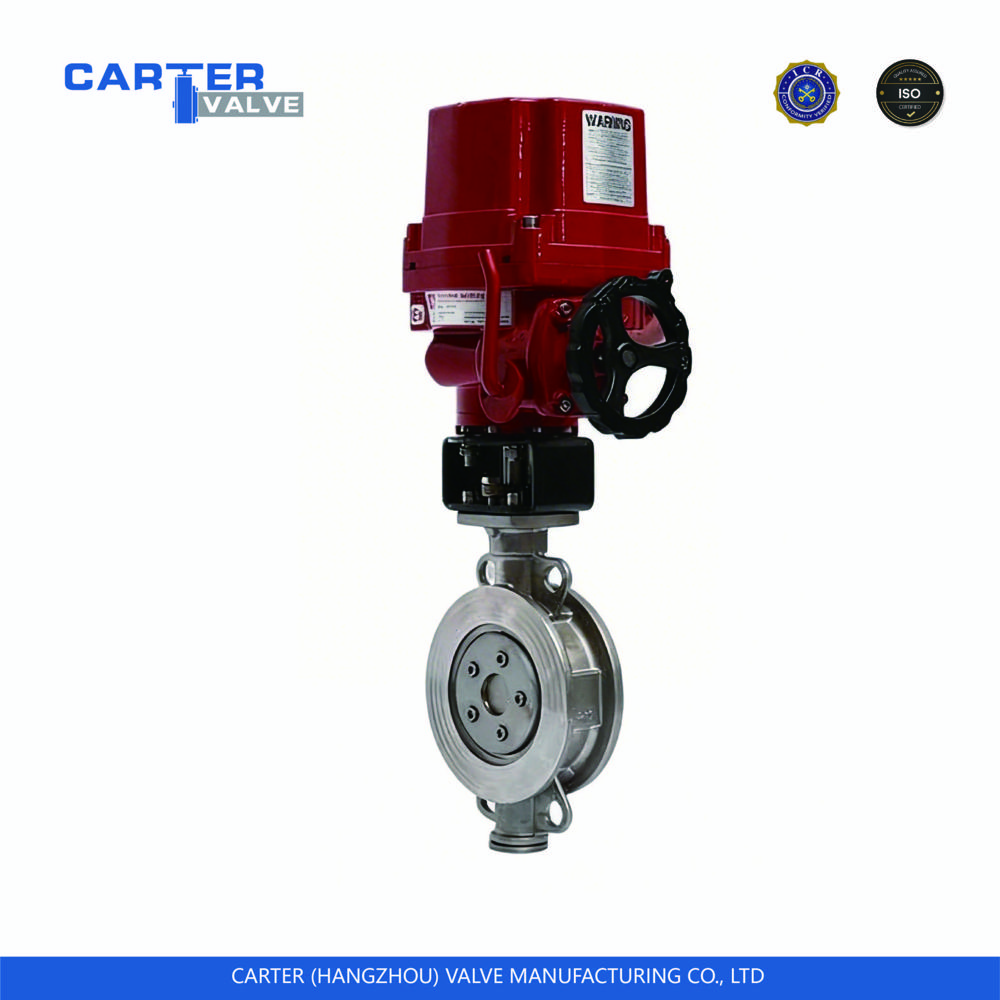

The electric eccentric butterfly valve consists of an electronic electric actuator and a triple-eccentric butterfly valve. Adopting the latest triple-eccentric design principle, it features excellent sealing performance, unobstructed valve body flow passage, large flow capacity, low friction between the disc and seat, long service life, wide application range and easy maintenance.

Pressure Rating: PN10PN160, Class 150 Lb~1500 Lb

Nominal Diameter: DN50DN3000, NPS 2"~120"

Body Material: Carbon steel, stainless steel, duplex stainless steel, alloy steel, nickel alloy steel

End Connection: Wafer, Flanged, Welded

Operating Temperature: -29 ~ 350

Operation: Electric actuator

Design Standards: GB/T 12238, JB/T 8527, API 609

No friction between the butterfly disc and sealing surface during opening and closing, with forced sealing.

Can be installed in any position.

Zero-leakage structural design.

Sealing types available: metal-to-nonmetal, metal-to-metal.

Unidirectional and bidirectional valve options for customers.

Dynamic load packing available.

Low-emission packing available to meet ISO 15848 requirements.

Extended stem design available.

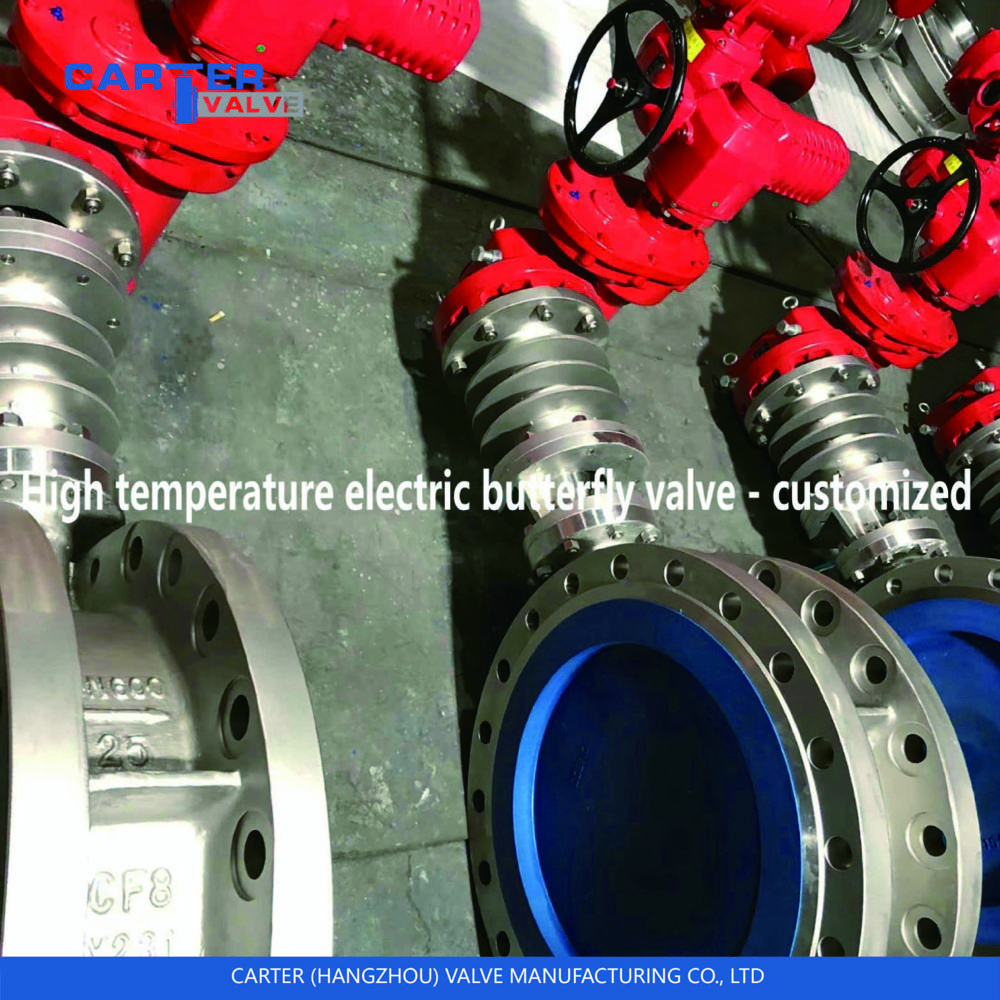

Low-temperature or ultra-low-temperature valves can be customized per customer requirements.

Actuator Type: Multi-turn electric actuator, compact electric actuator, intelligent electric actuator

Main Technical Parameters:Power supply: 220V/50Hz, 380V/50Hz; Input signal: 420mA or 15V DC; Output signal: 420mA DCIngress protection: IP67; Explosion-proof marking: ExdBT4; Manual operation: Hand leverAmbient temperature: -25+70; Ambient humidity: 95%

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Valve' category

Knife Gate Valve / Through Conduit Knife Gate Valve, Stainless Steel, Flanged, Manual Handwheel, Through Conduit Structure, Pulp/Paper Slurry, DIN Standard Price : 1000.0 INR/Piece Minimum Order Quantity : 1 Product Type : Knife Gate Valve (Slurry / Slide Gate Valve) Features : Knifeedge gate plate prevents clogging; straightthrough full flow path; ultrathin compact structure; zero leakage soft seal; wearresistant hard seal; multiple actuation options (manual/electric/pneumatic/hydraulic); easy maintenance; costeffective Valve Type : Knife Gate Valve Connection Type : GB / JB / HG / ANSI / DIN / JIS standard connections Usage : Water, Food, Boat Sealing : Class VI zero leakage (soft seal); Class IV (hard seal) Media : Gas, Base, Water, Oil, Acid, Other Size : DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized) Structure : Gate Application : Metering Material : Cast iron (HT200/250), carbon steel (WCB), stainless steel (304/316/316L), duplex steel, titanium alloy Control System : Manual / Electric / Pneumatic / Hydraulic Valve Size : DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized) Temperature : 40 C ~ 425 C (hard seal); 20 C ~ 120 C (soft seal) Celsius (oC) Disc : Stainless steel (304/316), carbon steel, hard alloy overlay Port Size : DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized) Type : Linear stroke forcedsealing shutoff valve Pressure : ., , , /, , 1, ., 6, , /, , ;, , 1, 5, 0, L, B, , , P, N, , 0, ., 6, , /, P, K, 2, ., 5, , M, a, /, , 1, 0, 1, 0 mpa

Send Inquiry

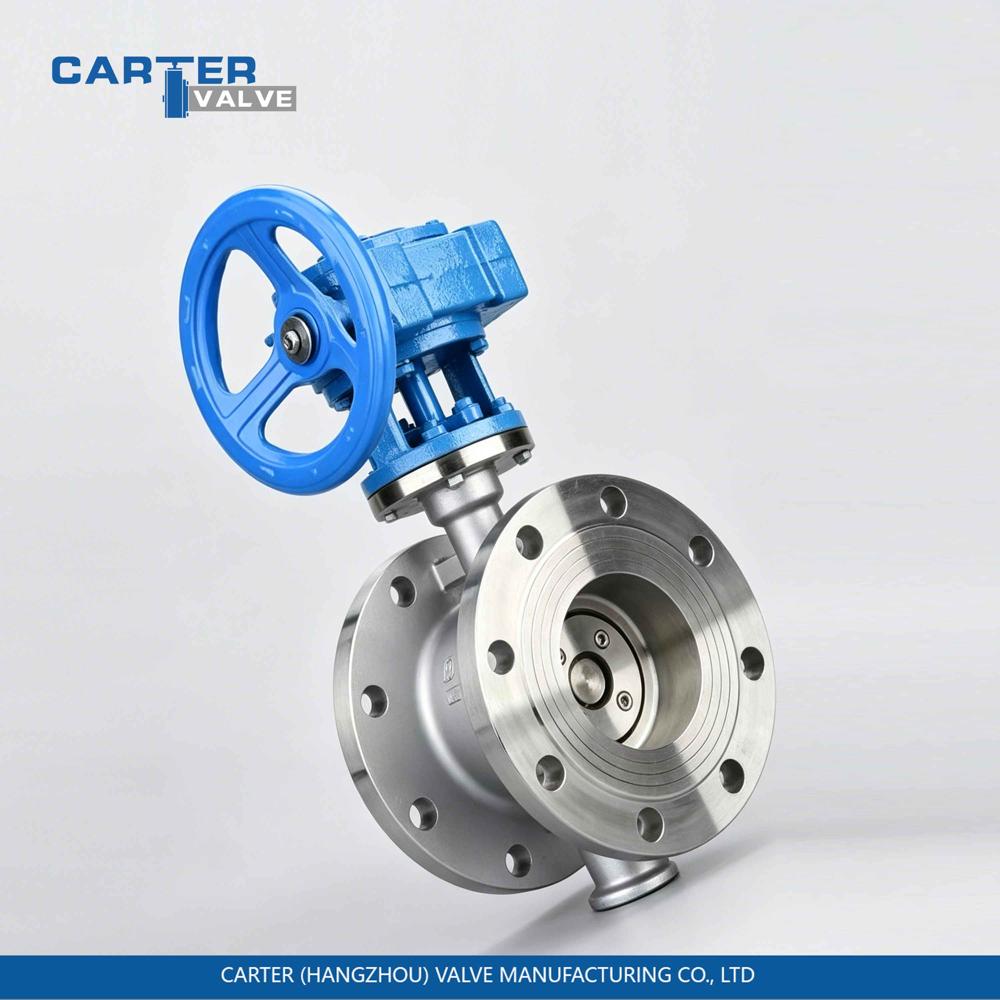

Metal Seated Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Gear Operated, Metal Seated Triple Eccentric Structure, Steam/Gas/Oil, API 609 Standard Price : 600.0 INR/Piece Minimum Order Quantity : 1 Product Type : Hardsealed (metal hardseal) butterfly valve Features : Triple eccentric structure, metal hard seal (wear/erosion resistant), wide temp/pressure range, zero leakage, firesafe compliant, easy maintenance, multiple actuation options Valve Type : Butterfly valve Connection Type : Wafer flange Usage : Hightemperature steam, oil, particleladen media, harsh industrial conditions Sealing : Metaltometal hard seal (STL/nickel/cobalt alloy hardfaced, HRC5562), bubbletight zero leakage, API 607 firesafe compliant Media : Water, Oil, Acid, Gas, Base, Other Size : DN40DN1800 Structure : Butterfly Application : Hightemperature, highpressure, wearresistant applications; power plants, petrochemical, heavy industry Material : Cast steel, stainless steel, special alloy Control System : Manual, pneumatic, electric (gear/hydraulic optional) Valve Size : DN40DN1800 Temperature : 96 425 (up to 650 for extended range) Celsius (oC) Disc : Triple eccentric butterfly disc (truss structure for large bore) Port Size : DN40DN1800 Type : Triple eccentric metal hardseal butterfly valve Pressure : B mpa
