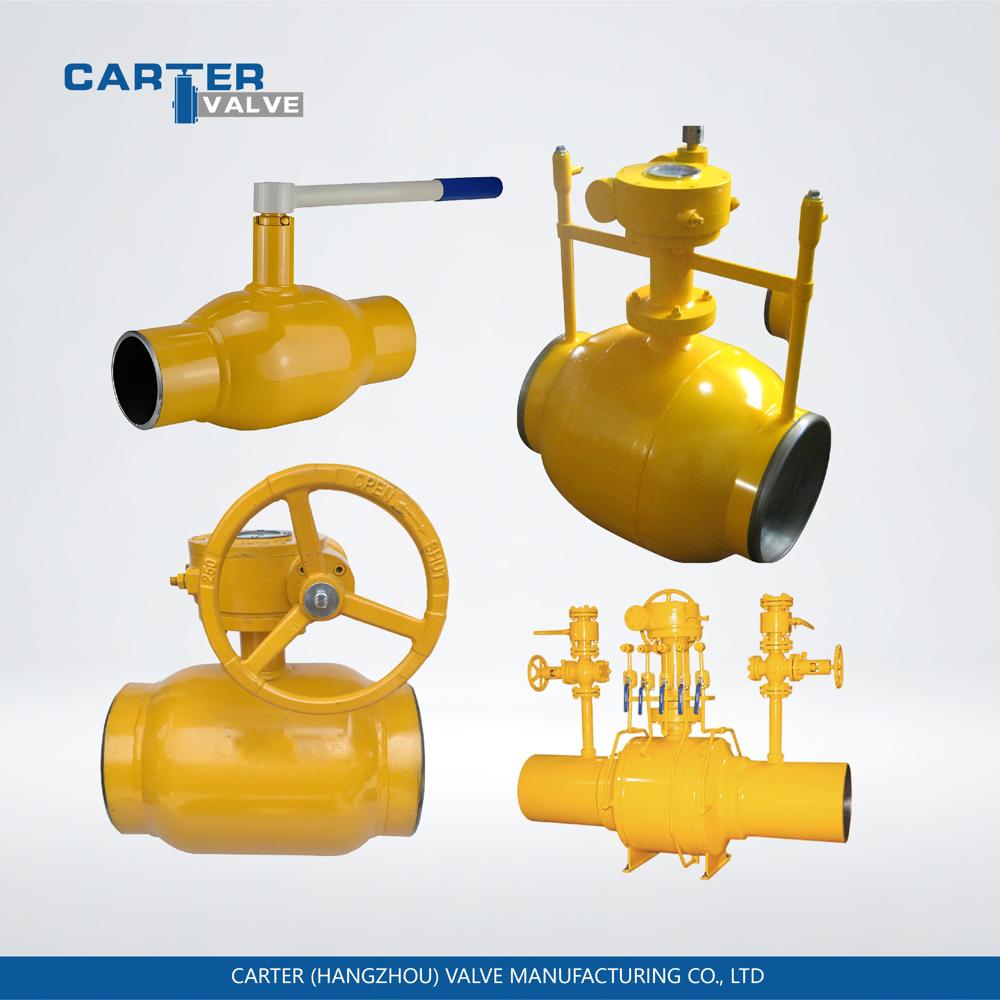

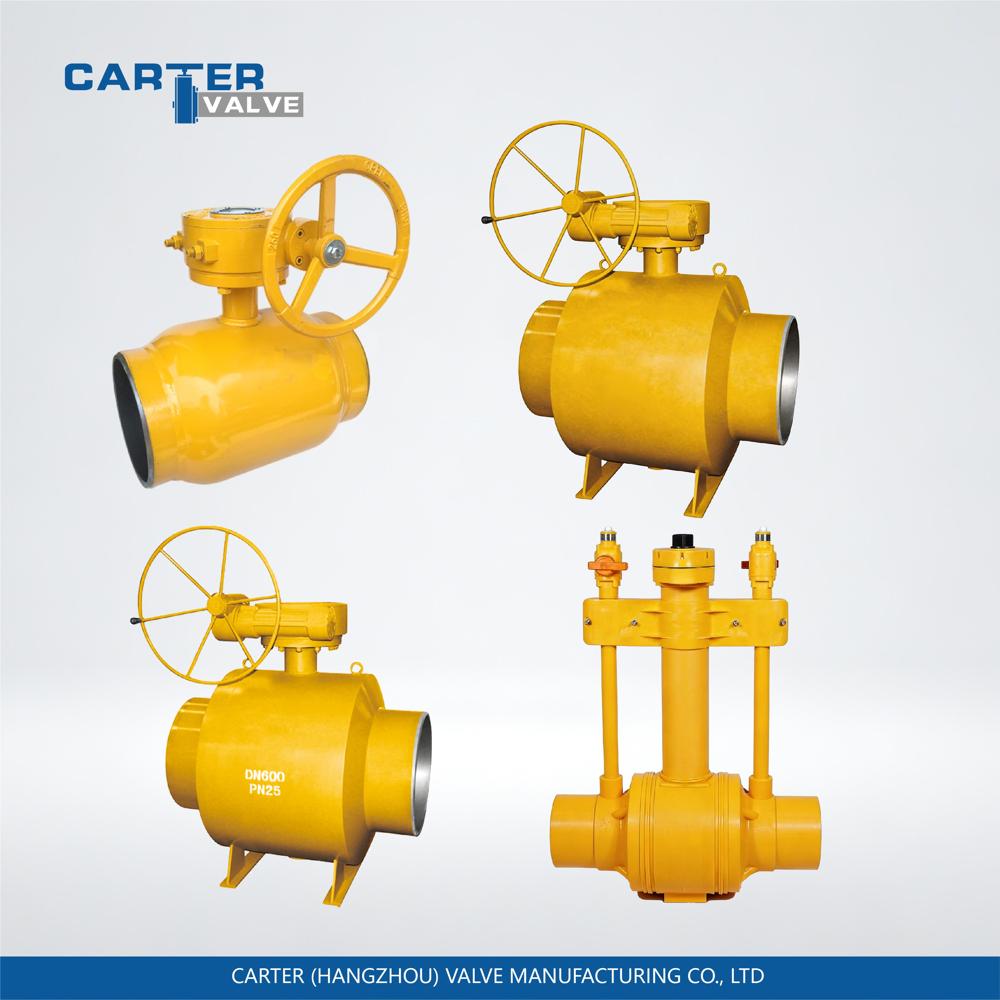

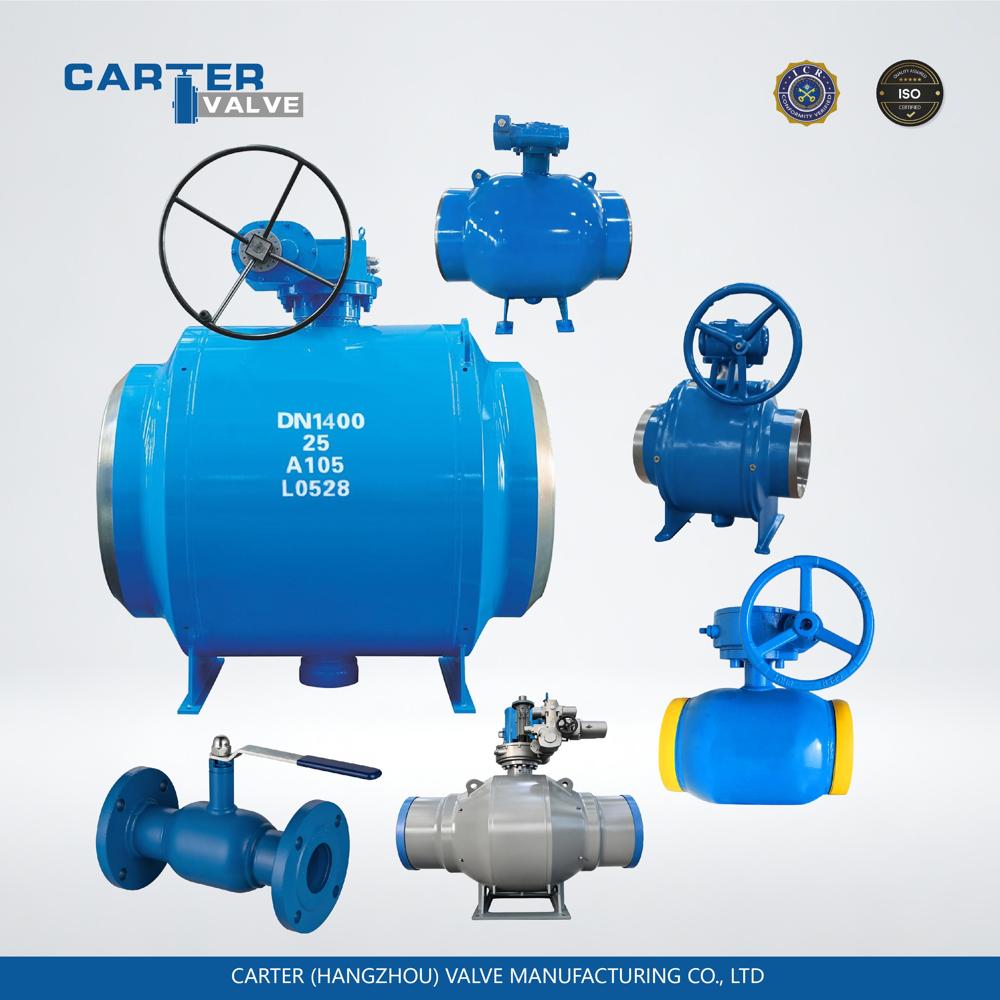

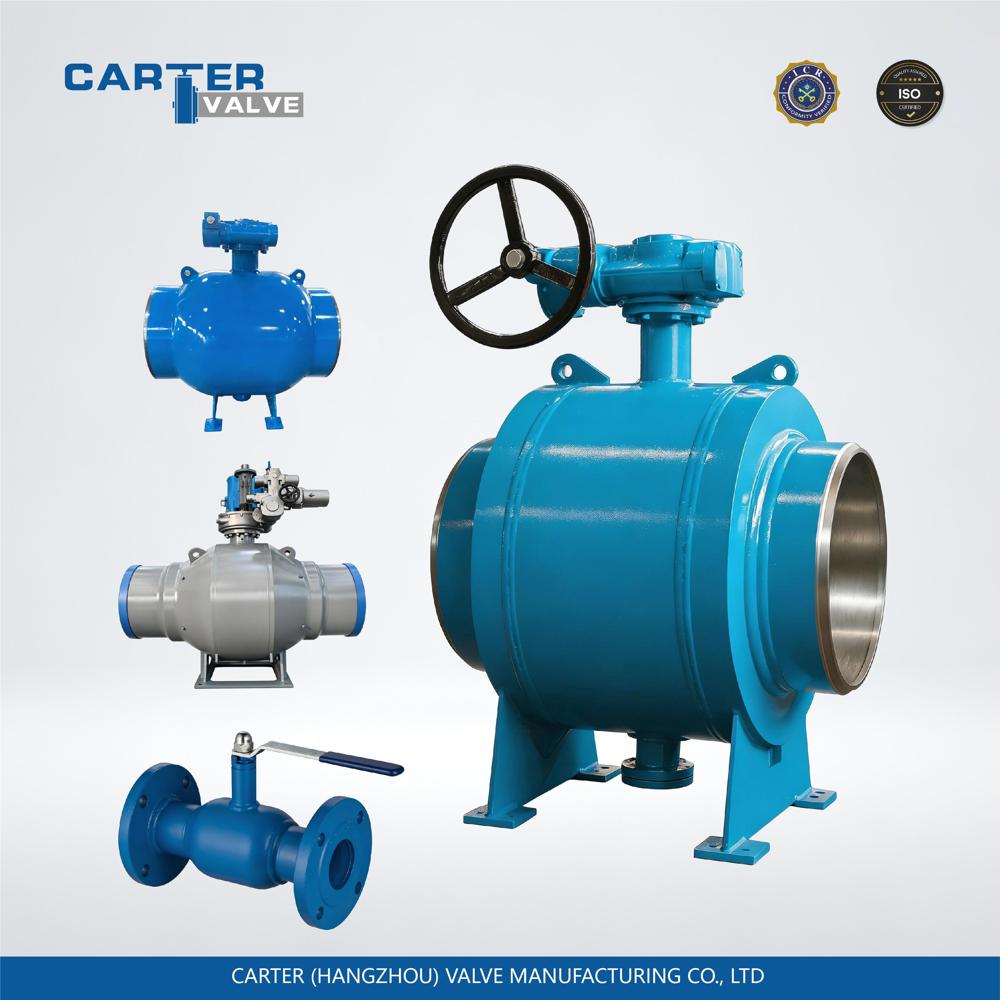

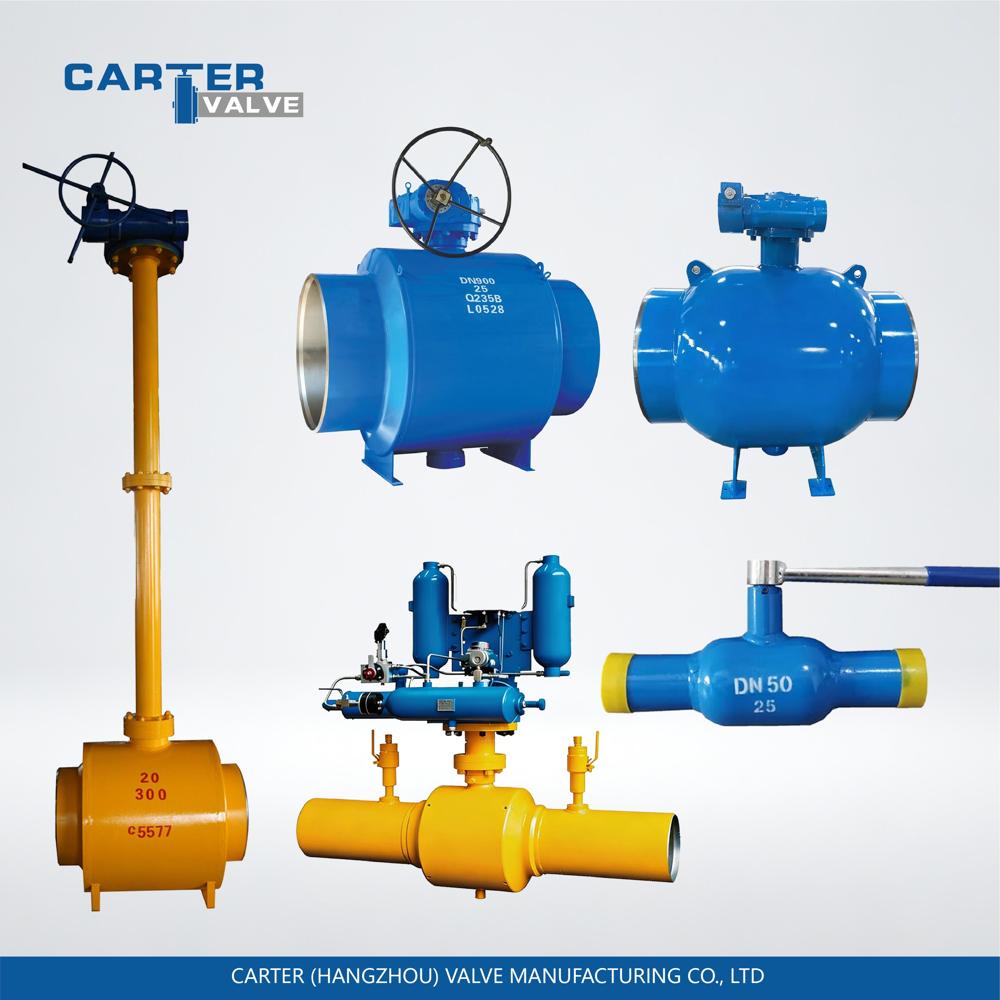

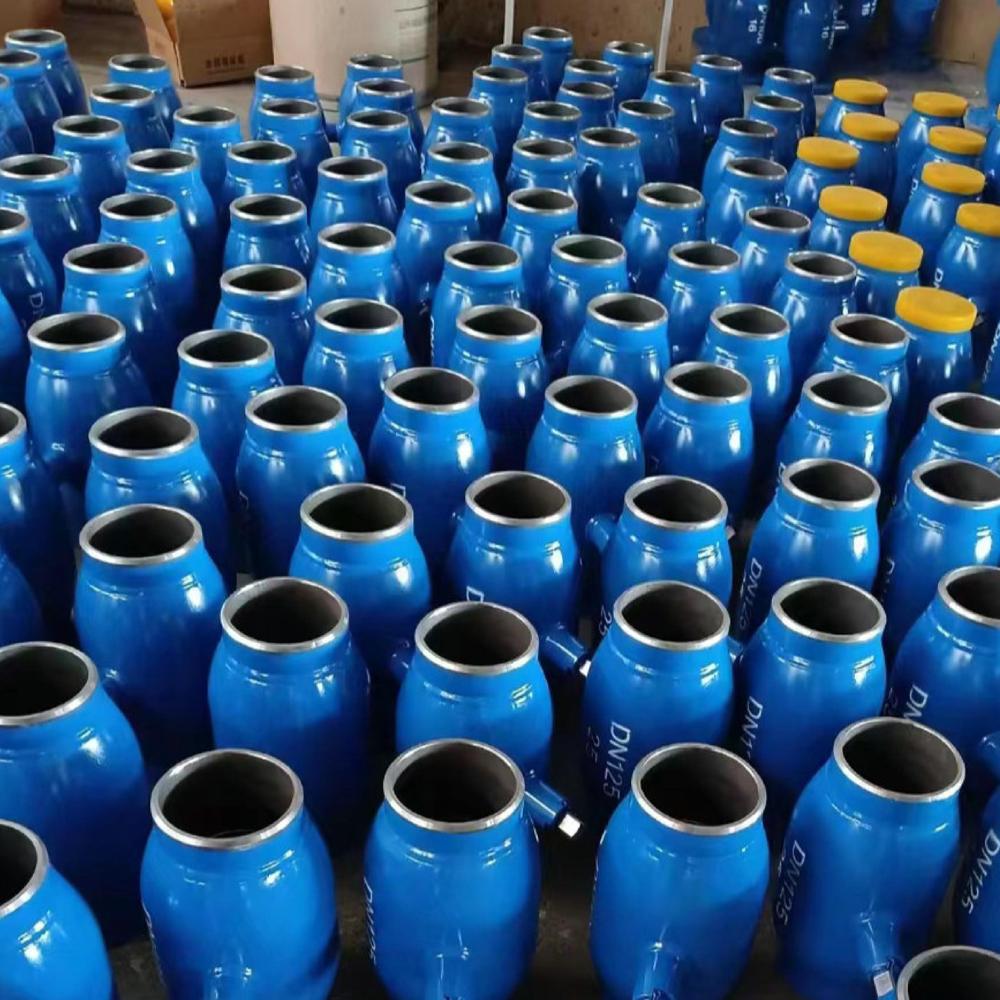

PRODUCT INTRODUCTION

TECHNICAL SPECIFICATIONS

• Nominal Diameter (DN): DN10 ~ DN1600mm (standard), large diameter customizable
• Nominal Pressure (PN/Class): PN1.6 ~ 42.0MPa (Class 150 ~ Class 2500)
• Applicable Temperature:
  • Standard soft seal: -29 ~ 200
  • Low temperature type: -60 ~ -196
  • High temperature hard seal: up to 600
• Connection method: Butt weld, socket weld, flange
• Drive mode: Manual, worm gear drive, electric, pneumatic (explosion-proof optional), gear drive
• Design standards: API 6D, ASME B16.34, GB/T 12221, API 607 (fire-safe)
• Test standard: API 598
• Sealing class: Class VI (zero leakage)
• Ball type: Floating ball, fixed ball (common for large diameter/high pressure)
• Fire-safe structure: Compliant with API 6FA, API 607; metal seal automatically activates if soft seal fails

MAIN COMPONENT MATERIALS

1. Valve Body Material

• Carbon steel: A105, WCB, ST37 (for standard conditions, natural gas, water, steam)
• Stainless steel: CF8 (304), CF8M (316), 316L (for corrosive media)
• Alloy steel: Low temperature steel LCB/LCC, Cr-Mo steel (for high temperature and high pressure conditions)

1. Ball / Core

• Stainless steel: SS304, SS316, F316L (standard configuration)
• Hardened treatment: Surface hard chromium plating, spray welding of nickel-based alloy, Stellite alloy (wear and erosion resistant)

1. Valve Stem

• 2Cr13, 304, 316, Inconel alloy (corrosion-resistant, anti-blowout structure)

1. Seat / Sealing Ring

• Soft seal: Reinforced PTFE (RPTFE, 25% carbon fibre), Viton (fluororubber), PTFE
• Hard seal: Stellite cobalt-based alloy, hard alloy (high temperature and wear-resistant conditions)

1. Spring / Fasteners

• Spring: Stainless steel spring, Hastelloy spring
• Gasket / Packing: Flexible graphite, Viton, stainless steel wound gasket

PRODUCT FEATURES

• Zero external leakage, extremely high safety: The fully welded structure completely eliminates the leakage channels of flange and bolt connections, achieving theoretical zero external leakage, suitable for flammable, explosive, toxic and valuable media.
• High structural strength, strong adaptability to working conditions: The overall welded structure has high rigidity, which can withstand high pressure, temperature fluctuations, soil pressure, earthquakes and water hammer shocks, not easy to deform or crack.
• Corrosion-resistant, suitable for buried installation: The continuous and smooth valve body surface can be fully coated with FBE or 3LPE anti-corrosion layer; without flange gaps and bolt holes (corrosion weak points), it can be directly buried underground without large valve pits.
• Low flow resistance, high flow capacity: Straight-through full bore design with extremely low fluid resistance, low pressure loss and high transmission efficiency.
• Quick opening/closing, easy operation: The ball can be opened and closed by rotating 90, with precision machining and spring-loaded seats, the operating torque is small, easy for manual or driven operation.
• Long service life, maintenance-free: No external bolts to tighten, reliable and wear-resistant sealing, service life of 20~30 years under normal working conditions, basically maintenance-free during the period.
• Lightweight and economical: Compared with flange ball valves of the same specification, the weight is reduced by 15%~30%, with less material consumption and low transportation and installation costs.
• Fire-safe, anti-static and explosion-proof: Compliant with API 607 fire-safe standard; equipped with anti-static structure, valve stem resistance < 10 ohms; valve stem anti-blowout and explosion-proof design.
