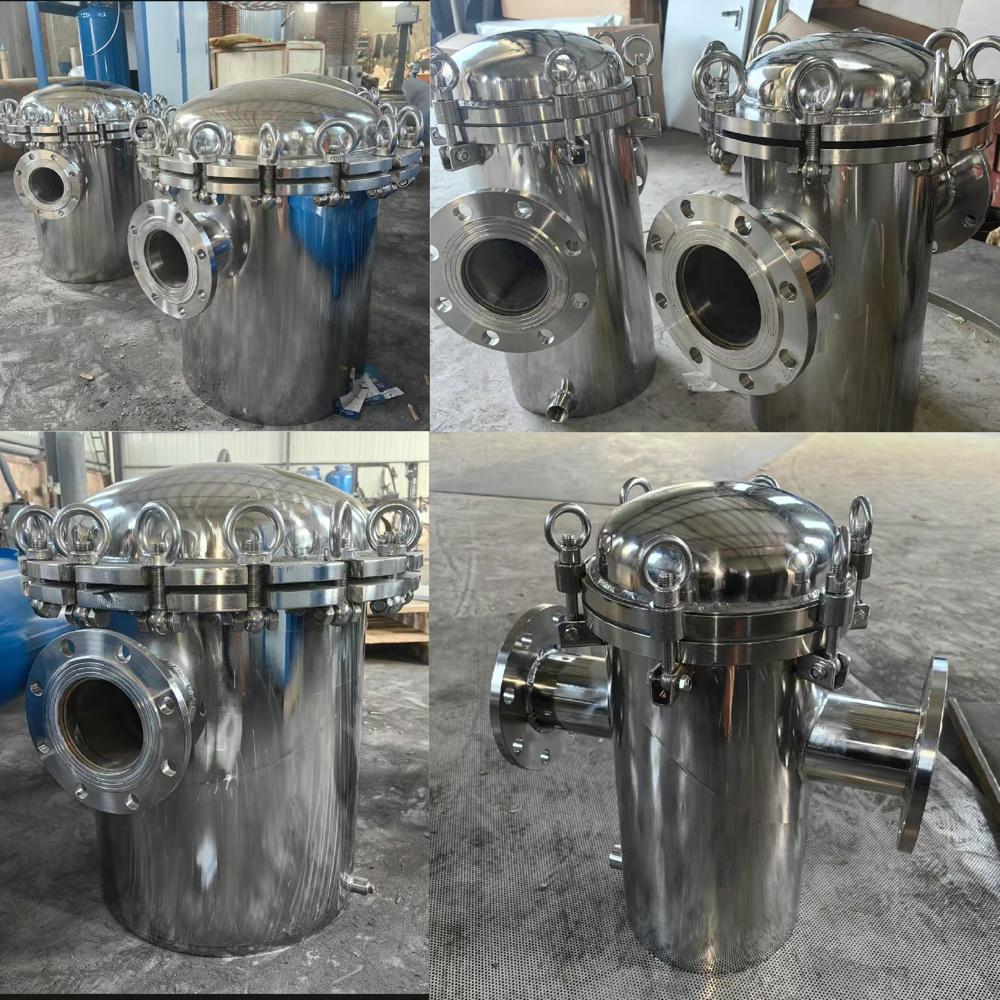

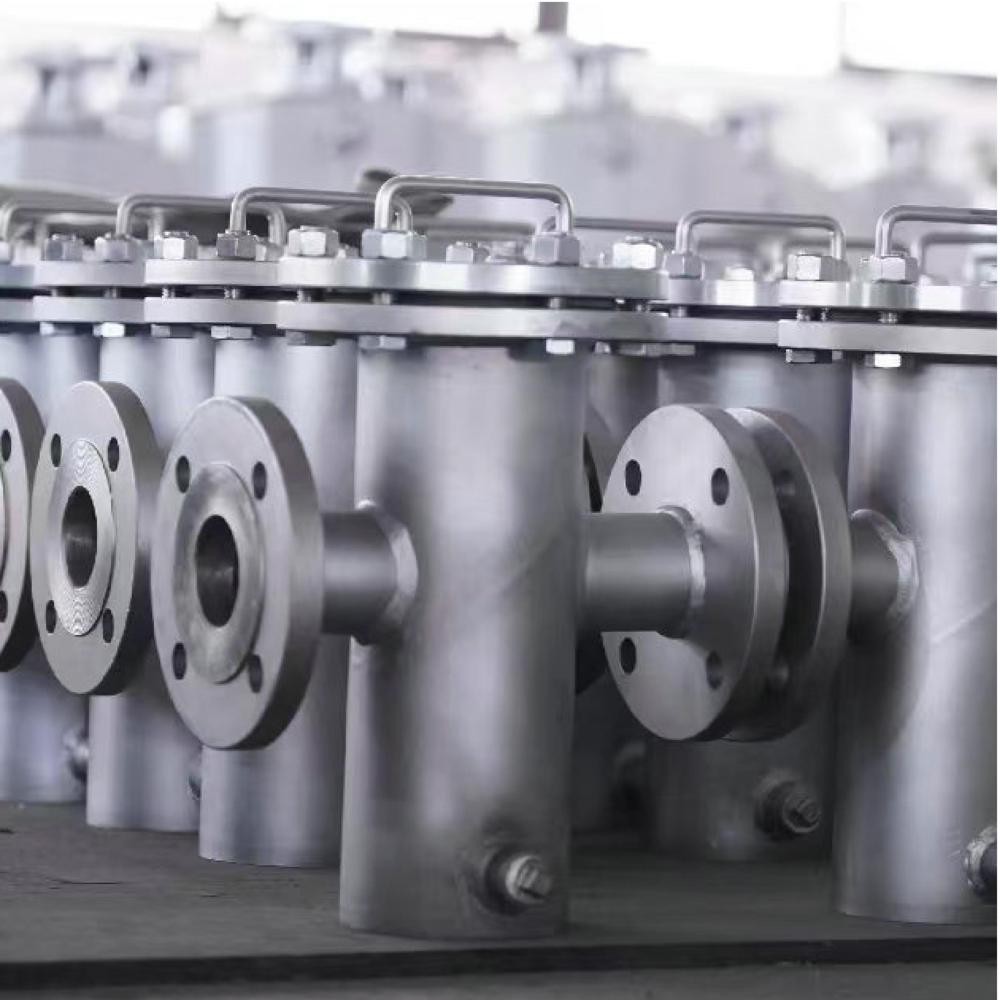

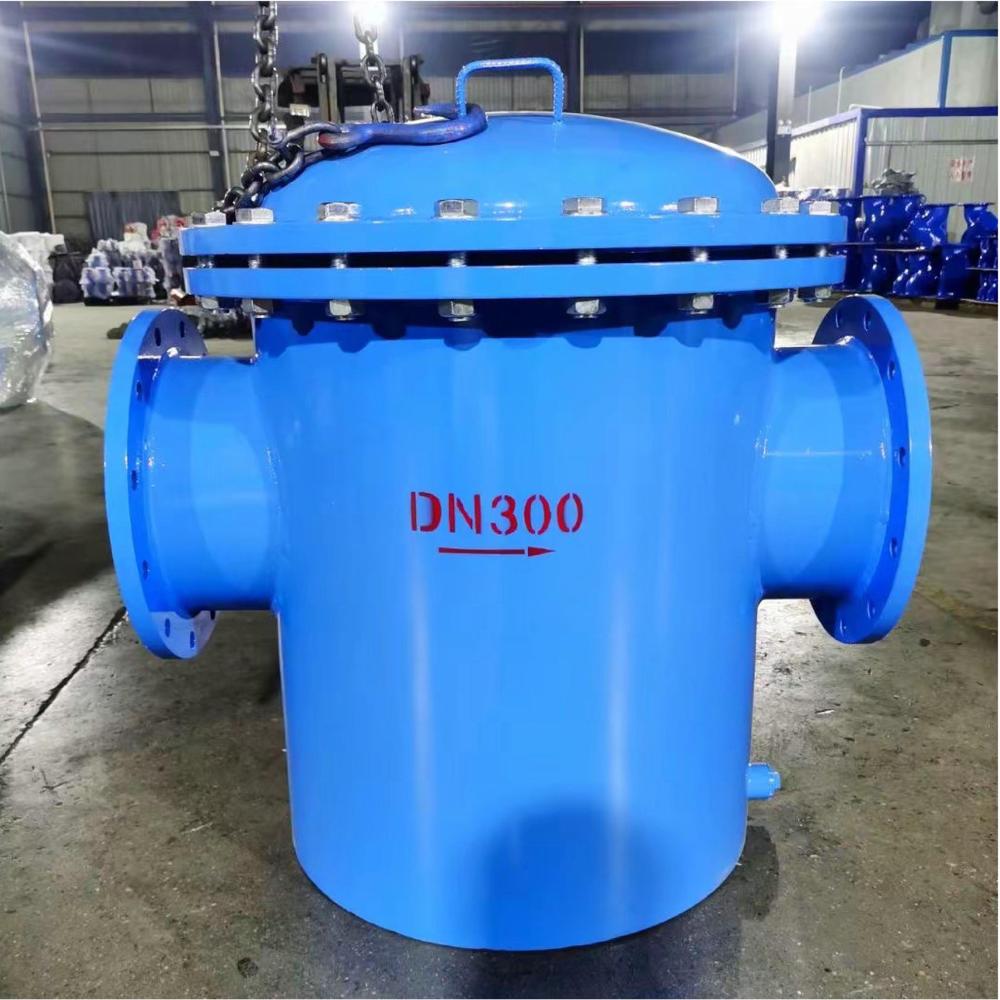

Industrial Pipeline Strainer,Basket-Type,304 Stainless Steel CF8,RF Flanged,ANSI/API Standard,Easy to Clean Filter for Food,Beverage and Pharmaceutical Industry

Product Description

A strainer is a core device installed in pipelines or equipment systems to remove solid impurities, particles and contaminants from fluids (liquids, gases), ensuring the normal operation of subsequent equipment such as pumps, valves, instruments and precision components, and optimizing medium quality.

It typically consists of a housing, a strainer element / screen, seals and connectors, and achieves solid-liquid or solid-gas separation through interception, screening, deep adsorption and other mechanisms. It is widely used in petrochemical, water treatment, HVAC, food and pharmaceutical, power, metallurgy and other industries.

  Nominal Diameter (DN): 151200 mm (matched to pipeline)

  Nominal Pressure (PN): PN10PN100 (1.010.0 MPa)

  Operating Temperature: -40480 (material dependent)

  Filtration Rating: 0.01 m (precision)2000 m (coarse filtration)

  Pressure Loss: 0.010.1 MPa (clean condition)

  Material Grades:

 Civil: Carbon steel

 Industrial: 304 stainless steel

 Corrosive / Hygienic service: 316L, duplex stainless steel, titanium alloy

Body Material

Carbon Steel (Q235, 20#)Features: High strength, low cost, not corrosion resistant

Application: Water, oil products, neutral gases, normal temperature and pressure

304 Stainless Steel Features: Resistant to weak acids and alkalis, rust-proof, hygienic

Application: General chemical applications, water, food, air

316L Stainless Steel Features: Resistant to strong acids, alkalis, chloride ions, high temperature

Application: Seawater, brine, highly corrosive media, pharmaceutical applications

Duplex Steel / Hastelloy / Titanium Alloy

Features: Extreme corrosion resistance, high temperature and pressure resistance

Application: Extreme corrosion, high temperature working conditions

Applicable Environment:

Water Treatment: Tap water, circulating water, sewage, pure water, seawater desalination (security / precision / self-cleaning)

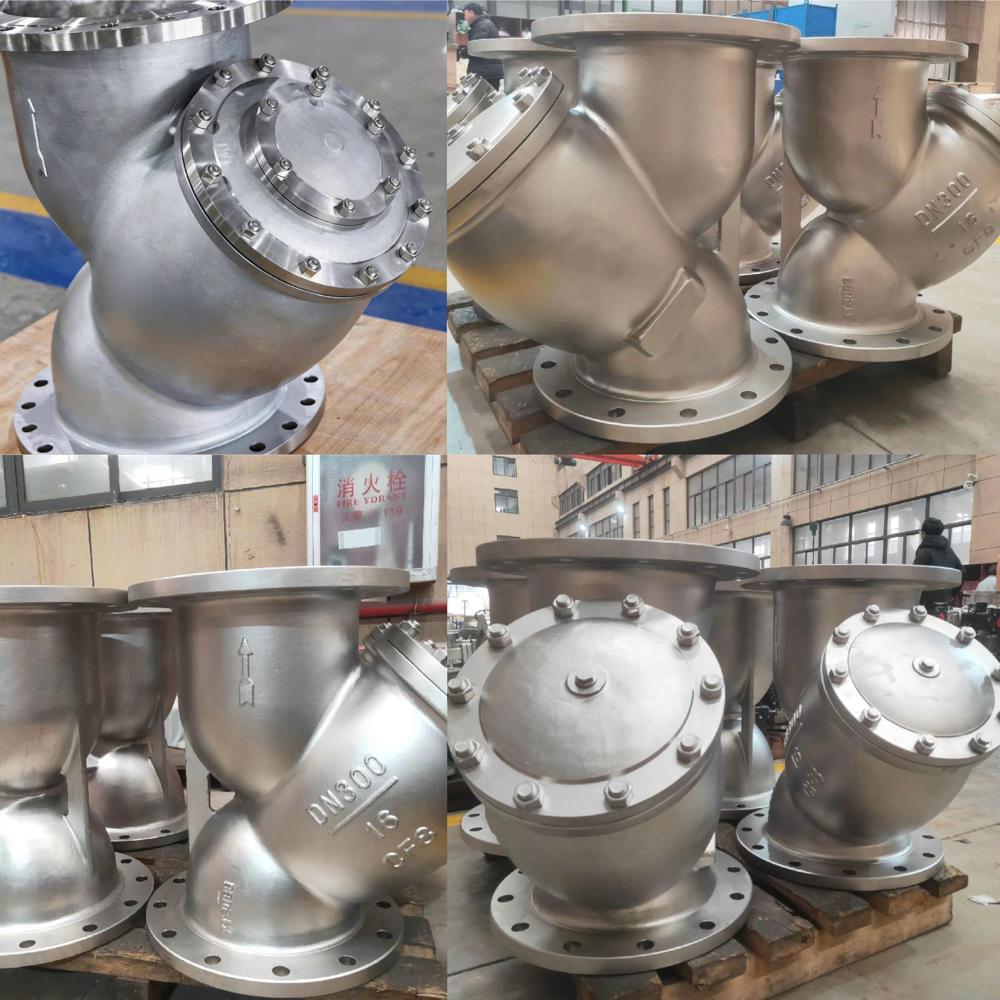

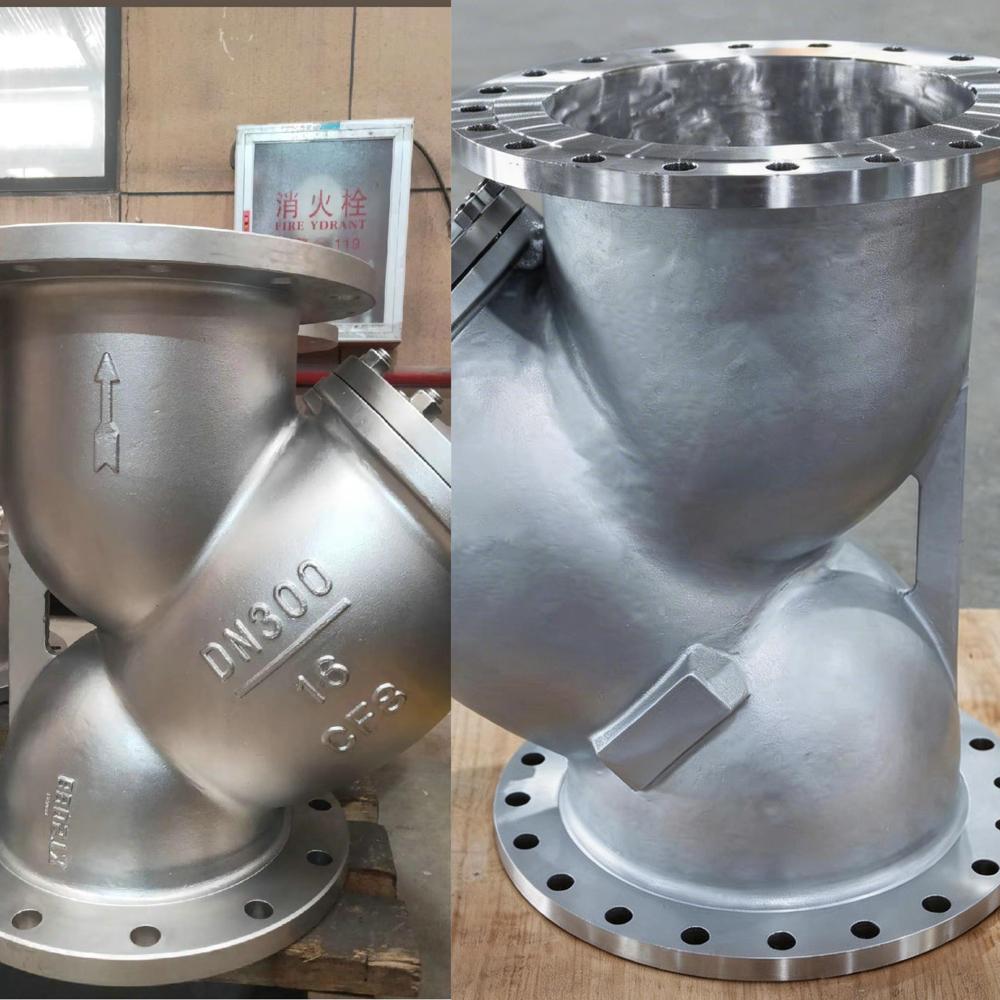

Petrochemical: Oil products, solvents, acids and alkalis, gas (Y-type, basket, precision)

Power & Metallurgy: Cooling water, sewage, mud, flue gas (basket, T-type, self-cleaning)

Food & Pharmaceutical: Beverages, syrup, medical liquid, sterile water (bag-type, precision, sanitary grade)

HVAC: Chilled water, hot water, steam, air (Y-type, basket)

Marine: Seawater, fuel oil, lubricating oil (316L basket, Y-type)Pneumatic & Hydraulic: Compressed air, hydraulic oil (precision, mesh type)
