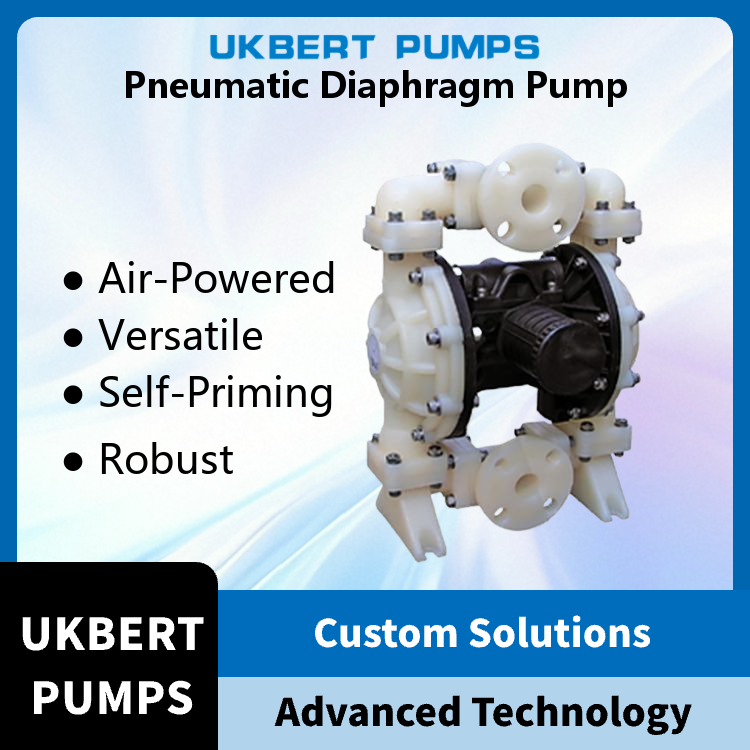

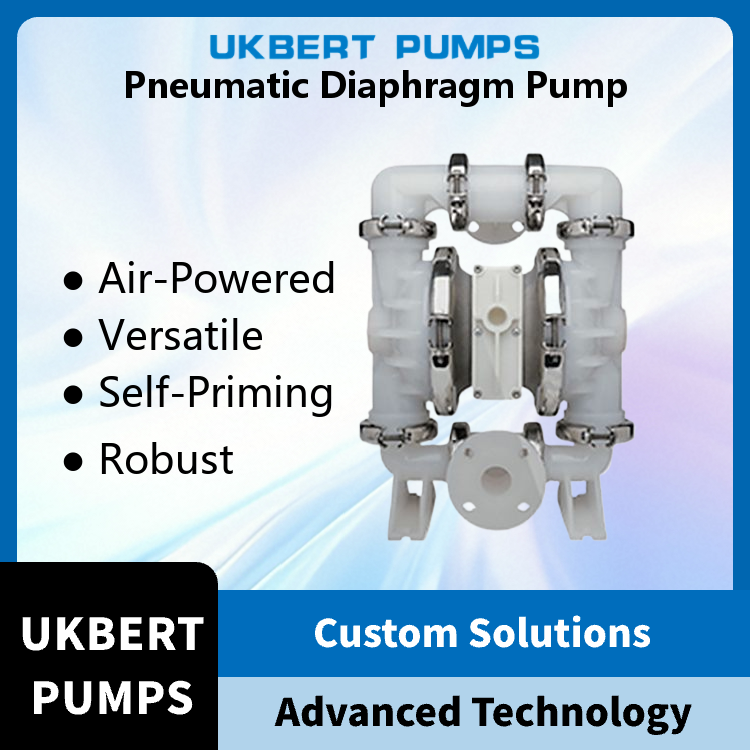

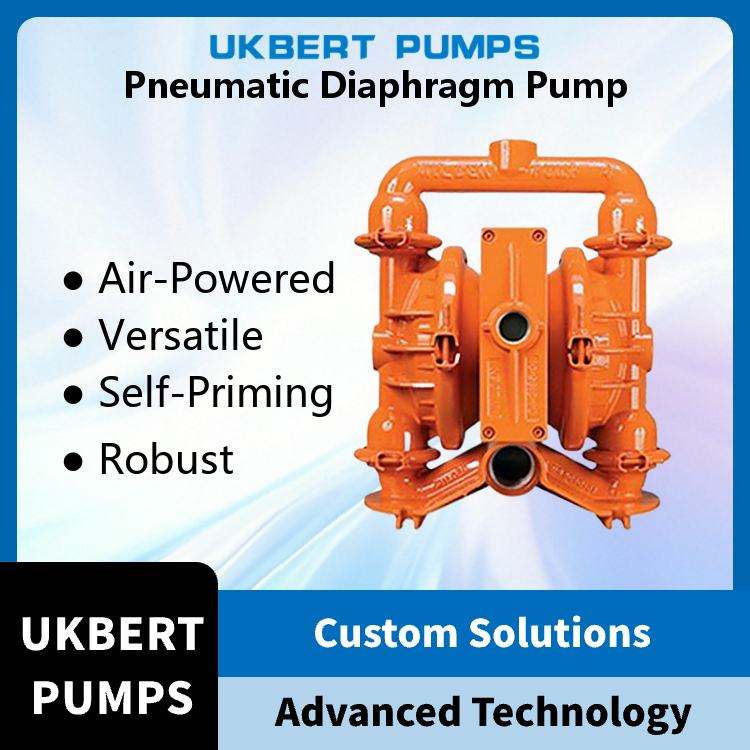

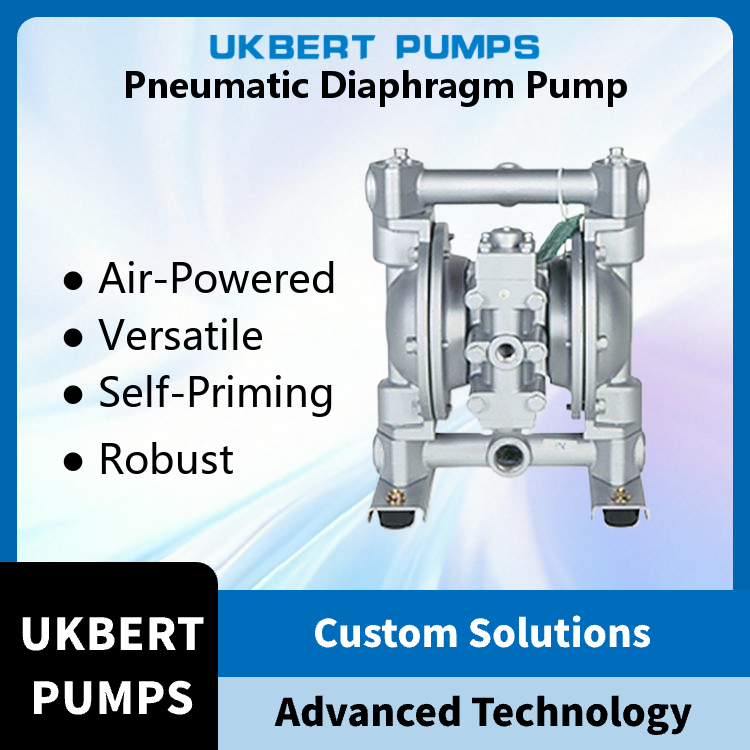

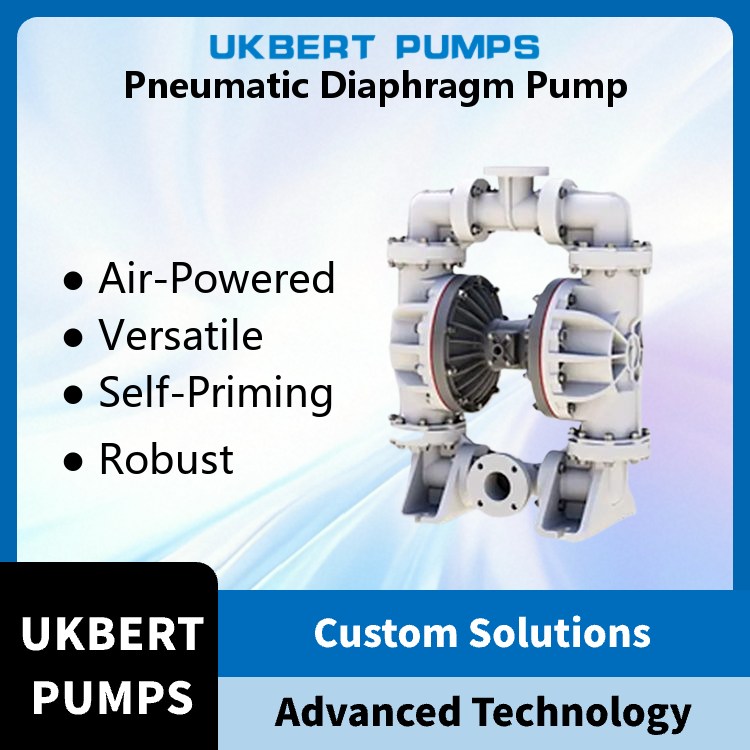

Large Flow Pneumatic Diaphragm Pump

Product Description

• When one diaphragm expands, it sucks fluid into the pump cavity; the other diaphragm contracts to push fluid out, ensuring continuous large-flow transfer;

• No electric drive is needed, and the air distribution valve automatically switches airflow to maintain stable operationavoiding leakage risks from mechanical seals.

• Large Flow Output: Meets high-volume transfer needs, with no flow pulsation;

• Air-Driven Safety: Explosion-proof (no electric components), suitable for flammable/explosive environments;

• Strong Adaptability: Handles media with solid particles (5mm), high viscosity (up to 10,000 cP), and corrosive properties (e.g., acids, alkalis);

• Low Maintenance: No rotating parts or mechanical seals, reducing wear and maintenance costs;

• Self-Priming Capacity: Self-priming lift up to 8m, no need for pre-filling the pump.

• Flow Range: 50 m/h - 200 m/h (adjustable via air pressure);

• Max Discharge Pressure: 0.8 MPa (8 bar);

• Temperature Resistance: -15 - 120;

• Air Supply Requirement: 0.3 - 0.8 MPa compressed air.

• Wastewater Treatment: Transfer of sludge, sewage with impurities;

• Mining Industry: Conveying of ore slurry, coal slurry;

• Chemical Industry: Large-volume transfer of corrosive solvents, resins;

• Food & Beverage: Transfer of syrup, fruit pulp, and viscous food materials;

• Construction: Pumping of paint, coatings, and cement grout.
