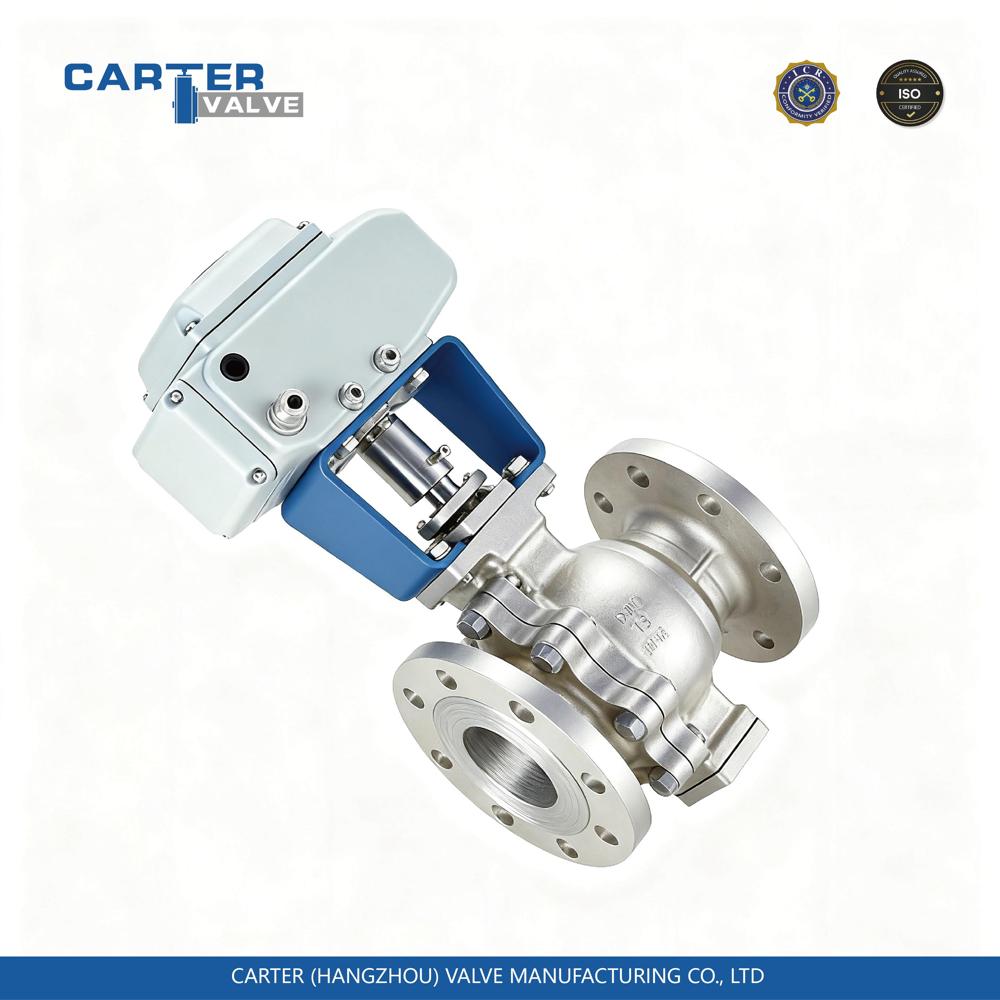

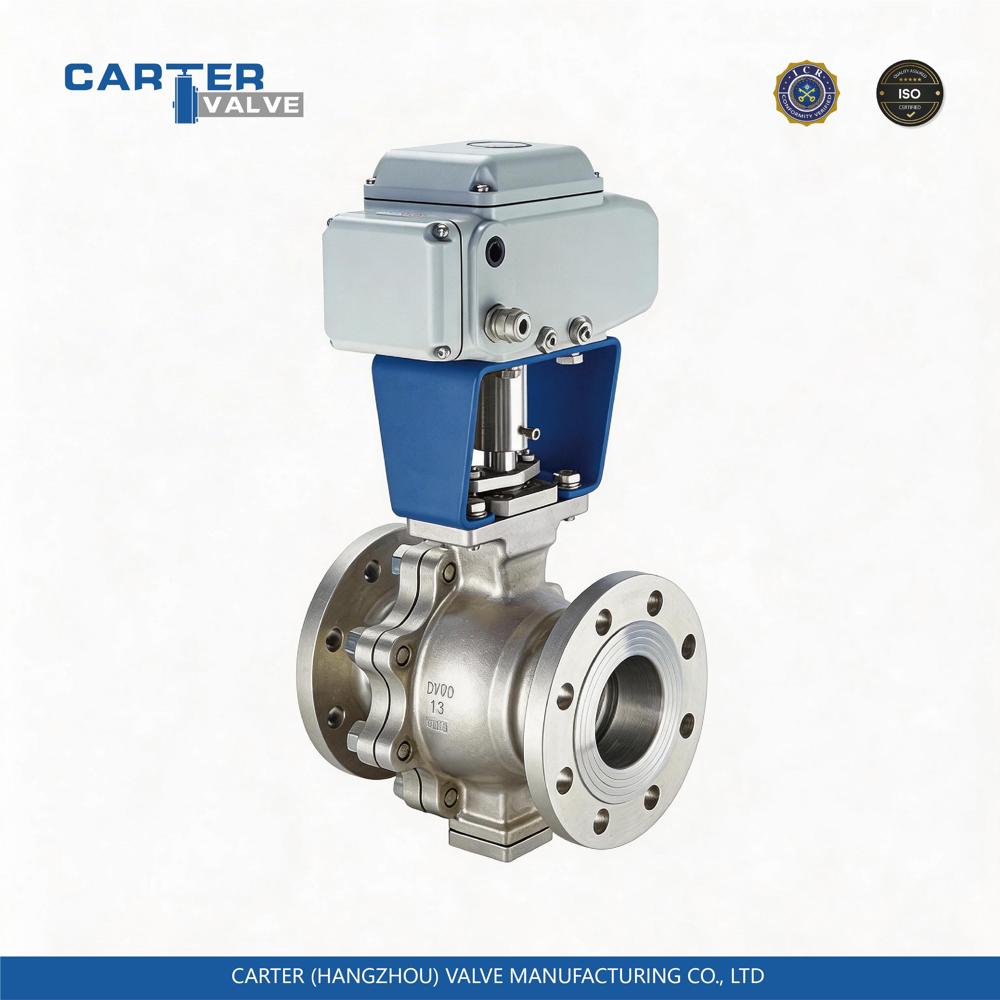

On-Off Ball Valve / Shut Off Ball Valve, Stainless Steel, Flanged, Pneumatic Actuated, Full Bore Structure, Oil/Gas/Chemical Media, API 6D Standard

On-Off Ball Valve / Shut Off Ball Valve, Stainless Steel, Flanged, Pneumatic Actuated, Full Bore Structure, Oil/Gas/Chemical Media, API 6D Standard

Name: Large Flow Pneumatic Diaphragm Pump
Brand: UK BERT PUMPS INDUSTRY CO., LIMITED
Price: 37725.0 INR
Availability: InStock

2000.0 INR/Piece

Get a Price/Quote

Product Details:

Material Stainless steel, carbon steel
Valve Type "O" Type Cut-off Ball Valve
Valve Size DN25 ~ 300mm
Features Low flow resistance, high rated flow coefficient, wear-resistant ball core, anti-blowout stem, fire-safe design, anti-static device, pneumatic/electric actuators interchangeable
Control System Electric (intelligent/regulating), pneumatic, manual actuators; double-piston gear rack, fork-type, or electronic electric actuator structures
Application Suitable for media including water, oil, steam, syrup, fibers, particles, and pulp
Structure Ball
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

On-Off Ball Valve / Shut Off Ball Valve, Stainless Steel, Flanged, Pneumatic Actuated, Full Bore Structure, Oil/Gas/Chemical Media, API 6D Standard Price And Quantity

Price 2000.0 INR/Piece
Minimum Order Quantity 1 Piece

On-Off Ball Valve / Shut Off Ball Valve, Stainless Steel, Flanged, Pneumatic Actuated, Full Bore Structure, Oil/Gas/Chemical Media, API 6D Standard Product Specifications

Pressure 1 mpa
Material Stainless steel, carbon steel
Structure Ball
Media Gas, Base, Water, Acid, Oil
Size DN25 ~ 300mm
Port Size DN25 ~ 300mm
Application Suitable for media including water, oil, steam, syrup, fibers, particles, and pulp
Sealing Carbon fiber-reinforced PTFE seat, with fire-safe metal backup seal; zero leakage performance
Type Cut-off / shut-off ball valve
Control System Electric (intelligent/regulating), pneumatic, manual actuators; double-piston gear rack, fork-type, or electronic electric actuator structures
Valve Size DN25 ~ 300mm
Disc Full-bore ball with hardened surface treatment
Features Low flow resistance, high rated flow coefficient, wear-resistant ball core, anti-blowout stem, fire-safe design, anti-static device, pneumatic/electric actuators interchangeable
Product Type "O" Type Cut-off Ball Valve (Floating Ball Valve)
Valve Type "O" Type Cut-off Ball Valve
Temperature -29 C ~ 200 C / -29 C ~ 450 C Celsius (oC)

Product Description

"O" Type Cut-off Ball Valve

Product Introduction

The "O" type cut-off ball valve features a full-bore ball core with a high rated flow coefficient and low flow resistance. The ball core surface is specially hardened for smoothness and wear resistance. The valve seat is sealed with carbon fiber-reinforced PTFE, minimizing seat wear and providing excellent sealing performance, long service life, and strong cutting capability. Actuators are available in high-performance double-piston gear rack, fork-type, or electronic electric configurations, offering high transmission efficiency and compact structure.

Technical Specifications

Nominal Diameter: DN25 ~ 300mm
Pressure Rating: PN1.6 ~ 10.0MPa (150lb ~ 600lb)
Operating Temperature: -29C ~ 200C / -29C ~ 450C
Applicable Media: Water, oil, steam, syrup, fibers, particles, pulp
Structure Type: Floating ball valve
Valve Material: Stainless steel, carbon steel
Actuation: Electric (including intelligent/regulating type), pneumatic, manual

Product Features

Valve Seat Limit Structure (Torque Stability)

The valve seat sealing ring is properly preloaded and limited, significantly reducing operating torque. A spring at the bottom of the seat maintains torque stability.
Anti-Blowout Stem Design (Safety & Reliability)

The bottom-loaded stem prevents it from being blown out by excessive medium pressure, eliminating safety hazards.
Fire-Safe Design (Sealing After Fire Exposure)

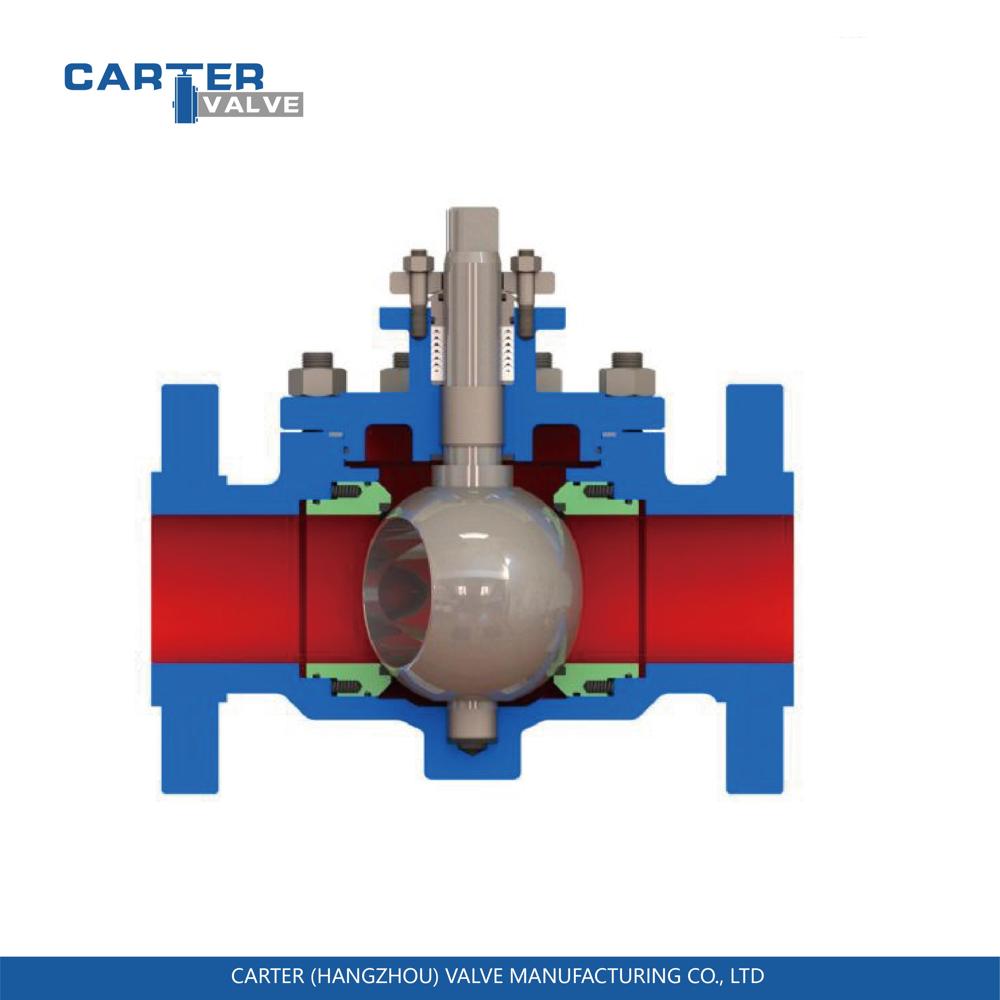

The soft seat is a combined structure of a stainless steel seat with a sealing face wrapped in PTFE. A small gap exists between the stainless steel seat and the ball. If the PTFE ring is destroyed by fire, the floating ball is pressed against the stainless steel seat by medium pressure, and the seat spring pushes the seat toward the ball, creating a metal-to-metal seal.
Anti-Static Device (Static Electricity Discharge)

An easily installed anti-static device keeps the ball, stem, and valve body continuously connected, discharging static electricity generated by friction during operation.
Standard Actuators

Pneumatic and electric actuators are interchangeable.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Valve' category

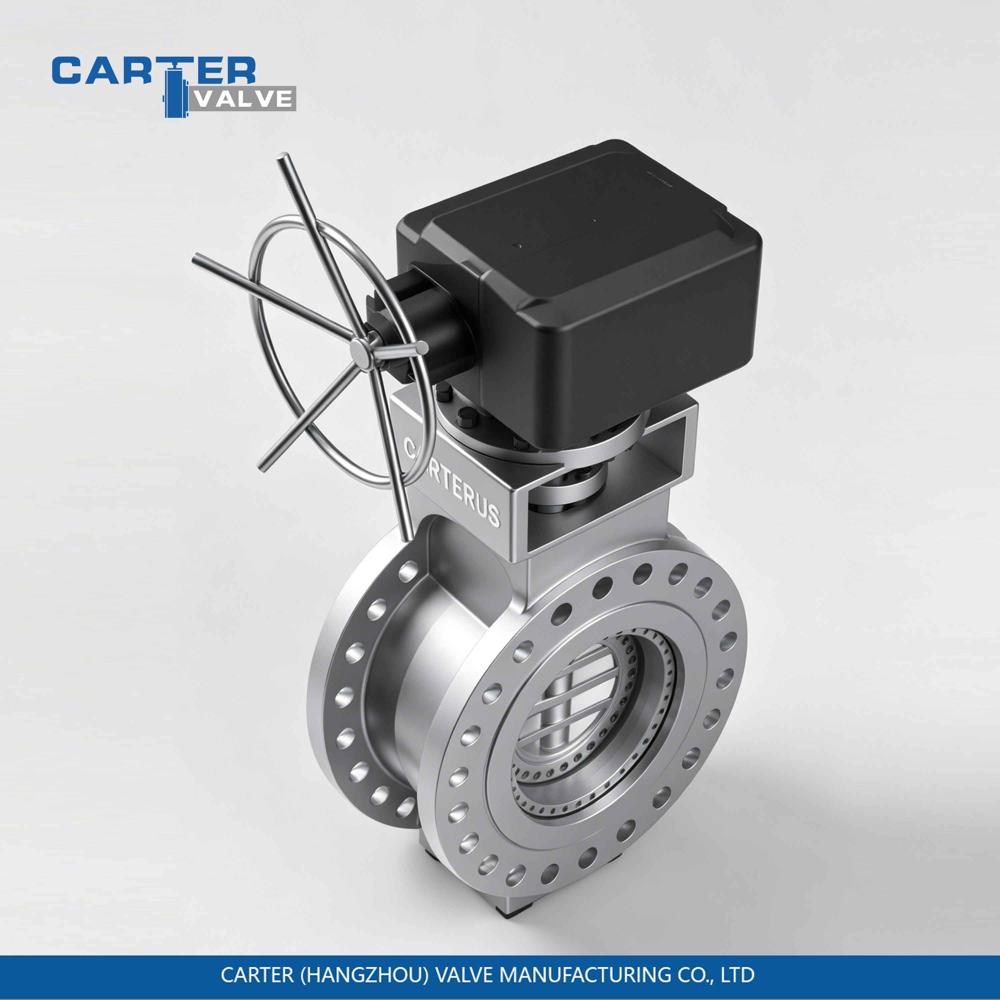

Six Eccentric Butterfly Valve / Multi Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Six Offset Structure, High Temperature Gas/Steam, API 609 Standard Price : 1000.0 INR/Piece Minimum Order Quantity : 1 Usage : Industrial Product Type : Sixeccentric Butterfly Valve Sealing : Bidirectional zero leakage, Class VI, metaltometal hard seal + composite seal Connection Type : Wafer, Lug, Flanged, Welded Application : Ultrasupercritical power plants, highend petrochemical plants, LNG, coal chemical, vacuum pipelines, longdistance gas transmission Material : Cast Steel, Stainless Steel, Special Alloys Temperature : 196 C ~ 1100 C Celsius (oC) Valve Type : Butterfly Valve Features : Sixdimensional eccentric geometry, zero friction wear, Class VI bidirectional sealing, low operating torque, energysaving, long service life Valve Size : DN40 DN1200 Control System : Manual / Electric / Pneumatic Size : DN40 DN1200 Media : Gas, Base, Water, Oil, Acid, Other Structure : Butterfly Port Size : DN40 DN1200 Type : Butterfly Valve Pressure : 5, 0, 0, P, N, 2, 5, 0, , /, , 2, L, B mpa
