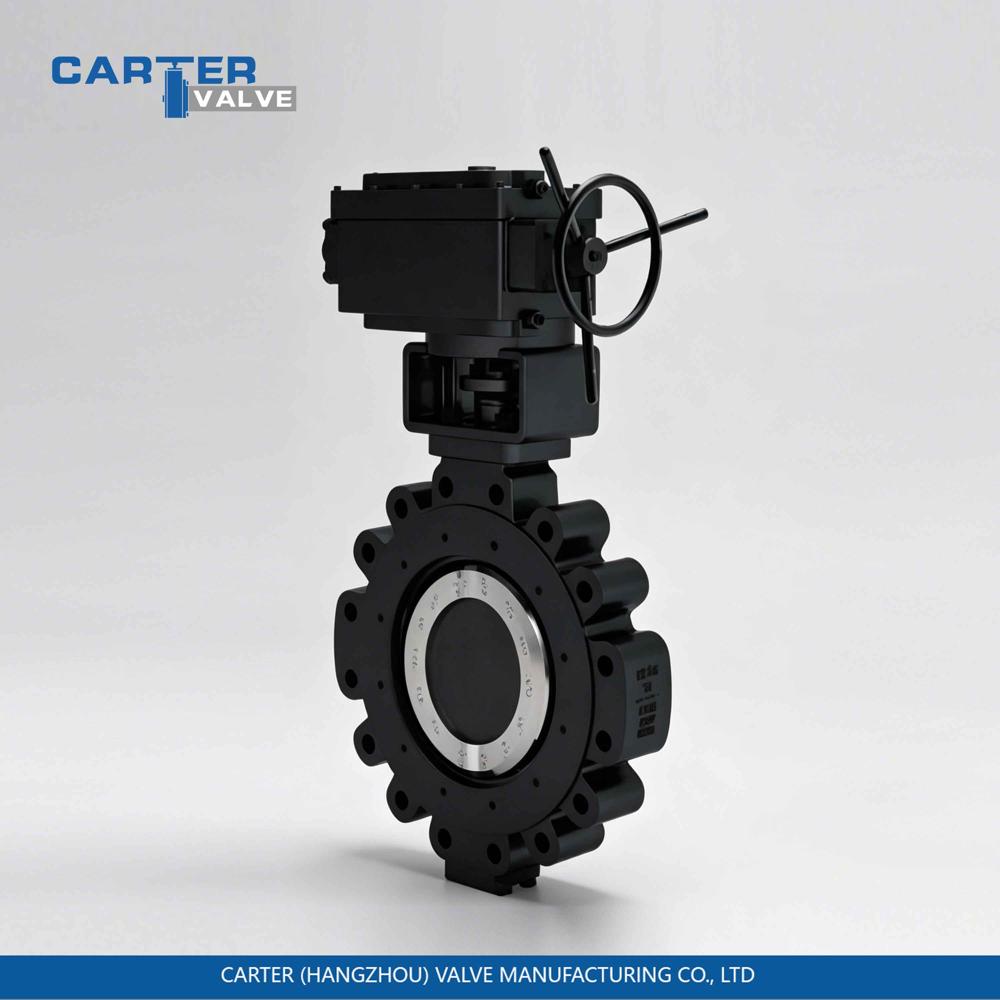

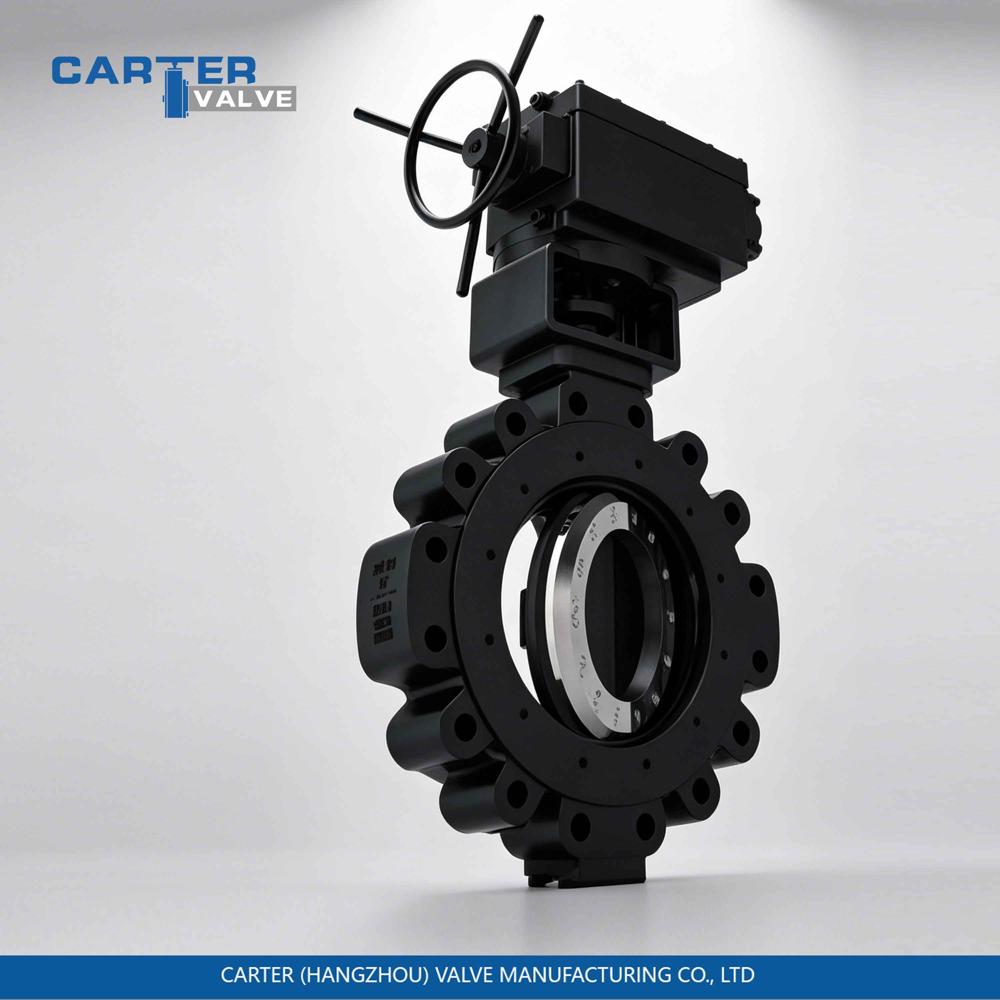

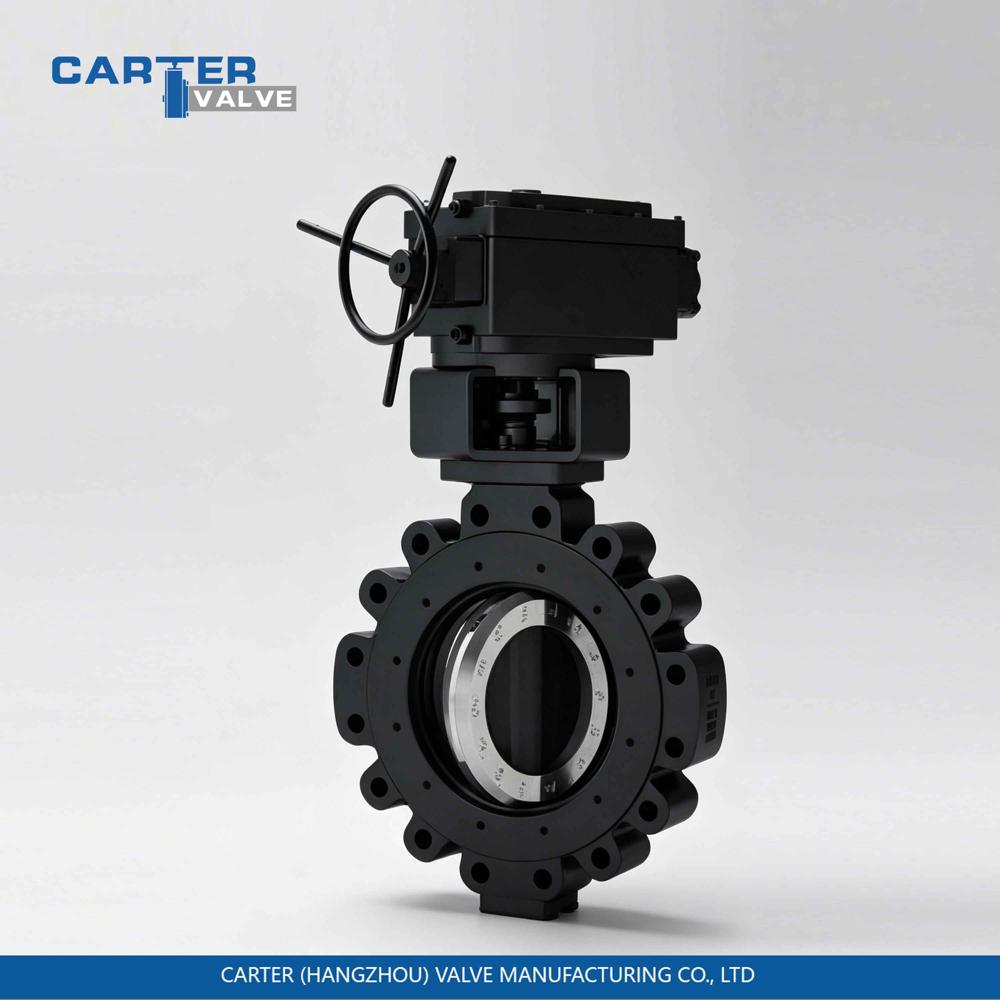

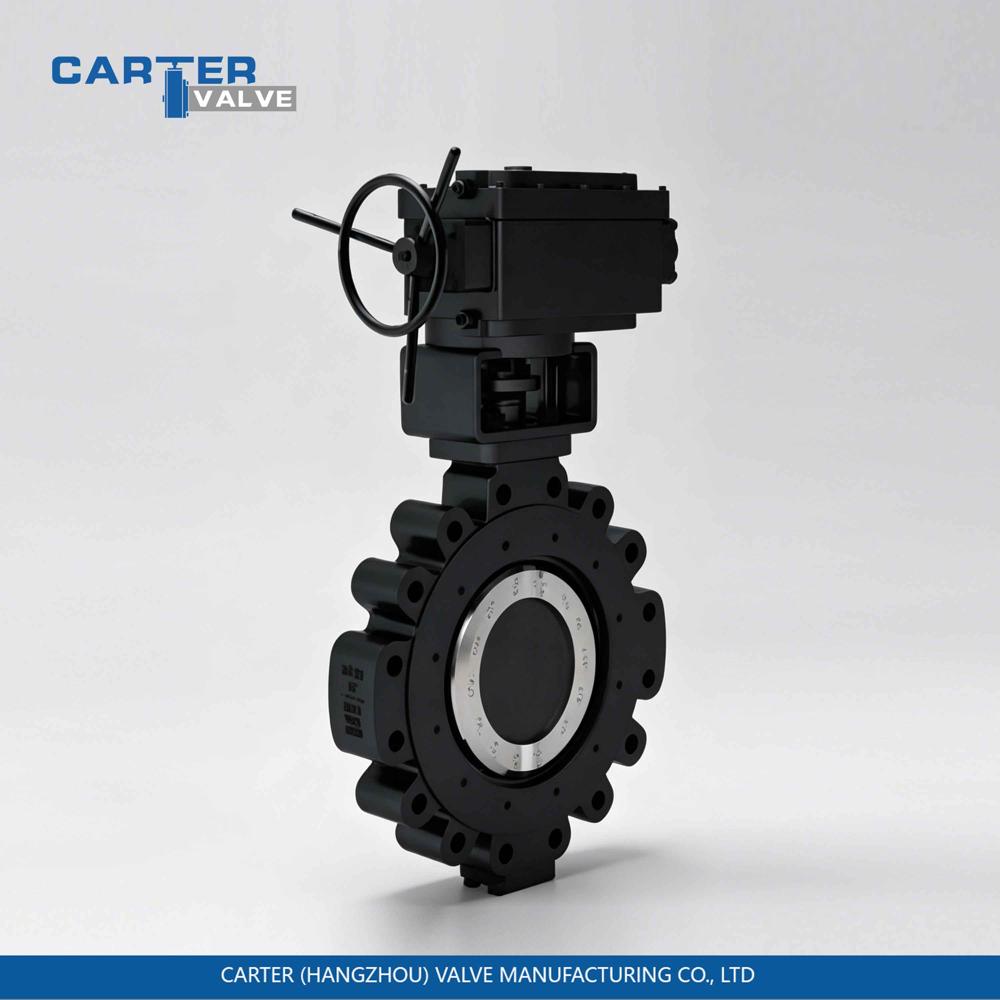

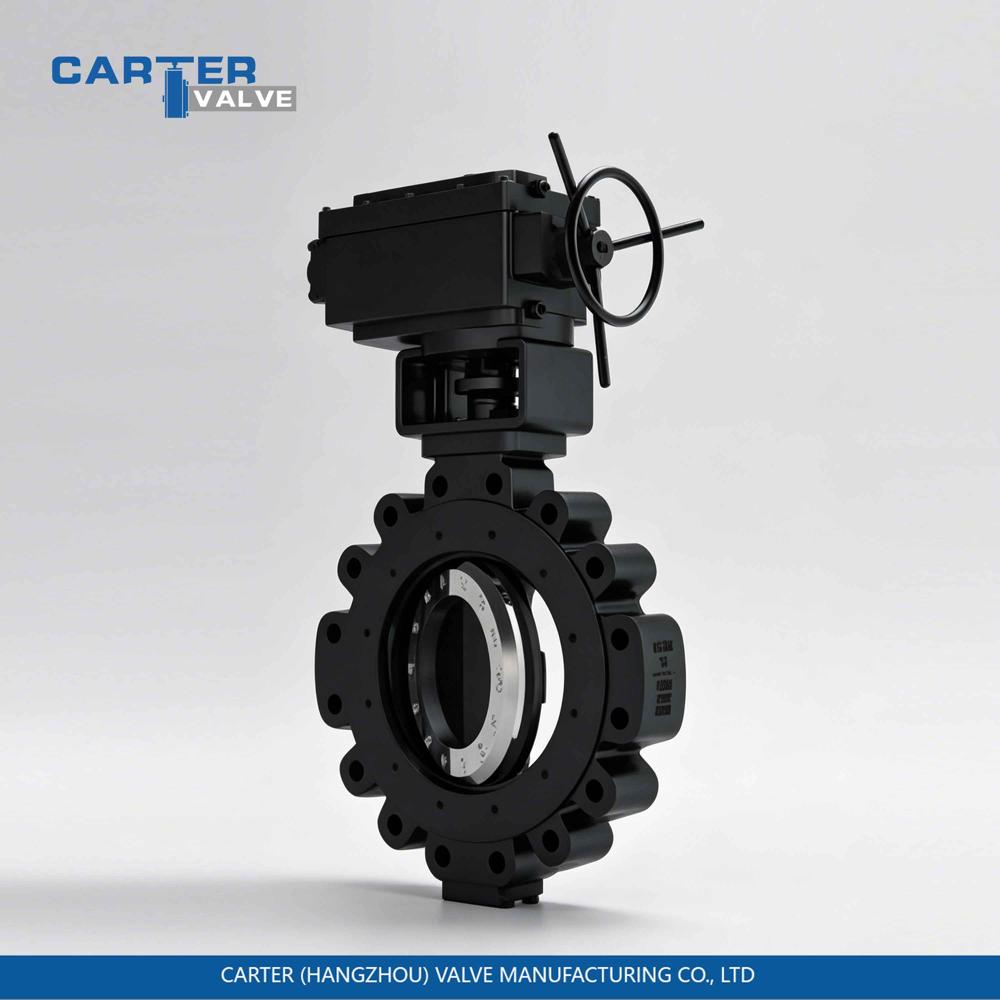

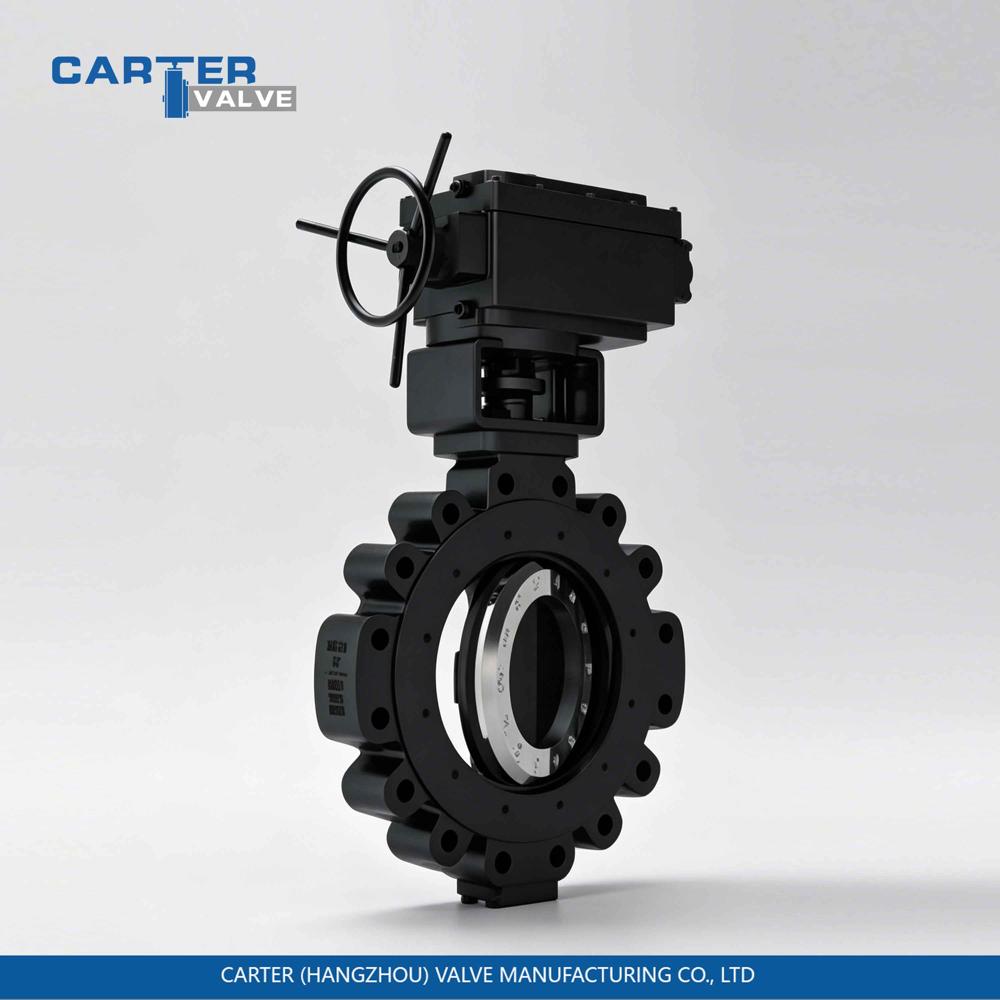

Steam Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Gear Operated, Metal Seated Triple Eccentric Structure, High Temperature Steam, API 609 Standard

800.0 INR/Piece
Get a Price/Quote

Product Details:

  • Valve Size DN40-DN1200
  • Material Cast iron, cast steel, stainless steel
  • Control System Pneumatic, Manual, Electric
  • Features High temperature and pressure resistance, anti-deformation, anti-erosion, low flow resistance, modular design
  • Valve Type Butterfly valve
  • Connection Type Wafer lug flange
  • Application Power plants, heating supply, chemical industry, HVAC thermal pipeline systems
  • Click to view more
Request To Call Back Send Inquiry
X

Steam Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Gear Operated, Metal Seated Triple Eccentric Structure, High Temperature Steam, API 609 Standard Price And Quantity

  • 800.0 INR/Piece
  • 1 Piece

Steam Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Gear Operated, Metal Seated Triple Eccentric Structure, High Temperature Steam, API 609 Standard Product Specifications

  • High temperature and pressure resistance, anti-deformation, anti-erosion, low flow resistance, modular design
  • DN40-DN1200
  • Butterfly valve
  • Wafer lug flange
  • Triple-offset metal hard seal, ANSI Class VI tight shutoff
  • Streamlined disc
  • -, P, N, P, N, 6, 6, 4, ,, , 1, 5, L, B, -, 6, 0, 0, L, B, 0 mpa
  • Power plants, heating supply, chemical industry, HVAC thermal pipeline systems
  • -96 - 550 Celsius (oC)
  • DN40-DN1200
  • Butterfly steam valve
  • Gas, Base, Water, Oil, Acid
  • Pneumatic, Manual, Electric
  • Cast iron, cast steel, stainless steel
  • Butterfly

Steam Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Gear Operated, Metal Seated Triple Eccentric Structure, High Temperature Steam, API 609 Standard Trade Information

  • Cash in Advance (CID), Telegraphic Transfer (T/T)
  • 1000 Piece Per Month
  • Asia
  • All India

Product Description

REASONS TO CHOOSE US

From production to finished goods shipment, we control quality at every step.
  • HIGH QUALITY: Quality is somewhat guaranteed
  • IMPORTED RESOURCES: The resources come from the United States
  • QUALITY CERTIFICATION: Certificate qualifications are complete
  • PLENTY OF STOCK AVAILABLE: Plenty of stock in the warehouse
  • VARIOUS SPECIFICATIONS: Specifications support customization
  • THOUGHTFUL SERVICE: Thoughtful after-sales service

PRODUCT INFORMATION

Product Name: Butterfly steam valve
Nominal Diameter: DN40-DN1200
Nominal pressure: PN6-PN64 150LB-600LB
Applicable Temperature: -96-550
Connection method: Wafer lug flange
Drive mode: Pneumatic Manual, Electric
Valve Material: Cast iron, Cast steel, Stainless steel

PRODUCT INTRODUCTION

A steam butterfly valve is a special valve designed for working conditions such as steam, high-temperature hot water and thermal oil. Most adopt a triple-offset metal hard seal structure, realizing cut-off and flow regulation by 90 rotation of the disc. The valve body is made of high-temperature and high-pressure resistant materials, with hard alloy overlay on the sealing surface. It can withstand the scouring of saturated steam and superheated steam, featuring good tightness, anti-deformation and aging resistance. It is widely used in power plants, heating supply, chemical industry and HVAC thermal pipeline systems.

PRODUCT FEATURES

  1. Suitable for saturated and superheated steam service. Withstands high temperature and pressure. The thickened valve body avoids deformation and leakage under high temperature.
  2. Triple-offset metal hard seal with hard alloy surfacing, anti-oxidation and anti-steam erosion. Reach ANSI Class VI tight shutoff, bi-directional, no steam leakage.
  3. Extended stem and heat dissipation structure isolate high-temperature conduction, protect electric and pneumatic actuators, extend service life and ensure safe operation.
  4. Streamlined disc with low flow resistance and high flow capacity. 90 rotary fast opening/closing, ideal for quick shutoff and regulation in steam pipelines.
  5. Optimized structure adapts to steam condensate conditions, anti-cavitation and thermal shock resistant. No jamming or failure under frequent operation.
  6. Compact and lightweight, save installation space. Modular design for easy disassembly and maintenance with low cost.
