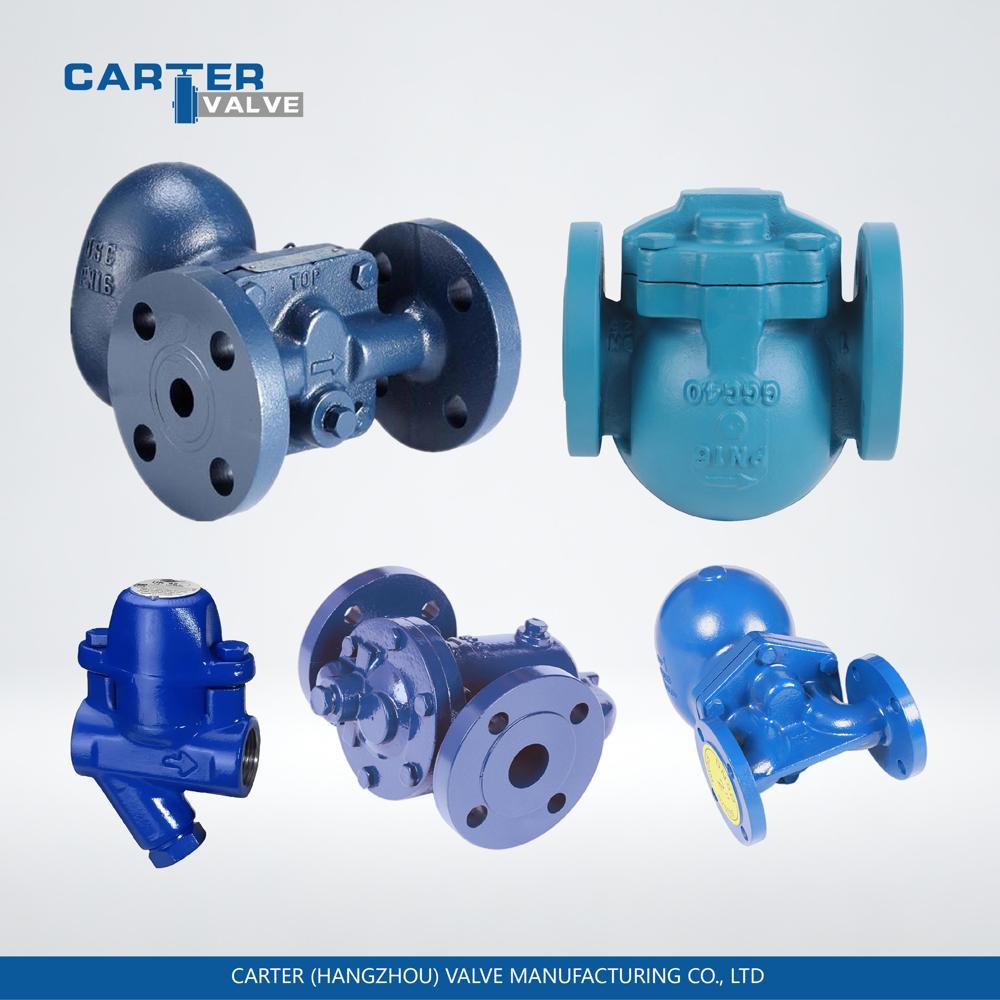

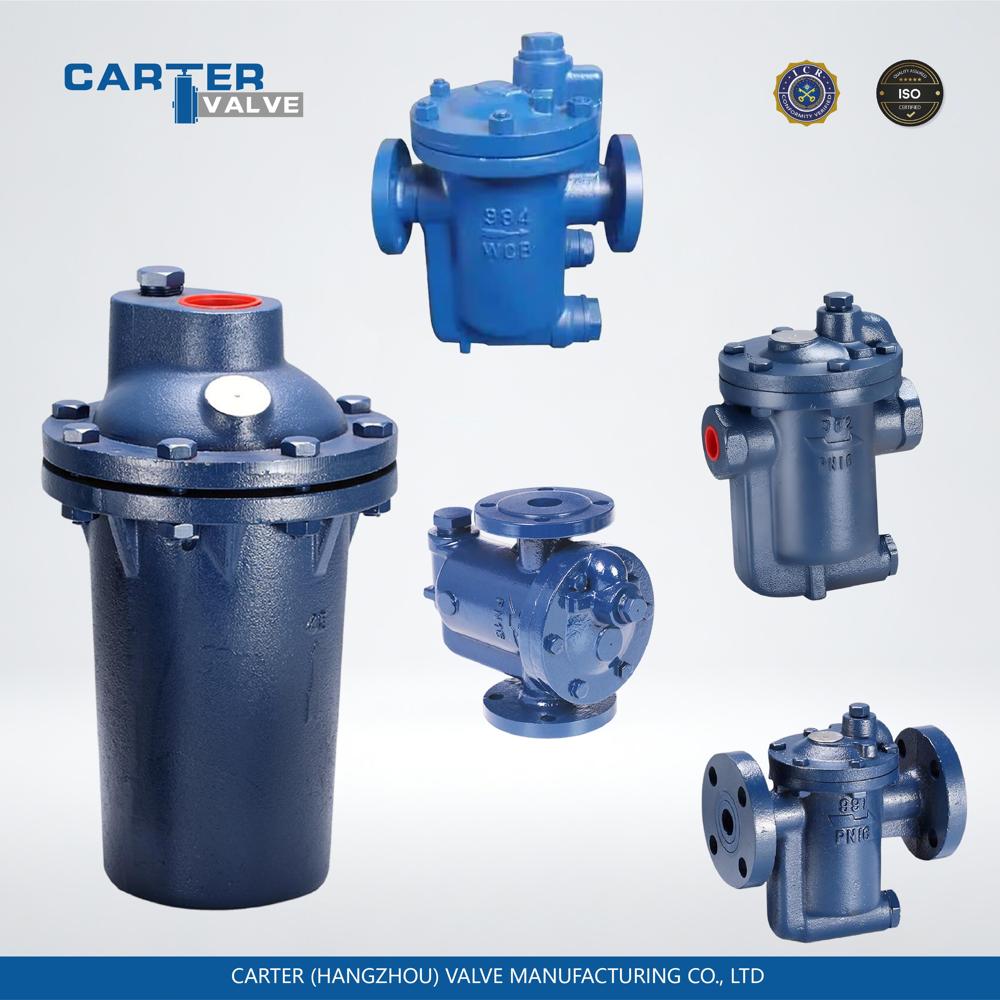

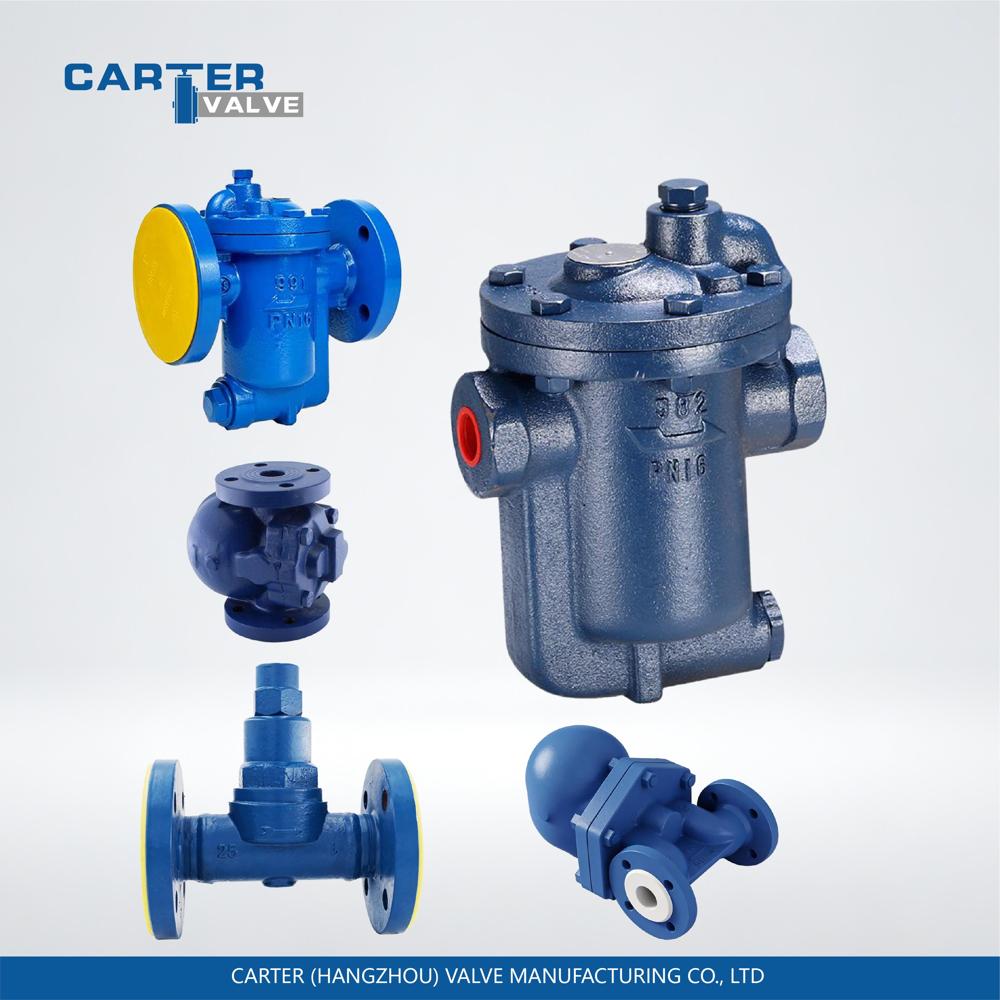

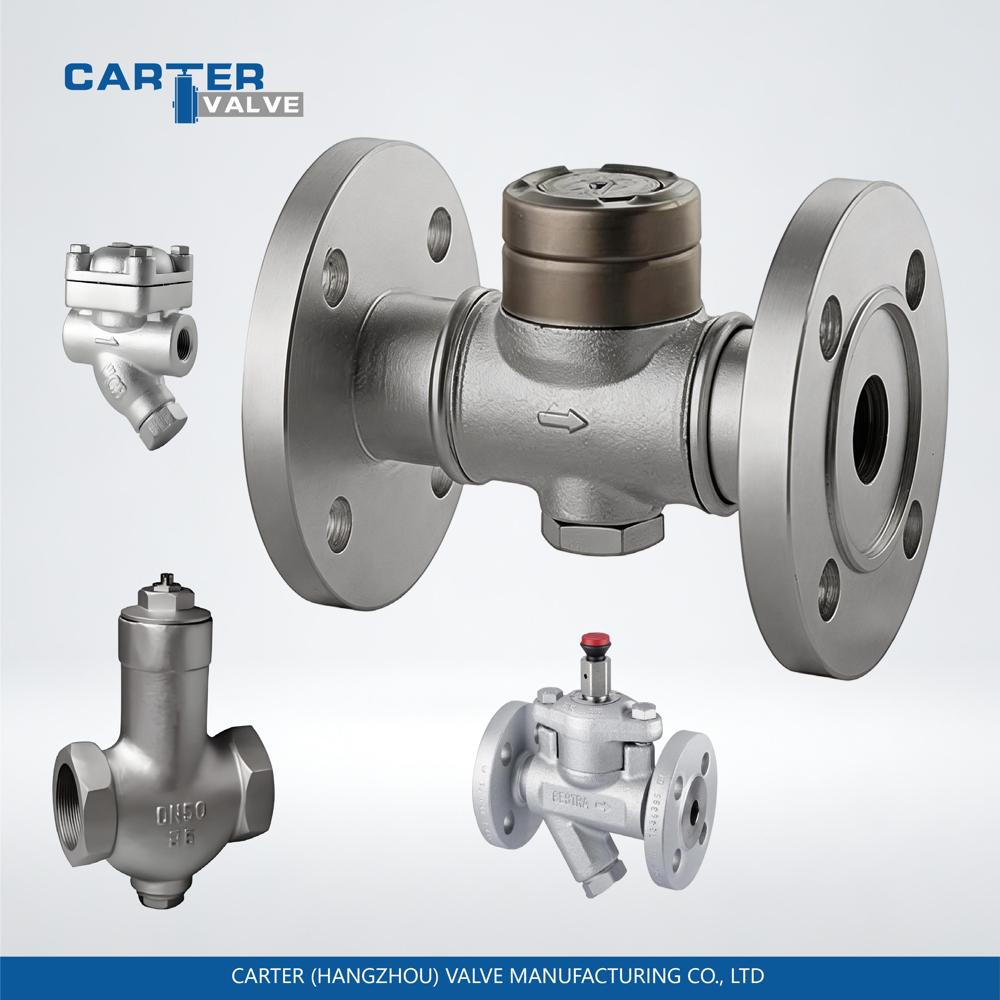

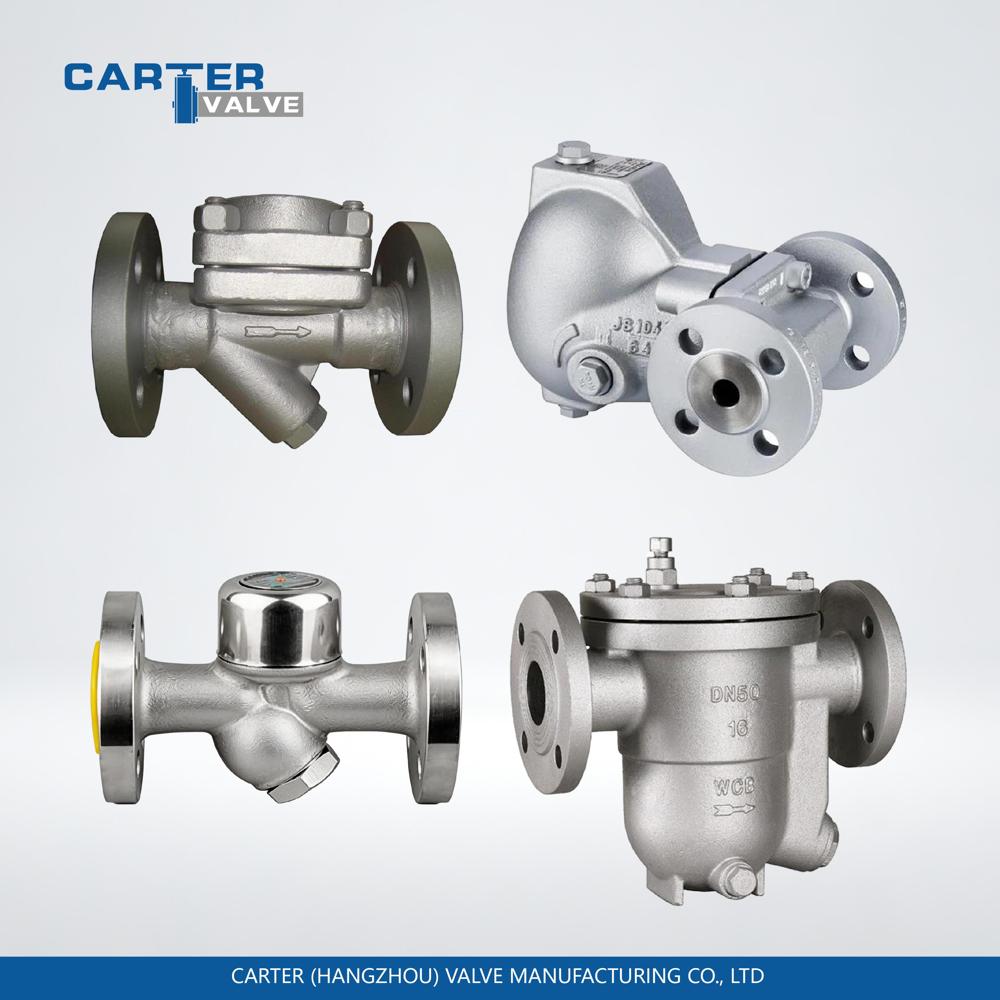

Steam Trap Free Float Trap Inverted Bucket Trap Thermostatic Trap Bellows Trap Wcc Butt Weld Electric Bellows Type Steam ANSI DIN Trap Valve

Steam Trap Free Float Trap Inverted Bucket Trap Thermostatic Trap Bellows Trap Wcc Butt Weld Electric Bellows Type Steam ANSI DIN Trap Valve

1000.0 INR/Piece

Get a Price/Quote

Product Details:

Material Body Material Gray Cast Iron (HT200/HT250): PN16, 220 , for general non-corrosive service Ductile Iron (FCD450): PN25, 350 , higher strength than cast iron Cast Steel (WCB/A105): PN40 PN100, 450 , for medium and high pressure Stainless Steel (304/316L): PN40, 550 , corrosion resistant, for food and pharmaceutical applications Chrome-Molybdenum Steel (15CrMo/12Cr1MoV): for high temperature and high pressure, power
Size Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50
Media Gas, Base, Water, Oil, Acid
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Steam Trap Free Float Trap Inverted Bucket Trap Thermostatic Trap Bellows Trap Wcc Butt Weld Electric Bellows Type Steam ANSI DIN Trap Valve Price And Quantity

Minimum Order Quantity 1 Piece
Price 1000.0 INR/Piece

Steam Trap Free Float Trap Inverted Bucket Trap Thermostatic Trap Bellows Trap Wcc Butt Weld Electric Bellows Type Steam ANSI DIN Trap Valve Product Specifications

Material Body Material Gray Cast Iron (HT200/HT250): PN16, 220 , for general non-corrosive service Ductile Iron (FCD450): PN25, 350 , higher strength than cast iron Cast Steel (WCB/A105): PN40 PN100, 450 , for medium and high pressure Stainless Steel (304/316L): PN40, 550 , corrosion resistant, for food and pharmaceutical applications Chrome-Molybdenum Steel (15CrMo/12Cr1MoV): for high temperature and high pressure, power
Media Gas, Base, Water, Oil, Acid
Size Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50

Product Description

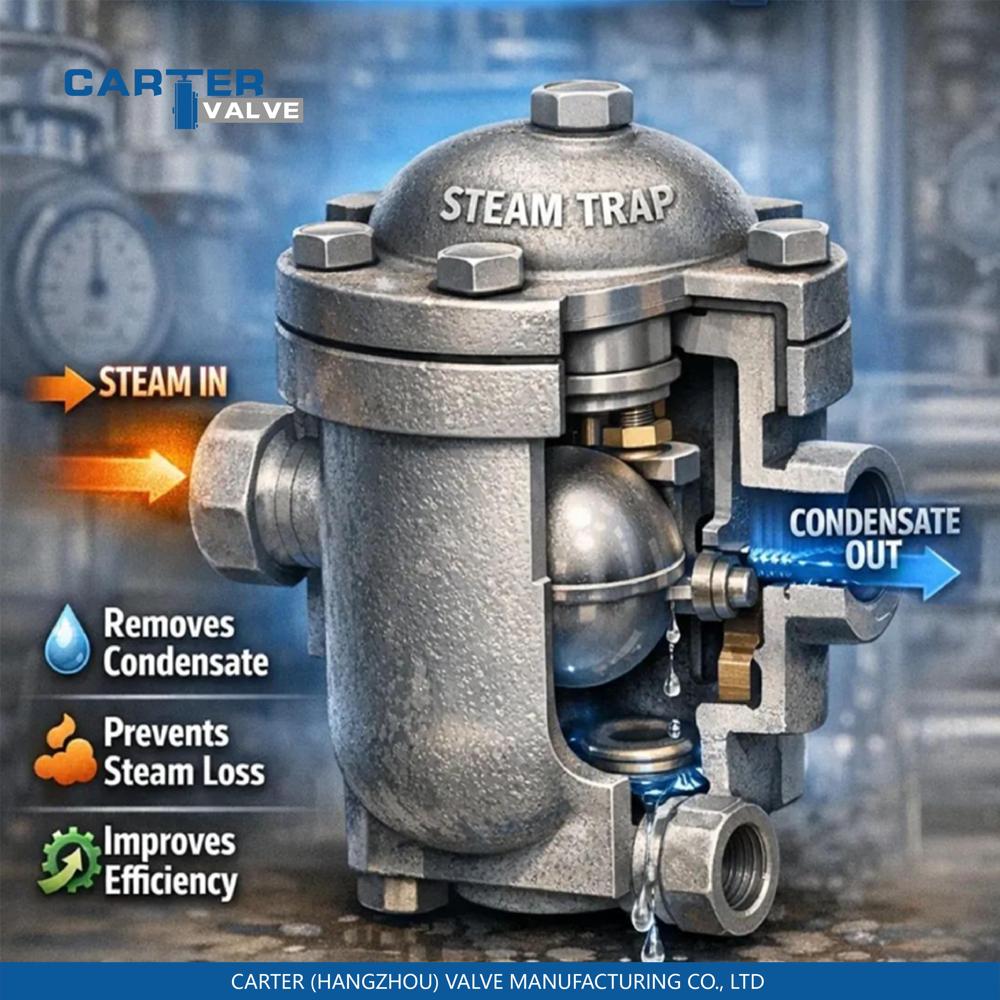

A steam trap, also known as a condensate drain trap, is a key automatic valve in steam systems that automatically discharges condensate, air and non-condensable gases while effectively preventing steam leakage. Its core functions are to ensure efficient heat transfer in steam equipment, prevent water hammer in pipelines, avoid equipment corrosion and save steam energy. It is widely used in all industrial and civil fields involving steam applications, including petrochemical, power, food, textile, HVAC and other industries.

Nominal Diameter (DN)Standard range: DN15DN100 (1/24)Common sizes: DN15, DN20, DN25, DN32, DN40, DN50

Nominal Pressure (PN / Class)GB standard: PN16, PN25, PN40, PN63, PN100ANSI standard: Class 150, Class 300, Class 600High-pressure type up to 420 bar (42MPa), specially designed for power stations

Operating TemperatureCast iron: 220Cast steel: 450Stainless steel: 550

Discharge CapacitySmall type: 50500 kg/hMedium type: 110 t/hLarge type: 10100 t/h

Body Material

Gray Cast Iron (HT200/HT250): PN16, 220, for general non-corrosive service

Ductile Iron (FCD450): PN25, 350, higher strength than cast iron

Cast Steel (WCB/A105): PN40PN100, 450, for medium and high pressure

Stainless Steel (304/316L): PN40, 550, corrosion resistant, for food and pharmaceutical applications

Chrome-Molybdenum Steel (15CrMo/12Cr1MoV): for high temperature and high pressure, power station boilers

Trim Material

Float: 304/316 Stainless Steel

Seat / Disc: SUS440C, Stellite alloy (hardness HRC60+)

Bimetallic element: Nickel-iron alloy, manganese-copper alloy composite

Bellows: 316L, Hastelloy

Sealing Material

Metal Hard Seal: Stellite overlay, cemented carbide (for high temperature and high pressure)

Soft Seal: PTFE, FKM (200, low leakage)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Steam Trap' category

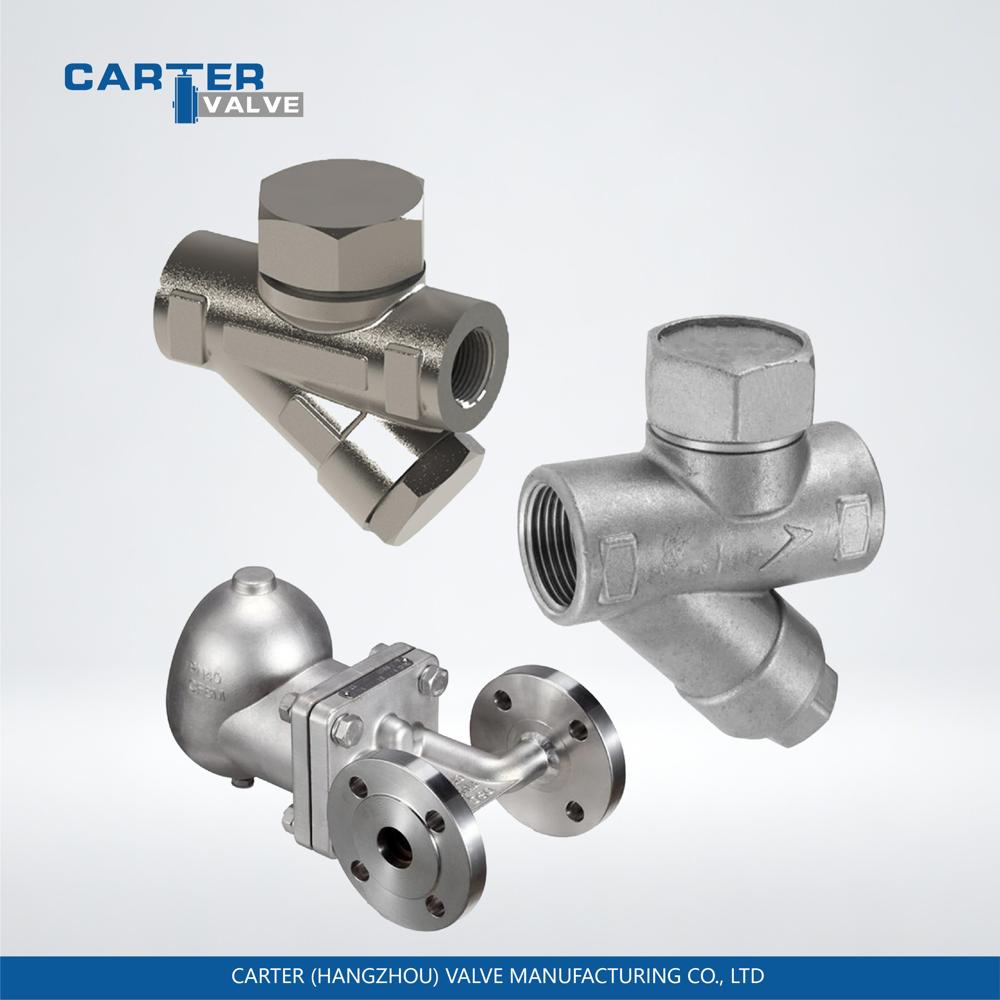

Steam Trap Free Float Trap Inverted Bucket Trap Thermostatic Trap Bellows Trap Ggg50 NPT Thread Bevel Gear Bimetallic Steam ANSI API Trap Valve Price : 900.0 INR/Piece Minimum Order Quantity : 1 Size : Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50 Media : Gas, Water, Oil, Other Structure : Other

Send Inquiry

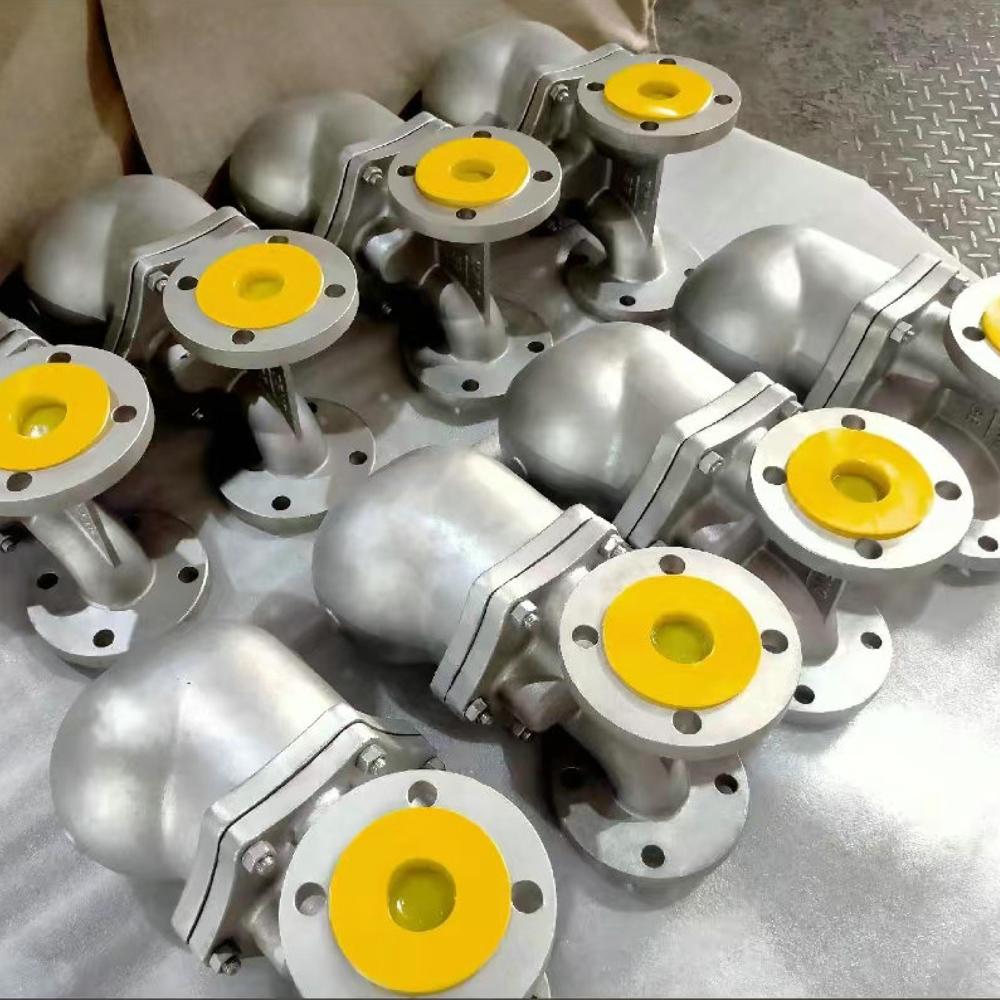

Steam Trap Free Float Trap Inverted Bucket Trap Thermostatic Trap Bellows Trap Duplex Steel Flanged FF Worm Gear Free Float Steam ANSI API Valve Price : 600.0 INR/Piece Minimum Order Quantity : 1 Size : Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50 Media : Gas, Base, Water, Oil, Acid, Other Pressure : 0, ,, , P, N, 6, 3, ,, , P, N, 1, 0, a, , s, t, n, d, a, r, d, :, , C, l, , 1, l, a, 0, 0, ,, , C, l, a, a, s, s, 5, 0, ,, , C, s, s, , g, 3, s, s, , 6, 0, 0, H, i, s, s, u, r, e, , t, y, p, t, o, , 4, 2, 0, , b, h, , p, r, e, e, , u, p, , 2, M, P, a, ), ,, , s, p, e, c, i, e, s, r, , p, o, w, a, r, , (, 4, a, l, l, y, , d, i, g, n, e, d, , f, o, e, r, , s, t, a, t, i, o, n, s, P, N, 1, 6, P, N, 4, , G, B, , s, t, a, n, d, a, r, d, :, , ,, , P, N, 2, 5, ,, , 0, A, N, S, I mpa Temperature : Cast iron: 220 Cast steel: 450 Stainless steel: 550 Celsius (oC)
