Air Release Valve Air Vent Valve Automatic Air Valve Air Relief Valve Bleed Valve Float Type Single Orifice Double Orifice Combination Air Micro Air Release

Air Release Valve Air Vent Valve Automatic Air Valve Air Relief Valve Bleed Valve Float Type Single Orifice Double Orifice Combination Air Micro Air Release

500.0 INR/Piece

Get a Price/Quote

Product Details:

Connection Type Flanged / Threaded
Control System Automatic (float/piston operated, no external control required)
Valve Type Air Release Valve
Valve Size DN15 ~ DN400
Material Gray cast iron HT200, ductile iron QT450, brass, stainless steel 304/316L
Features Air release, air intake, negative pressure protection, water hammer elimination, automatic operation, low maintenance
Application Clean water, sewage, circulating water, high-temperature and corrosive media
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Air Release Valve Air Vent Valve Automatic Air Valve Air Relief Valve Bleed Valve Float Type Single Orifice Double Orifice Combination Air Micro Air Release Price And Quantity

Price 500.0 INR/Piece
Minimum Order Quantity 1 Piece

Air Release Valve Air Vent Valve Automatic Air Valve Air Relief Valve Bleed Valve Float Type Single Orifice Double Orifice Combination Air Micro Air Release Product Specifications

Disc Float / float bowl (stainless steel 304 / engineering plastic)
Type Compound, micro, quick release, sewage, water hammer protection
Size DN15 ~ DN400
Structure Other
Media Water, Gas, Base, Oil, Acid
Features Air release, air intake, negative pressure protection, water hammer elimination, automatic operation, low maintenance
Port Size DN15 ~ DN400
Application Clean water, sewage, circulating water, high-temperature and corrosive media
Connection Type Flanged / Threaded
Control System Automatic (float/piston operated, no external control required)
Usage Municipal water supply & drainage, HVAC, industrial fluid systems, sewage networks, water hammer protection pipelines
Temperature -30 ~ 120 (depending on model) Celsius (oC)
Valve Type Air Release Valve
Sealing NBR / FKM / EPDM seals, tight sealing, no leakage
Material Gray cast iron HT200, ductile iron QT450, brass, stainless steel 304/316L
Valve Size DN15 ~ DN400
Pressure P, N, ., 0, , , /, 1, /, , 1, ., 6, 5, M, P, a, , 2, ., mpa
Product Type Air Release Valve

Product Description

Air Release Valve Introduction

PRODUCT INTRODUCTION

An air release valve is an automatic control valve installed at the highest or local high points in a pipeline system. Its core functions are to discharge accumulated air in the pipeline, prevent air locks, eliminate water hammer, and provide negative pressure protection, ensuring efficient, safe, and stable operation of the fluid system.

Working Principle:

When gas accumulates, the liquid level inside the valve drops, causing the float/piston closure member to fall and opening the exhaust port for air release. Once the pipeline is filled with liquid, the float rises and the exhaust port closes automatically to prevent medium leakage. When the system is under negative pressure, the valve automatically draws in air to avoid pipeline deformation or rupture.

TECHNICAL SPECIFICATIONS

Compound Type

DN: DN25 - DN400
PN: PN1.0 / 1.6 / 2.5 MPa
Working Temperature: -30 ~ 100
Connection Type: Flanged

Micro Air Type

DN: DN15 - DN25
PN: PN1.0 / 1.6 MPa
Working Temperature: -20 ~ 80
Connection Type: Threaded

Quick Release Type

DN: DN15 - DN300
PN: PN1.0 / 1.6 MPa
Working Temperature: -10 ~ 120
Connection Type: Flanged / Threaded

Sewage Type

DN: DN50 - DN300
PN: PN1.0 / 1.6 MPa
Working Temperature: 0 ~ 80
Connection Type: Flanged

Water Hammer Protection Type

DN: DN50 - DN400
PN: PN1.6 / 2.5 MPa
Working Temperature: -20 ~ 100
Connection Type: Flanged

PRODUCT FEATURES

Compound Air Release Valve

Versatile functionality: One installation meets exhaust, intake, and micro-exhaust requirements.
Dual-port design for high exhaust efficiency, opening at low pressure with reliable sealing.
Automatic operation, no manual intervention required, low maintenance.

Micro Air Release Valve

Compact structure and small size, suitable for small-diameter and confined spaces.
Tight sealing, no water leakage under long-term operation.
Continuous micro-exhaust to completely eliminate air locks.

Quick Release Air Valve

Large exhaust capacity and fast response, significantly reducing pipeline filling and draining time.
Simple structure and low cost, ideal for large-diameter water supply and pneumatic systems.

Sewage Compound Air Release Valve

Anti-clogging design for media containing impurities and particles.
Extended valve body reduces debris adhesion to the float.
Sewage and corrosion resistant, ensuring stable performance in sewage systems.

Water Hammer Protection Air Valve

Dual protection: Quick exhaust + water hammer protection.
Delays water column rejoining to reduce water hammer impact pressure.
Suitable for long-distance, high-pressure, and high-flow water pipelines.

MAIN COMPONENT MATERIALS

Valve Body: Gray cast iron HT200, ductile iron QT450, brass, stainless steel 304/316L; suitable for clean water, sewage, high-temperature and corrosive media.
Float / Float Bowl: Stainless steel 304, engineering plastic; for clean water systems, anti-corrosion and anti-deformation.
Seals: NBR, FKM, EPDM; temperature range: -20 ~ 200, compatible with various media.
Lever / Shaft: Stainless steel 201/304; rust-proof, wear-resistant, high strength.
Bolts: Carbon steel, stainless steel; matched with valve body material for corrosion resistance.

APPLICATIONS

Municipal Water Supply & Drainage: Water plants, distribution networks, wastewater treatment plants, long-distance water transmission pipelines.
HVAC Systems: Central heating, central air conditioning, floor heating, boiler circulating water systems.
Industrial Fluids: Chemical, power, metallurgy, pharmaceutical process circulating water and cooling systems.
Special Scenarios: Sewage networks, high-pressure steam pipelines, water pumping stations, water hammer-resistant pipeline systems.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Valve' category

Air Release Valve Air Vent Valve Automatic Air Valve Air Relief Valve Bleed Valve 304 Flanged RF Single Orifice Double Orifice API DIN Micro Air Release Price : 100.0 INR/Piece Minimum Order Quantity : 1 Media : Gas, Water, Other, Base, Oil, Acid Size : DN15 ~ DN400 Product Type : Air Release Valve Sealing : NBR / FKM / EPDM seals, tight sealing, no leakage Material : Gray cast iron HT200, ductile iron QT450, brass, stainless steel 304/316L Usage : Municipal water supply & drainage, HVAC, industrial fluid systems, sewage networks, water hammer protection pipelines Temperature : 30 ~ 120 (depending on model) Celsius (oC) Connection Type : Flanged / Threaded Control System : Automatic (float/piston operated, no external control required) Application : Clean water, sewage, circulating water, hightemperature and corrosive media Port Size : DN15 ~ DN400 Pressure : P, ., 0, /, , 1, ., 6, 2, ., 5, , M, P, a, N, 1, , , /, mpa Valve Size : DN15 ~ DN400 Valve Type : Air Release Valve Features : Air release, air intake, negative pressure protection, water hammer elimination, automatic operation, low maintenance Structure : Other Type : Compound, micro, quick release, sewage, water hammer protection Disc : Float / float bowl (stainless steel 304 / engineering plastic)

Send Inquiry

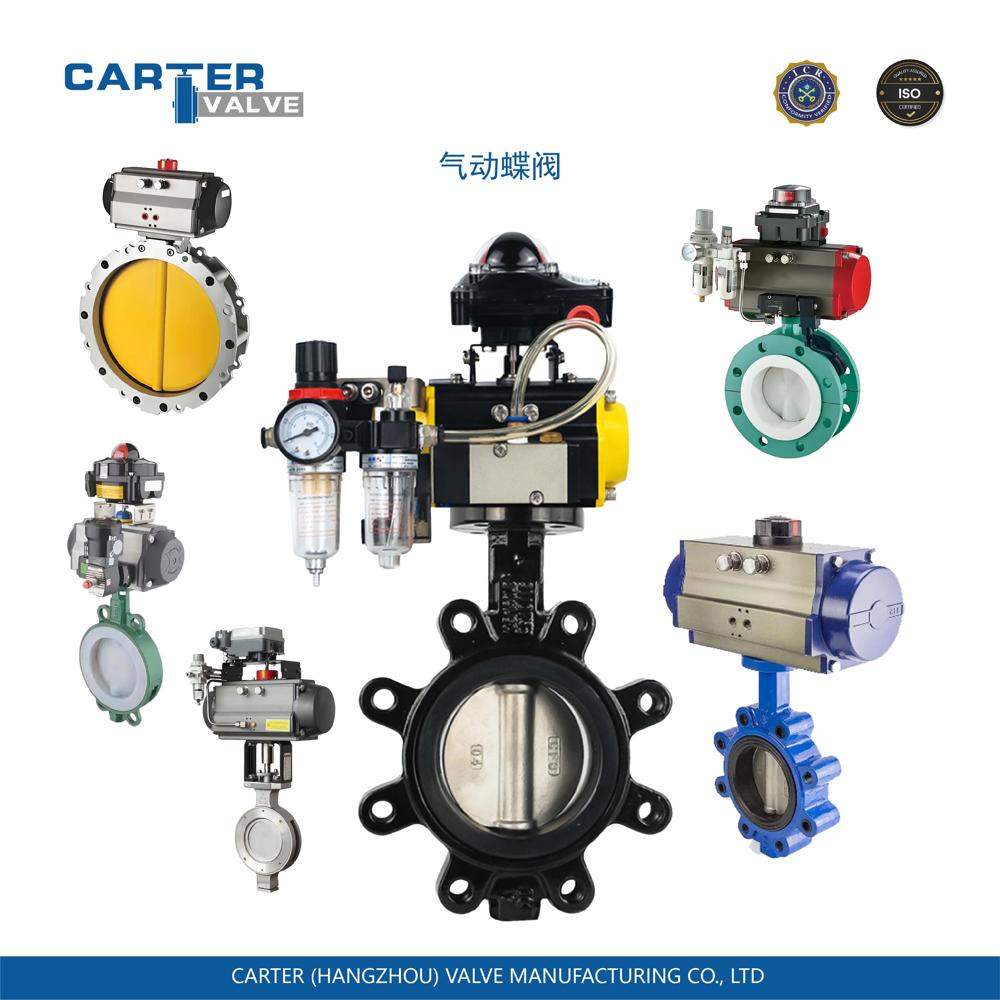

Butterfly Valve, Manual/Worm Gear/Electric/Pneumatic, Cast Iron/Wcb/Stainless Steel, Wafer/Lug/Flange/Clamp, ANSI/DIN/JIS/API Industrial Valve Price : 200.0 INR/Piece Minimum Order Quantity : 1 Media : Gas, Base, Water, Oil, Acid, Other Size : DN15 ~ DN2000 Product Type : Water supply & drainage, HVAC, chemical, petrochemical, food & beverage, municipal engineering Sealing : Softseated (zero leakage, bubbletight); Hardseated (metaltometal) Material : Ductile iron, cast steel, stainless steel, with NBR/EPDM/PTFE lining Usage : Water supply & drainage, HVAC, chemical, petrochemical, food & beverage, municipal engineering Temperature : 20 ~ 120 (softseated, NBR/EPDM); 40 ~ 600 (hardseated) Celsius (oC) Connection Type : Wafer, Flanged, Welded, Grooved Control System : Manual, gear operated, pneumatic, electric, hydraulic Application : Water, seawater, steam, air, oil, sewage, acid/alkali corrosive media Pressure : ~, 4, P, N, 0, ., P, 6, I, ., 0, M, , a, ,, , A, N, S, , C, l, a, s, s, , 1, 5, 0, , /, 3, 0, 0 mpa Valve Size : DN15 ~ DN2000 Valve Type : Butterfly Valve Features : Compact structure, light weight, fast 90 operation, low flow resistance, bubbletight zero leakage, easy maintenance, wide size range, costeffective Structure : Butterfly Type : Wafer, Flanged, Welded, Grooved Disc : Stainless steel, ductile iron, cast steel

Send Inquiry

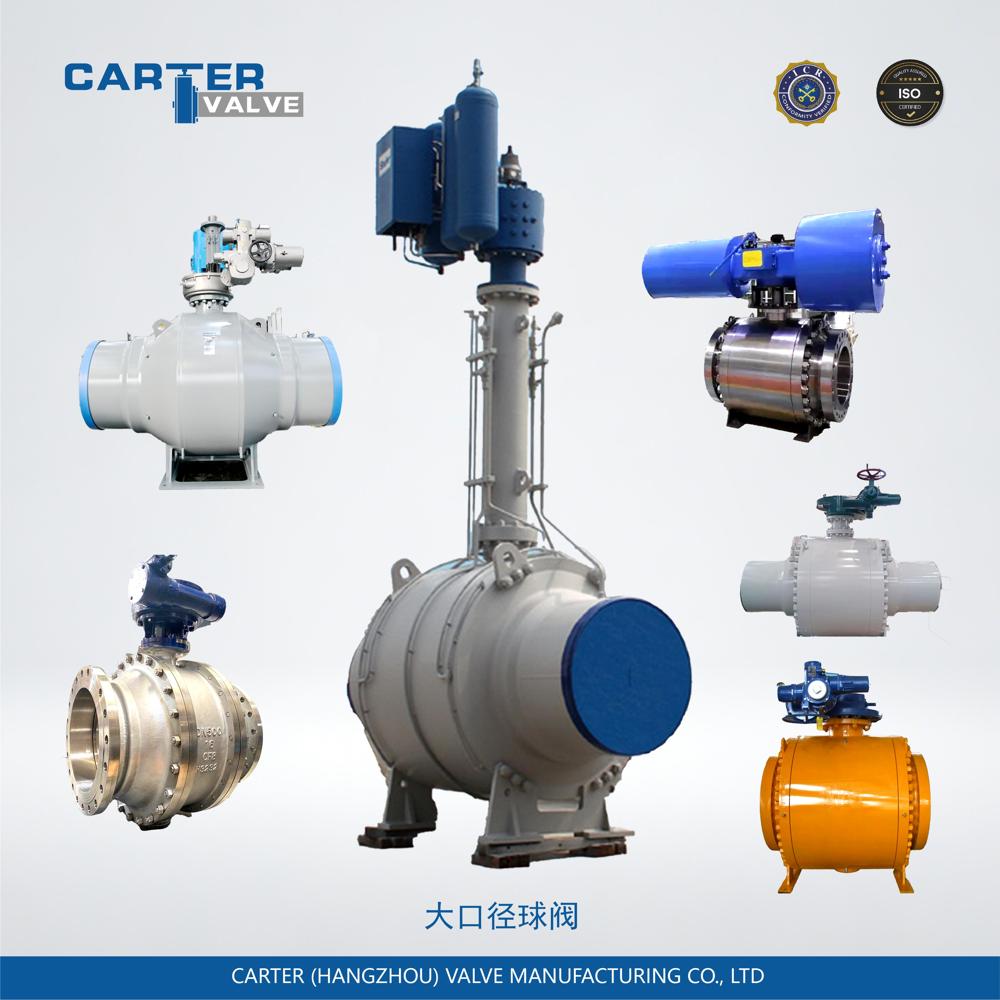

Ball Valve, RF Flange FF Clamp Welding Manual Worm Gear Pneumatic Electric, Cast Steel Wcb Stainless Steel CF8CF3, High Pressure and High Temperature Price : 2000.0 INR/Piece Minimum Order Quantity : 1 Media : Base, Water, Oil, Acid, Other, Gas Size : DN15 ~ DN1200 (NPS " ~ 48") Product Type : Ball Valve Sealing : Softseated (Class VI zero leakage); Hardseated (API 598, ISO 14316) Material : Carbon steel (WCB), stainless steel (304/316), duplex steel, nickelbased alloy Usage : Petrochemical, municipal, power energy, food & beverage, metallurgy, marine, building automation Temperature : Softseated: 40 ~ 200/260 ; Hardseated: 196 ~ 550 (special up to 1100 ) Celsius (oC) Connection Type : Flanged, threaded, socket weld, butt weld, grooved, wafer Control System : Manual, gear operated, pneumatic, electric, hydraulic Application : Water, steam, oil products, gas, corrosive media, etc. Port Size : DN15 ~ DN1200 (NPS " ~ 48") Pressure : ~, , 4, , 0, 1, 6, , 0, l, a, s, s, , ;, , C, 1, 5, 0, 5, 0, P, N, , P, N, 6, 0, ~ mpa Valve Size : DN15 ~ DN1200 (NPS " ~ 48") Valve Type : Ball Structure : Ball Type : 2way, 3way L/Ttype, Vtype, full bore / reduced bore Disc : Ball (floating / trunnionmounted)
