Electric Hard Seal Butterfly Valve, Triple Eccentric Design, Flange, Clamp, Welding, Carbon Steel Wcb, Stainless Steel CF8 CF3, American Standard 150lb-2500lb

Electric Hard Seal Butterfly Valve, Triple Eccentric Design, Flange, Clamp, Welding, Carbon Steel Wcb, Stainless Steel CF8 CF3, American Standard 150lb-2500lb

2000.0 INR/Piece

Get a Price/Quote

Product Details:

Material Body Material: Carbon steel, stainless steel, duplex stainless steel, alloy steel, nickel alloy steel
Size Nominal Diameter: DN50 DN3000, NPS 2"~120"
Pressure , P, N, 1, 6, 0, b, 0, , L, b, , 1, P, N, 1, 0, ,, C, l, a, s, s, , 5, 0, , L, ~, 1, 5, 0 mpa
Media Gas, Base, Water, Oil, Acid
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Electric Hard Seal Butterfly Valve, Triple Eccentric Design, Flange, Clamp, Welding, Carbon Steel Wcb, Stainless Steel CF8 CF3, American Standard 150lb-2500lb Price And Quantity

Price 2000.0 INR/Piece
Minimum Order Quantity 1 Piece

Electric Hard Seal Butterfly Valve, Triple Eccentric Design, Flange, Clamp, Welding, Carbon Steel Wcb, Stainless Steel CF8 CF3, American Standard 150lb-2500lb Product Specifications

Size Nominal Diameter: DN50 DN3000, NPS 2"~120"
Pressure P, N, 1, 6, 0, b, 0, , L, b, , 1, P, N, 1, 0, ,, C, l, a, s, s, , 5, 0, , L, ~, 1, 5, 0 mpa
Material Body Material: Carbon steel, stainless steel, duplex stainless steel, alloy steel, nickel alloy steel
Media Gas, Base, Water, Oil, Acid

Product Description

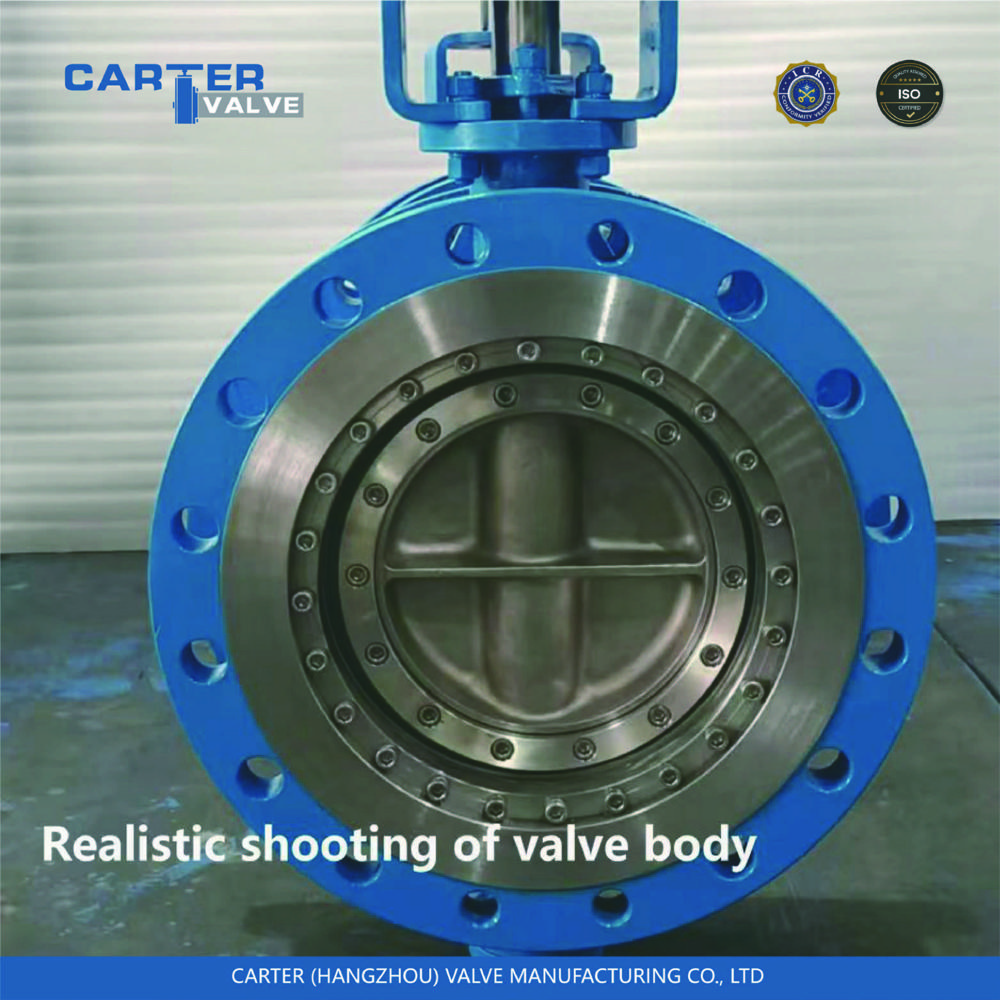

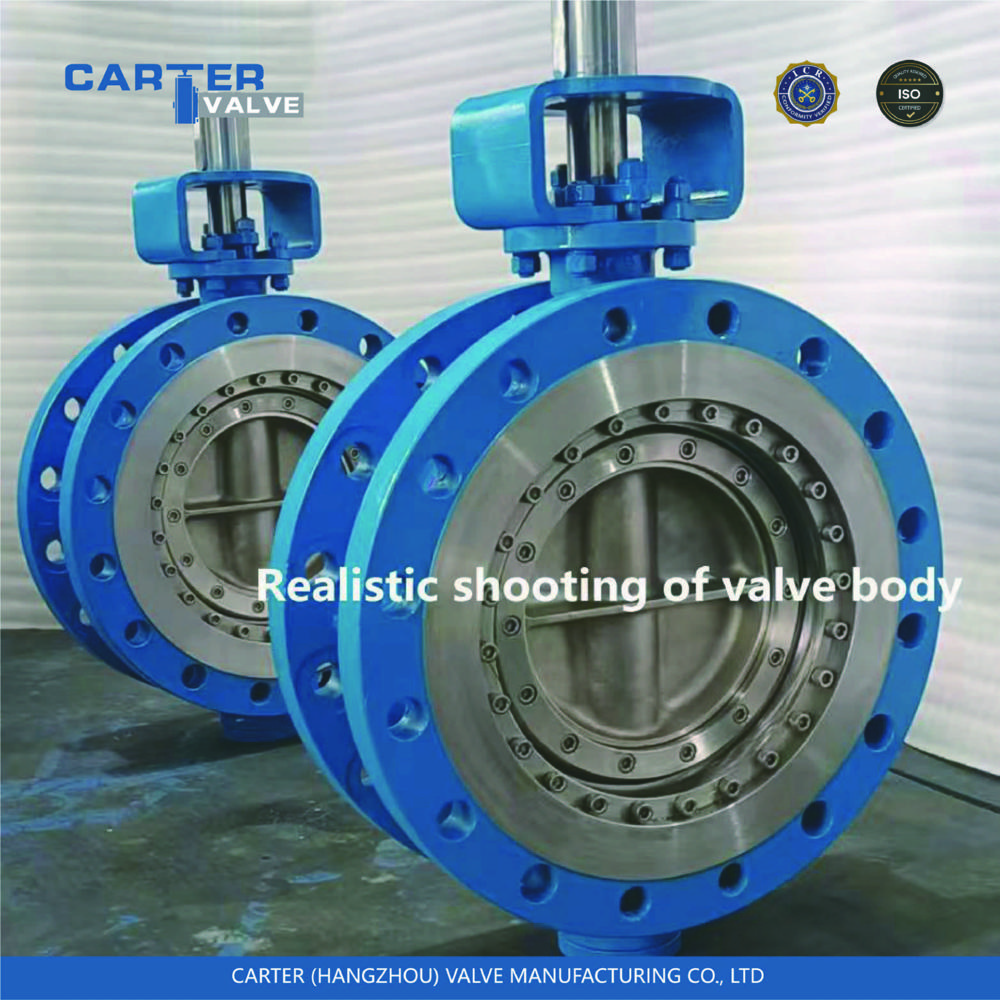

The electric triple-eccentric butterfly valve adopts an inclined cone angle by rotating the positive cone angle, which reduces the eccentricity between the valve stem and the valve body center, thus lowering the operating torque. It is widely used in industrial pipelines such as metallurgy, electric power, petrochemical industry, water supply and drainage, and municipal construction for flow regulation and fluid shut-off.

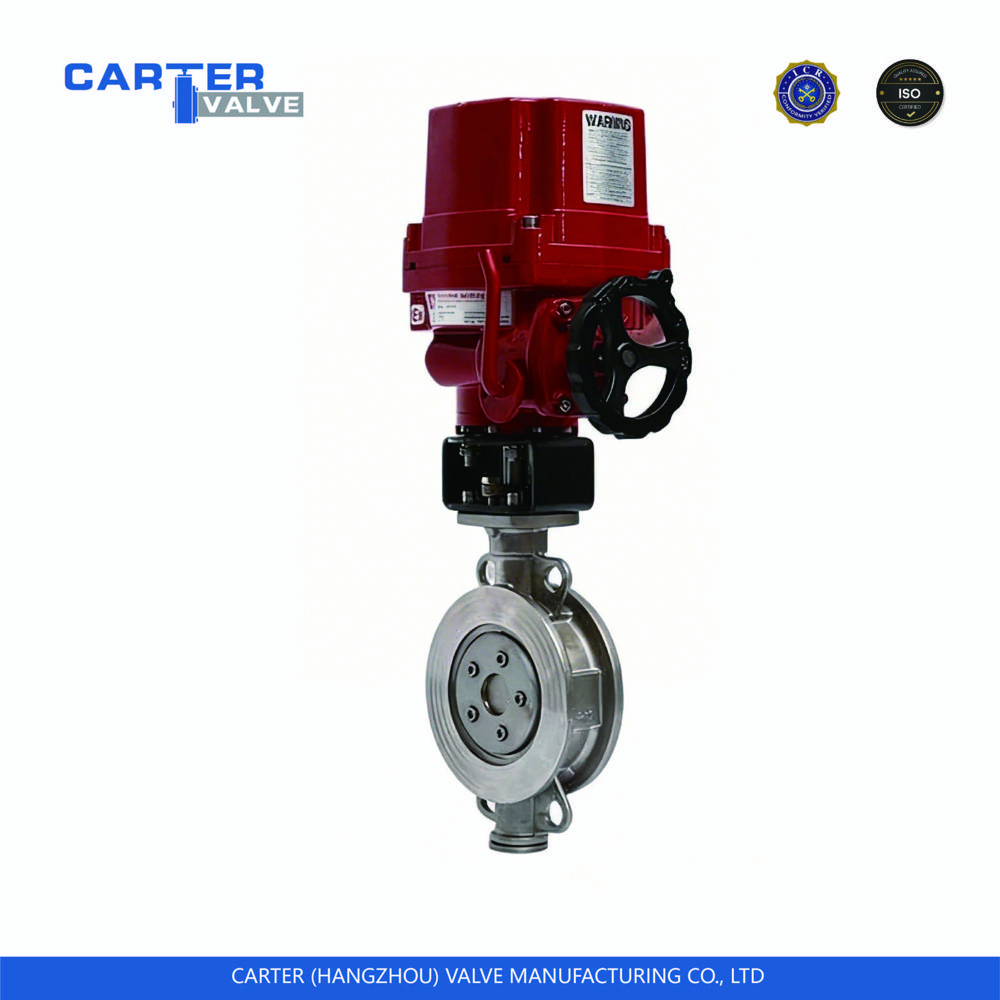

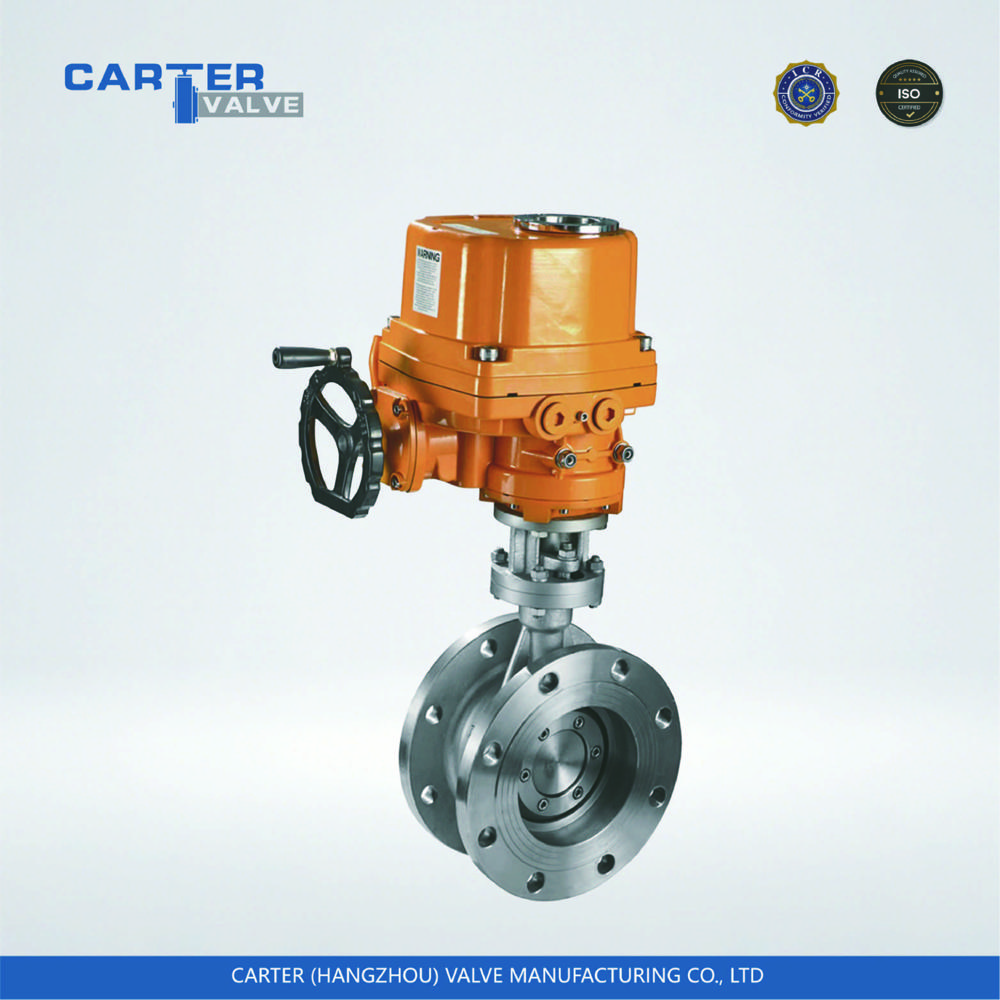

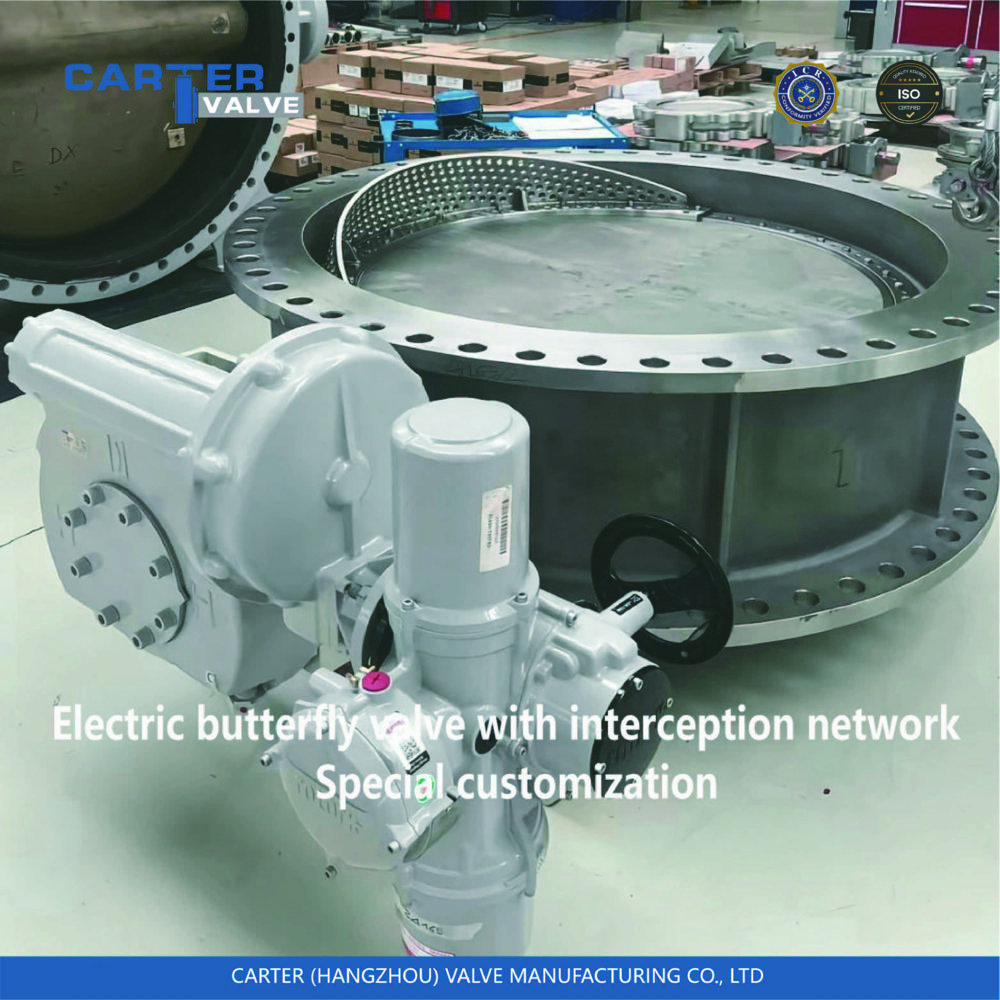

The electric eccentric butterfly valve consists of an electronic electric actuator and a triple-eccentric butterfly valve. Adopting the latest triple-eccentric design principle, it features excellent sealing performance, unobstructed valve body flow passage, large flow capacity, low friction between the disc and seat, long service life, wide application range and easy maintenance.

Pressure Rating: PN10PN160, Class 150 Lb~1500 Lb

Nominal Diameter: DN50DN3000, NPS 2"~120"

Body Material: Carbon steel, stainless steel, duplex stainless steel, alloy steel, nickel alloy steel

End Connection: Wafer, Flanged, WeldedOperating Temperature: -29 ~ 350

Operation: Electric actuator

Design Standards: GB/T 12238, JB/T 8527, API 609

No friction between the butterfly disc and sealing surface during opening and closing, with forced sealing.

Can be installed in any position.

Zero-leakage structural design.

Sealing types available: metal-to-nonmetal, metal-to-metal.

Unidirectional and bidirectional valve options for customers.

Dynamic load packing available.

Low-emission packing available to meet ISO 15848 requirements.

Extended stem design available.

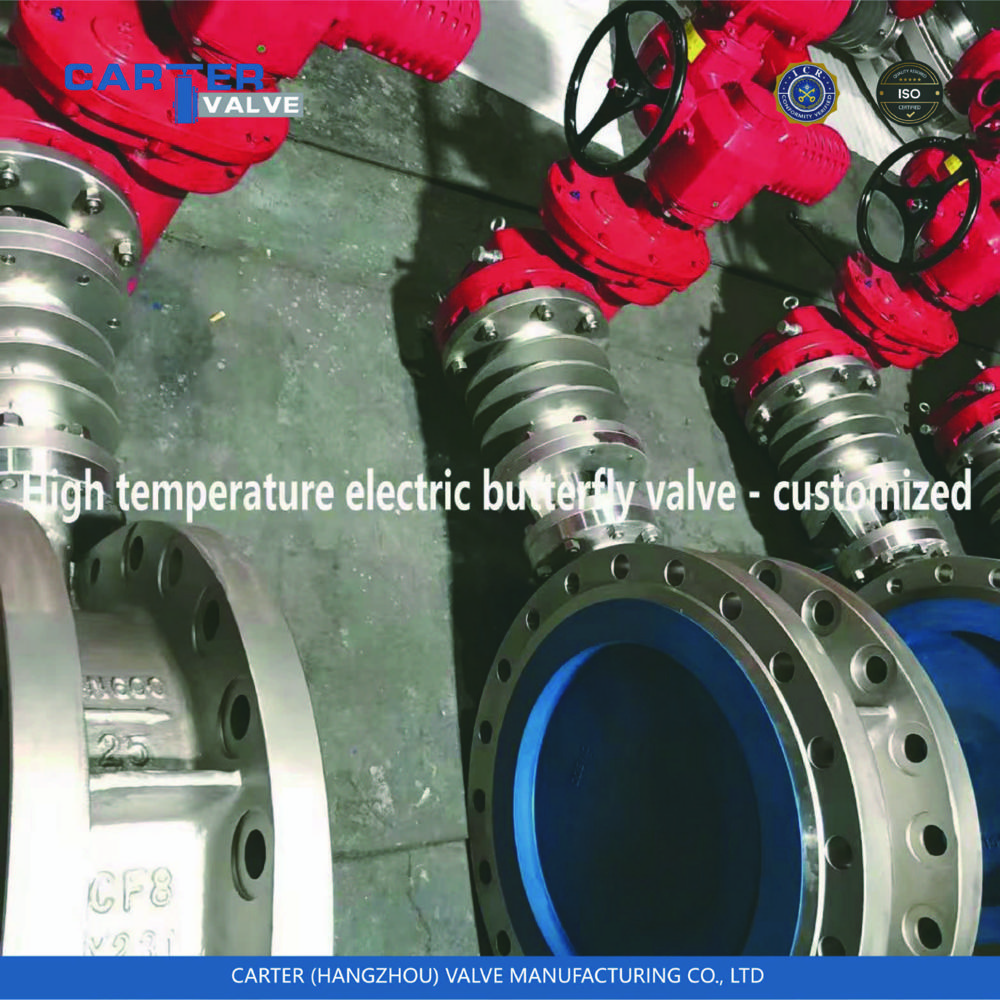

Low-temperature or ultra-low-temperature valves can be customized per customer requirements.

Actuator Type: Multi-turn electric actuator, compact electric actuator, intelligent electric actuator

Main Technical Parameters:Power supply: 220V/50Hz, 380V/50Hz; Input signal: 420mA or 15V DC; Output signal: 420mA DCIngress protection: IP67; Explosion-proof marking: ExdBT4; Manual operation: Hand leverAmbient temperature: -25+70; Ambient humidity: 95%

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Valve' category

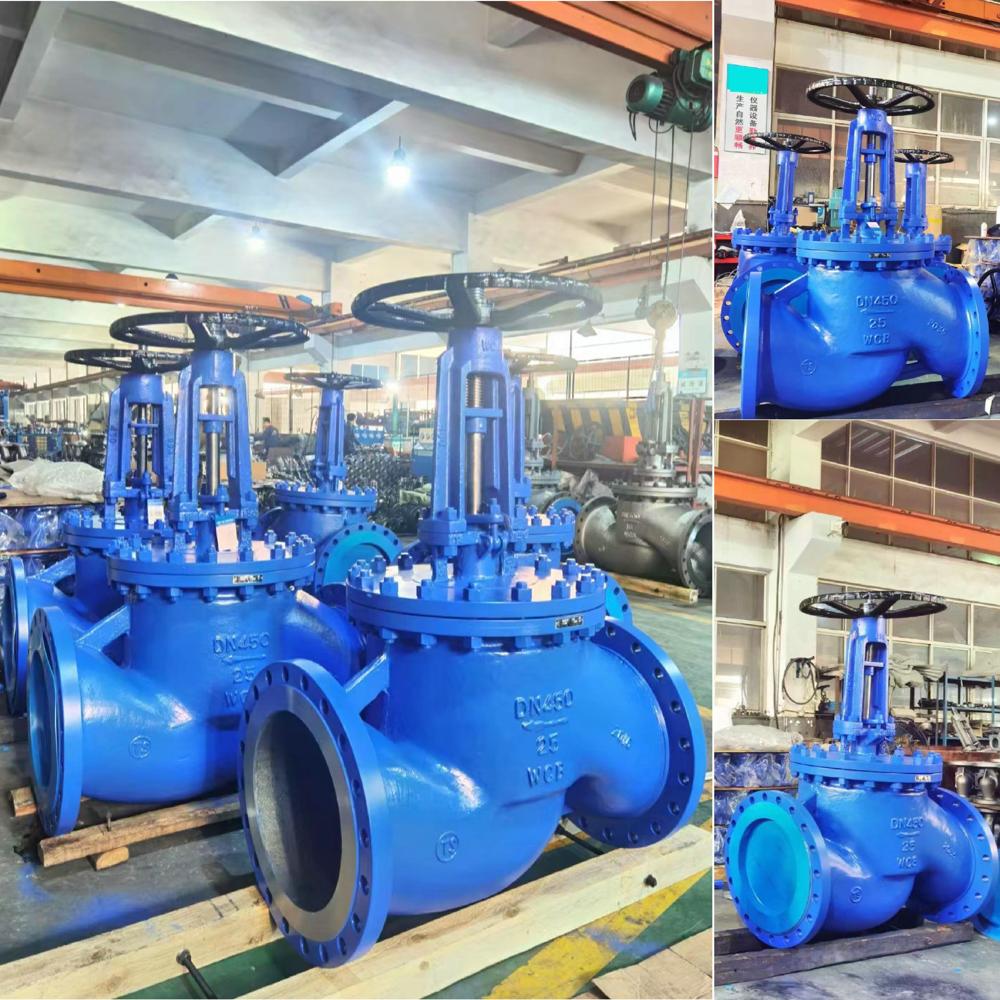

Wcb Carbon Steel Sw Socket Welding Electric Globe Valve DIN ANSI High Temperature High Pressureelectric Actuated Ball Valve, Flanged RF, Wcb Body, ANSI Class Price : 6000.0 INR/Piece Minimum Order Quantity : 1 Temperature : Carbon steel: 29 ~ 425 ; Stainless steel: 196 ~ 550 ; Hightemperature alloy: up to 600 + (customizable) Celsius (oC) Media : Gas, Base, Water, Oil, Acid, Other Size : Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable) Pressure : e mpa

Send Inquiry

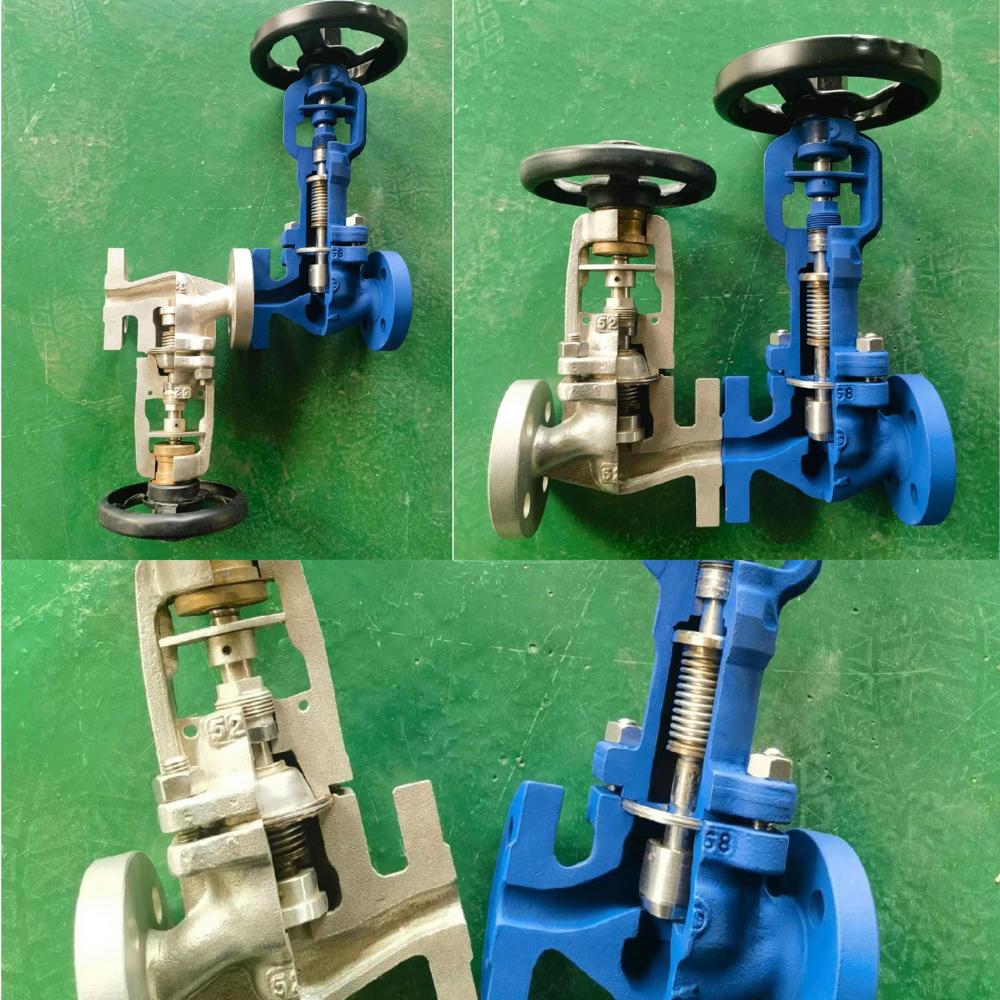

Globe Valve, Carbon Steel Wcb, Stainless Steel CF3CF8 Manual Pneumatic Electric, ANSI DIN API High Temperature and High Pressure RF Flange FF Bw Butt Welding Sw Price : 9000.0 INR/Piece Minimum Order Quantity : 1 Temperature : Carbon steel: 29 ~ 425 ; Stainless steel: 196 ~ 550 ; Hightemperature alloy: up to 600 + (customizable) Celsius (oC) Media : Water, Oil, Acid, Other, Base, Gas Size : Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable) Pressure : P, N, 1, ., , ~, o, w, 2, ., 0, s, 5, 0, , ~, , M, 1, 5, 0, 0, ), , e, r, , s, , , (, h, i, g, h, e, r, , o, r, , l, p, r, e, s, u, r, e, t, o, m, i, b, l, e, ), 6, , P, N, 3, P, a, , (, C, l, a, s, , 1, s, c, u, s, z, a mpa

Send Inquiry

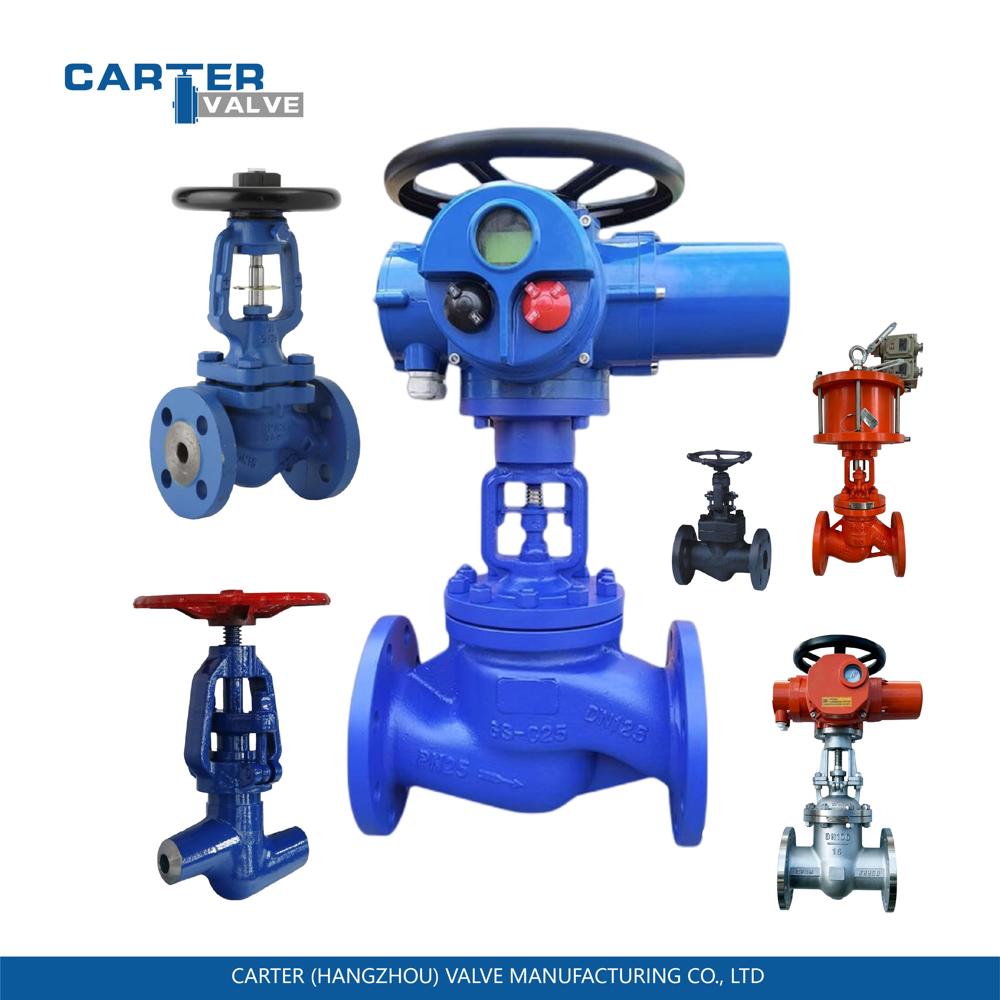

Electric Actuated Globe Valve, Wcb Carbon Steel / CF8 304/316 Stainless Steel, Flanged/Bw/Sw/Threaded, ANSI/API/DIN Standard, High Pressure High Temperature Price : 7000.0 INR/Piece Minimum Order Quantity : 1 Temperature : Carbon steel: 29 ~ 425 ; Stainless steel: 196 ~ 550 ; Hightemperature alloy: up to 600 + (customizable) Celsius (oC) Media : Gas, Base, Water, Oil, Acid, Other Size : Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable) Pressure : 5, 3, , ~, 2, ., P, N, 1, ., 6, , ~, , , g, P, a, s, , 0, N, , 0, , M, P, a, , (, C, l, s, , 1, 1, 5, w, e, 0, 0, e, ), i, h, (, h, r, , r, o, r, , l, o, p, e, s, s, u, r, r, , c, u, s, e, s, a, b, l, e, ), t, o, m, i, z mpa

Send Inquiry

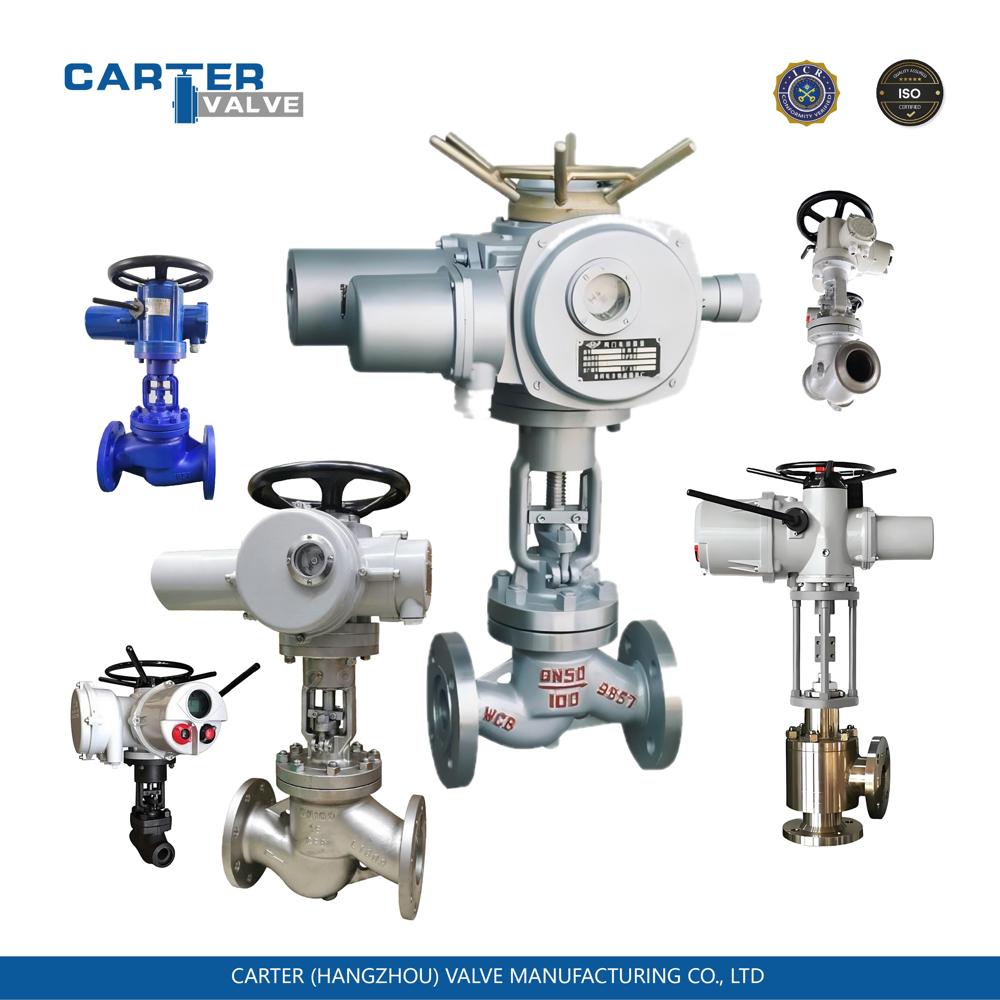

Wcb Carbon Steel / CF8 304 Stainless Steel RF/FF Flanged Manual/Electric Globe Valve, ANSI/API/DIN Standard, High Pressure High Temperature Industrial Control Price : 1000.0 INR/Piece Minimum Order Quantity : 1 Temperature : Carbon steel: 29 ~ 425 ; Stainless steel: 196 ~ 550 ; Hightemperature alloy: up to 600 + (customizable) Celsius (oC) Media : Gas, Base, Water, Oil, Acid, Other Size : Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable) Pressure : ( mpa
