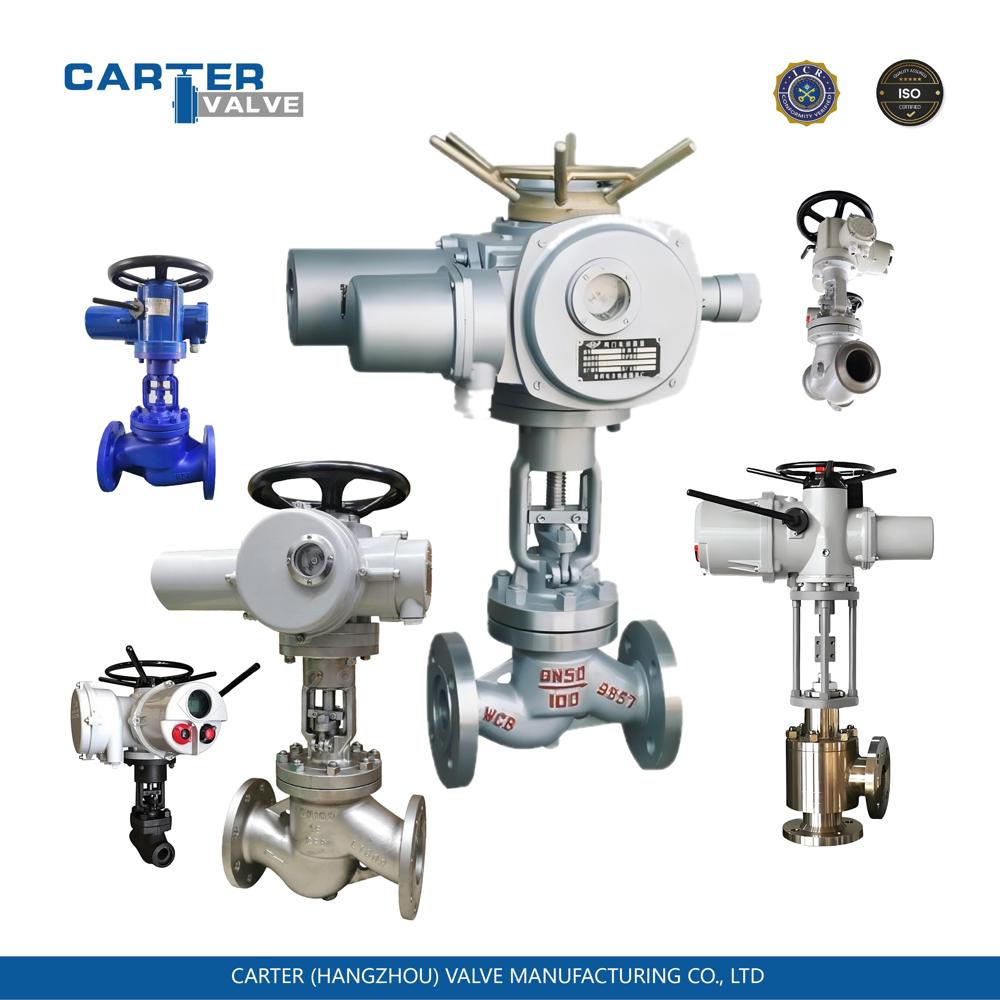

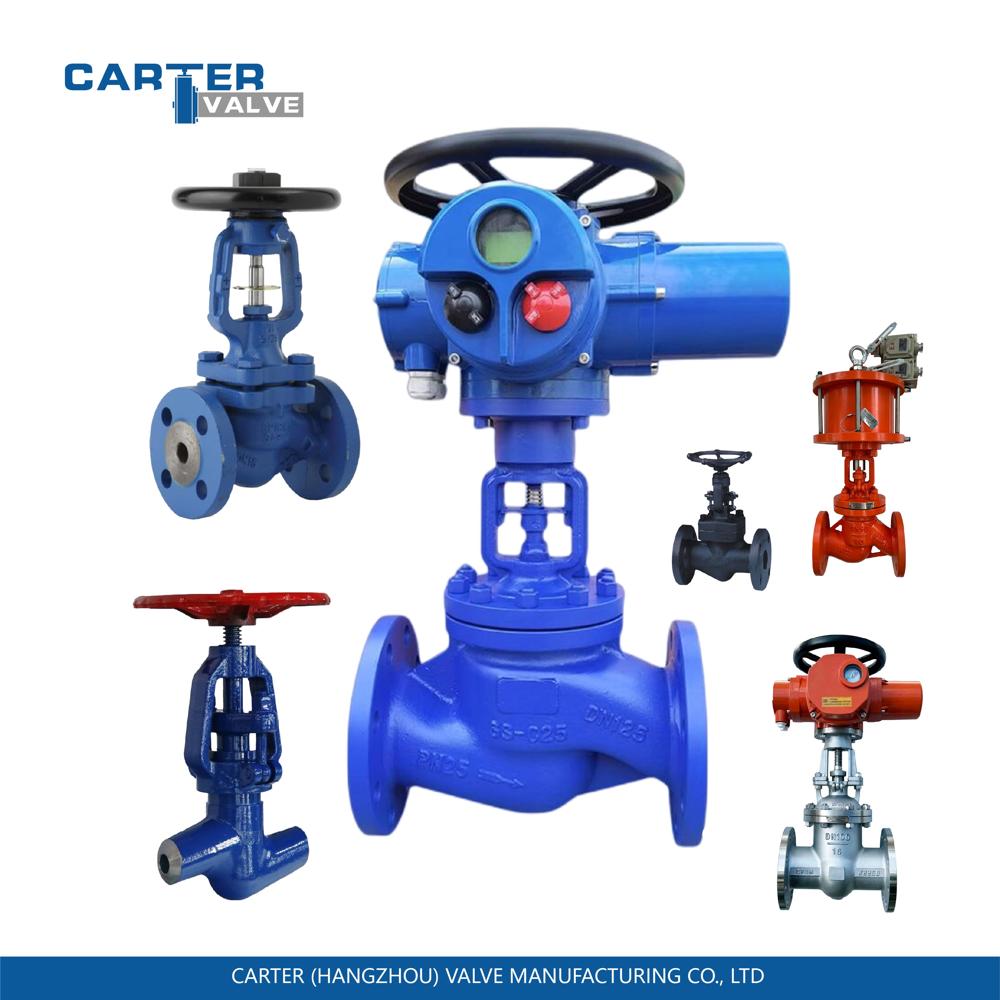

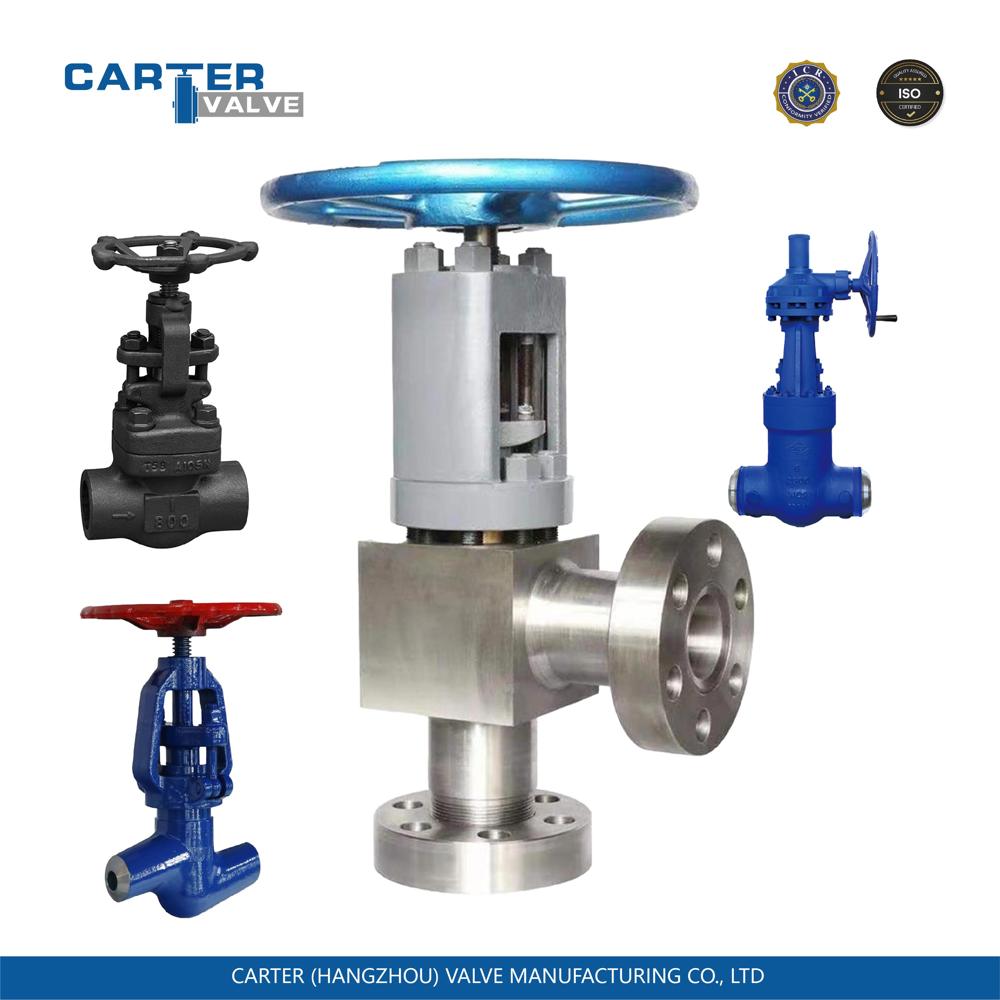

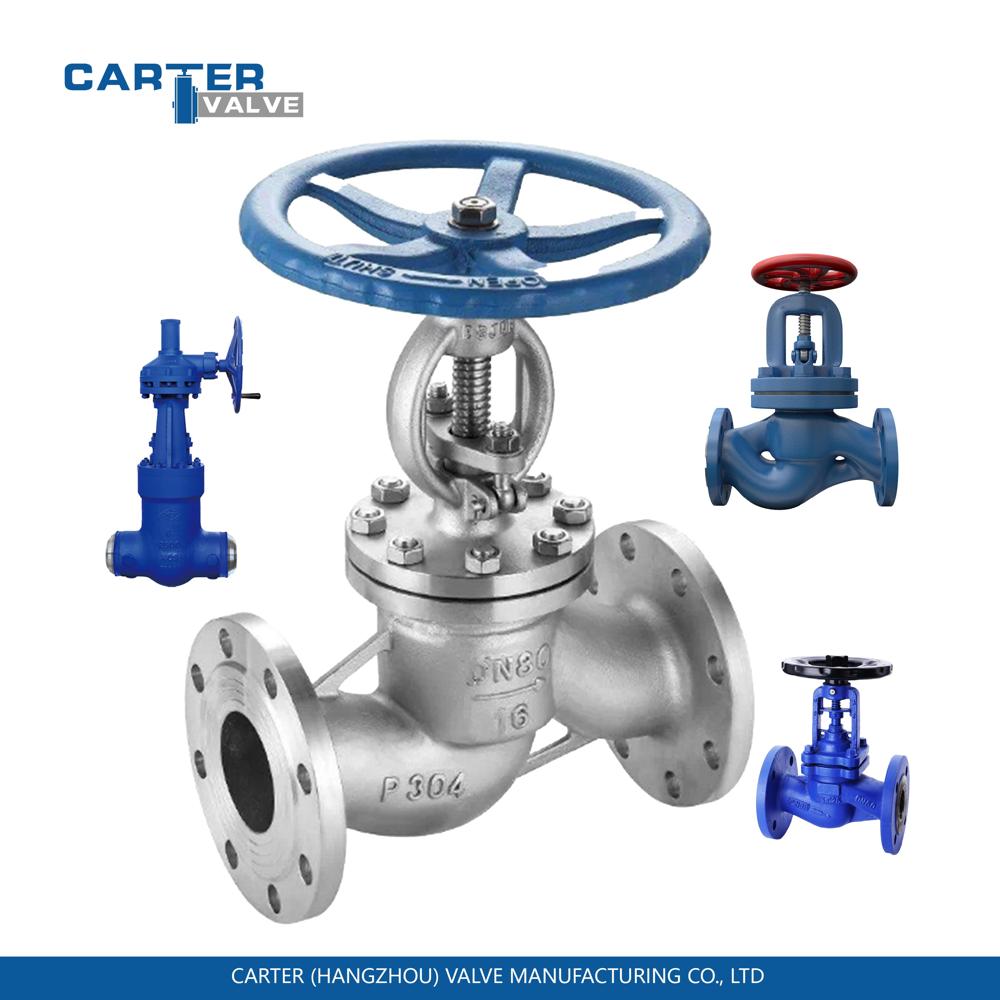

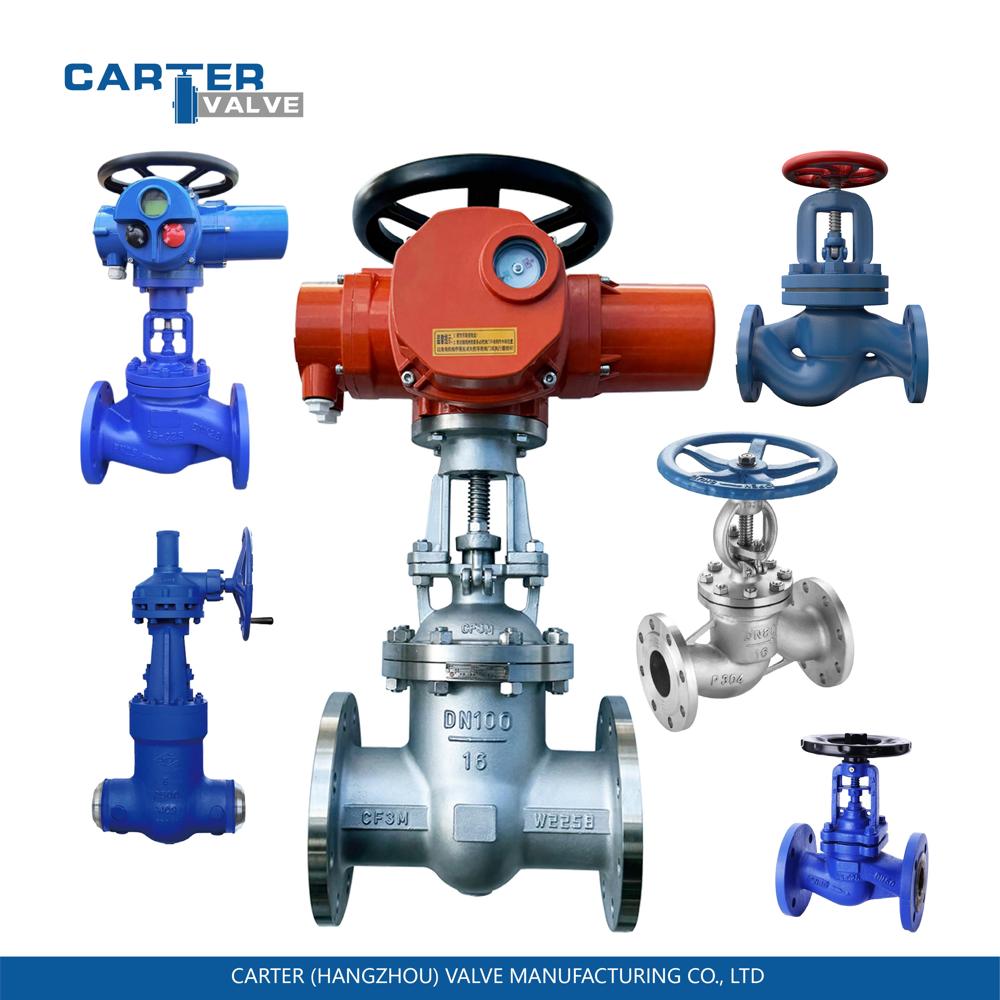

Electric Actuated Globe Valve, Wcb Carbon Steel / CF8 304/316 Stainless Steel, Flanged/Bw/Sw/Threaded, ANSI/API/DIN Standard, High Pressure High Temperature

Electric Actuated Globe Valve, Wcb Carbon Steel / CF8 304/316 Stainless Steel, Flanged/Bw/Sw/Threaded, ANSI/API/DIN Standard, High Pressure High Temperature

7000.0 INR/Piece

Get a Price/Quote

Product Details:

Size Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable)
Pressure 5, 3, , ~, 2, ., P, N, 1, ., 6, , ~, , , g, P, a, s, , 0, N, , 0, , M, P, a, , (, C, l, s, , 1, 1, 5, w, e, 0, 0, e, ), i, h, (, h, r, , r, o, r, , l, o, p, e, s, s, u, r, r, , c, u, s, e, s, a, b, l, e, ), t, o, m, i, z mpa
Media Gas, Base, Water, Oil, Acid
Temperature Carbon steel: -29 ~ 425 ; Stainless steel: -196 ~ 550 ; High-temperature alloy: up to 600 + (customizable) Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Electric Actuated Globe Valve, Wcb Carbon Steel / CF8 304/316 Stainless Steel, Flanged/Bw/Sw/Threaded, ANSI/API/DIN Standard, High Pressure High Temperature Price And Quantity

Minimum Order Quantity 1 Piece
Price 7000.0 INR/Piece

Electric Actuated Globe Valve, Wcb Carbon Steel / CF8 304/316 Stainless Steel, Flanged/Bw/Sw/Threaded, ANSI/API/DIN Standard, High Pressure High Temperature Product Specifications

Media Gas, Base, Water, Oil, Acid
Pressure 5, 3, , ~, 2, ., P, N, 1, ., 6, , ~, , , g, P, a, s, , 0, N, , 0, , M, P, a, , (, C, l, s, , 1, 1, 5, w, e, 0, 0, e, ), i, h, (, h, r, , r, o, r, , l, o, p, e, s, s, u, r, r, , c, u, s, e, s, a, b, l, e, ), t, o, m, i, z mpa
Temperature Carbon steel: -29 ~ 425 ; Stainless steel: -196 ~ 550 ; High-temperature alloy: up to 600 + (customizable) Celsius (oC)
Size Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable)

Product Description

Globe valve is a forced-sealed valve. Its closure element (disc) moves linearly up and down along the centerline of the seat, achieving medium shut-off and flow regulation through tight contact between the disc and seat. Installation must follow the flow direction of low inlet and high outlet.

It features short opening/closing stroke, reliable sealing and good regulation performance, but has relatively high fluid resistance. It is widely used in pipeline systems in petroleum, chemical, power, municipal and other industries.

Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable)

Nominal Pressure (PN/Class): PN1.6 ~ PN32.0 MPa (Class 150 ~ 1500) (higher or lower pressures customizable)

Operating Temperature: Carbon steel: -29 ~ 425; Stainless steel: -196 ~ 550; High-temperature alloy: up to 600+ (customizable)

Test Pressure: Shell: 1.5 Nominal Pressure; Seal: 1.1 Nominal Pressure

Leakage Class: Metal seal: ANSI B16.104 Class IV; Soft seal: Class VI (bubble-tight/zero leakage), customizable

Design & Manufacturing Standards: Design & production: GB/T 12235; Face-to-face dimension: GB/T 12221 (customizable)

Body/Bonnet

Common materials: WCB (carbon steel); CF8 (304 stainless steel); CF8M (316 stainless steel); WC6 (chromium-molybdenum steel)Applicable service conditions: WCB: water / steam at normal temperature; 304/316: corrosion-resistant; WC6: high-temperature steam

Disc/Seat

Common materials: 2Cr13; 304/316; Stellite hardfacingApplicable service conditions: Stellite for metal-to-metal sealing; PTFE insert for soft sealing

Stem

Common materials: 2Cr13; 1Cr18Ni9Ti; 316; nitrided / chromium-plated treatmentApplicable service conditions: Wear-resistant, corrosion-resistant, anti-galling

Packing/Seal

Common materials: Graphite packing (high temperature); PTFE packing (general / low temperature); bellows seal (zero leakage, toxic media)Applicable service conditions: Graphite packing for high temperature; PTFE packing for general/low temperature; bellows seal for zero leakage and toxic media

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Valve' category

CF8 Stainless Steel Bw Butt Weld Manual Globe Valve API Globe Valve, Manual/Electric Actuated, Wcb CF8stainless Steel, Flanged/Butt Weld, High Pressure Pipeline Price : 2000.0 INR/Piece Minimum Order Quantity : 1 Size : Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable) Pressure : P, a, l, e, r, , p, r, e, s, u, r, e, a, l, s, , P, e, s, u, r, e, , (, P, N, /, C, l, ), s, :, , P, N, 1, , N, 3, 2, ., 0, , ., 6, , ~, (, C, l, a, 0, 1, 5, 0, 0, ), , h, s, s, t, i, z, ), P, M, s, s, , 1, 5, i, g, e, r, , o, r, , s, , m, l, e, o, w, c, u, o, a, b, , , ~, , (, h, m, i, n, a, s, N, o, r mpa Media : Water, Acid, Other, Oil, Gas, Base Temperature : Carbon steel: 29 ~ 425 ; Stainless steel: 196 ~ 550 ; Hightemperature alloy: up to 600 + (customizable) Celsius (oC) Material : Common materials: WCB (carbon steel); CF8 (304 stainless steel); CF8M (316 stainless steel); WC6 (chromiummolybdenum steel)Applicable service conditions: WCB: water / steam at normal temperature; 304/316: corrosionresistant; WC6: hightemperature steam

Send Inquiry

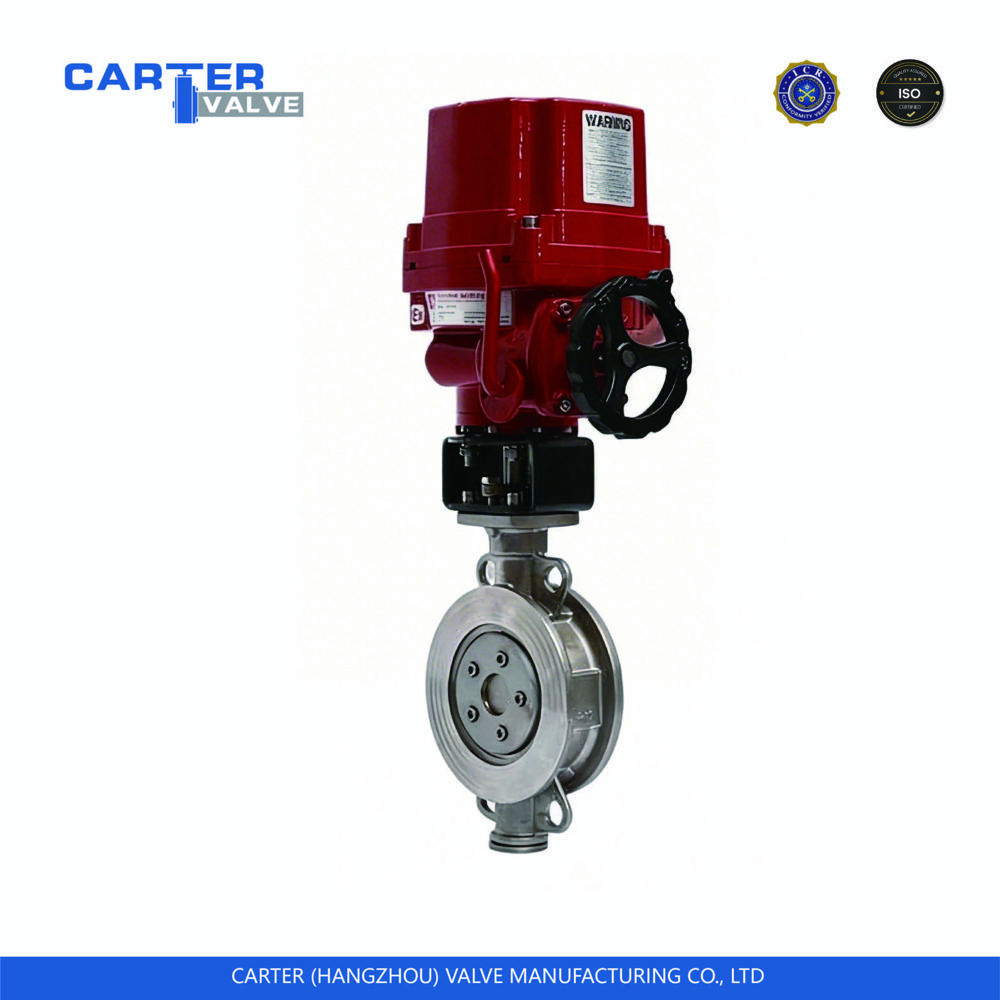

Electric Hard Seal Butterfly Valve, Triple Eccentric Design, Flange, Clamp, Welding, Carbon Steel Wcb, Stainless Steel CF8 CF3, American Standard 150lb-2500lb Price : 2000.0 INR/Piece Minimum Order Quantity : 1 Size : Nominal Diameter: DN50 DN3000, NPS 2"~120" Pressure : , P, N, 1, 6, 0, b, 0, , L, b, , 1, P, N, 1, 0, ,, C, l, a, s, s, , 5, 0, , L, ~, 1, 5, 0 mpa Media : Gas, Base, Water, Oil, Acid, Other Material : Body Material: Carbon steel, stainless steel, duplex stainless steel, alloy steel, nickel alloy steel
