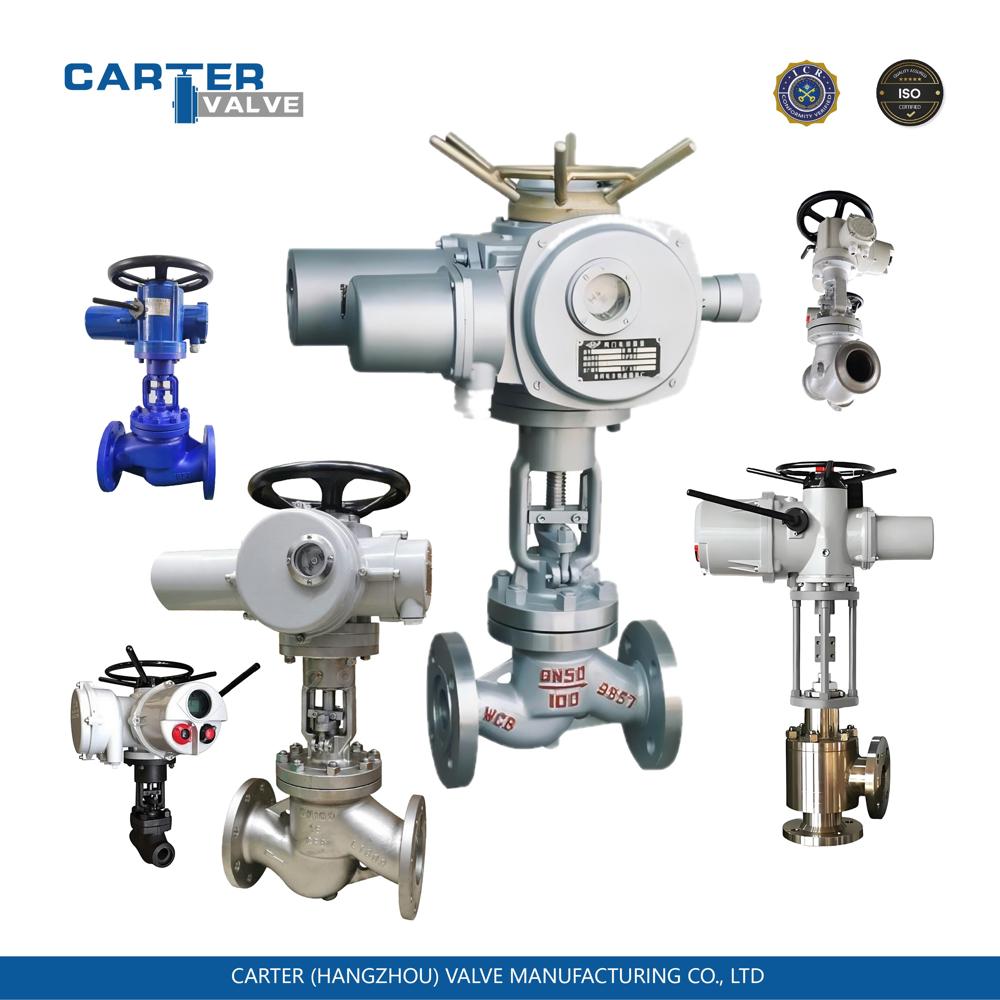

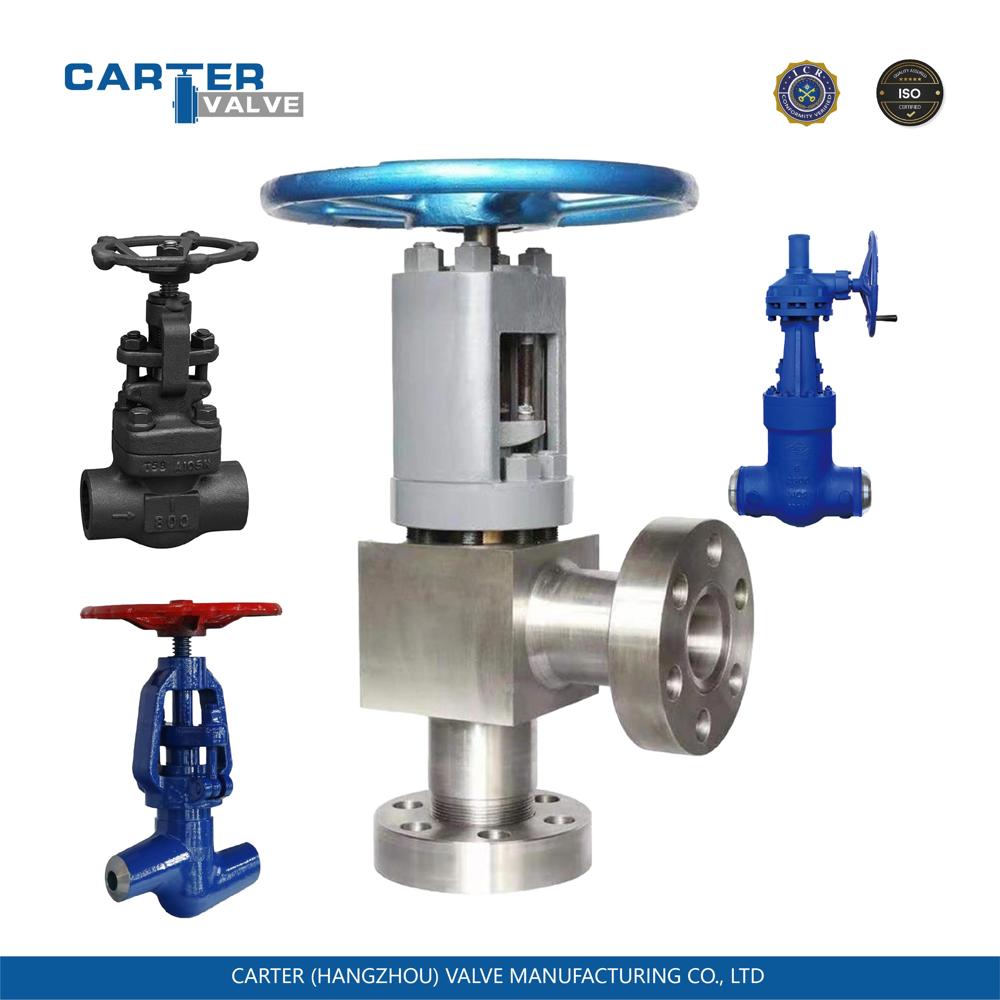

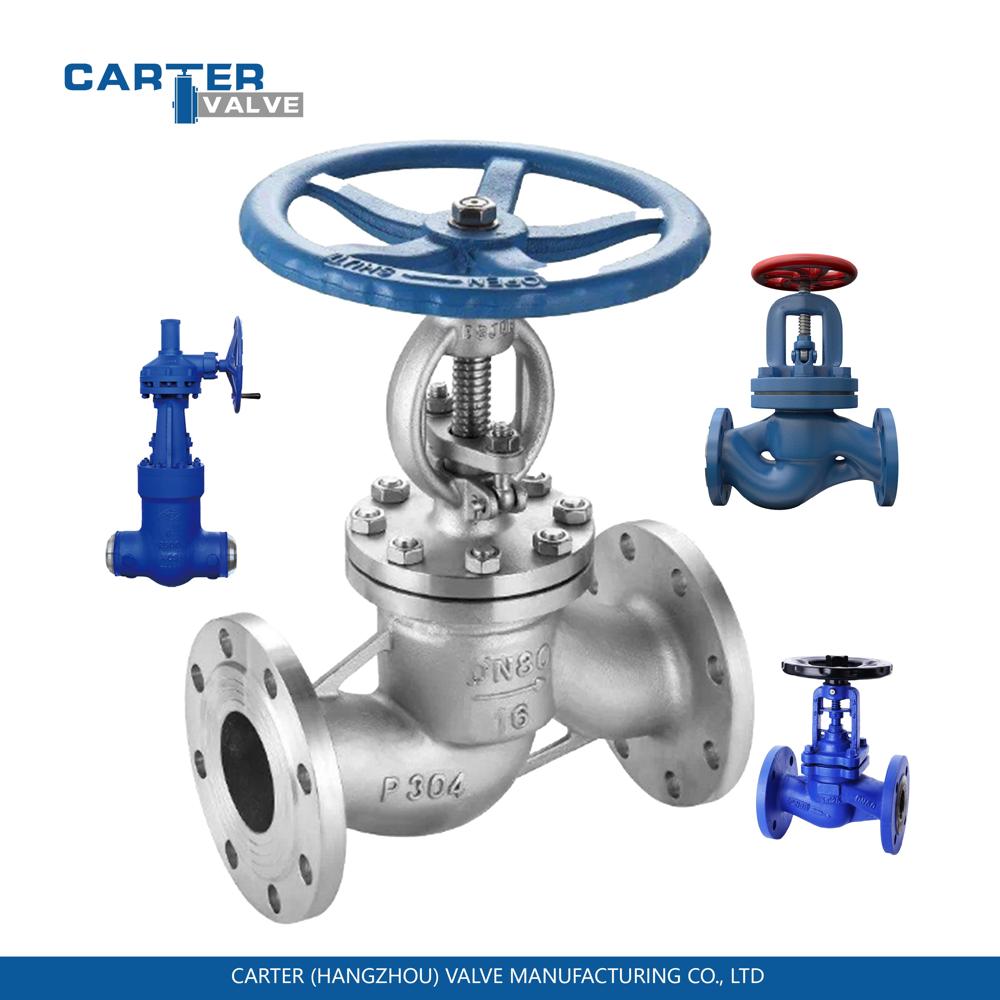

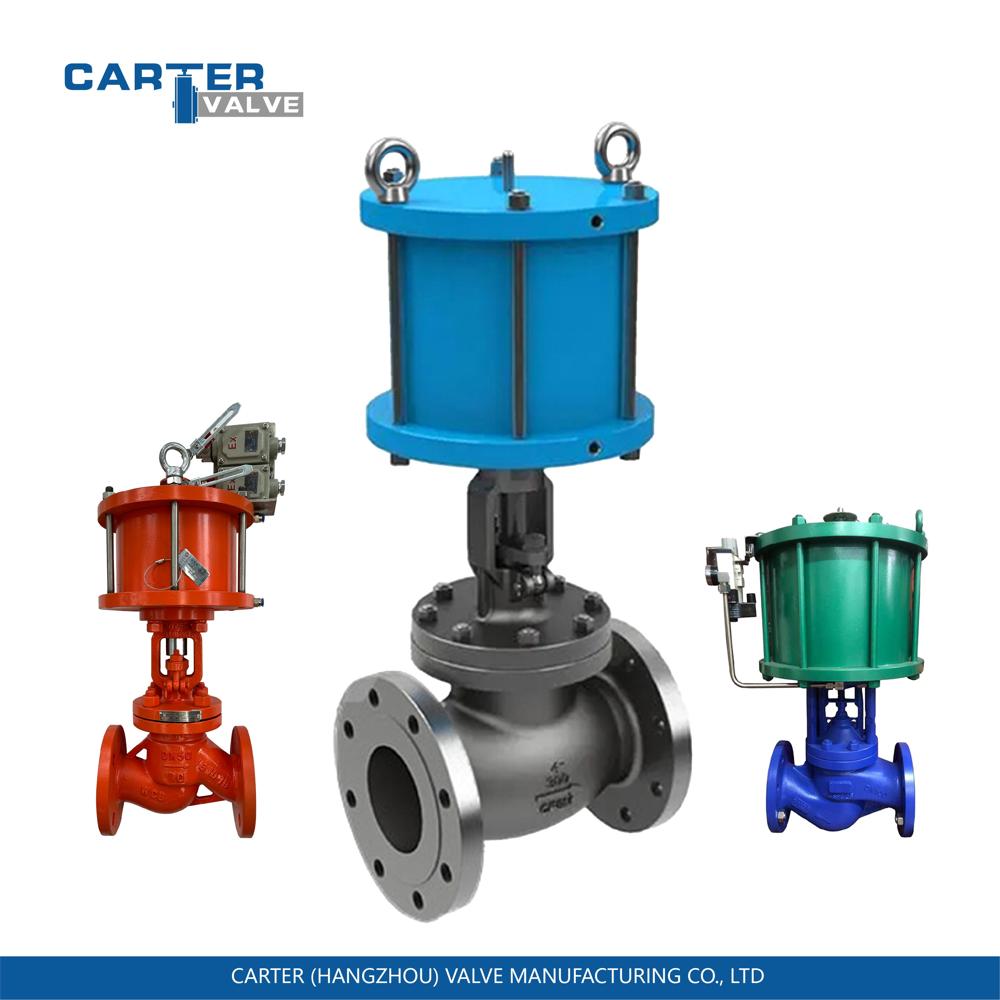

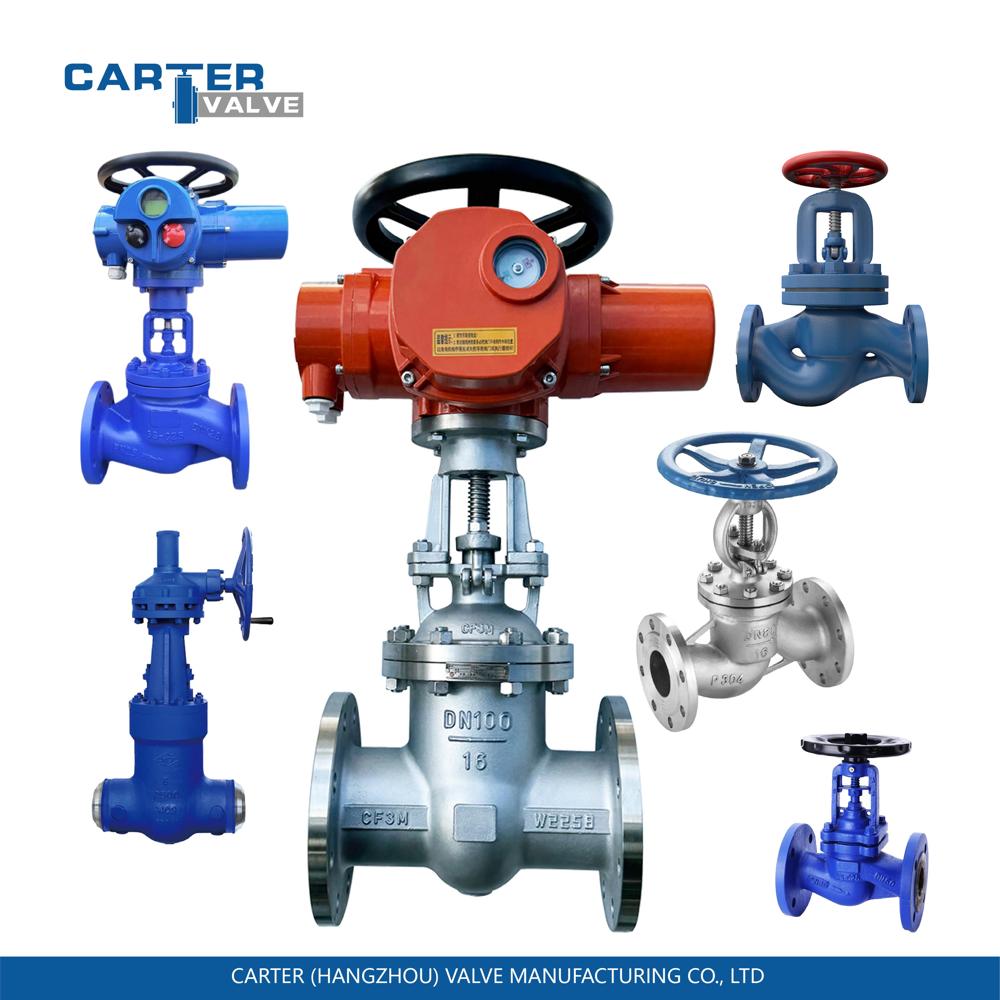

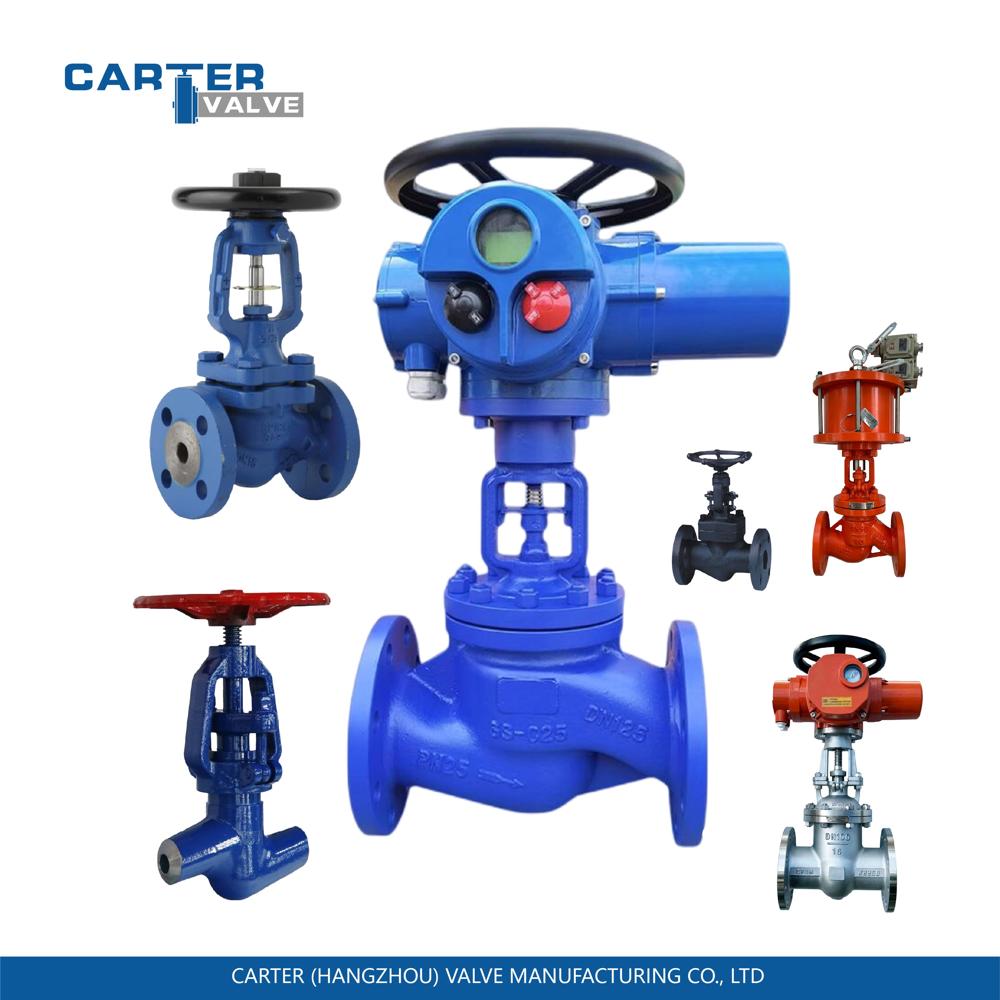

CF8 Stainless Steel Bw Butt Weld Manual Globe Valve API Globe Valve, Manual/Electric Actuated, Wcb CF8stainless Steel, Flanged/Butt Weld, High Pressure Pipeline

CF8 Stainless Steel Bw Butt Weld Manual Globe Valve API Globe Valve, Manual/Electric Actuated, Wcb CF8stainless Steel, Flanged/Butt Weld, High Pressure Pipeline

2000.0 INR/Piece

Get a Price/Quote

Product Details:

Material Common materials: WCB (carbon steel); CF8 (304 stainless steel); CF8M (316 stainless steel); WC6 (chromium-molybdenum steel)Applicable service conditions: WCB: water / steam at normal temperature; 304/316: corrosion-resistant; WC6: high-temperature steam
Size Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable)
Pressure P, a, l, e, r, , p, r, e, s, u, r, e, a, l, s, , P, e, s, u, r, e, , (, P, N, /, C, l, ), s, :, , P, N, 1, , N, 3, 2, ., 0, , ., 6, , ~, (, C, l, a, 0, 1, 5, 0, 0, ), , h, s, s, t, i, z, ), P, M, s, s, , 1, 5, i, g, e, r, , o, r, , s, , m, l, e, o, w, c, u, o, a, b, , , ~, , (, h, m, i, n, a, s, N, o, r mpa
Media Water, Acid, Oil, Gas, Base
Temperature Carbon steel: -29 ~ 425 ; Stainless steel: -196 ~ 550 ; High-temperature alloy: up to 600 + (customizable) Celsius (oC)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

CF8 Stainless Steel Bw Butt Weld Manual Globe Valve API Globe Valve, Manual/Electric Actuated, Wcb CF8stainless Steel, Flanged/Butt Weld, High Pressure Pipeline Price And Quantity

Minimum Order Quantity 1 Piece
Price 2000.0 INR/Piece

CF8 Stainless Steel Bw Butt Weld Manual Globe Valve API Globe Valve, Manual/Electric Actuated, Wcb CF8stainless Steel, Flanged/Butt Weld, High Pressure Pipeline Product Specifications

Size Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable)
Pressure P, a, l, e, r, , p, r, e, s, u, r, e, a, l, s, , P, e, s, u, r, e, , (, P, N, /, C, l, ), s, :, , P, N, 1, , N, 3, 2, ., 0, , ., 6, , ~, (, C, l, a, 0, 1, 5, 0, 0, ), , h, s, s, t, i, z, ), P, M, s, s, , 1, 5, i, g, e, r, , o, r, , s, , m, l, e, o, w, c, u, o, a, b, , , ~, , (, h, m, i, n, a, s, N, o, r mpa
Media Water, Acid, Oil, Gas, Base
Temperature Carbon steel: -29 ~ 425 ; Stainless steel: -196 ~ 550 ; High-temperature alloy: up to 600 + (customizable) Celsius (oC)
Material Common materials: WCB (carbon steel); CF8 (304 stainless steel); CF8M (316 stainless steel); WC6 (chromium-molybdenum steel)Applicable service conditions: WCB: water / steam at normal temperature; 304/316: corrosion-resistant; WC6: high-temperature steam

Product Description

Globe valve is a forced-sealed valve. Its closure element (disc) moves linearly up and down along the centerline of the seat, achieving medium shut-off and flow regulation through tight contact between the disc and seat. Installation must follow the flow direction of low inlet and high outlet.

It features short opening/closing stroke, reliable sealing and good regulation performance, but has relatively high fluid resistance. It is widely used in pipeline systems in petroleum, chemical, power, municipal and other industries.

Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable)

Nominal Pressure (PN/Class): PN1.6 ~ PN32.0 MPa (Class 150 ~ 1500) (higher or lower pressures customizable)

Operating Temperature: Carbon steel: -29 ~ 425; Stainless steel: -196 ~ 550; High-temperature alloy: up to 600+ (customizable)

Test Pressure: Shell: 1.5 Nominal Pressure; Seal: 1.1 Nominal Pressure

Leakage Class: Metal seal: ANSI B16.104 Class IV; Soft seal: Class VI (bubble-tight/zero leakage), customizable

Design & Manufacturing Standards: Design & production: GB/T 12235; Face-to-face dimension: GB/T 12221 (customizable)

Body/Bonnet

Common materials: WCB (carbon steel); CF8 (304 stainless steel); CF8M (316 stainless steel); WC6 (chromium-molybdenum steel)Applicable service conditions: WCB: water / steam at normal temperature; 304/316: corrosion-resistant; WC6: high-temperature steam

Disc/Seat

Common materials: 2Cr13; 304/316; Stellite hardfacingApplicable service conditions: Stellite for metal-to-metal sealing; PTFE insert for soft sealing

Stem

Common materials: 2Cr13; 1Cr18Ni9Ti; 316; nitrided / chromium-plated treatmentApplicable service conditions: Wear-resistant, corrosion-resistant, anti-galling

Packing/Seal

Common materials: Graphite packing (high temperature); PTFE packing (general / low temperature); bellows seal (zero leakage, toxic media)Applicable service conditions: Graphite packing for high temperature; PTFE packing for general/low temperature; bellows seal for zero leakage and toxic media
