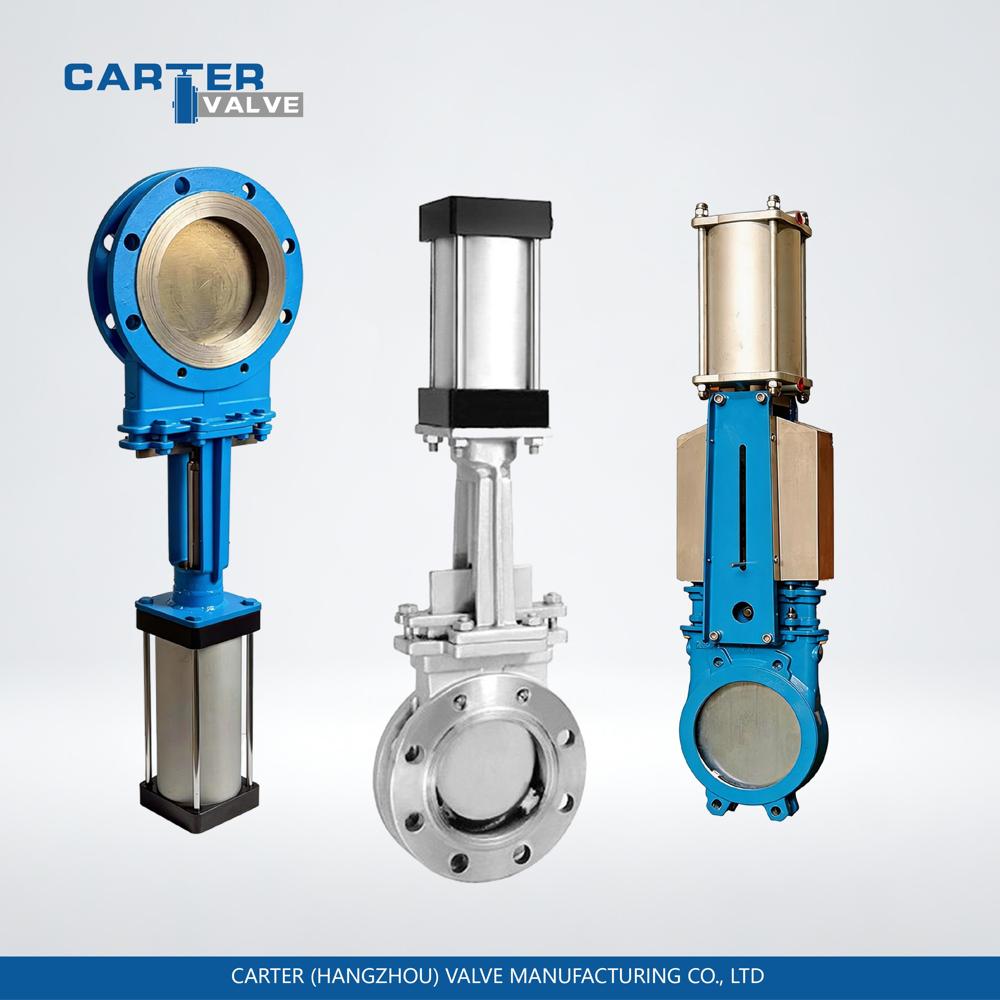

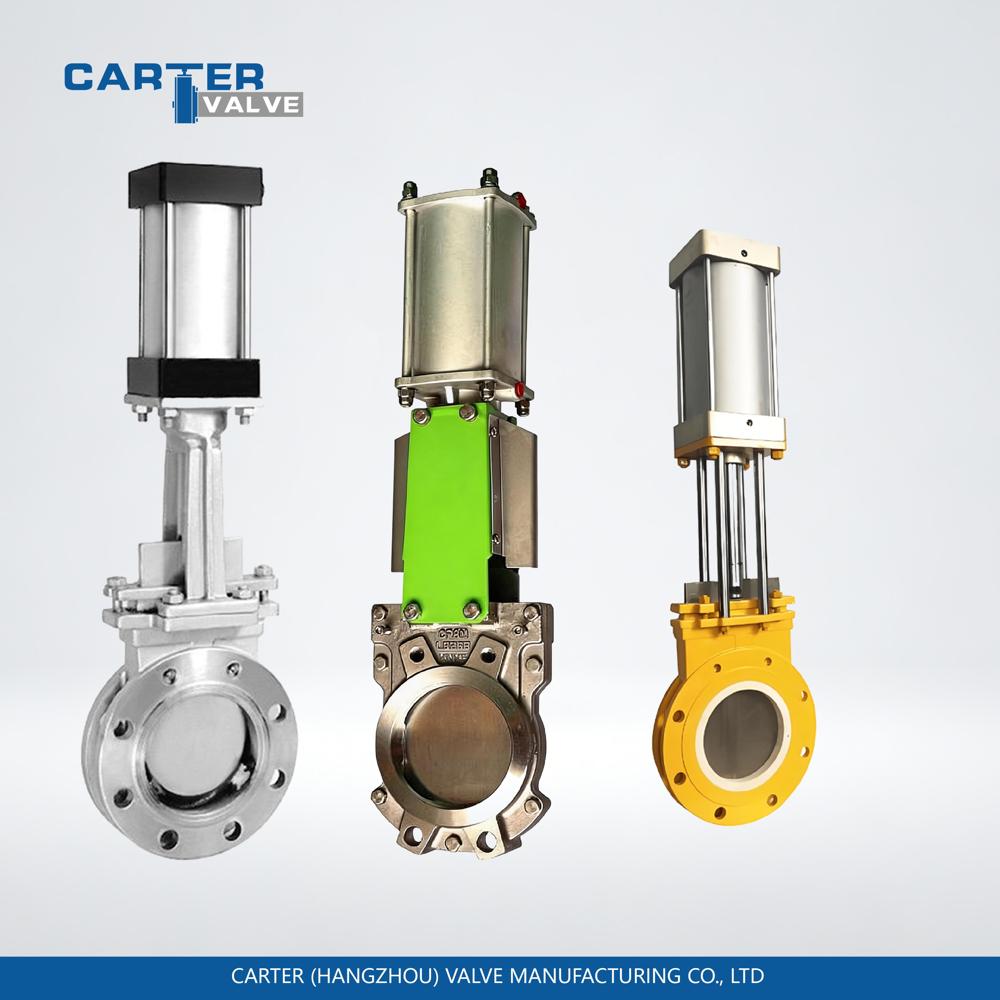

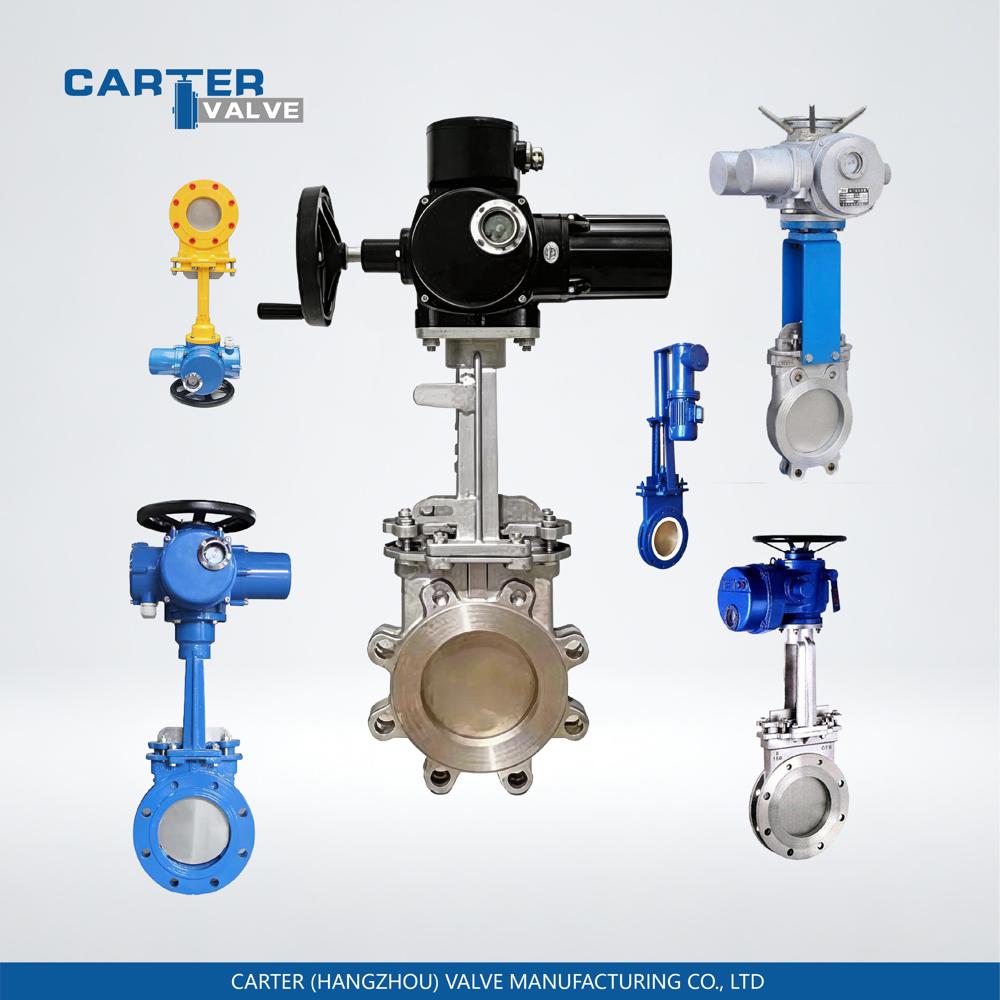

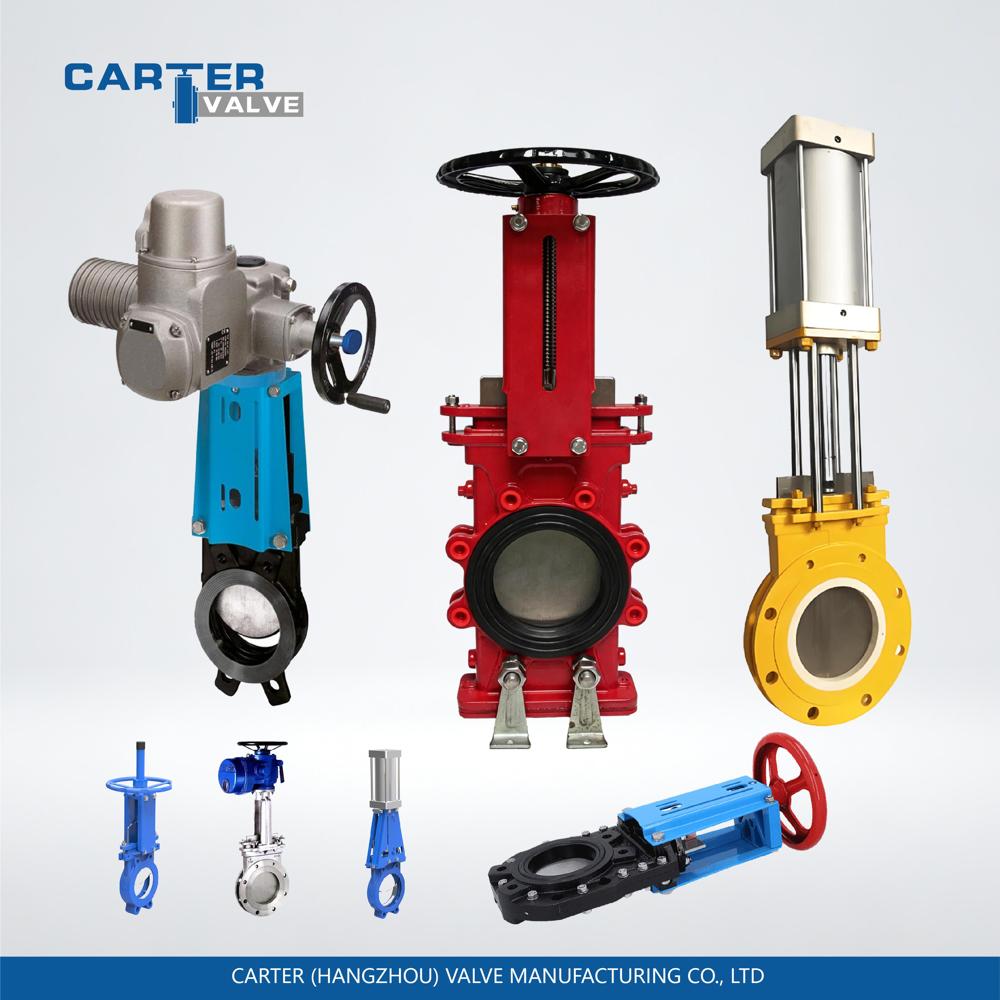

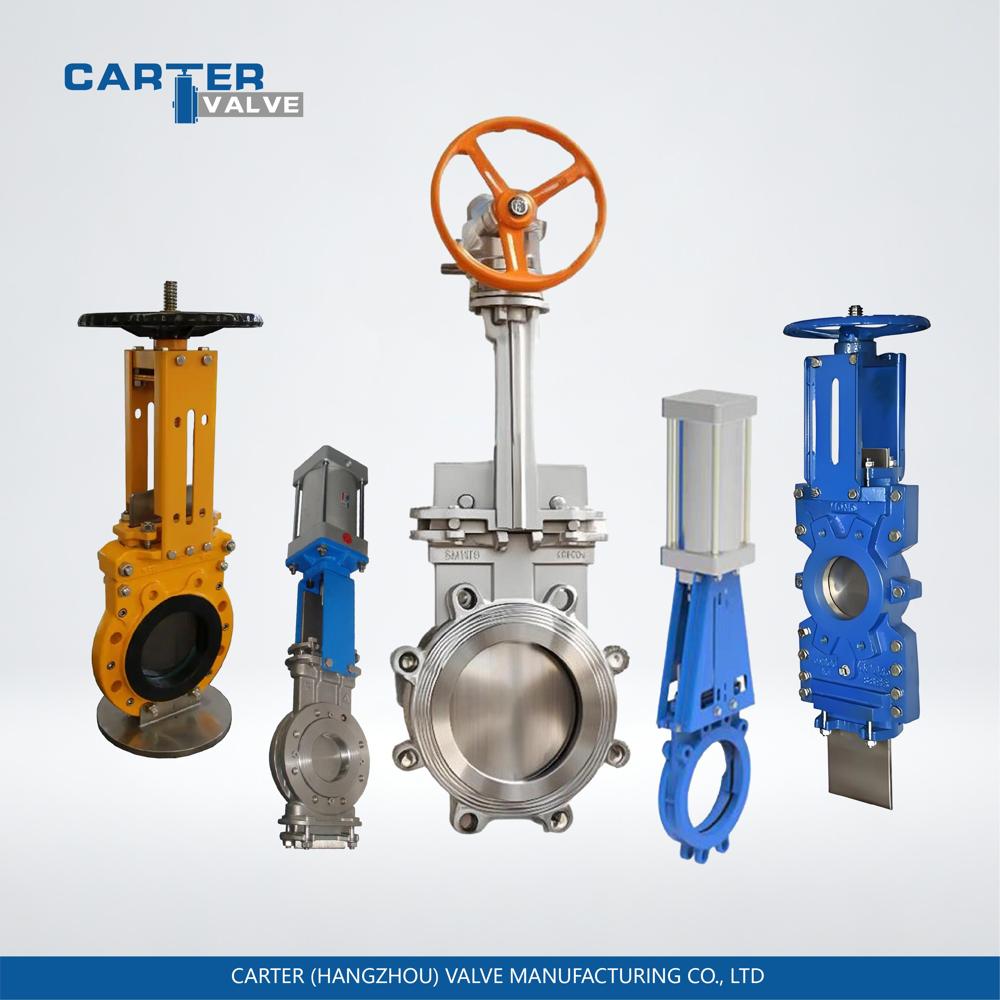

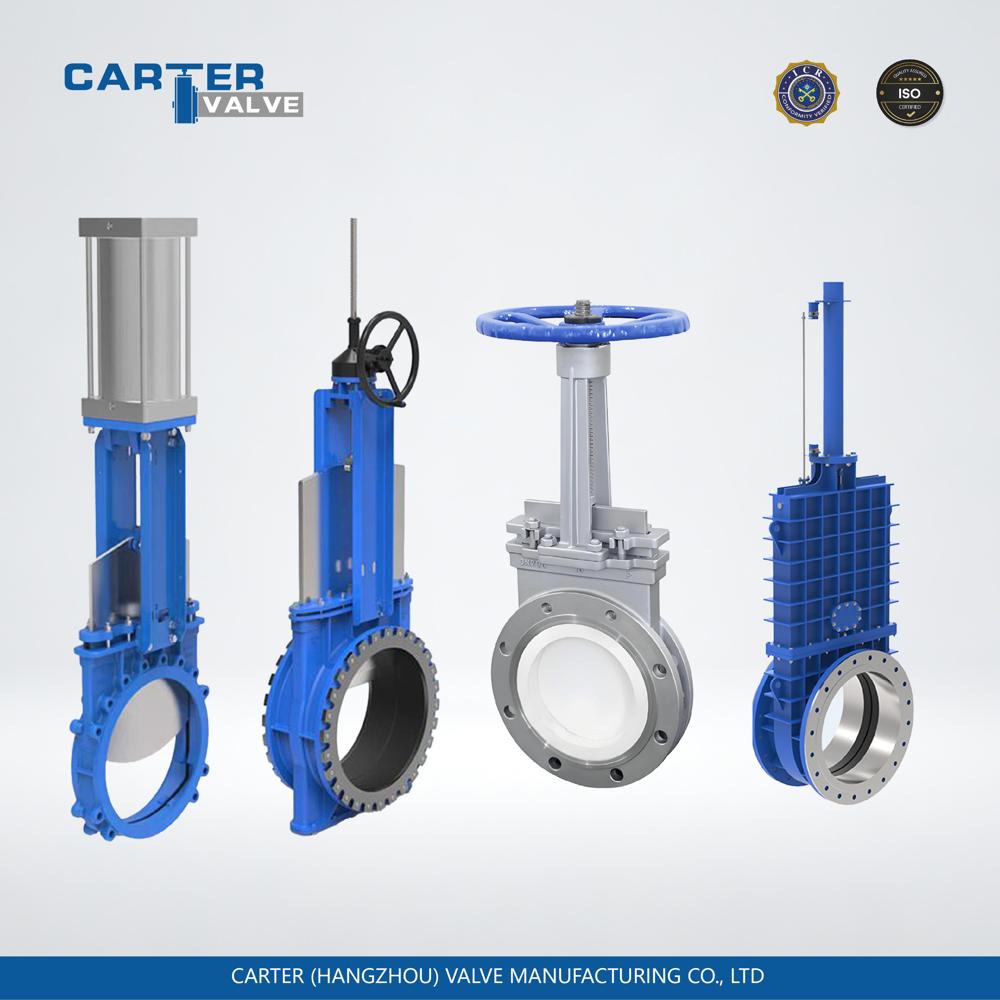

Knife Gate Valve / Slurry Knife Gate Valve, Ductile Iron, Wafer, Pneumatic Actuated, Knife Gate Structure, Slurry/Wastewater, MSS SP-81 Standard

Knife Gate Valve / Slurry Knife Gate Valve, Ductile Iron, Wafer, Pneumatic Actuated, Knife Gate Structure, Slurry/Wastewater, MSS SP-81 Standard

Name: Pneumatic Diaphragm Pump
Brand: UK BERT PUMPS INDUSTRY CO., LIMITED

500.0 INR/Piece

Get a Price/Quote

Product Details:

Control System Manual / Electric / Pneumatic / Hydraulic
Connection Type GB / JB / HG / ANSI / DIN / JIS standard connections
Valve Type Knife Gate Valve
Valve Size DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized)
Features Knife-edge gate plate prevents clogging; straight-through full flow path; ultra-thin compact structure; zero leakage soft seal; wear-resistant hard seal; multiple actuation options (manual/electric/pneumatic/hydraulic); easy maintenance; cost-effective
Material Cast iron (HT200/250), carbon steel (WCB), stainless steel (304/316/316L), duplex steel, titanium alloy
Application Slurry, pulp, mine tailings, dust, sewage, and media prone to clogging
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Knife Gate Valve / Slurry Knife Gate Valve, Ductile Iron, Wafer, Pneumatic Actuated, Knife Gate Structure, Slurry/Wastewater, MSS SP-81 Standard Price And Quantity

Minimum Order Quantity 1 Piece
Price 500.0 INR/Piece

Knife Gate Valve / Slurry Knife Gate Valve, Ductile Iron, Wafer, Pneumatic Actuated, Knife Gate Structure, Slurry/Wastewater, MSS SP-81 Standard Product Specifications

Size DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized)
Pressure 0, , 0, /, , 2, ., 5, , 6, , /, , 1, ., 6, M, , 5, B, , /, , 1, 0, K, P, N, , ., /, , 1, ., , P, a, ;, 1, 0, L mpa
Valve Size DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized)
Usage Industrial
Product Type Knife Gate Valve (Slurry / Slide Gate Valve)
Color As Per Availability
Disc Stainless steel (304/316), carbon steel, hard alloy overlay
Features Knife-edge gate plate prevents clogging; straight-through full flow path; ultra-thin compact structure; zero leakage soft seal; wear-resistant hard seal; multiple actuation options (manual/electric/pneumatic/hydraulic); easy maintenance; cost-effective
Type Linear stroke forced-sealing shut-off valve
Material Cast iron (HT200/250), carbon steel (WCB), stainless steel (304/316/316L), duplex steel, titanium alloy
Structure Gate
Application Slurry, pulp, mine tailings, dust, sewage, and media prone to clogging
Control System Manual / Electric / Pneumatic / Hydraulic
Connection Type GB / JB / HG / ANSI / DIN / JIS standard connections
Port Size DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized)
Valve Type Knife Gate Valve
Temperature -40 C ~ 425 C (hard seal); -20 C ~ 120 C (soft seal) Celsius (oC)
Media Gas, Base, Water, Oil, Acid
Sealing Class VI zero leakage (soft seal); Class IV (hard seal)

Knife Gate Valve / Slurry Knife Gate Valve, Ductile Iron, Wafer, Pneumatic Actuated, Knife Gate Structure, Slurry/Wastewater, MSS SP-81 Standard Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 1000 Piece Per Month
Delivery Time 15 Days
Main Domestic Market All India

Product Description

Product Introduction

A knife gate valve (also known as a knife-type gate valve, slurry valve, or slide gate valve) is a linear stroke forced-sealing shut-off valve. Its core component is a flat gate plate with a knife edge, whose movement direction is perpendicular to the medium flow direction. It cuts off media containing particles, fibres, and viscous substances through the shearing action of the gate plate. The valve body has no traditional gate valve cavity, featuring an ultra-thin structure and a straight-through flow path. It is specially designed for media prone to clogging, such as slurry, pulp, mine tailings, dust, and sewage.

Technical Specifications

Nominal Diameter: DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized)

Nominal Pressure: PN 0.6 / 1.0 / 1.6 / 2.5 MPa; 150LB / 10K

Applicable Temperature

o Soft seal: -20 ~ 120

o Hard seal: -40 ~ 425

Connection Standards: GB / JB / HG / ANSI / DIN / JIS

Test Standards: GB/T 13927 (Body: 1.5PN; Seal: 1.1PN)

Leakage Class: Soft seal Class VI (zero leakage); Hard seal Class IV

Main Component Materials

Valve Body

o Cast Iron (HT200/250): Sewage, low-pressure service

o Carbon Steel (WCB): General industrial, medium and high-pressure service

o Stainless Steel (304/316/316L): Chemical, food processing, highly corrosive service

o Duplex Steel / Titanium Alloy: High corrosion, special working conditions

Gate Plate

o Stainless Steel (304/316), Carbon Steel, Hard Alloy Overlay (wear-resistant)

Seal

o Soft: EPDM, NBR, Viton, PTFE

o Hard: 304/316, Stellite Alloy, Hard Alloy

Stem: 2Cr13, 304, 316, Titanium Alloy

Product Features

1. Knife-type Gate Plate: With a bevelled edge, capable of cutting fibres, particles, and sludge to prevent clogging.

2. Straight-through Full Flow Path: Extremely low flow resistance, no dead corners, no material accumulation.

3. Ultra-thin Structure: Compact size, light weight, small installation footprint.

4. Reliable Sealing: Zero leakage with soft seal; high temperature resistance and wear resistance with hard seal.

5. Multiple Actuation Options: Manual / Electric / Pneumatic / Hydraulic, compatible with automatic control systems.

6. Easy Maintenance: Simple structure, seals can be replaced online.

7. Cost-Effective: Lower price than gate valves/ball valves, ideal for slurry applications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Valve' category

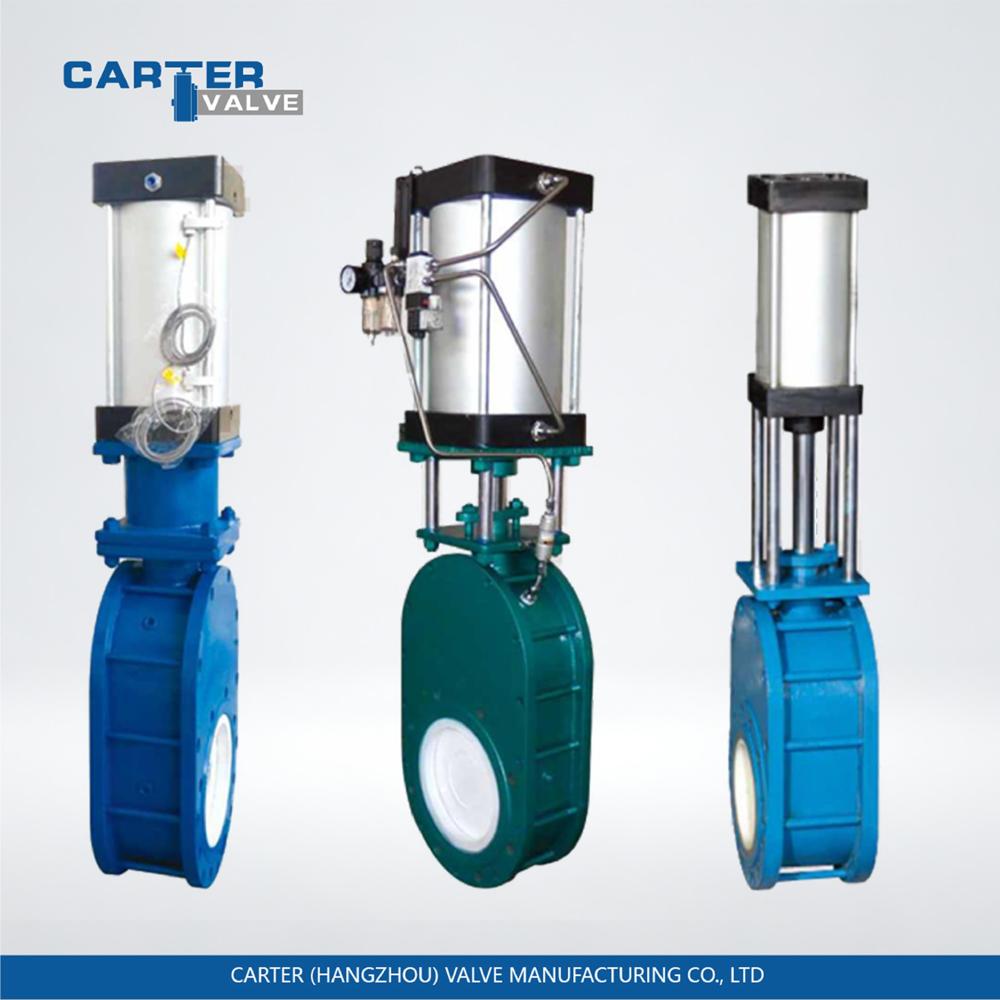

Ceramic Gate Valve / Knife Gate Ceramic Valve, Alumina Ceramic, Flanged, Pneumatic Actuated, Knife Gate Structure, Ash Slurry/Powder, DIN Standard Price : 200.0 INR/Piece Minimum Order Quantity : 1 Material : Body: carbon steel/stainless steel; internals: Al O /ZrO /SiC/Si N ceramics Features : Corrosionresistant, wearresistant, hightemperature stable, zero leakage, long life, selfcleaning Media : Gas, Base, Water, Oil, Acid, Other Usage : Control flow and shutoff in highwear, corrosive, hightemperature/pressure extreme conditions Size : DN15~DN2000 Structure : Other Product Type : Ceramic Valve / Ceramic Lined Valve Connection Type : Flanged, buttwelded, wafer, welded Valve Type : Ceramic Valve Application : Metering Control System : Manual / Pneumatic / Electric (fast response 0.5s pneumatic, 1% regulating precision) Sealing : Zero leakage ( 1 10 ml/s), compliant with TALuft/ISO 15848 Type : Ceramic Valve Temperature : 196 ~ 1650 (standard 29~425 , high temp up to 1650 , low temp down to 196 ) Celsius (oC) Valve Size : DN15~DN2000 Disc : Alumina/zirconia/silicon carbide/silicon nitride ceramic internals Port Size : DN15~DN2000 (ball: DN15~DN300; butterfly: DN50~DN2000; gate: DN25~DN1000) Pressure : P, N, ~, P, N, 4, 0, s, , h, s, u, r, e, , b, , v, a, l, v, e, 0, 0, 0, , 1, 5, 0, 0, i, g, h, , p, r, e, s, a, l, l, s, , u, p, , t, o, , P, N, 1, ), 1, 6, (, C, l, a, s, 0, ~, C, l, a, s, s, 2, 5, , mpa
