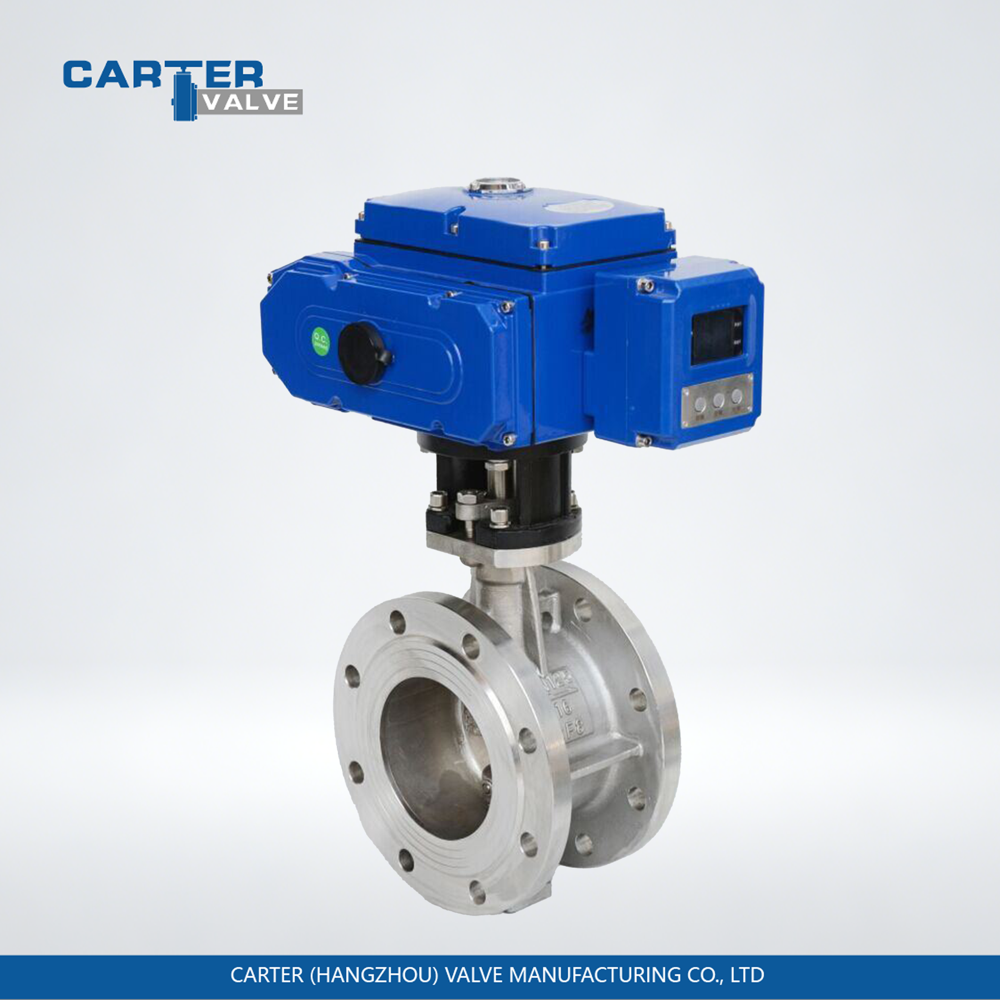

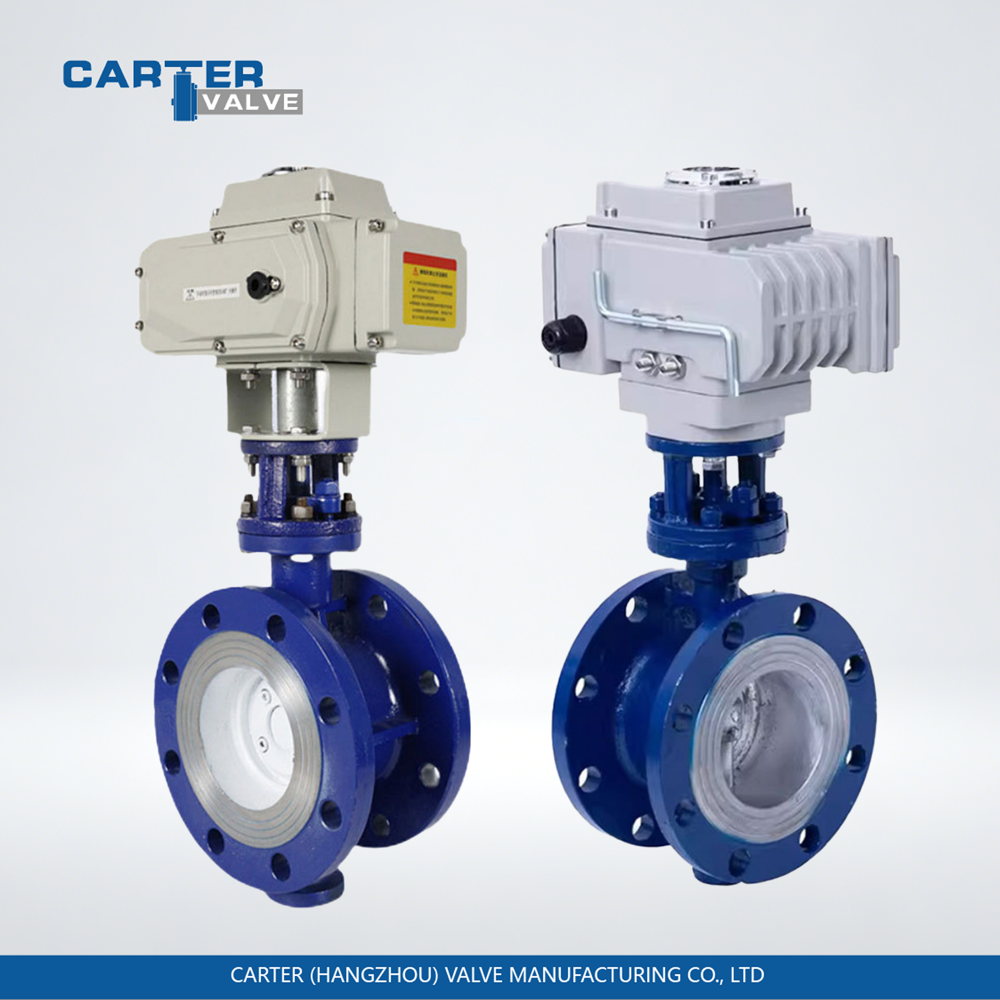

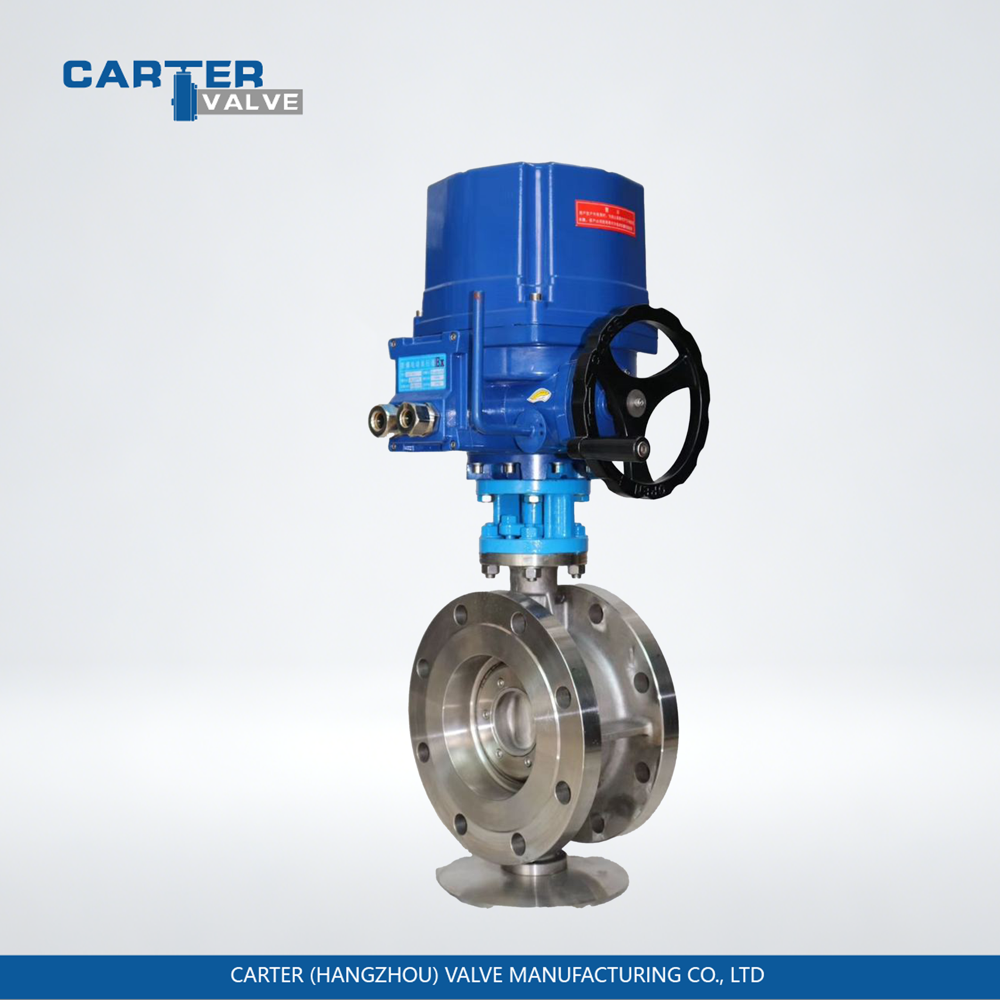

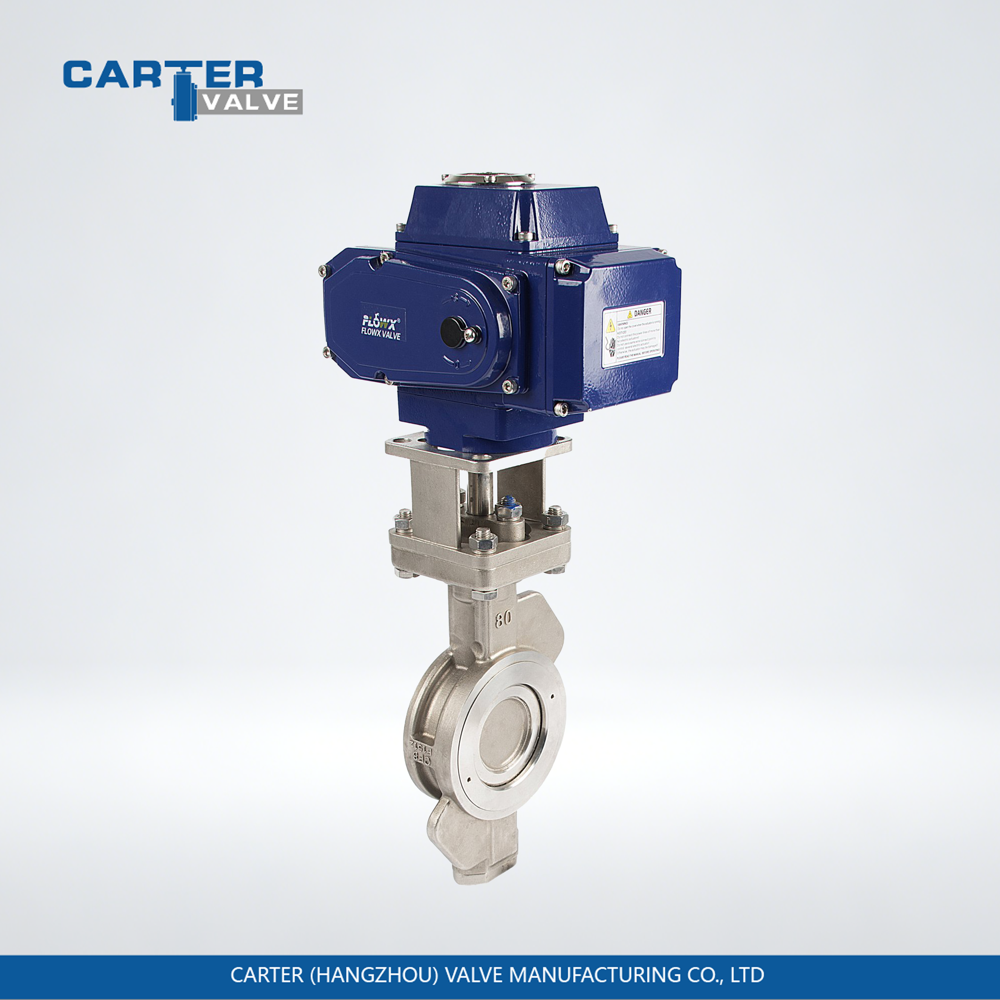

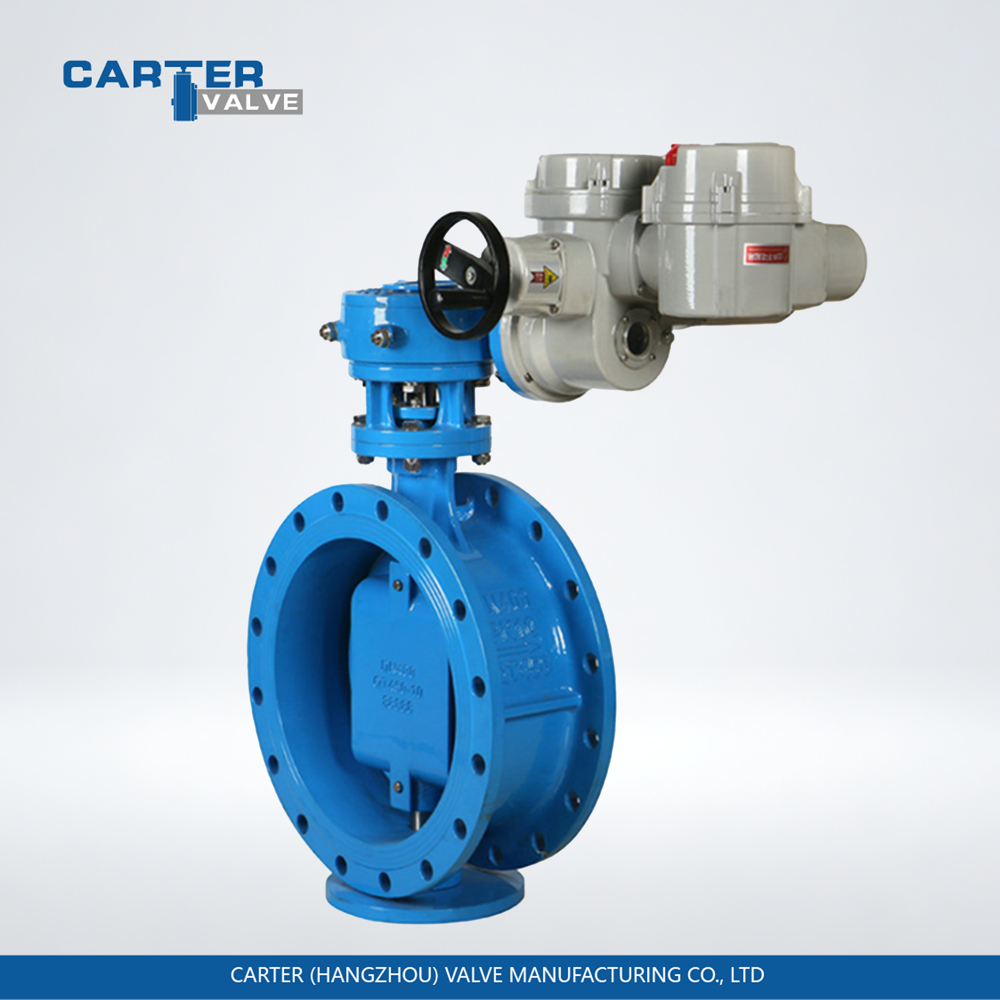

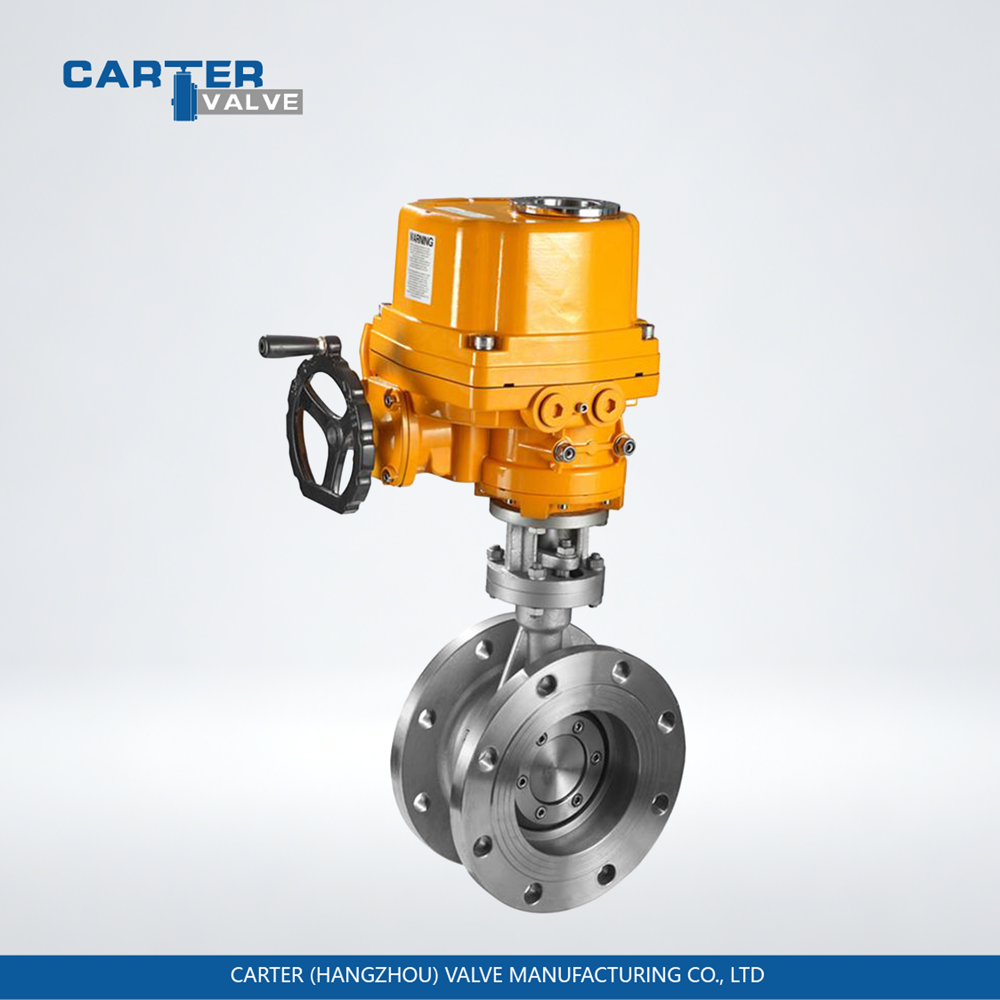

Electric Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Metal Seated Structure, Steam/Gas/Oil, API Standard

Electric Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Metal Seated Structure, Steam/Gas/Oil, API Standard

Name: DG Series Miniature Electric Diaphragm Pump
Brand: UK BERT PUMPS INDUSTRY CO., LIMITED
Price: 86885.0 INR
Availability: InStock

1200.0 INR/Piece

Get a Price/Quote

Product Details:

Material Cast iron, cast steel, stainless steel, special alloys
Connection Type Clamp on lug flange, flanged, wafer
Valve Type Electric Hard Seal Butterfly Valve
Valve Size DN40 DN1200
Control System Electric actuator (supports remote control, 4-20mA regulation, position feedback, fault alarm; compatible with DCS/PLC systems)
Features Metal hard seal, high temperature/pressure resistance, corrosion/erosion resistance, compact lightweight design, zero leakage sealing, electric intelligent control
Usage Industrial
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Electric Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Metal Seated Structure, Steam/Gas/Oil, API Standard Price And Quantity

Minimum Order Quantity 1 Piece
Price 1200.0 INR/Piece

Electric Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Metal Seated Structure, Steam/Gas/Oil, API Standard Product Specifications

Sealing Metal-to-metal hard seal, self-tightening structure (ANSI Class VI zero leakage)
Size DN40 DN1200
Product Type Electric Hard Seal Butterfly Valve (Triple-eccentric metal hard-sealed butterfly valve)
Port Size DN40 DN1200
Control System Electric actuator (supports remote control, 4-20mA regulation, position feedback, fault alarm; compatible with DCS/PLC systems)
Features Metal hard seal, high temperature/pressure resistance, corrosion/erosion resistance, compact lightweight design, zero leakage sealing, electric intelligent control
Disc Hard-faced with stainless steel, cobalt-based/nickel-based alloys, hardened by spray welding/overlaying
Valve Size DN40 DN1200
Application Petroleum, chemical, power, metallurgy, gas, steam, and severe service conditions (high temperature, high pressure, corrosive/abrasive media)
Structure Butterfly
Pressure , , P, N, 6, P, N, /, 6, 4, , , 1, 5, 0, L, B, , , , 6, 0, 0, L, B mpa
Connection Type Clamp on lug flange, flanged, wafer
Media Oil, Water, Acid, Gas, Base
Temperature -196 C ~ 550 C Celsius (oC)
Usage Industrial
Material Cast iron, cast steel, stainless steel, special alloys
Type On-off / regulating control butterfly valve
Valve Type Electric Hard Seal Butterfly Valve

Product Description

Electric Hard Seal Butterfly Valve

Reasons to Choose Us

We control the quality layer by layer from production to finished product delivery.

Premium Quality: Quality is guaranteed.
Imported Resources: Resources sourced from the United States.
Quality Certification: Complete certificate and qualification.
In Stock: Large stock available in the warehouse.
Various Specifications: Specifications support customization.
Thoughtful Service: Thoughtful after-sales service.

Product Information

Quality Assurance / Extra Long Warranty / Worry Free Operation

Product Name: Electric hard seal butterfly valve
Nominal Diameter: DN40-DN1200
Nominal Pressure: PN6-PN64 / 150LB-600LB
Applicable Temperature: -196C~550C
Connection Method: Clamp on lug flange / Flanged / Wafer
Drive Type: Electric
Valve Material: Cast iron, cast steel, stainless steel, special alloys

Product Introduction

The electric hard-sealed butterfly valve is a high-performance valve composed of an electric actuator and a triple-eccentric metal hard-sealed butterfly valve body. It is mainly used for on-off or regulating control of media in industrial piping systems.

Unlike conventional rubber soft-sealed valves, its sealing pair (seat and disc) is made of metal-to-metal or metal-to-hard alloy, specifically engineered for severe conditions such as high temperature, high pressure, strong corrosion, and abrasive media with particles or dust. It is widely applied in automated control fields including petroleum, chemical, power, metallurgy, gas, and steam.

Product Features

Metal Hard Seal, High Temperature & Pressure Resistance

Sealing surfaces are hard-faced with stainless steel and alloys (e.g., cobalt-based, nickel-based), capable of withstanding high temperatures above 550C and high pressure with stable performance.
Zero-Leakage Sealing

The precision wedge structure provides a self-sealing effect that tightens with closing force, achieving a leakage rate up to ANSI Class VI (bubble-tight).
Corrosion & Erosion Resistance

The seat and disc are hardened (via spray welding or overlaying) to resist corrosion and erosion, ideal for abrasive media like slurry, dust, and fibrous fluids.
Compact & Lightweight Design

Compared to gate and globe valves, it features smaller size, lighter weight, smaller installation footprint, and easier maintenance. Offers low flow resistance and high flow capacity.
Electric Intelligent Control

Equipped with an intelligent electric actuator, supporting remote control, 4-20mA regulation, position feedback, and fault alarm. Seamlessly integrates with DCS/PLC systems.
