Product Description

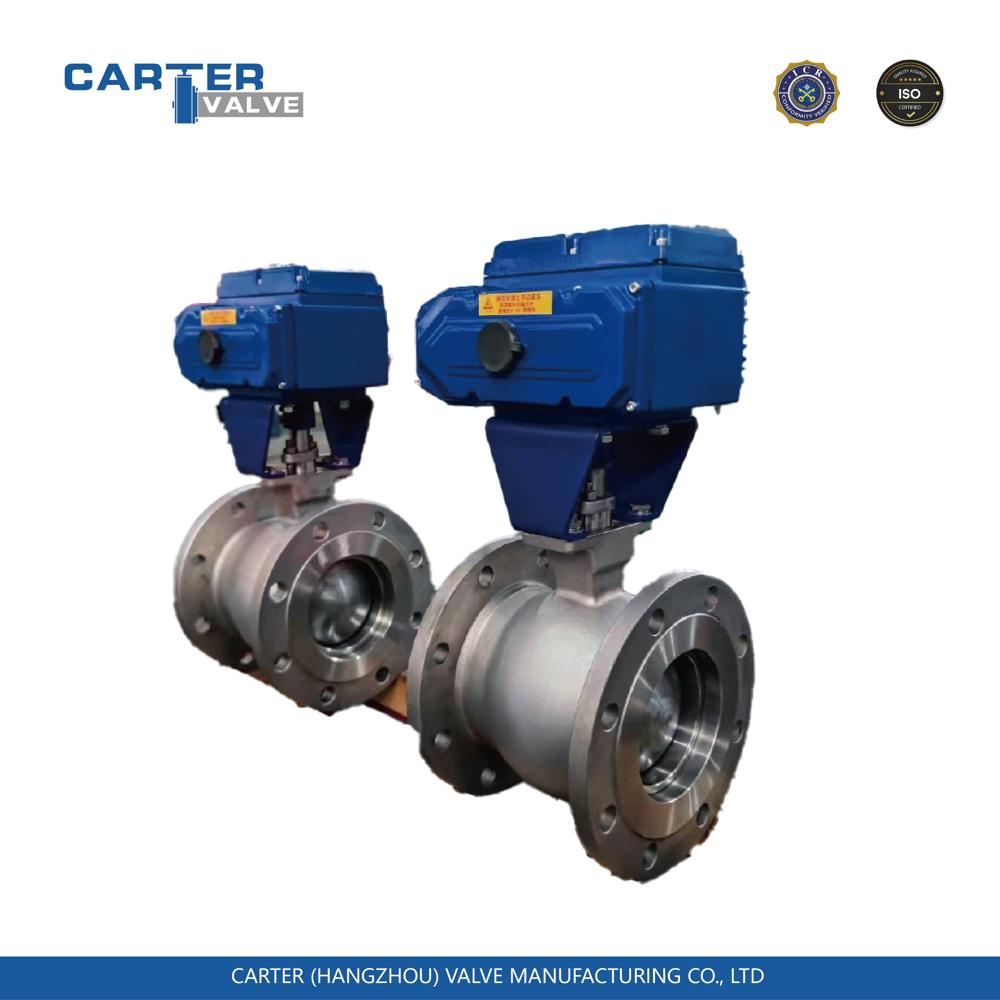

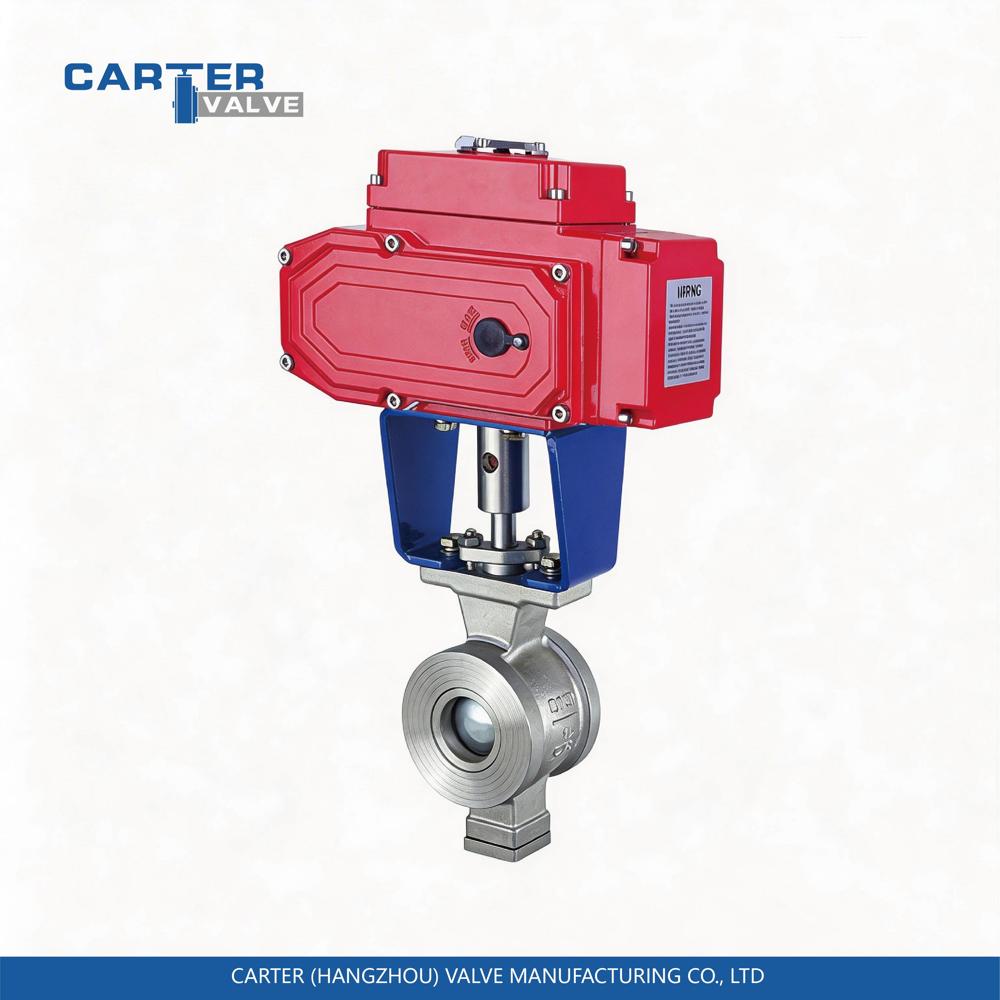

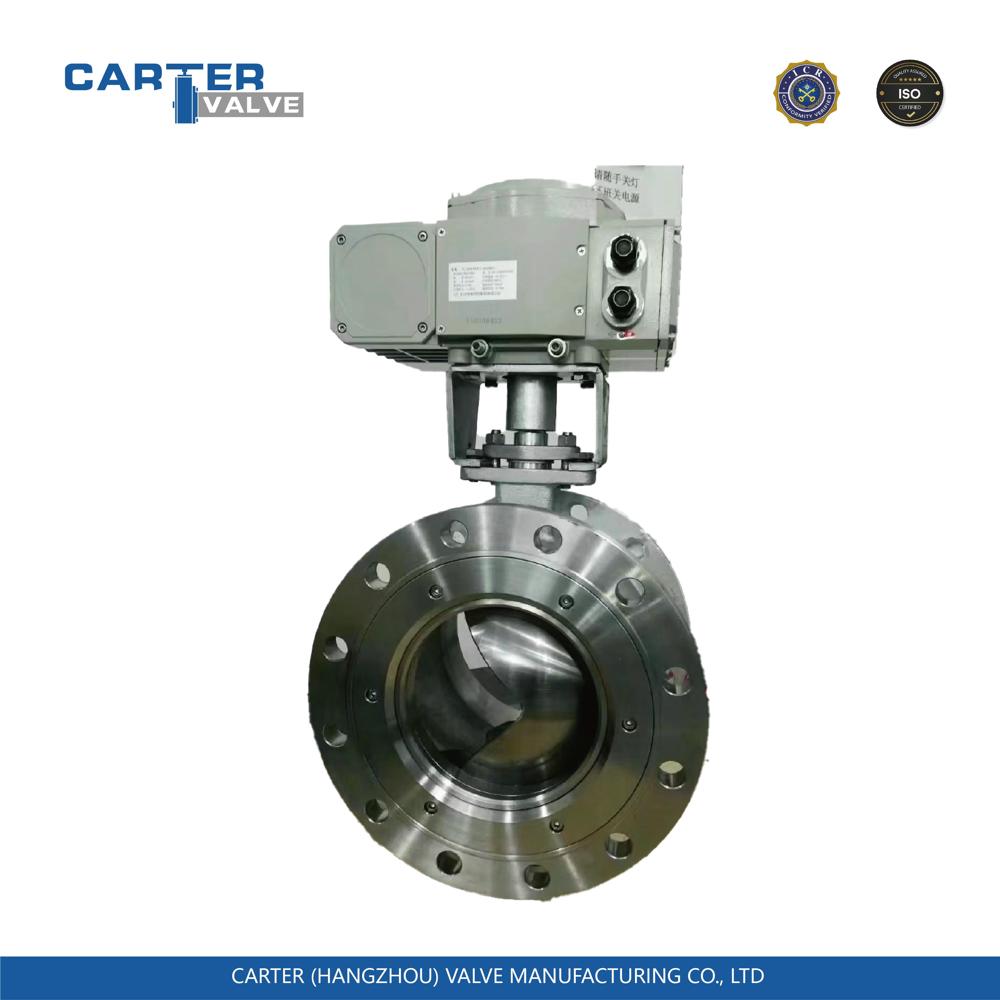

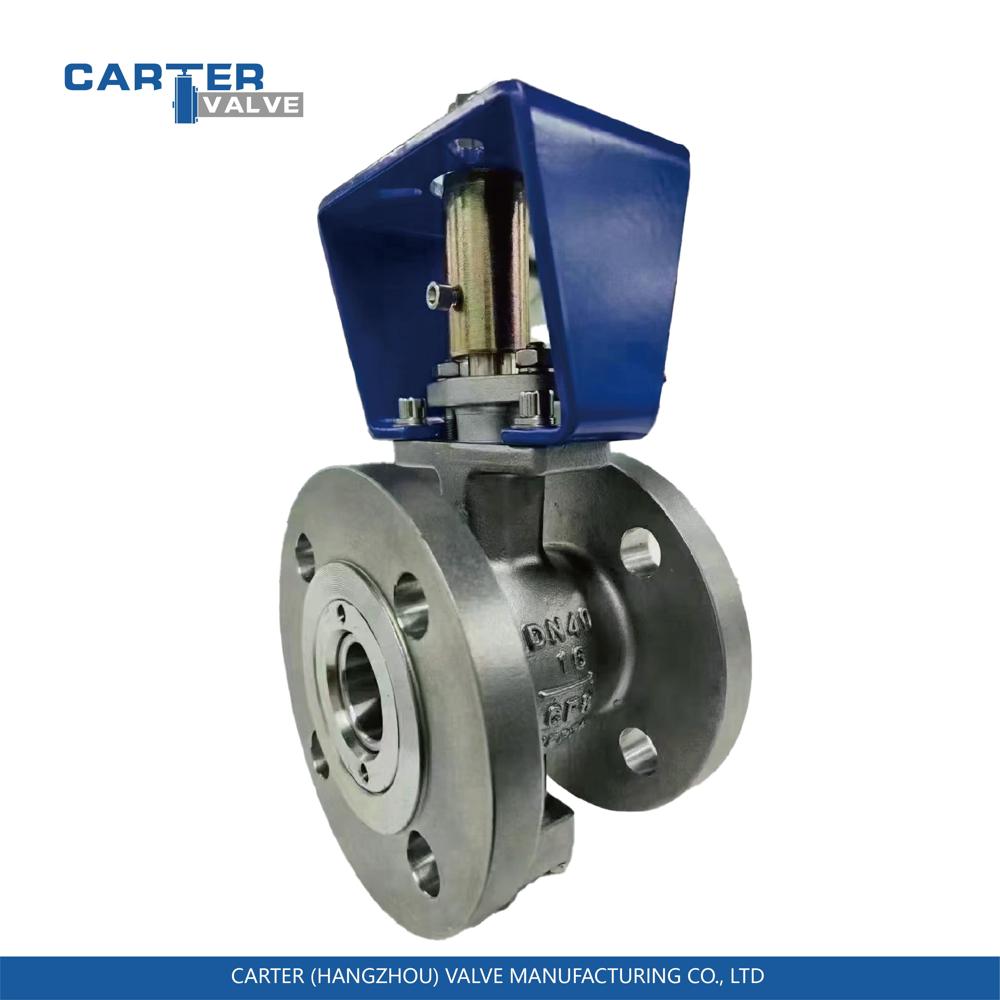

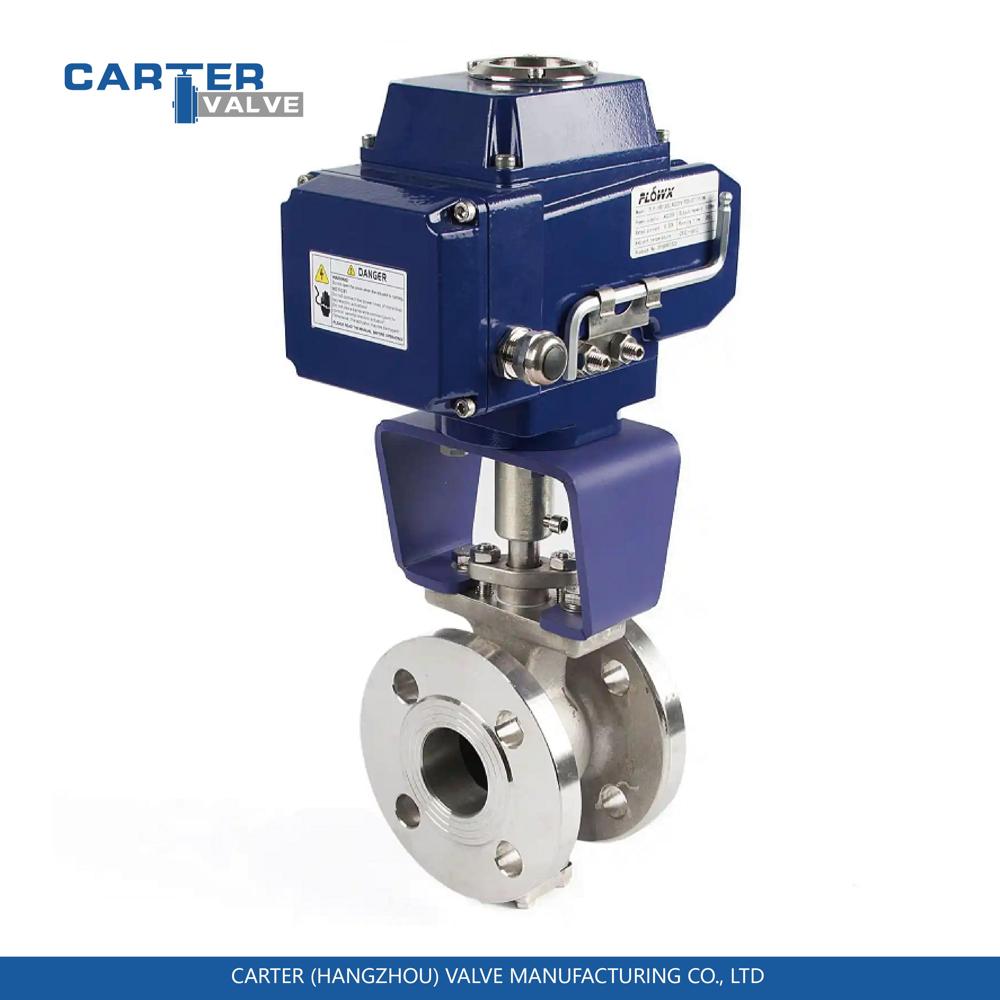

V-Type Ball Valve

Product Introduction

Technical Specifications

• Nominal Diameter: DN25~300mm
• Pressure Rating: PN1.6MPa~6.4MPa (150LB~600LB)
• Operating Temperature: -29C~425C
• Applicable Media: Oil products, pulp, syrup, solid particles, high-viscosity media with fibers and particles
• Valve Material: WCB carbon steel, stainless steel 304, 316L
• Structure Type: Fixed ball valve

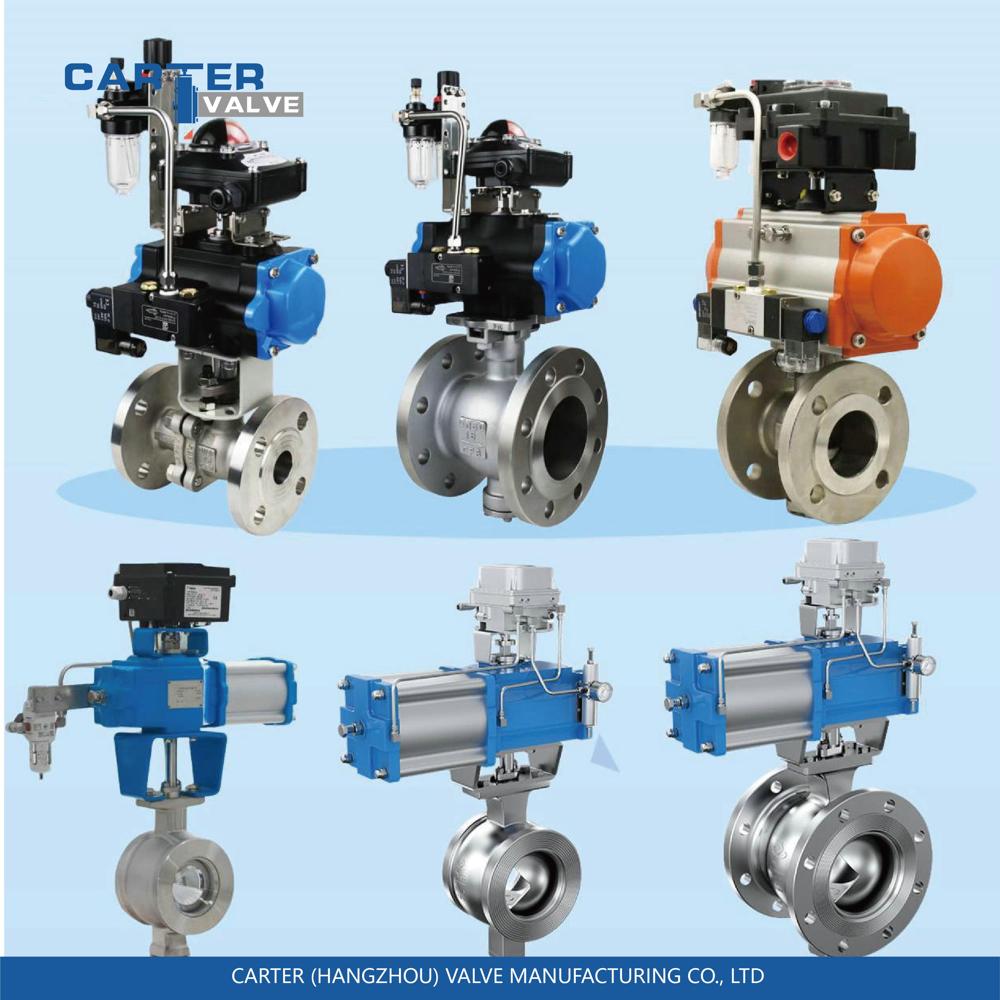

• Actuation: Electric (with signal regulation available); Pneumatic

Product Features

1. V-Type Ball Core and Valve Seat

   This is the core for precise regulation and shearing function. The V-notch angles (commonly 30, 45, 60) determine the flow characteristics. The valve seat usually adopts a spring-loaded movable structure, which automatically compensates for wear, ensuring reliable sealing and long service life.
2. Sealing Types
   • Soft seal (PTFE, PPL, PEEK): Achieves bubble-tight (Class VI) zero leakage, suitable for general service conditions.
   • Metal-to-metal hard seal: High temperature and high pressure resistance, suitable for severe service conditions.
   • Valve body structure: Mostly integrally cast without pipe joints, compact structure, preventing deformation or leakage caused by pipeline stress.
3. High Hardness Anodized Actuator

   The cylinder is made of high-strength aluminum alloy, treated with hard anodizing, offering high toughness and scratch resistance.
4. Baked-on Paint Design

   The end covers are treated with a baking paint process, which is not easy to peel off, providing better protection for the cylinder body.
5. Corrosion Resistance

   Excellent corrosion resistance, extending service life.
6. Low Flow Resistance

   Full bore ball valve design minimizes fluid resistance.
7. Wide Application Range

   Widely used in petroleum, metallurgy, electric power, water conservancy, new energy and other industries.
8. Precision Manufacturing

   Standard casting with precisely aligned connection brackets, ensuring no gaps.
