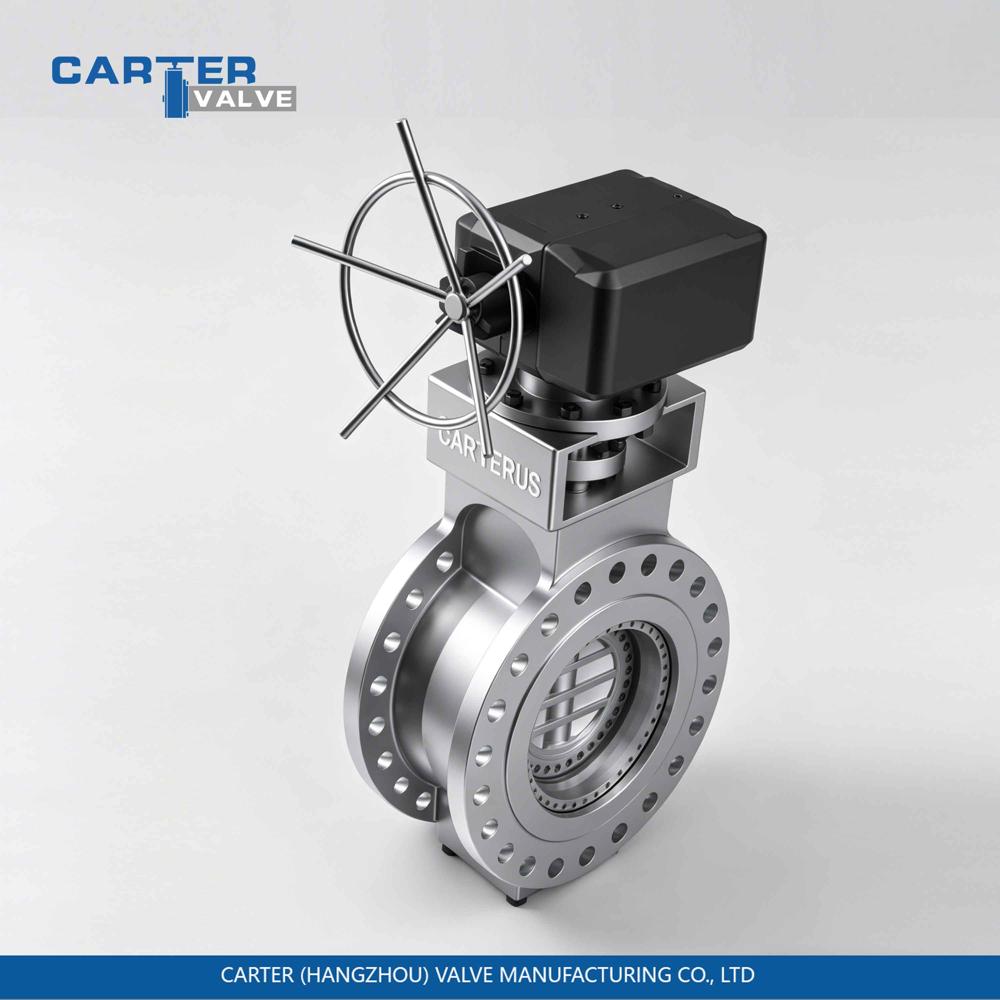

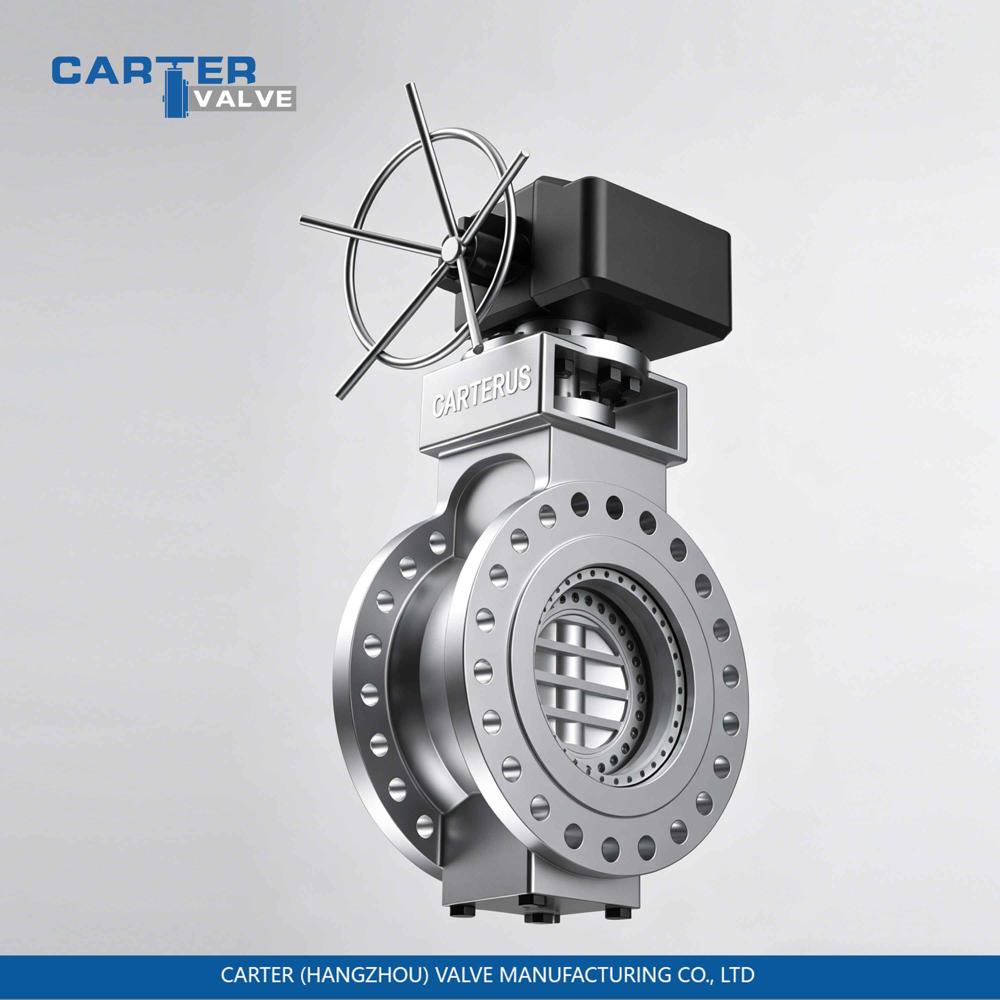

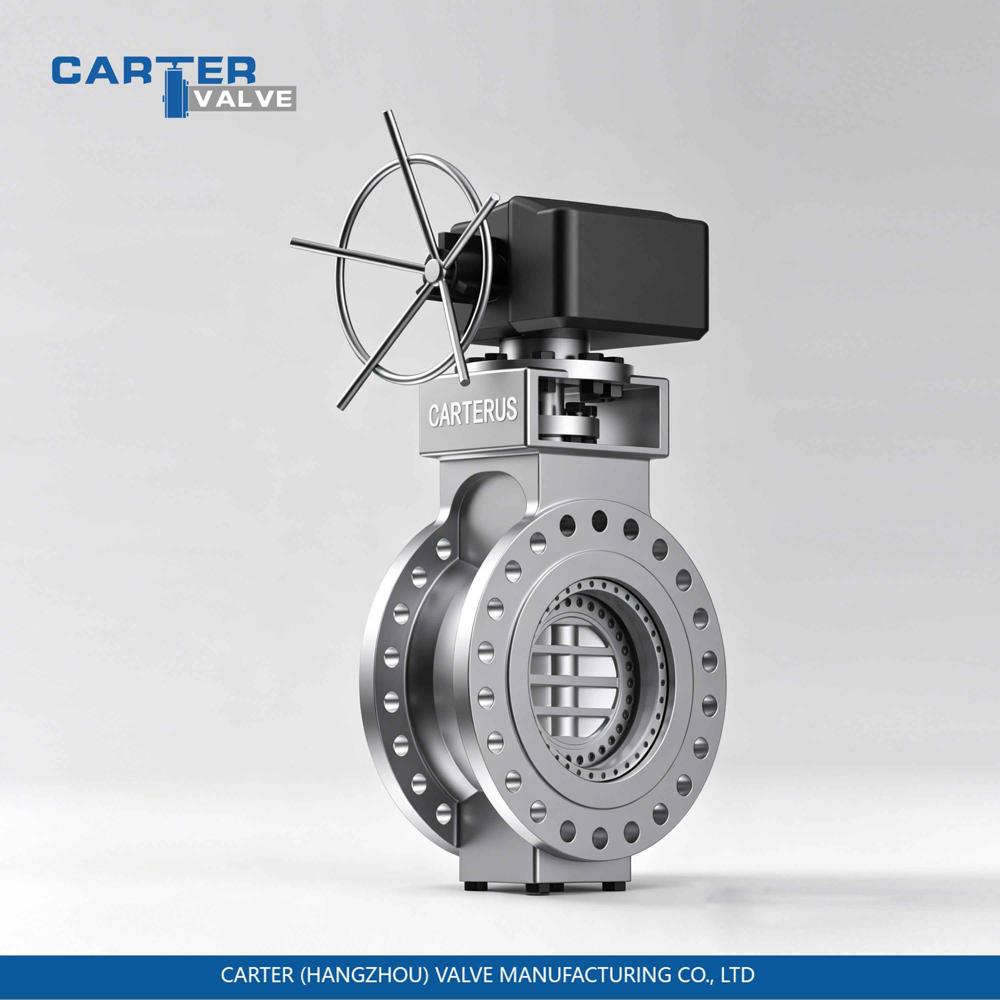

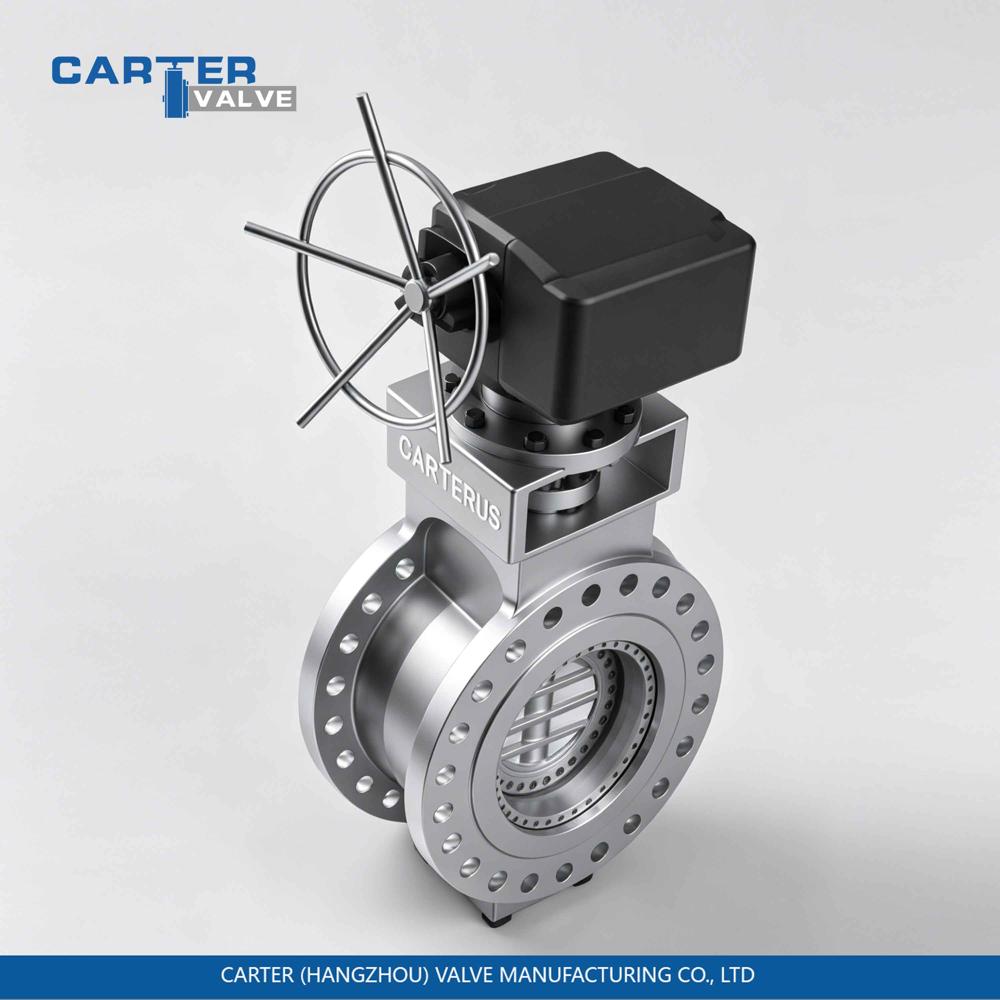

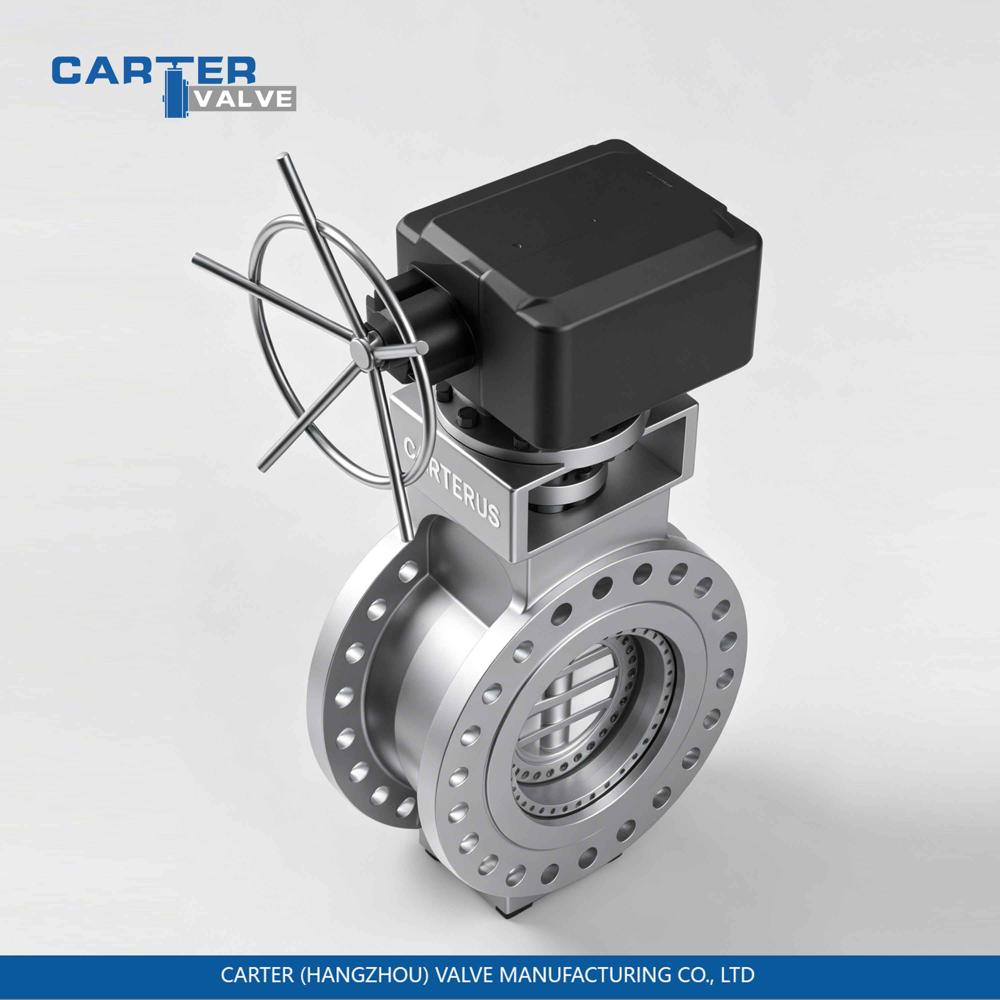

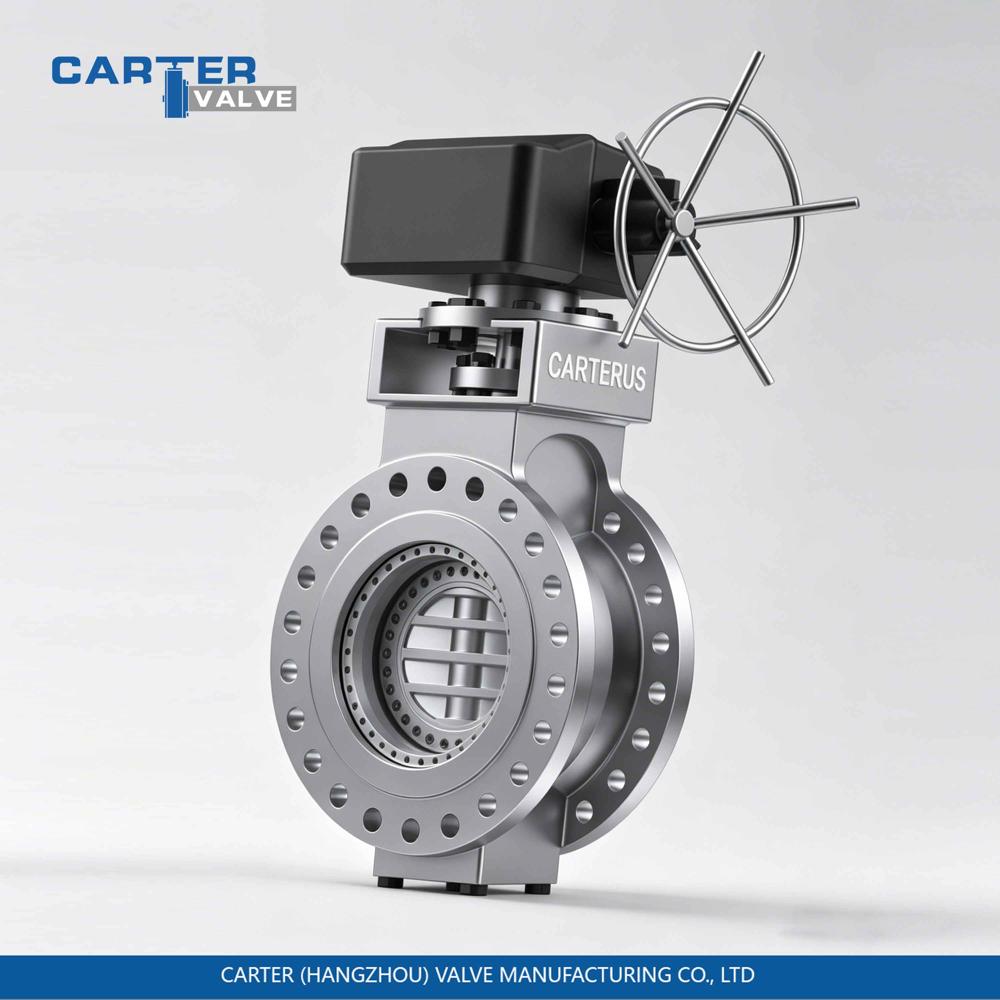

Six Eccentric Butterfly Valve / Advanced Triple Offset Butterfly Valve, Stainless Steel, Wafer, Pneumatic Actuated, Multi Layer Sealing Structure, Corrosive Media, ASME Standard

Why Choose Us

From production to finished goods warehousing, we strictly control quality at every stage.

l Premium Quality: Quality you can trust.

l Imported Sourced Materials: Raw materials sourced from the United States.

l Quality Certifications: Complete and valid certifications and qualifications.

l Ample Stock: Large warehouse inventory available.

l Wide Range of Specifications: Custom specifications available upon request.

l Thoughtful Service: Dedicated after-sales support.

Product Information

Quality Assured / Extended Warranty / Trouble-Free Operation

Product Name: Six-eccentric Butterfly Valve

Nominal Size: DN40 DN1200

Nominal Pressure: PN250 / 2500LB

Temperature Range: -196C ~ 1100C

End Connections: Wafer, Lug, Flanged, Welded

Actuation: Manual, Electric, Pneumatic

Materials: Cast Steel, Stainless Steel, Special Alloys

Product Introduction

The six-eccentric butterfly valve is a high-precision, full-eccentric industrial butterfly valve, iteratively improved based on three-eccentric and four-eccentric designs.

It features six-fold eccentric geometry: shaft axial eccentricity, radial eccentricity, sealing cone eccentricity, seat eccentricity, disc surface eccentricity, and flow path streamline eccentricity.

This design eliminates friction and wear during the full opening/closing cycle. Its sealing performance, high temperature/pressure resistance, erosion resistance, and corrosion resistance far exceed those of three- and four-eccentric butterfly valves.

Ideal for ultra-supercritical power plants, high-end petrochemical plants, LNG, coal chemical, vacuum pipelines, long-distance gas transmission, and other severe service applications. Suitable for both on-off and throttling control.

Product Features

1. Six-Dimensional Eccentric Geometry The disc contacts the seat only at the moment of full closure, eliminating scratching and wear. The smooth operating trajectory prevents jamming or seizure.
2. Bi-Directional Zero Leakage Sealing performance up to Class VI. Metal-to-metal hard seal + composite seal combination with pressure-assisted self-tightening: higher pressure = tighter seal, maintaining absolute sealing even under vacuum conditions.
3. Low Operating Torque & Energy Savings Optimized flow path and sealing geometry minimize fluid resistance and operating torque. Can be paired with smaller actuators, reducing both initial investment and long-term maintenance costs.
4. Extreme Service Compatibility Resistant to ultra-high temperature/pressure, corrosion, erosion, and particulate-laden media. Suitable for sulphur-containing, acidic/alkaline environments, including steam, high-temperature flue gas, LNG, coal chemical media, and flammable gases.
5. Extended Service Life Zero friction wear during operation leads to minimal seal wear, with a cycle life far exceeding three- and four-eccentric butterfly valves. Ideal for critical industrial pipelines operating continuously 24/7.
6. Flexible Installation Bi-directional flow with no direction restriction. Supports multiple connection styles (wafer, flanged, lug, welded). Compact, lightweight design with minimal installation space requirements.
