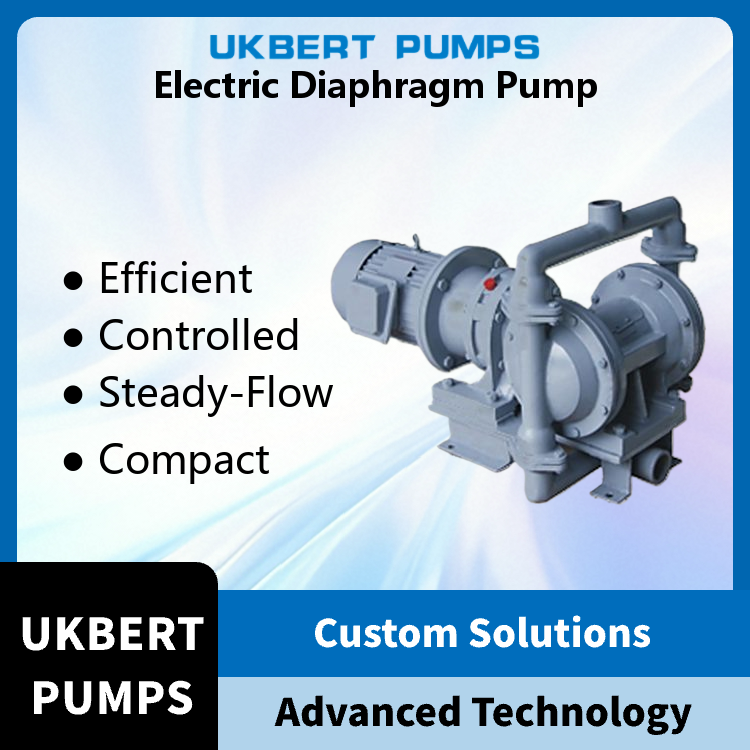

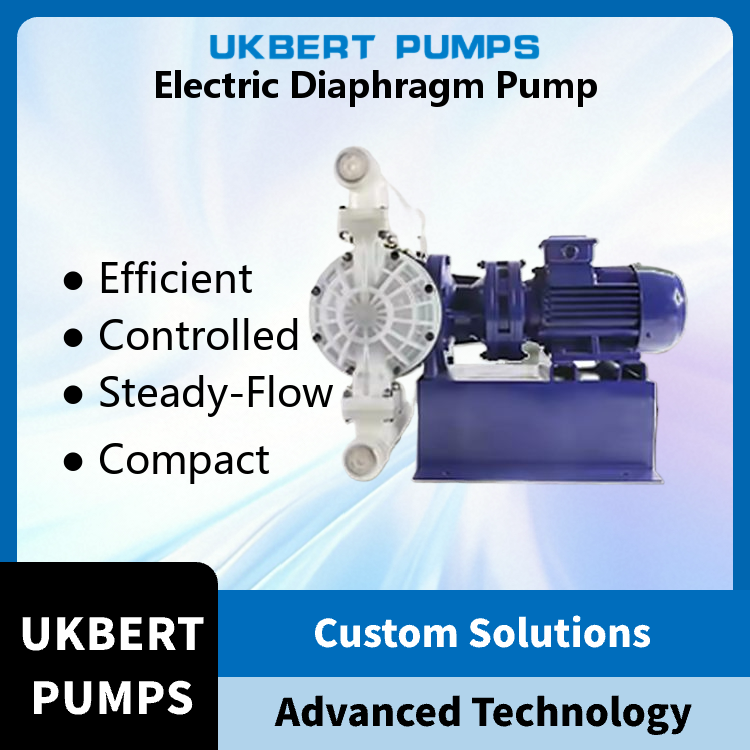

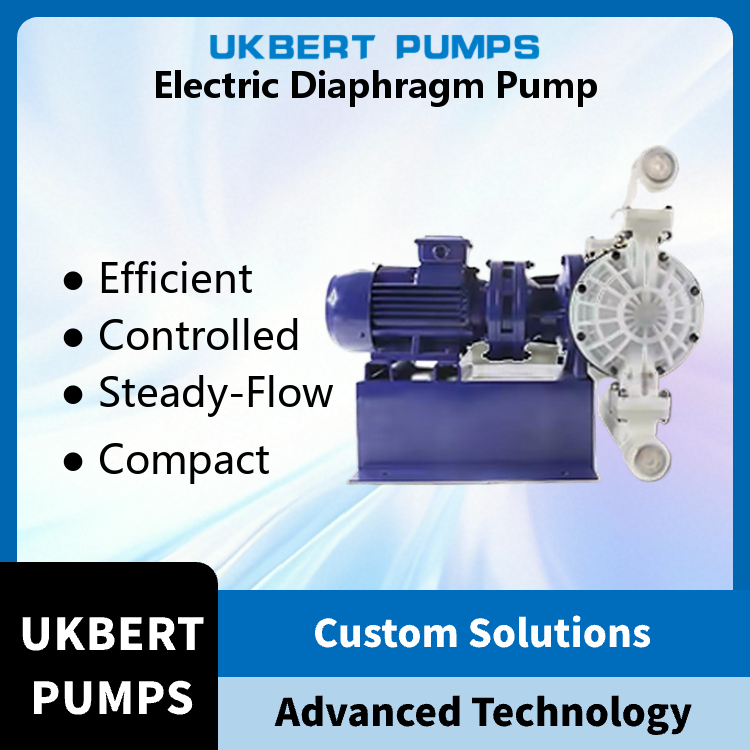

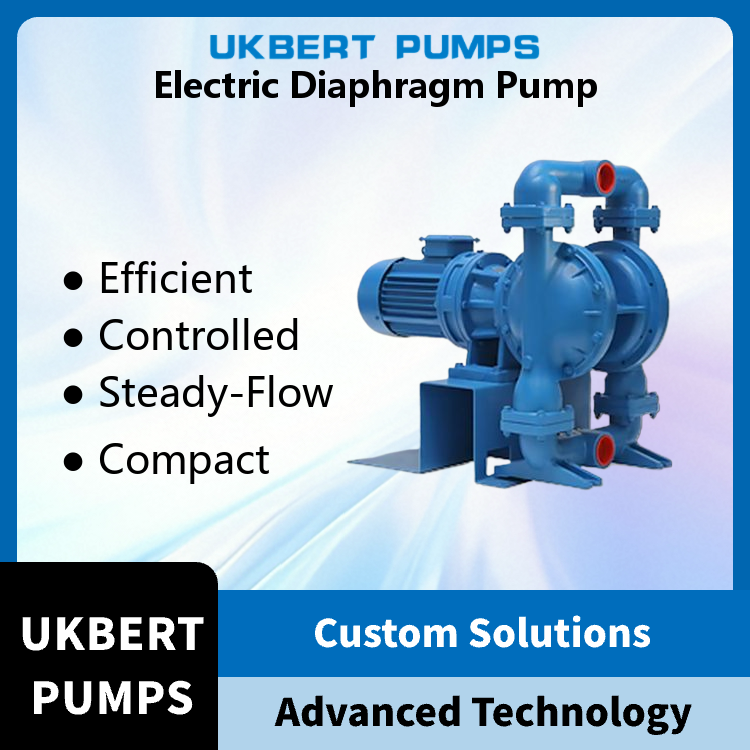

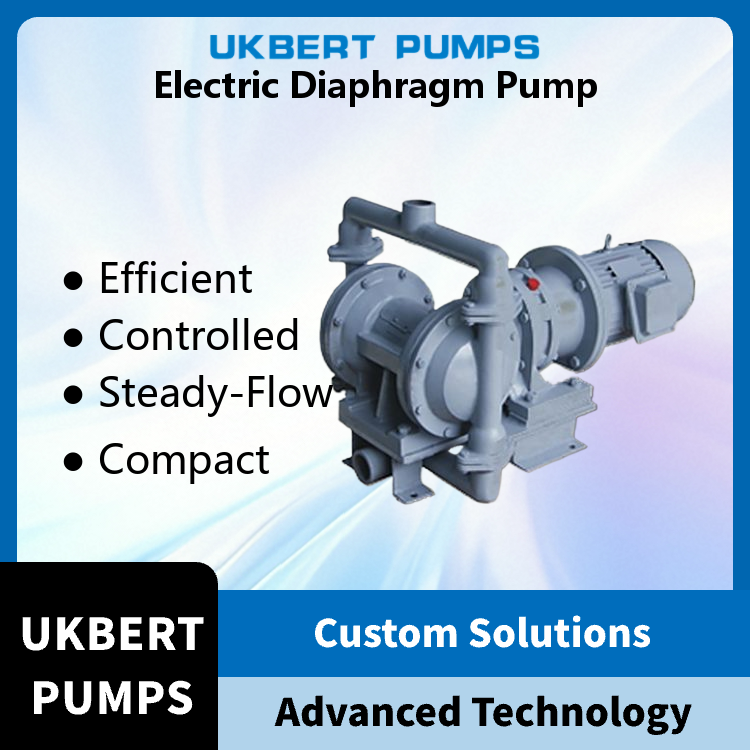

Fluorine-lined Electric Diaphragm Pump

Product Description

• Diaphragm expansion draws in corrosive fluid; contraction pushes fluid out, with fluorine-lined one-way valves ensuring unidirectional flow;

• The fluorine lining isolates the medium from the pump body, while the diaphragm separates the medium from the drive systemachieving double leak-proof and corrosion-proof protection.

• Superior Corrosion Resistance: Flow passages lined with PTFE/FEP, resistant to strong acids (e.g., sulfuric acid, nitric acid), alkalis, and organic solvents;

• Electric Drive Efficiency: No compressed air needed, easy to integrate into automated systems for continuous stable operation;

• Leak-Free Design: Diaphragm + fluorine lining double isolation, avoiding medium leakage and equipment corrosion;

• Low Maintenance: No mechanical seals, minimal wear on fluorine-lined parts, reducing maintenance frequency.

• Flow Range: 3 m/h - 30 m/h;

• Max Discharge Pressure: 1.0 MPa (10 bar);

• Temperature Resistance: -30 - 120 (adapts to most corrosive medium temperatures);

• Motor Power: 0.55 kW - 3.0 kW (single/three-phase AC optional).

• Chemical Industry: Transfer of strong acids, alkalis, and chemical intermediates;

• Pharmaceutical Industry: Conveying of corrosive drug solutions and cleaning agents;

• Electroplating Industry: Circulation of electroplating baths (e.g., chrome plating, nickel plating solutions);

• Wastewater Treatment: Discharge of high-concentration corrosive industrial waste liquid.
