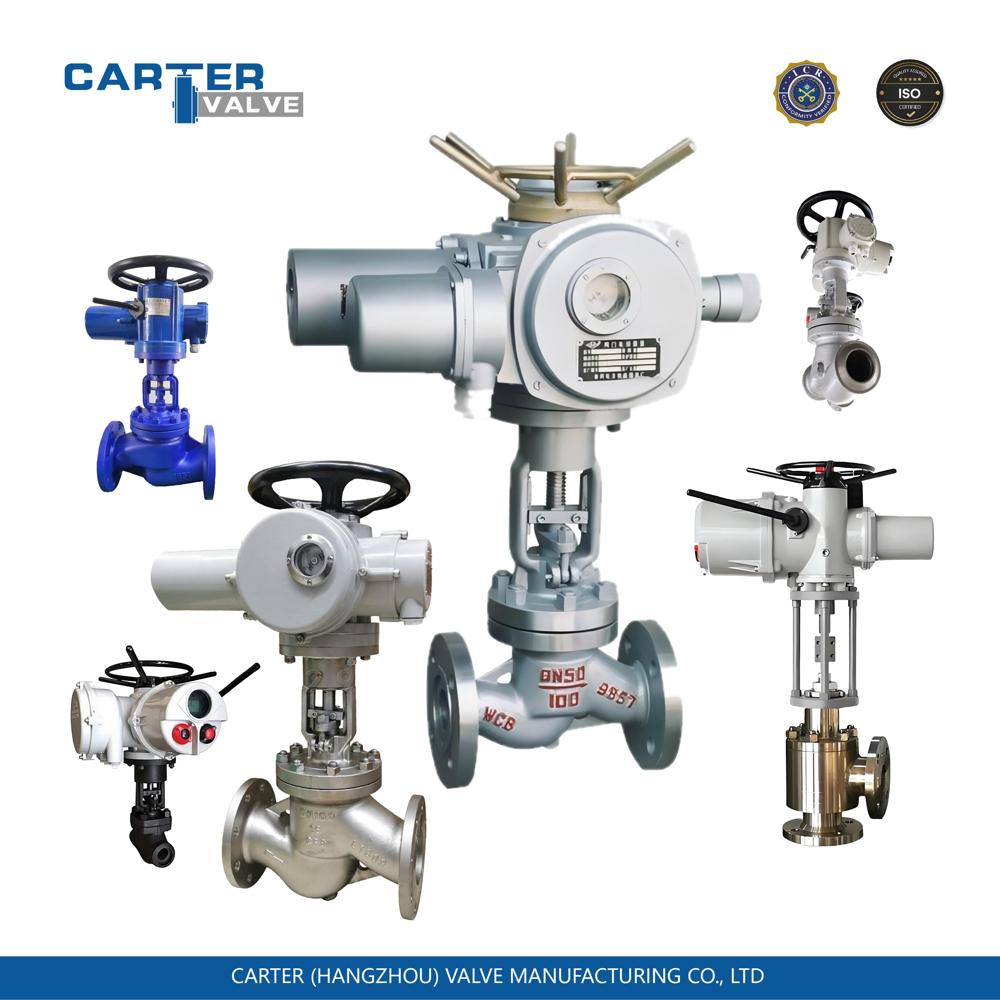

Globe Valve / Stop Valve, Cast Steel, Flanged, Manual Handwheel, Bolted Bonnet Structure, Water/Steam/Oil, API 600 Standard

Globe Valve / Stop Valve, Cast Steel, Flanged, Manual Handwheel, Bolted Bonnet Structure, Water/Steam/Oil, API 600 Standard

1000.0 INR/Piece

Get a Price/Quote

Product Details:

Connection Type Flanged / Threaded / Welded
Material Body/bonnet: WCB, CF8(304), CF8M(316), WC6; Stem: 2Cr13, 1Cr18Ni9Ti, 316; Packing: graphite/PTFE/bellows seal
Valve Size DN10~DN600mm, customizable sizes available
Valve Type Globe Valve
Features Short stroke, reliable sealing, good flow regulation, high fluid resistance
Usage Pipeline cut-off and flow regulation in petroleum, chemical, power, municipal systems
Application Water, steam, corrosive media, toxic media
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Globe Valve / Stop Valve, Cast Steel, Flanged, Manual Handwheel, Bolted Bonnet Structure, Water/Steam/Oil, API 600 Standard Price And Quantity

Price 1000.0 INR/Piece
Minimum Order Quantity 1 Piece

Globe Valve / Stop Valve, Cast Steel, Flanged, Manual Handwheel, Bolted Bonnet Structure, Water/Steam/Oil, API 600 Standard Product Specifications

Size DN10~DN600mm, customizable sizes available
Features Short stroke, reliable sealing, good flow regulation, high fluid resistance
Media Gas, Base, Water, Oil, Acid
Structure Stop
Sealing Metal hard seal (Stellite hardfacing); Soft seal (PTFE insert); Bellows seal (zero leakage)
Valve Type Globe Valve
Valve Size DN10~DN600mm, customizable sizes available
Application Water, steam, corrosive media, toxic media
Temperature Carbon steel: -29~425 ; Stainless steel: -196~550 ; High-temperature alloy: up to 600 + Celsius (oC)
Usage Pipeline cut-off and flow regulation in petroleum, chemical, power, municipal systems
Material Body/bonnet: WCB, CF8(304), CF8M(316), WC6; Stem: 2Cr13, 1Cr18Ni9Ti, 316; Packing: graphite/PTFE/bellows seal
Pressure P, N, 1, ., 6, ~, P, N, 3, 2, ., 0, M, P, a, , /, , s, s, , 1, 5, 0, C, l, a, ~, 1, 5, 0, 0, ,, , c, u, s, t, o, m, i, a, b, l, e, z mpa
Port Size DN10~DN600mm, customizable sizes available
Disc 2Cr13, 304/316 stainless steel, Stellite hardfacing, PTFE insert
Type Forced-sealed Globe Valve
Connection Type Flanged / Threaded / Welded

Product Description

Globe valve is a forced-sealed valve. Its closure element (disc) moves linearly up and down along the centerline of the seat, achieving medium shut-off and flow regulation through tight contact between the disc and seat. Installation must follow the flow direction of low inlet and high outlet.

It features short opening/closing stroke, reliable sealing and good regulation performance, but has relatively high fluid resistance. It is widely used in pipeline systems in petroleum, chemical, power, municipal and other industries.

Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable)

Nominal Pressure (PN/Class): PN1.6 ~ PN32.0 MPa (Class 150 ~ 1500) (higher or lower pressures customizable)

Operating Temperature: Carbon steel: -29 ~ 425; Stainless steel: -196 ~ 550; High-temperature alloy: up to 600+ (customizable)

Test Pressure: Shell: 1.5 Nominal Pressure; Seal: 1.1 Nominal Pressure

Leakage Class: Metal seal: ANSI B16.104 Class IV; Soft seal: Class VI (bubble-tight/zero leakage), customizable

Design & Manufacturing Standards: Design & production: GB/T 12235; Face-to-face dimension: GB/T 12221 (customizable)

Body/Bonnet

Common materials: WCB (carbon steel); CF8 (304 stainless steel); CF8M (316 stainless steel); WC6 (chromium-molybdenum steel)Applicable service conditions: WCB: water / steam at normal temperature; 304/316: corrosion-resistant; WC6: high-temperature steam

Disc/Seat

Common materials: 2Cr13; 304/316; Stellite hardfacingApplicable service conditions: Stellite for metal-to-metal sealing; PTFE insert for soft sealing

Stem

Common materials: 2Cr13; 1Cr18Ni9Ti; 316; nitrided / chromium-plated treatmentApplicable service conditions: Wear-resistant, corrosion-resistant, anti-galling

Packing/Seal

Common materials: Graphite packing (high temperature); PTFE packing (general / low temperature); bellows seal (zero leakage, toxic media)Applicable service conditions: Graphite packing for high temperature; PTFE packing for general/low temperature; bellows seal for zero leakage and toxic media
