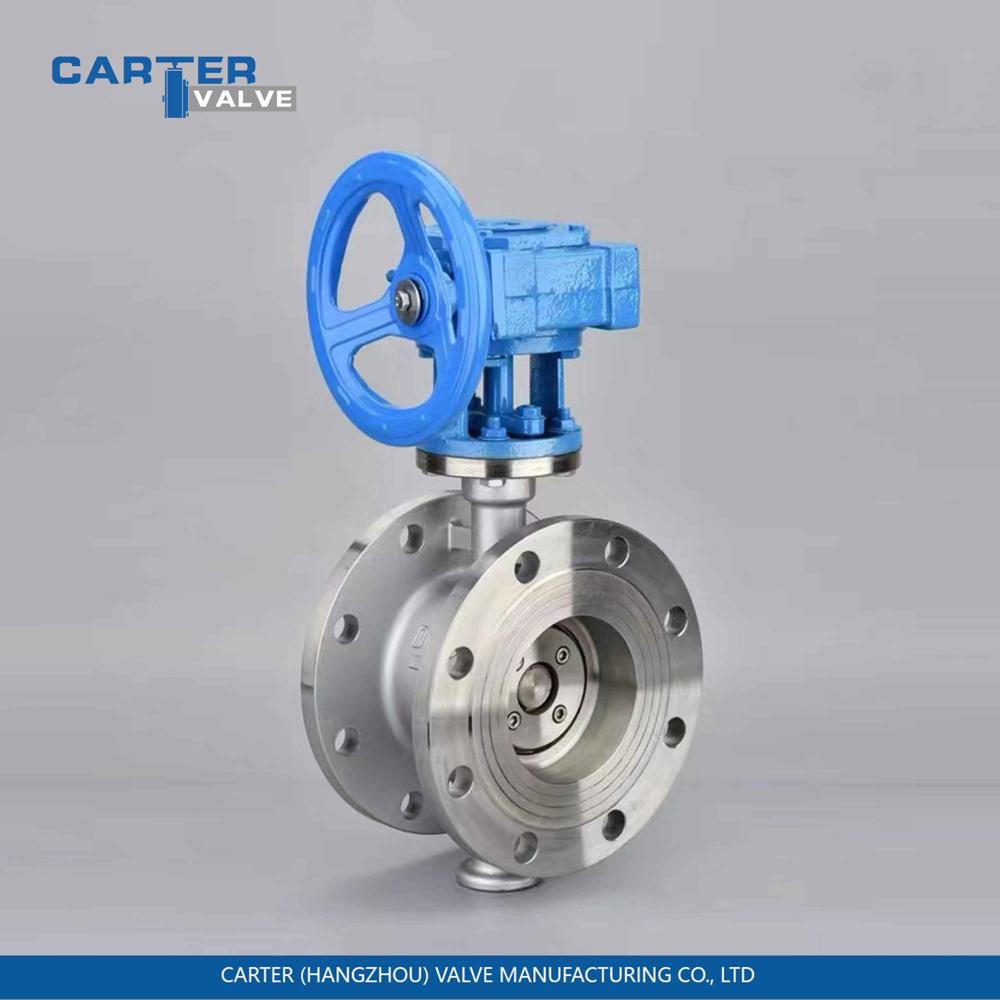

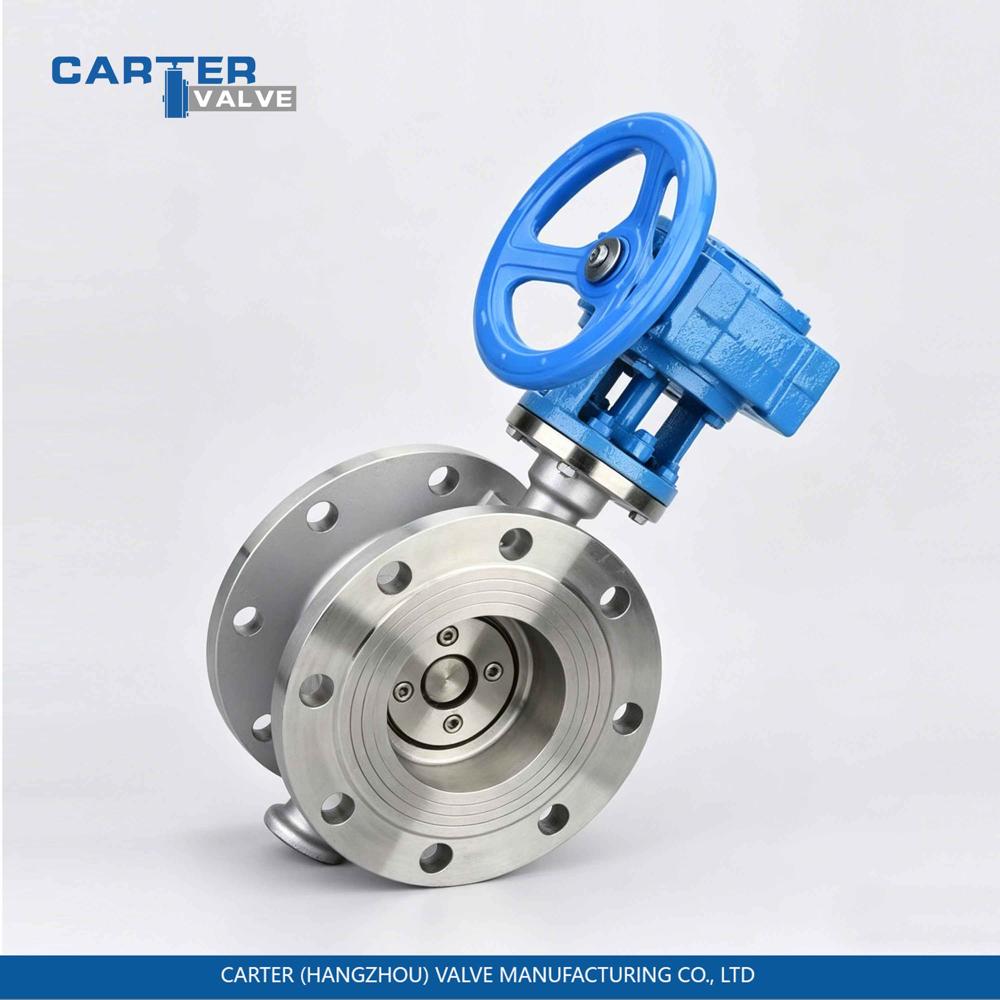

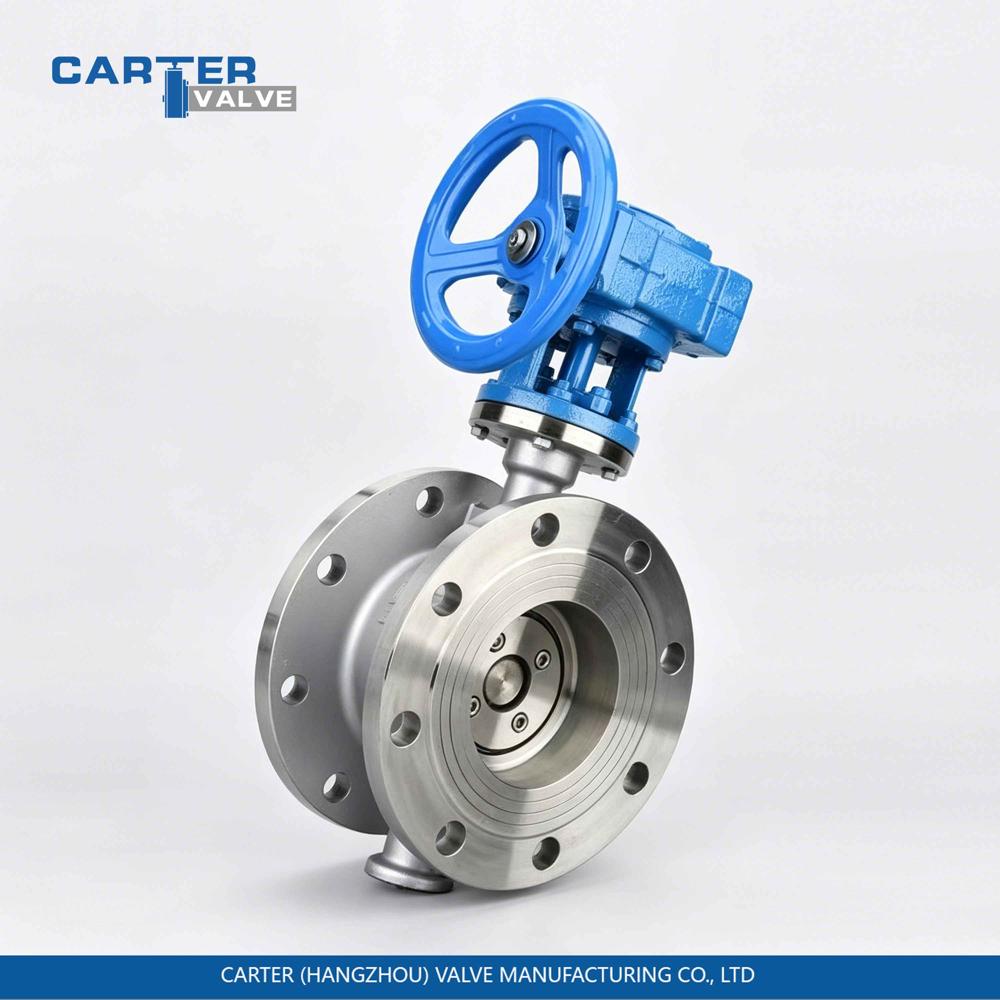

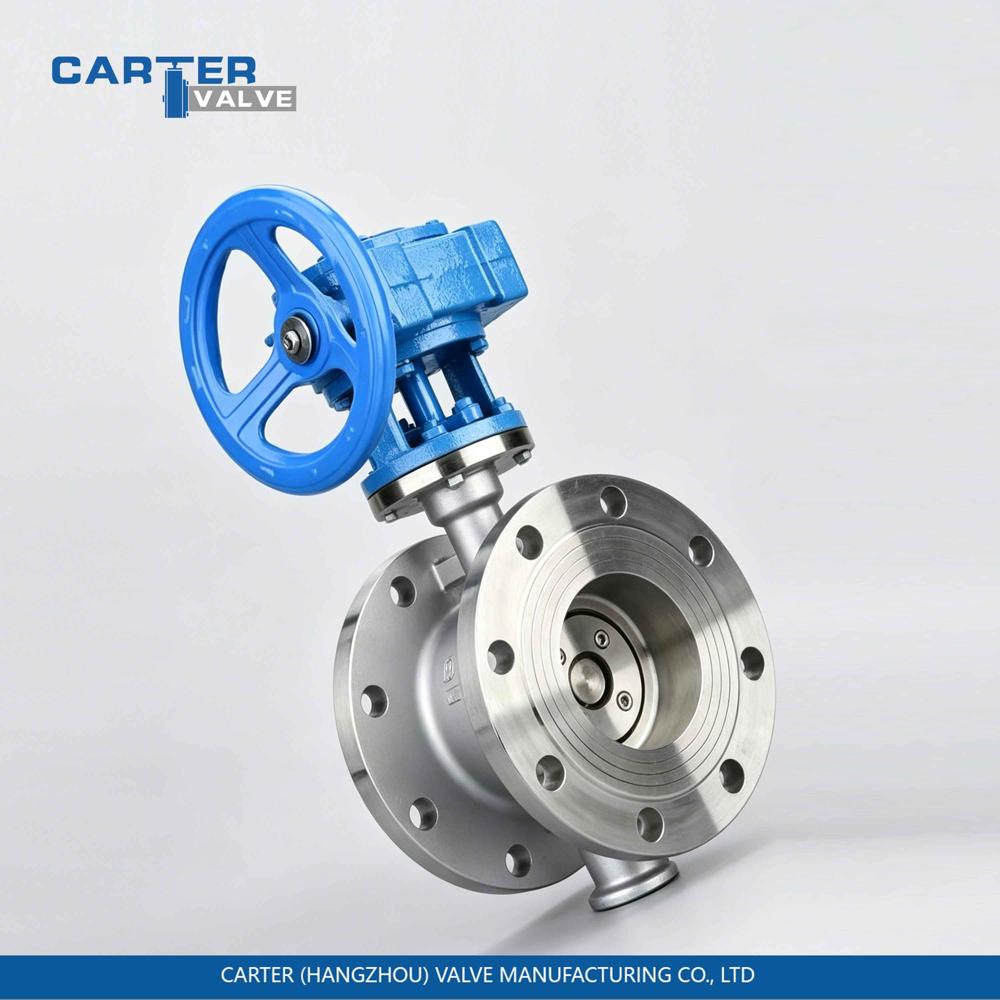

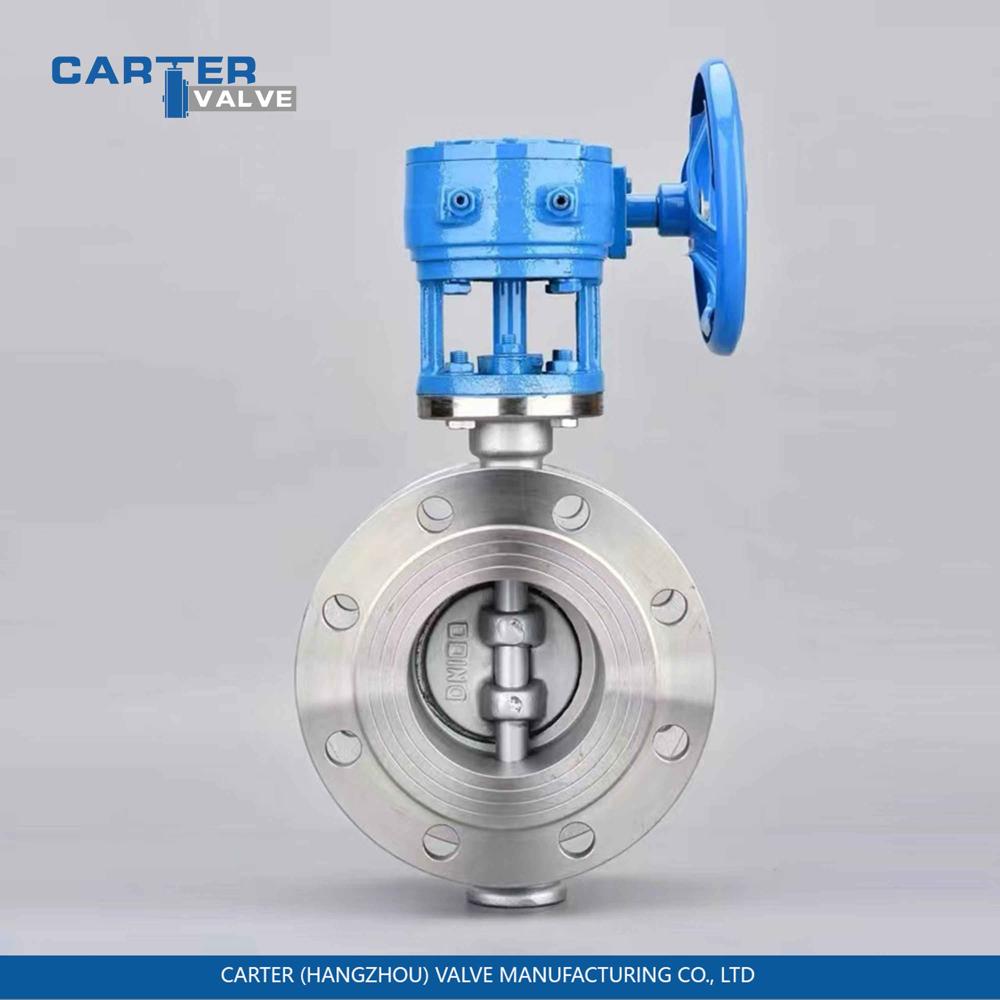

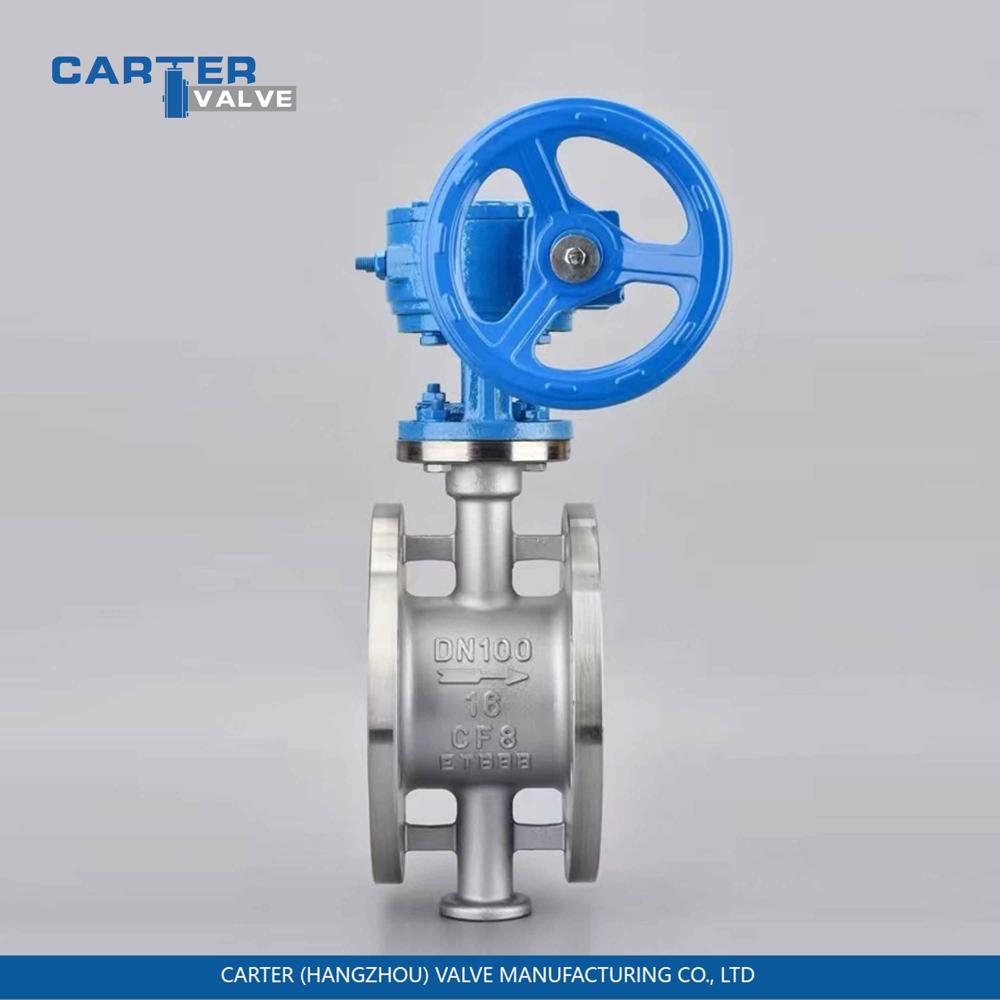

Metal Seated Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Gear Operated, Metal Seated Triple Eccentric Structure, Steam/Gas/Oil, API 609 Standard

Metal Seated Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Gear Operated, Metal Seated Triple Eccentric Structure, Steam/Gas/Oil, API 609 Standard

600.0 INR/Piece

Get a Price/Quote

Product Details:

Material Cast steel, stainless steel, special alloy
Valve Size DN40-DN1800
Connection Type Wafer flange
Features Triple eccentric structure, metal hard seal (wear/erosion resistant), wide temp/pressure range, zero leakage, fire-safe compliant, easy maintenance, multiple actuation options
Control System Manual, pneumatic, electric (gear/hydraulic optional)
Valve Type Butterfly valve
Sealing Metal-to-metal hard seal (STL/nickel/cobalt alloy hardfaced, HRC55-62), bubble-tight zero leakage, API 607 fire-safe compliant
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Metal Seated Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Gear Operated, Metal Seated Triple Eccentric Structure, Steam/Gas/Oil, API 609 Standard Price And Quantity

Minimum Order Quantity 1 Piece
Price 600.0 INR/Piece

Metal Seated Butterfly Valve / Triple Offset Butterfly Valve, Cast Steel, Flanged, Gear Operated, Metal Seated Triple Eccentric Structure, Steam/Gas/Oil, API 609 Standard Product Specifications

Size DN40-DN1800
Type Triple eccentric metal hard-seal butterfly valve
Material Cast steel, stainless steel, special alloy
Product Type Hard-sealed (metal hard-seal) butterfly valve
Sealing Metal-to-metal hard seal (STL/nickel/cobalt alloy hardfaced, HRC55-62), bubble-tight zero leakage, API 607 fire-safe compliant
Usage High-temperature steam, oil, particle-laden media, harsh industrial conditions
Media Water, Oil, Acid, Gas, Base
Temperature -96 -425 (up to 650 for extended range) Celsius (oC)
Structure Butterfly
Valve Type Butterfly valve
Features Triple eccentric structure, metal hard seal (wear/erosion resistant), wide temp/pressure range, zero leakage, fire-safe compliant, easy maintenance, multiple actuation options
Control System Manual, pneumatic, electric (gear/hydraulic optional)
Pressure B mpa
Connection Type Wafer flange
Disc Triple eccentric butterfly disc (truss structure for large bore)
Port Size DN40-DN1800
Valve Size DN40-DN1800
Application High-temperature, high-pressure, wear-resistant applications; power plants, petrochemical, heavy industry

Product Description

REASONS TO CHOOSE US

From production to finished goods shipment, we control quality at every step.

HIGH QUALITY: Quality is somewhat guaranteed
IMPORTED RESOURCES: The resources come from the United States
QUALITY CERTIFICATION: Certificate qualifications are complete
PLENTY OF STOCK AVAILABLE: Plenty of stock in warehouse
VARIOUS SPECIFICATIONS: Specifications support customization
THOUGHTFUL SERVICE: Thoughtful after-sales service

PRODUCT INFORMATION

Product Name: Hard-sealed butterfly valve

Nominal Diameter: DN40-DN1800

Nominal pressure: PN6-PN100 150LB-900LB

Applicable Temperature: -96-425

Connection method: Wafer flange

Drive mode: Manual, Pneumatic, Electric

Valve Material: Cast steel, Stainless steel, Special alloy

PRODUCT INTRODUCTION

Hard-seal butterfly valve (metal hard-seal butterfly valve) is a high-performance butterfly valve with metal-to-metal/hard composite sealing pairs. It mostly adopts a triple eccentric structure, achieving reliable sealing via precision-machined metal sealing surfaces. It overcomes the limitations of soft-seal butterfly valves in high temperature, high pressure, and wear resistance, and is widely used in harsh conditions like high-temperature steam, oil, and particle-laden media.

PRODUCT FEATURES

Metal-to-Metal Sealing

Sealing surfaces hardfaced with STL, nickel-based/cobalt-based alloys (HRC55-62), precision-ground with fit 95%.
Triple Eccentric Structure

Three offsets of stem, disc, and sealing surface; rolling friction during operation, minimal seal wear.
Wide Temperature and Pressure Range

Suitable for -196 to 650, pressure rating PN16~PN420, ideal for high-temperature and high-pressure applications.
High Hardness and Corrosion Resistance

High hardness sealing surfaces, resistant to particle erosion and chemical corrosion, much longer service life than soft-seal valves.
Bubble-Tight Zero Leakage

Bi-directional sealing, bubble-tight zero leakage, self-tightening as closed, compliant with API 607 fire-safe standard.
Easy Operation and High Flow Capacity

Easy operation, low flow resistance; large-bore discs use truss structure for high strength and large flow area.
Easy Maintenance

Sealing rings/seat replaceable on-site without full valve disassembly, reducing maintenance cost.
Multiple Actuation Options

Available with manual, gear, pneumatic, electric, and hydraulic actuators to meet various automation requirements.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Valve' category

Knife Gate Valve / Through Conduit Knife Gate Valve, Stainless Steel, Flanged, Manual Handwheel, Through Conduit Structure, Pulp/Paper Slurry, DIN Standard Price : 1000.0 INR/Piece Minimum Order Quantity : 1 Control System : Manual / Electric / Pneumatic / Hydraulic Features : Knifeedge gate plate prevents clogging; straightthrough full flow path; ultrathin compact structure; zero leakage soft seal; wearresistant hard seal; multiple actuation options (manual/electric/pneumatic/hydraulic); easy maintenance; costeffective Media : Gas, Base, Water, Oil, Acid, Other Application : Metering Connection Type : GB / JB / HG / ANSI / DIN / JIS standard connections Material : Cast iron (HT200/250), carbon steel (WCB), stainless steel (304/316/316L), duplex steel, titanium alloy Size : DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized) Sealing : Class VI zero leakage (soft seal); Class IV (hard seal) Product Type : Knife Gate Valve (Slurry / Slide Gate Valve) Valve Type : Knife Gate Valve Temperature : 40 C ~ 425 C (hard seal); 20 C ~ 120 C (soft seal) Celsius (oC) Structure : Gate Valve Size : DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized) Pressure : ., , , /, , 1, ., 6, , /, , ;, , 1, 5, 0, L, B, , , P, N, , 0, ., 6, , /, P, K, 2, ., 5, , M, a, /, , 1, 0, 1, 0 mpa Type : Linear stroke forcedsealing shutoff valve Port Size : DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized) Usage : Water, Food, Boat Disc : Stainless steel (304/316), carbon steel, hard alloy overlay Suction Type : High Pressure Pumps

Send Inquiry

Knife Gate Valve / Slurry Knife Gate Valve, Ductile Iron, Wafer, Pneumatic Actuated, Knife Gate Structure, Slurry/Wastewater, MSS SP-81 Standard Price : 500.0 INR/Piece Minimum Order Quantity : 1 Control System : Manual Features : Knifeedge gate plate prevents clogging; straightthrough full flow path; ultrathin compact structure; zero leakage soft seal; wearresistant hard seal; multiple actuation options (manual/electric/pneumatic/hydraulic); easy maintenance; costeffective Media : Gas, Base, Water, Oil, Acid, Other Application : Slurry, pulp, mine tailings, dust, sewage, and media prone to clogging Connection Type : GB / JB / HG / ANSI / DIN / JIS standard connections Material : Cast iron (HT200/250), carbon steel (WCB), stainless steel (304/316/316L), duplex steel, titanium alloy Size : DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized) Sealing : Class VI zero leakage (soft seal); Class IV (hard seal) Product Type : Knife Gate Valve (Slurry / Slide Gate Valve) Valve Type : Knife Gate Valve Temperature : 40 C ~ 425 C (hard seal); 20 C ~ 120 C (soft seal) Celsius (oC) Structure : Gate Valve Size : DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized) Pressure : 0, , 0, /, , 2, ., 5, , 6, , /, , 1, ., 6, M, , 5, B, , /, , 1, 0, K, P, N, , ., /, , 1, ., , P, a, ;, 1, 0, L mpa Type : Linear stroke forcedsealing shutoff valve Port Size : DN 50 ~ 1200mm (standard); DN15 ~ 2000mm (customized) Usage : Industrial Disc : Stainless steel (304/316), carbon steel, hard alloy overlay Suction Type : Normal

Send Inquiry

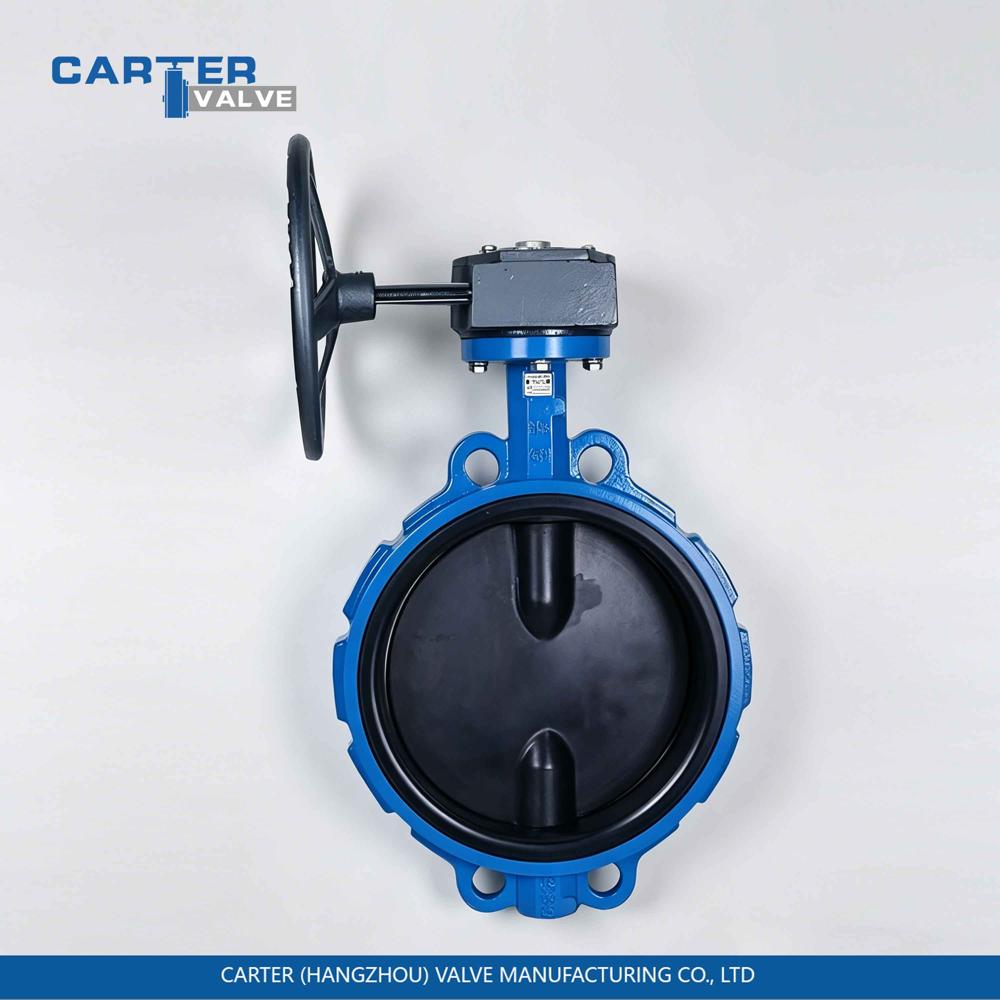

Cast Iron Butterfly Valve / Wafer Butterfly Valve, Cast Iron, Wafer, Manual Lever Operated, Soft Seated Structure, Water System, API 609 Standard Price : 500.0 INR/Piece Minimum Order Quantity : 1 Control System : Manual (handle/worm gear, electric/pneumatic optional) Features : Compact simple structure, low flow resistance, high flow capacity, good regulation accuracy, costeffective, easy maintenance, zero leakage soft seal Media : Gas, Base, Water, Acid, Oil, Other Application : Water, wastewater, air, weakly corrosive media; industrial pipelines Connection Type : Wafer Material : Cast iron (gray cast iron/ductile iron), cast steel, stainless steel Size : DN40DN1800 Sealing : Soft seal (EPDM, nitrile rubber), zero leakage Product Type : Cast iron butterfly valve Valve Type : Wafer butterfly valve Temperature : <100 Celsius (oC) Structure : Butterfly Valve Size : DN40DN1800 Pressure : L, P, N, 1, 6, ,, , 1, 5, 0, B mpa Type : Softsealed wafer butterfly valve Port Size : DN40DN1800 Usage : Water supply & drainage, HVAC, chemical, power, metallurgy industries Disc : Butterfly disc
