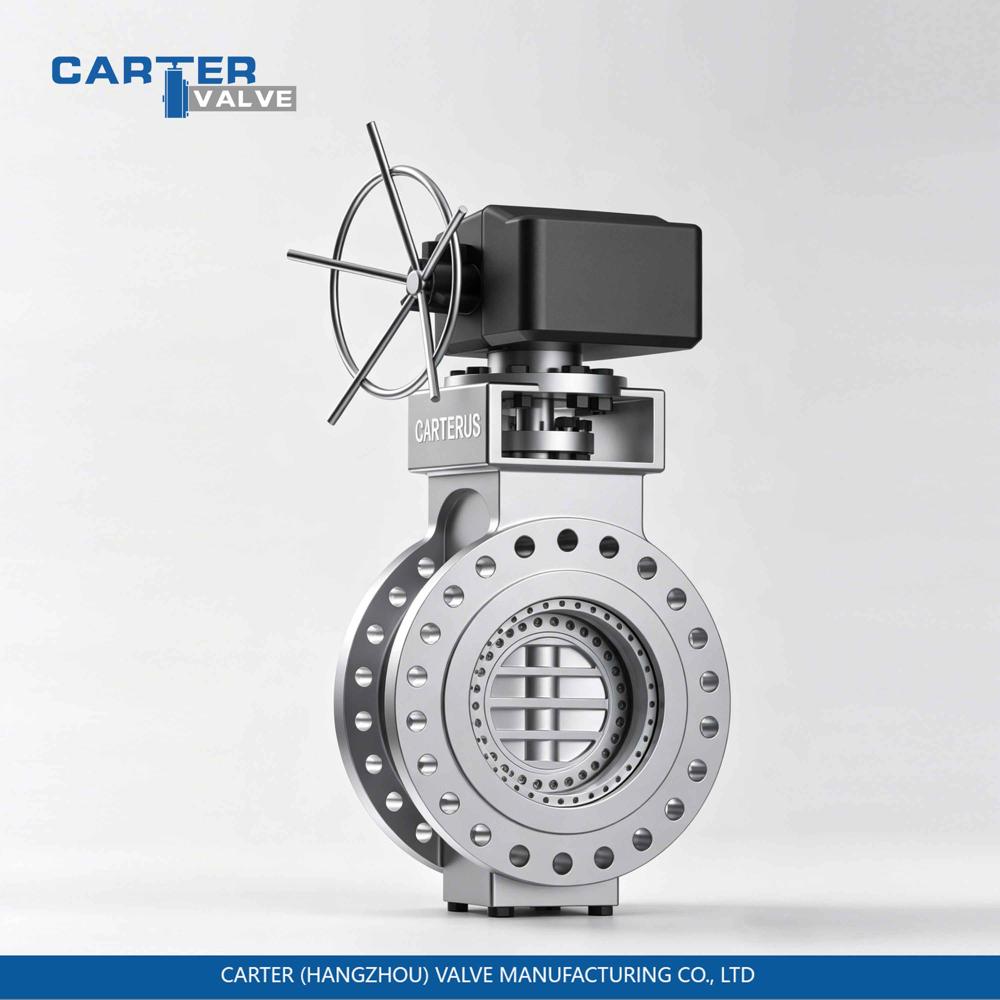

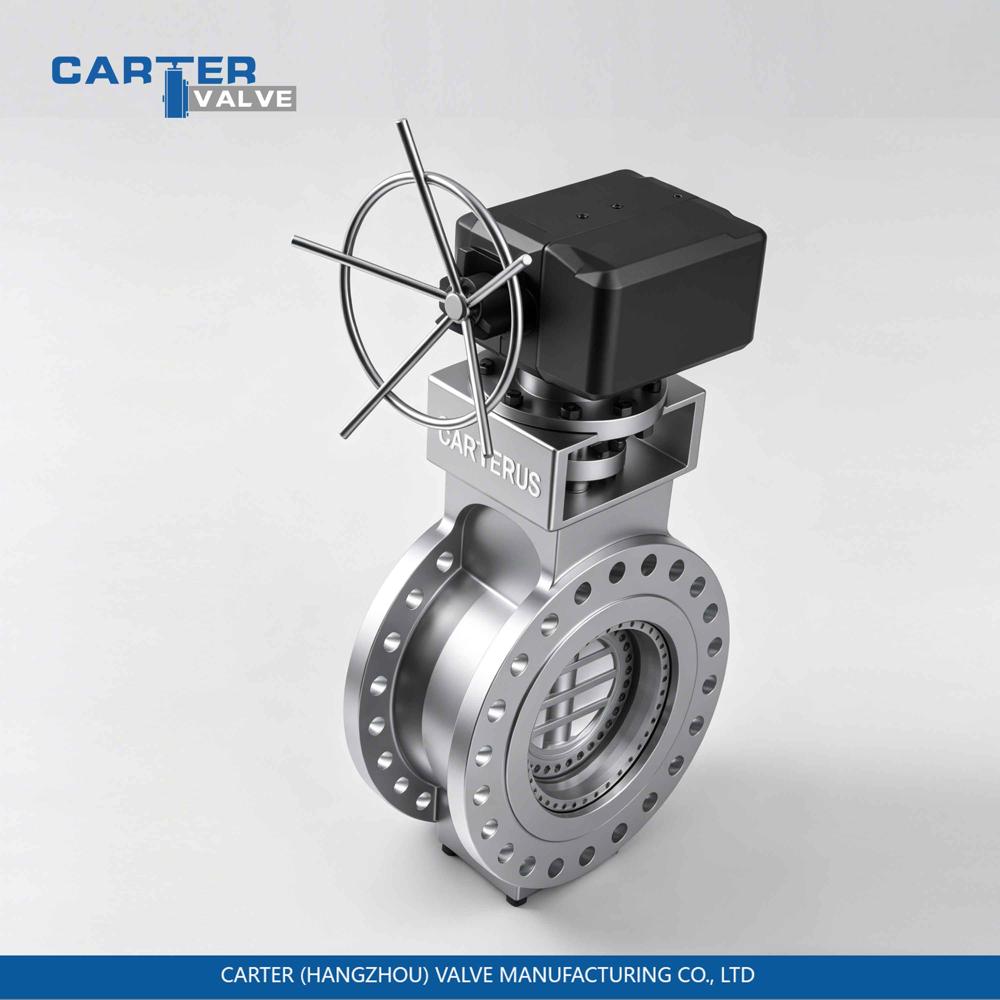

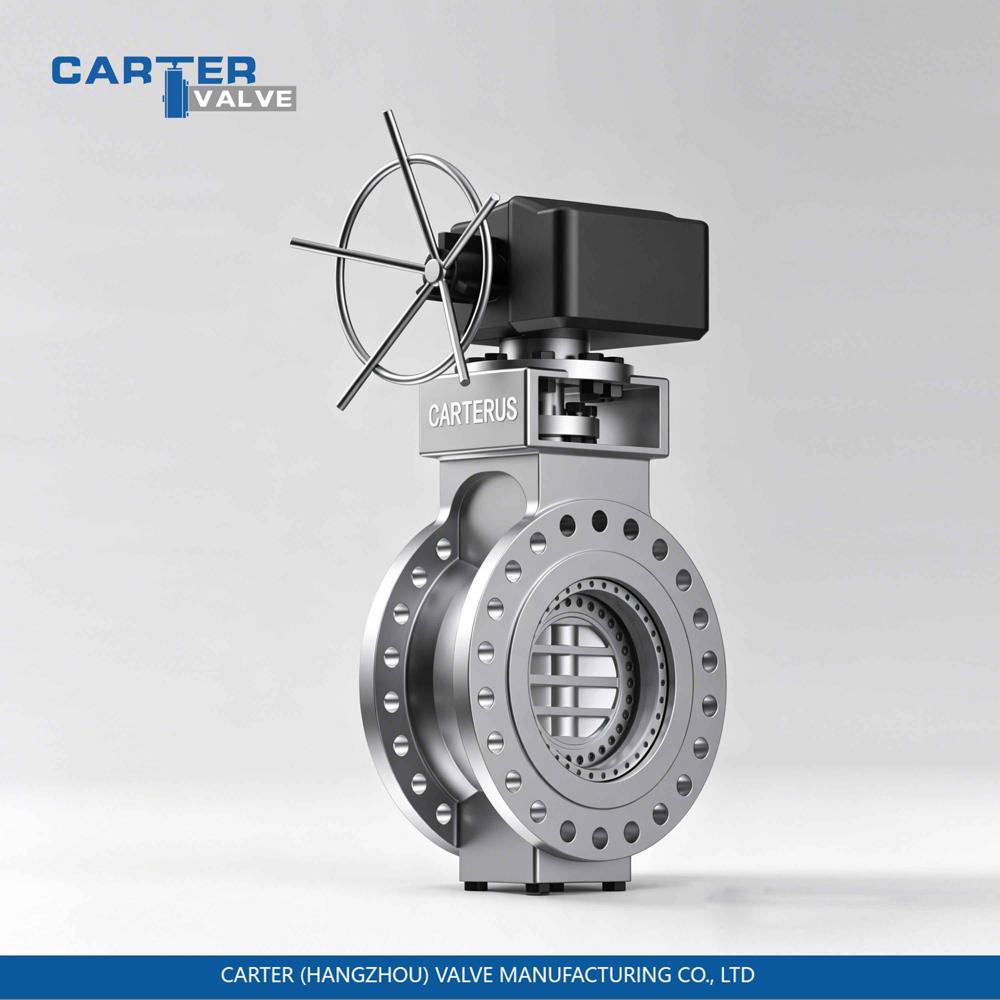

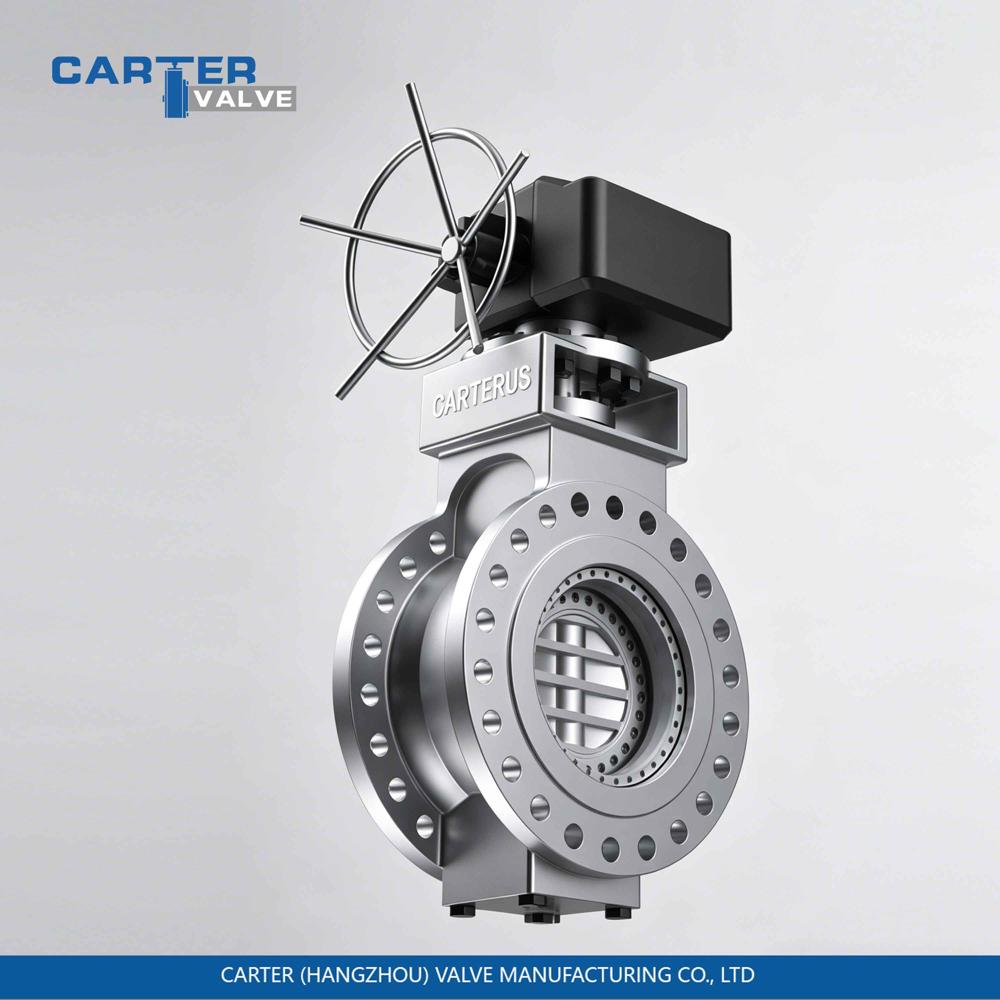

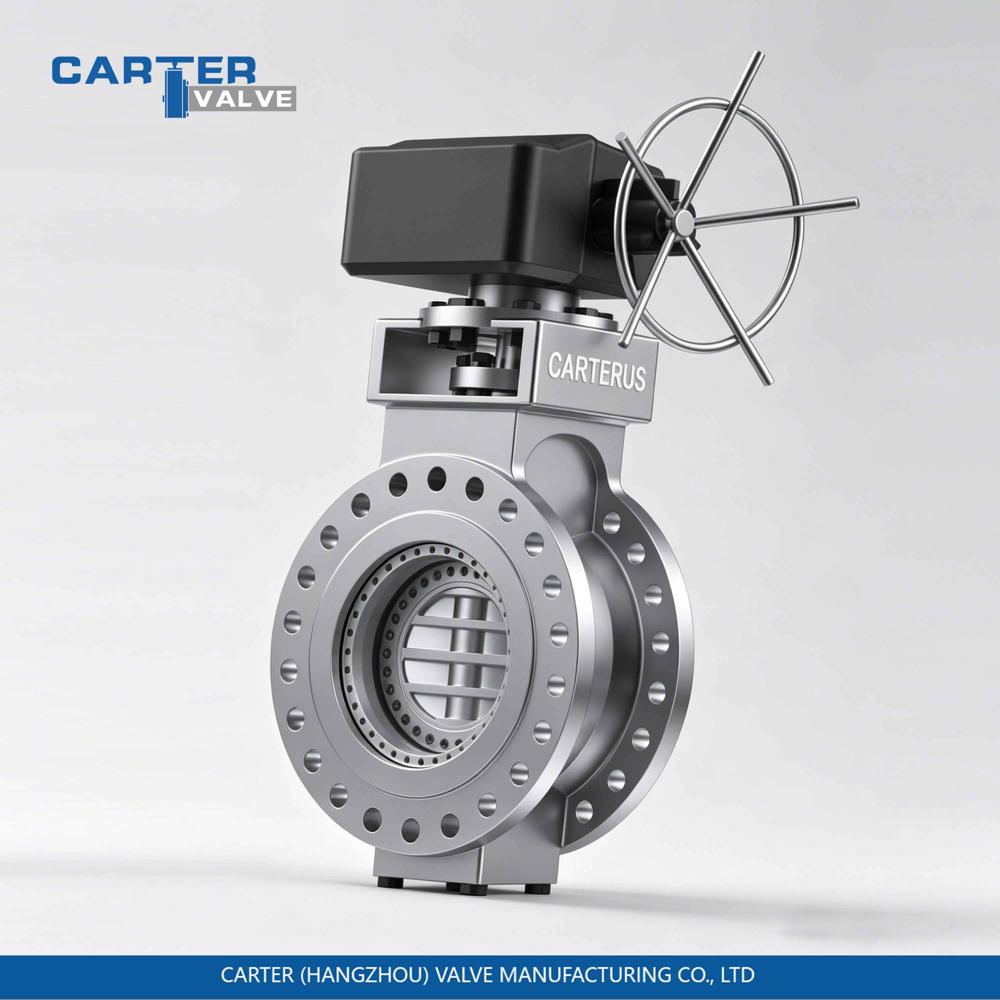

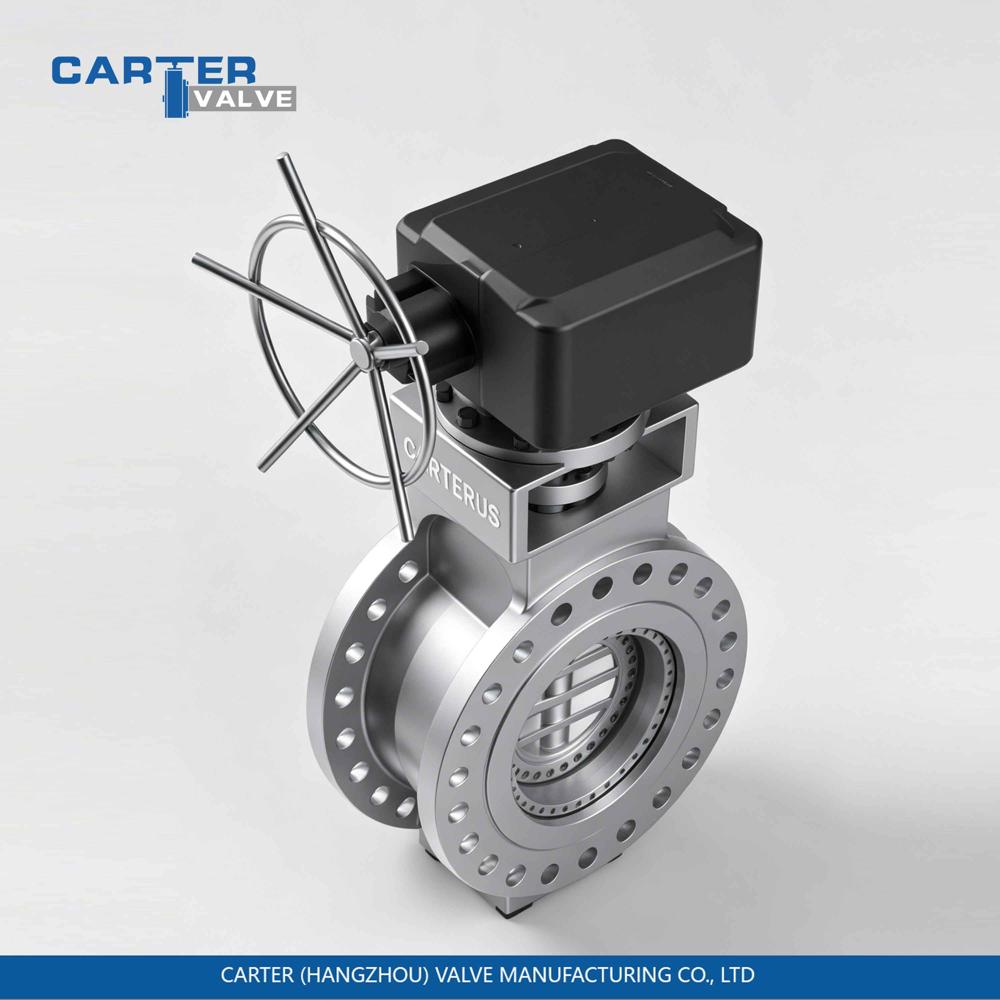

Six Eccentric Butterfly Valve / Multi Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Six Offset Structure, High Temperature Gas/Steam, API 609 Standard

1000.0 INR/Piece
Get a Price/Quote

Product Details:

  • Connection Type Wafer, Lug, Flanged, Welded
  • Material Cast Steel, Stainless Steel, Special Alloys
  • Control System Manual / Electric / Pneumatic
  • Valve Size DN40 DN1200
  • Valve Type Butterfly Valve
  • Features Six-dimensional eccentric geometry, zero friction wear, Class VI bi-directional sealing, low operating torque, energy-saving, long service life
  • Application Ultra-supercritical power plants, high-end petrochemical plants, LNG, coal chemical, vacuum pipelines, long-distance gas transmission
  • Click to view more
Request To Call Back Send Inquiry
X

Six Eccentric Butterfly Valve / Multi Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Six Offset Structure, High Temperature Gas/Steam, API 609 Standard Price And Quantity

  • 1 Piece
  • 1000.0 INR/Piece

Six Eccentric Butterfly Valve / Multi Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Six Offset Structure, High Temperature Gas/Steam, API 609 Standard Product Specifications

  • Gas, Base, Water, Oil, Acid
  • Bi-directional zero leakage, Class VI, metal-to-metal hard seal + composite seal
  • 5, 0, 0, P, N, 2, 5, 0, , /, , 2, L, B mpa
  • Butterfly
  • Manual / Electric / Pneumatic
  • Industrial
  • Ultra-supercritical power plants, high-end petrochemical plants, LNG, coal chemical, vacuum pipelines, long-distance gas transmission
  • Cast Steel, Stainless Steel, Special Alloys
  • Wafer, Lug, Flanged, Welded
  • DN40 DN1200
  • Six-dimensional eccentric geometry, zero friction wear, Class VI bi-directional sealing, low operating torque, energy-saving, long service life
  • Butterfly Valve
  • Six-eccentric Butterfly Valve
  • -196 C ~ 1100 C Celsius (oC)
  • Butterfly Valve
  • DN40 DN1200
  • DN40 DN1200

Six Eccentric Butterfly Valve / Multi Offset Butterfly Valve, Cast Steel, Flanged, Electric Actuated, Six Offset Structure, High Temperature Gas/Steam, API 609 Standard Trade Information

  • port of Hong Kong
  • Cash in Advance (CID), Telegraphic Transfer (T/T)
  • 1000 Piece Per Month
  • 10 Days
  • Contact us for information regarding our sample policy
  • Asia
  • 1.ISO 9001 Quality Management System Certification 2.CE Certification 3.CCC Certification (China Compulsory Certification) 4.UL Certification 5.ATEX Certification 6.IECEx Certification 7.ISO 14001 Environmental Management System Certification 8.FDA Certification (for Food and Pharmaceutical Grade Pumps)

Product Description

Why Choose Us

From production to finished goods warehousing, we strictly control quality at every stage.

l Premium Quality: Quality you can trust.

l Imported Sourced Materials: Raw materials sourced from the United States.

l Quality Certifications: Complete and valid certifications and qualifications.

l Ample Stock: Large warehouse inventory available.

l Wide Range of Specifications: Custom specifications available upon request.

l Thoughtful Service: Dedicated after-sales support.



Product Information

Quality Assured / Extended Warranty / Trouble-Free Operation

Product Name: Six-eccentric Butterfly Valve

Nominal Size: DN40 DN1200

Nominal Pressure: PN250 / 2500LB

Temperature Range: -196C ~ 1100C

End Connections: Wafer, Lug, Flanged, Welded

Actuation: Manual, Electric, Pneumatic

Materials: Cast Steel, Stainless Steel, Special Alloys

Product Introduction

The six-eccentric butterfly valve is a high-precision, full-eccentric industrial butterfly valve, iteratively improved based on three-eccentric and four-eccentric designs.

It features six-fold eccentric geometry: shaft axial eccentricity, radial eccentricity, sealing cone eccentricity, seat eccentricity, disc surface eccentricity, and flow path streamline eccentricity.

This design eliminates friction and wear during the full opening/closing cycle. Its sealing performance, high temperature/pressure resistance, erosion resistance, and corrosion resistance far exceed those of three- and four-eccentric butterfly valves.

Ideal for ultra-supercritical power plants, high-end petrochemical plants, LNG, coal chemical, vacuum pipelines, long-distance gas transmission, and other severe service applications. Suitable for both on-off and throttling control.

Product Features

1. Six-Dimensional Eccentric Geometry The disc contacts the seat only at the moment of full closure, eliminating scratching and wear. The smooth operating trajectory prevents jamming or seizure.
2. Bi-Directional Zero Leakage Sealing performance up to Class VI. Metal-to-metal hard seal + composite seal combination with pressure-assisted self-tightening: higher pressure = tighter seal, maintaining absolute sealing even under vacuum conditions.
3. Low Operating Torque & Energy Savings Optimized flow path and sealing geometry minimize fluid resistance and operating torque. Can be paired with smaller actuators, reducing both initial investment and long-term maintenance costs.
4. Extreme Service Compatibility Resistant to ultra-high temperature/pressure, corrosion, erosion, and particulate-laden media. Suitable for sulphur-containing, acidic/alkaline environments, including steam, high-temperature flue gas, LNG, coal chemical media, and flammable gases.
5. Extended Service Life Zero friction wear during operation leads to minimal seal wear, with a cycle life far exceeding three- and four-eccentric butterfly valves. Ideal for critical industrial pipelines operating continuously 24/7.
6. Flexible Installation Bi-directional flow with no direction restriction. Supports multiple connection styles (wafer, flanged, lug, welded). Compact, lightweight design with minimal installation space requirements.
