Steam Trap / Float and Thermostatic Steam Trap, Cast Steel, Flanged, Automatic, Float Ball Structure, Saturated Steam, ASME Standard

Steam Trap / Float and Thermostatic Steam Trap, Cast Steel, Flanged, Automatic, Float Ball Structure, Saturated Steam, ASME Standard

900.0 INR/Piece

Get a Price/Quote

Product Details:

Features Automatic condensate/air discharge, steam leakage prevention, efficient heat transfer, water hammer prevention, energy saving
Valve Size Standard range: DN15~DN100 (1/2"~4"); Common sizes: DN15, DN20, DN25, DN32, DN40, DN50
Material Gray Cast Iron (HT200/HT250): PN16, 220 , for general non-corrosive environments; Ductile Iron (FCD450): PN25, 350 ; Cast Steel (WCB/A105): PN40~PN100, 450 ; Stainless Steel (304/316L): PN40, 550 , food/pharmaceutical grade; Chromium-Molybdenum Steel (15CrMo/12Cr1MoV): High temperature & high pressure, power station use
Connection Type Threaded / Flanged / Welded
Valve Type Steam Trap
Usage Steam systems, condensate discharge, steam leakage prevention
Application Steam, condensate, air, non-condensable gas
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Steam Trap / Float and Thermostatic Steam Trap, Cast Steel, Flanged, Automatic, Float Ball Structure, Saturated Steam, ASME Standard Price And Quantity

Minimum Order Quantity 1 Piece
Price 900.0 INR/Piece

Steam Trap / Float and Thermostatic Steam Trap, Cast Steel, Flanged, Automatic, Float Ball Structure, Saturated Steam, ASME Standard Product Specifications

Valve Size Standard range: DN15~DN100 (1/2"~4"); Common sizes: DN15, DN20, DN25, DN32, DN40, DN50
Features Automatic condensate/air discharge, steam leakage prevention, efficient heat transfer, water hammer prevention, energy saving
Media Gas, Base, Water, Oil, Acid
Material Gray Cast Iron (HT200/HT250): PN16, 220 , for general non-corrosive environments; Ductile Iron (FCD450): PN25, 350 ; Cast Steel (WCB/A105): PN40~PN100, 450 ; Stainless Steel (304/316L): PN40, 550 , food/pharmaceutical grade; Chromium-Molybdenum Steel (15CrMo/12Cr1MoV): High temperature & high pressure, power station use
Pressure P, N, 1, 0, 0, , ;, , C, 0, , 2, M, P, a, s, s, , 6, 0, ;, , e, s, s, u, r, e, P, N, 4, 0, ,, , P, N, 6, 3, ,, , P, N, 1, 6, ,, , P, N, 2, 5, ,, , (, G, B, ), l, a, s, , , t, y, p, e, , u, p, , t, o, , 4, 5, s, s, , 3, a, s, 1, 0, ,, , C, l, a, 0, 0, ,, , C, l, (, A, S, M, E, ), H, i, g, h, -, p, r mpa
Disc SUS440C, Stellite alloy
Usage Steam systems, condensate discharge, steam leakage prevention
Port Size Standard range: DN15~DN100 (1/2"~4"); Common sizes: DN15, DN20, DN25, DN32, DN40, DN50
Size Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50
Sealing Metal hard seal (Stellite, cemented carbide); Soft seal (PTFE, fluororubber)
Temperature Cast iron: 220 ; Cast steel: 450 ; Stainless steel: 550 Celsius (oC)
Product Type Steam Trap
Application Steam, condensate, air, non-condensable gas
Valve Type Steam Trap
Structure Other
Connection Type Threaded / Flanged / Welded
Type Steam Trap / Condensate Drain Trap

Product Description

Steam Trap Product Introduction & Technical Specifications

1. Product Overview

A steam trap, also known as a steam separator, is a critical automatic valve in steam systems. It automatically discharges condensate, air and non-condensable gases while effectively preventing steam leakage.

Its core functions include ensuring efficient heat transfer of steam equipment, preventing pipeline water hammer, avoiding equipment corrosion, and saving steam energy. It is widely used in all industrial and civil fields that use steam, such as petrochemical, power, food, textile, and HVAC industries.

2. Technical Specifications

2.1 Nominal Diameter (DN)

Standard range: DN15 ~ DN100 (1/2" ~ 4")

Common sizes: DN15, DN20, DN25, DN32, DN40, DN50

2.2 Nominal Pressure (PN/Class)

GB standard: PN16, PN25, PN40, PN63, PN100

ASME standard: Class 150, Class 300, Class 600

High-pressure type: Up to 42 MPa (special for power stations)

2.3 Working Temperature

Cast iron: 220

Cast steel: 450

Stainless steel: 550

2.4 Discharge Capacity

Small: 50 ~ 500 kg/h

Medium: 1 ~ 10 t/h

Large: 10 ~ 100 t/h

3. Main Component Materials

3.1 Body Materials

Gray cast iron (HT200/HT250): Suitable for PN16, 220, and general non-corrosive environments.

Ductile iron (FCD450): Suitable for PN25, 350, with higher strength than ordinary cast iron.

Cast steel (WCB/A105): Suitable for PN40 ~ PN100, 450, medium and high pressure conditions.

Stainless steel (304/316L): Suitable for PN40, 550, corrosion-resistant, and meets food/pharmaceutical grade requirements.

Chromium-molybdenum steel (15CrMo/12Cr1MoV): Designed for high temperature and high pressure scenarios, especially for power station boilers.

3.2 Internal Component Materials

Float ball: 304/316 stainless steel

Seat / disc: SUS440C, Stellite alloy (hardness HRC60)

Bimetallic strip: Nickel-iron alloy, manganese-copper alloy composite layer

Bellows: 316L, Hastelloy alloy

3.3 Sealing Materials

Hard seal: Stellite overlay, hard alloy (for high temperature and high pressure conditions)

Soft seal: PTFE, fluororubber (200, low leakage)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Steam Trap' category

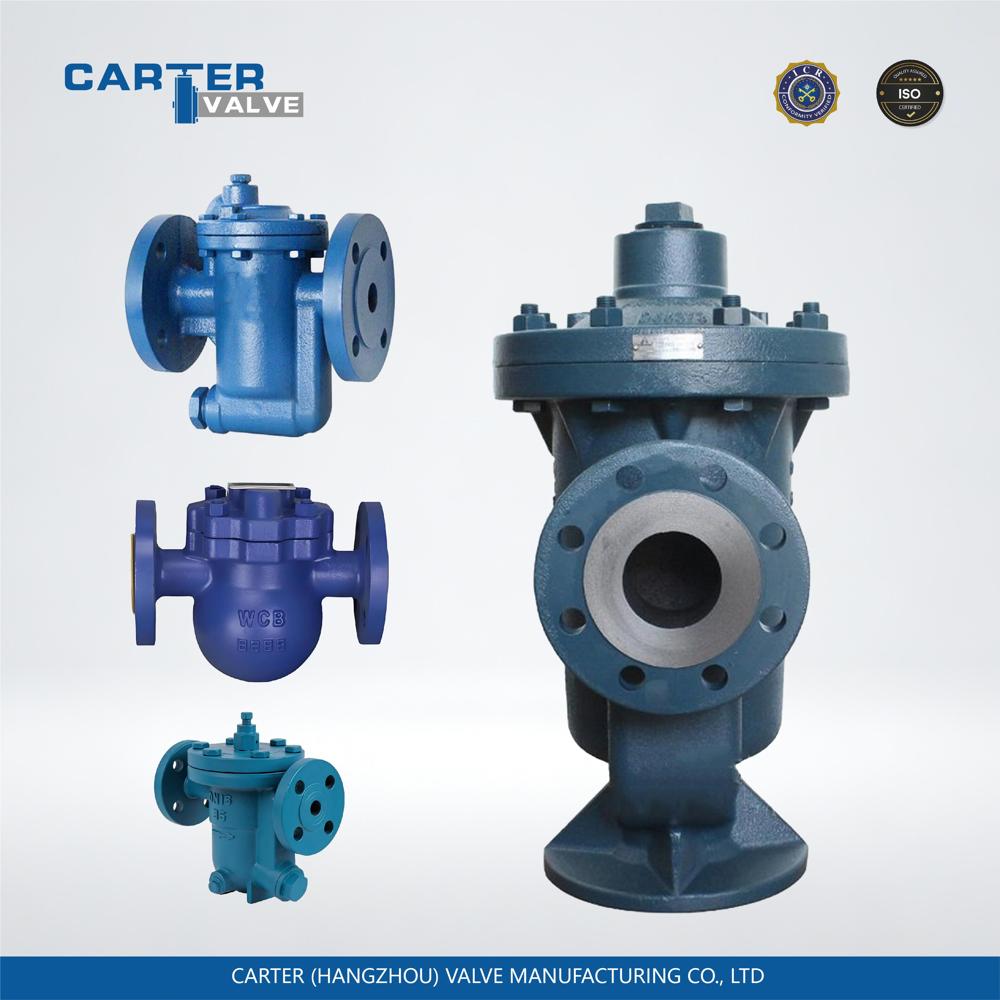

Steam Trap / Bimetallic Steam Trap, Alloy Steel, Flanged, Automatic, Bimetal Element Structure, Superheated Steam, DIN Standard Price : 200.0 INR/Piece Minimum Order Quantity : 1 Valve Type : Steam Trap Temperature : Cast iron: 220 ; Cast steel: 450 ; Stainless steel: 550 Celsius (oC) Size : Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50 Material : Gray Cast Iron (HT200/HT250): PN16, 220 , for general noncorrosive service Ductile Iron (FCD450): PN25, 350 , higher strength than cast iron Cast Steel (WCB/A105): PN40 PN100, 450 , for medium and high pressure Stainless Steel (304/316L): PN40, 550 , corrosion resistant, for food and pharmaceutical Pressure : N, 0, 0, , G, l, ), 0, 0, , g, h, , e, e, , u, 4, 0, ,, , P, N, 6, , P, 1, B, , 3, ,, C, l, s, , P, N, 6, 5, ,, 3, ,, ;, , C, a, s, 1, C, l, s, s, , a, s, 6, E, ), ;, r, e, , t, o, M, , 5, 0, ,, , 0, 0, , (, p, s, s, u, r, p, t, , a, A, S, M, H, i, y, p, 1, P, (, s, a, , 4, 2, P, ,, , 2, , P, N, N mpa Valve Size : Standard range: DN15~DN100 (1/2"~4"); Common sizes: DN15, DN20, DN25, DN32, DN40, DN50 Media : Water, Oil, Gas, Base, Acid, Other Structure : Other Type : Steam Trap / Condensate Drain Trap Application : Steam, condensate, air, noncondensable gas Connection Type : Threaded / Flanged / Welded Sealing : Metal hard seal (Stellite, cemented carbide); Soft seal (PTFE, fluororubber) Product Type : Steam Trap Usage : Steam Trap Product Introduction & Technical Specifications 1. Product Overview A steam trap, also known as a steam separator, is a critical automatic valve in steam systems. It automatically discharges condensate, air and noncondensable gases while effectively preventing steam leakage. Its core functions include ensuring efficient heat transfer of steam equipment, preventing pipeline water hammer, avoiding equipment corrosion, and saving steam energy. It is widely used in all industrial and civil fields that use steam, such as petrochemical, power, food, textile, and HVAC industries. 2. Technical Specifications 2.1 Nominal Diameter (DN) Standard range: DN15 ~ DN100 (1/2" ~ 4") Common sizes: DN15, DN20, DN25, DN32, DN40, DN50 2.2 Nominal Pressure (PN/Class) GB standard: PN16, PN25, PN40, PN63, PN100 ASME standard: Class 150, Class 300, Class 600 Highpressure type: Up to 42 MPa (special for power stations) 2.3 Working Temperature Cast iron: 220 Cast steel: 450 Stainless steel: 550 2.4 Discharge Capacity Small: 50 ~ 500 kg/h Medium: 1 ~ 10 t/h Large: 10 ~ 100 t/h 3. Main Component Materials 3.1 Body Materials Gray cast iron (HT200/HT250): Suitable for PN16, 220 , and general noncorrosive environments. Ductile iron (FCD450): Suitable for PN25, 350 , with higher strength than ordinary cast iron. Cast steel (WCB/A105): Suitable for PN40 ~ PN100, 450 , medium and high pressure conditions. Stainless steel (304/316L): Suitable for PN40, 550 , corrosionresistant, and meets food/pharmaceutical grade requirements. Chromiummolybdenum steel (15CrMo/12Cr1MoV): Designed for high temperature and high pressure scenarios, especially for power station boilers. 3.2 Internal Component Materials Float ball: 304/316 stainless steel Seat / disc: SUS440C, Stellite alloy (hardness HRC60) Bimetallic strip: Nickeliron alloy, manganesecopper alloy composite layer Bellows: 316L, Hastelloy alloy 3.3 Sealing Materials Hard seal: Stellite overlay, hard alloy (for high temperature and high pressure conditions) Soft seal: PTFE, fluororubber ( 200 , low leakage) Port Size : Standard range: DN15~DN100 (1/2"~4"); Common sizes: DN15, DN20, DN25, DN32, DN40, DN50 Disc : SUS440C, Stellite alloy Features : Automatic condensate/air discharge, steam leakage prevention, efficient heat transfer, water hammer prevention, energy saving
