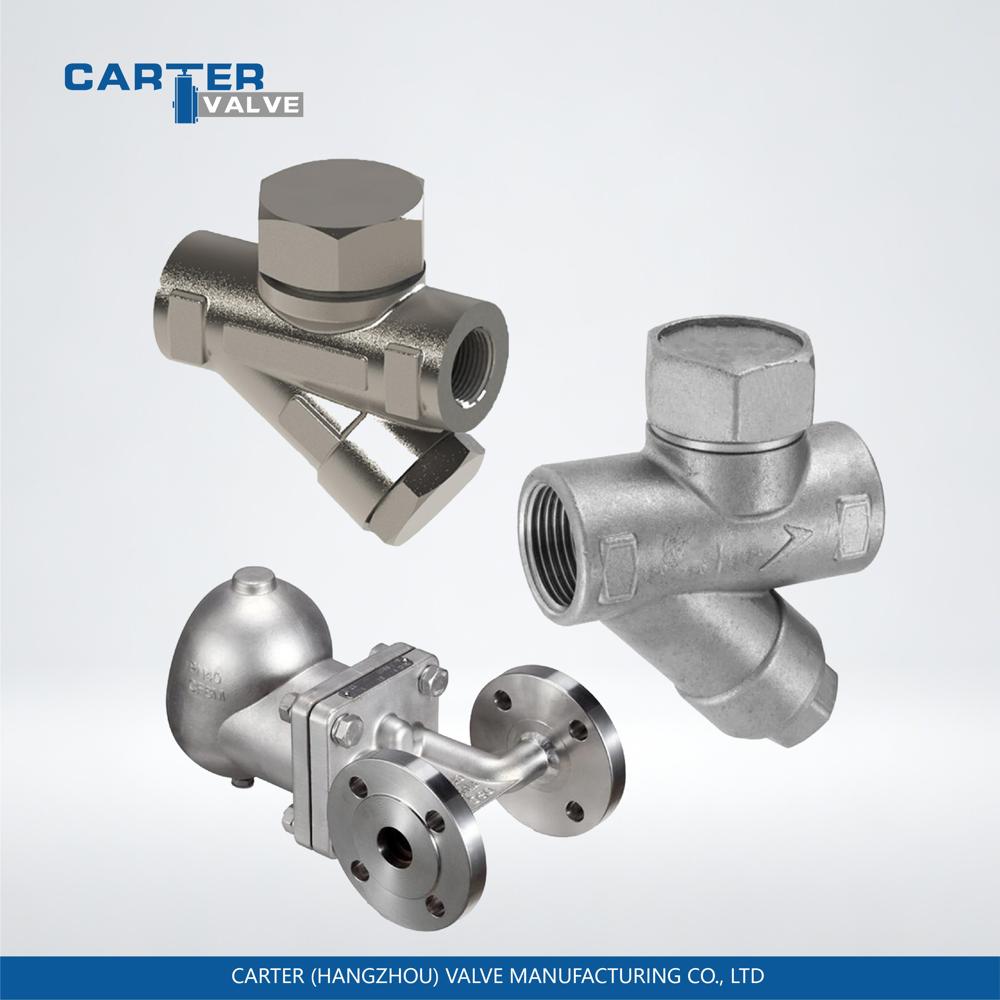

Steam Trap / Thermodynamic Steam Trap, Stainless Steel, Threaded, Automatic, Disc Type Structure, Steam Condensate, API Standard

Steam Trap / Thermodynamic Steam Trap, Stainless Steel, Threaded, Automatic, Disc Type Structure, Steam Condensate, API Standard

1000.0 INR/Piece

Get a Price/Quote

Product Details:

Material Gray Cast Iron (HT200/HT250): PN16, 220 , for general non-corrosive environments; Ductile Iron (FCD450): PN25, 350 ; Cast Steel (WCB/A105): PN40~PN100, 450 ; Stainless Steel (304/316L): PN40, 550 , food/pharmaceutical grade; Chromium-Molybdenum Steel (15CrMo/12Cr1MoV): High temperature & high pressure, power station use
Valve Type Steam Trap
Connection Type Threaded / Flanged / Welded
Features Automatic condensate/air discharge, steam leakage prevention, water hammer protection, energy saving, corrosion resistance
Valve Size Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50
Sealing Metal hard seal (Stellite, cemented carbide); Soft seal (PTFE, FKM)
Application Steam, condensate, air, non-condensable gases
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Steam Trap / Thermodynamic Steam Trap, Stainless Steel, Threaded, Automatic, Disc Type Structure, Steam Condensate, API Standard Price And Quantity

Price 1000.0 INR/Piece
Minimum Order Quantity 1 Piece

Steam Trap / Thermodynamic Steam Trap, Stainless Steel, Threaded, Automatic, Disc Type Structure, Steam Condensate, API Standard Product Specifications

Type Steam Trap
Port Size Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50
Connection Type Threaded / Flanged / Welded
Usage Steam systems, condensate discharge, steam energy saving
Structure Other
Material Gray Cast Iron (HT200/HT250): PN16, 220 , for general non-corrosive environments; Ductile Iron (FCD450): PN25, 350 ; Cast Steel (WCB/A105): PN40~PN100, 450 ; Stainless Steel (304/316L): PN40, 550 , food/pharmaceutical grade; Chromium-Molybdenum Steel (15CrMo/12Cr1MoV): High temperature & high pressure, power station use
Sealing Metal hard seal (Stellite, cemented carbide); Soft seal (PTFE, FKM)
Product Type Steam Trap / Condensate Drain Trap
Valve Type Steam Trap
Size Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50
Application Steam, condensate, air, non-condensable gases
Media Gas, Water, Oil
Valve Size Standard range: DN15 DN100 (1/2 4 )Common sizes: DN15, DN20, DN25, DN32, DN40, DN50
Temperature Cast iron: 220 Cast steel: 450 Stainless steel: 550 Celsius (oC)
Features Automatic condensate/air discharge, steam leakage prevention, water hammer protection, energy saving, corrosion resistance
Pressure ) mpa
Disc SUS440C, Stellite alloy

Product Description

Steam Trap Product Introduction & Technical Specifications

1. Product Overview

A steam trap, also known as a steam separator, is a critical automatic valve in steam systems. It automatically discharges condensate, air and non-condensable gases while effectively preventing steam leakage.

Its core functions include ensuring efficient heat transfer of steam equipment, preventing pipeline water hammer, avoiding equipment corrosion, and saving steam energy. It is widely used in all industrial and civil fields that use steam, such as petrochemical, power, food, textile, and HVAC industries.

2. Technical Specifications

2.1 Nominal Diameter (DN)

Standard range: DN15 ~ DN100 (1/2" ~ 4")
Common sizes: DN15, DN20, DN25, DN32, DN40, DN50

2.2 Nominal Pressure (PN/Class)

GB standard: PN16, PN25, PN40, PN63, PN100
ASME standard: Class 150, Class 300, Class 600
High-pressure type: Up to 42 MPa (special for power stations)

2.3 Working Temperature

Cast iron: 220
Cast steel: 450
Stainless steel: 550

2.4 Discharge Capacity

Small: 50 ~ 500 kg/h
Medium: 1 ~ 10 t/h
Large: 10 ~ 100 t/h

3. Main Component Materials

3.1 Body Materials

Gray cast iron (HT200/HT250): Suitable for PN16, 220, and general non-corrosive environments.
Ductile iron (FCD450): Suitable for PN25, 350, with higher strength than ordinary cast iron.
Cast steel (WCB/A105): Suitable for PN40 ~ PN100, 450, medium and high pressure conditions.
Stainless steel (304/316L): Suitable for PN40, 550, corrosion-resistant, and meets food/pharmaceutical grade requirements.
Chromium-molybdenum steel (15CrMo/12Cr1MoV): Designed for high temperature and high pressure scenarios, especially for power station boilers.

3.2 Internal Component Materials

Float ball: 304/316 stainless steel
Seat / disc: SUS440C, Stellite alloy (hardness HRC60)
Bimetallic strip: Nickel-iron alloy, manganese-copper alloy composite layer
Bellows: 316L, Hastelloy alloy

3.3 Sealing Materials

Hard seal: Stellite overlay, hard alloy (for high temperature and high pressure conditions)
Soft seal: PTFE, fluororubber (200, low leakage)
