Globe Valve / Angle Globe Valve, Alloy Steel, Socket Weld, Pneumatic Actuated, Angle Type Structure, High Pressure Steam/Oil, DIN Standard

Globe Valve / Angle Globe Valve, Alloy Steel, Socket Weld, Pneumatic Actuated, Angle Type Structure, High Pressure Steam/Oil, DIN Standard

100.0 INR/Piece

Get a Price/Quote

Product Details:

Connection Type Flanged / Threaded / Welded
Valve Size DN10~DN600mm, customizable sizes available
Material Body/bonnet: WCB, CF8(304), CF8M(316), WC6; Stem: 2Cr13, 1Cr18Ni9Ti, 316; Packing: graphite/PTFE/bellows seal
Features Short stroke, reliable sealing, good flow regulation, high fluid resistance
Valve Type Globe Valve
Sealing Metal hard seal (Stellite hardfacing); Soft seal (PTFE insert); Bellows seal (zero leakage)
Application Water, steam, corrosive media, toxic media
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Globe Valve / Angle Globe Valve, Alloy Steel, Socket Weld, Pneumatic Actuated, Angle Type Structure, High Pressure Steam/Oil, DIN Standard Price And Quantity

Minimum Order Quantity 1 Piece
Price 100.0 INR/Piece

Globe Valve / Angle Globe Valve, Alloy Steel, Socket Weld, Pneumatic Actuated, Angle Type Structure, High Pressure Steam/Oil, DIN Standard Product Specifications

Features Short stroke, reliable sealing, good flow regulation, high fluid resistance
Disc 2Cr13, 304/316 stainless steel, Stellite hardfacing, PTFE insert
Size Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable)
Pressure P, a, , /, m, i, z, a, e, t, b, l, P, N, 1, ., ., a, s, 1, N, 3, 2, , C, ~, 6, ~, 5, 0, 1, 5, 0, ,, , c, u, s, o, 0, M, P, l, s, , 0 mpa
Valve Size DN10~DN600mm, customizable sizes available
Structure Stop
Material Body/bonnet: WCB, CF8(304), CF8M(316), WC6; Stem: 2Cr13, 1Cr18Ni9Ti, 316; Packing: graphite/PTFE/bellows seal
Port Size DN10~DN600mm, customizable sizes available
Valve Type Globe Valve
Usage Pipeline cut-off and flow regulation in petroleum, chemical, power, municipal systems
Type Forced-sealed Globe Valve
Temperature Carbon steel: -29 ~ 425 ; Stainless steel: -196 ~ 550 ; High-temperature alloy: up to 600 + (customizable) Celsius (oC)
Sealing Metal hard seal (Stellite hardfacing); Soft seal (PTFE insert); Bellows seal (zero leakage)
Application Water, steam, corrosive media, toxic media
Media Gas, Base, Water, Oil, Acid
Connection Type Flanged / Threaded / Welded

Product Description

Globe valve is a forced-sealed valve. Its closure element (disc) moves linearly up and down along the centerline of the seat, achieving medium shut-off and flow regulation through tight contact between the disc and seat. Installation must follow the flow direction of low inlet and high outlet.

It features short opening/closing stroke, reliable sealing and good regulation performance, but has relatively high fluid resistance. It is widely used in pipeline systems in petroleum, chemical, power, municipal and other industries.

Nominal Diameter (DN): DN10 ~ DN600 mm (larger or smaller sizes customizable)

Nominal Pressure (PN/Class): PN1.6 ~ PN32.0 MPa (Class 150 ~ 1500) (higher or lower pressures customizable)

Operating Temperature: Carbon steel: -29 ~ 425; Stainless steel: -196 ~ 550; High-temperature alloy: up to 600+ (customizable)

Test Pressure: Shell: 1.5 Nominal Pressure; Seal: 1.1 Nominal Pressure

Leakage Class: Metal seal: ANSI B16.104 Class IV; Soft seal: Class VI (bubble-tight/zero leakage), customizable

Design & Manufacturing Standards: Design & production: GB/T 12235; Face-to-face dimension: GB/T 12221 (customizable)

Body/Bonnet

Common materials: WCB (carbon steel); CF8 (304 stainless steel); CF8M (316 stainless steel); WC6 (chromium-molybdenum steel)Applicable service conditions: WCB: water / steam at normal temperature; 304/316: corrosion-resistant; WC6: high-temperature steam

Disc/Seat

Common materials: 2Cr13; 304/316; Stellite hardfacingApplicable service conditions: Stellite for metal-to-metal sealing; PTFE insert for soft sealing

Stem

Common materials: 2Cr13; 1Cr18Ni9Ti; 316; nitrided / chromium-plated treatmentApplicable service conditions: Wear-resistant, corrosion-resistant, anti-galling

Packing/Seal

Common materials: Graphite packing (high temperature); PTFE packing (general / low temperature); bellows seal (zero leakage, toxic media)Applicable service conditions: Graphite packing for high temperature; PTFE packing for general/low temperature; bellows seal for zero leakage and toxic media

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Valve' category

Check Valve / Lift Check Valve, Stainless Steel, Butt Weld, Automatic, Lift Type Structure, Steam/Corrosive Media, ASME B16.34 Standard Price : 1000.0 INR/Piece Minimum Order Quantity : 1 Media : Gas, Oil, Base, Water, Acid Temperature : Carbon steel: 29~425 ; Stainless steel/alloy: 196~550 Celsius (oC) Material : Body: Cast iron/ductile iron, WCB carbon steel, 304/316/316L stainless steel, CrMo alloy; Internal parts: 304/316, 2Cr13, stainless steel spring1/F22/F91), stainless steel (304/316/321/310S/309S), hightemperature alloys (Inconel/Monel/Hastelloy), heatresistant cast iron, ceramic materials Pressure : N, 1, ., 0, ~, 6, 0, 0, ~, N, 1, 6, , /, C, l, a, s, s, 1, 5, P, , , P, 0 mpa Size : DN15~DN2000 Valve Type : Check Valve Control System : Manual, gear operated, electric, pneumatic, hydraulic Application : Water, steam, oil, natural gas, acid/alkali salt solutions, foodgrade media Sealing : Metal hard seal (Stellite alloy); Elastomer seal (PTFE/EPDM/NBR) Product Type : Gate valve, globe valve, check valve, ball valve, butterfly valve, control valve Connection Type : Flanged, threaded, wafer, welded (butt weld / socket weld) Structure : Check Valve Size : DN15~DN2000 Usage : Prevent medium backflow, protect pumps/compressors/boilers, suppress water hammer impact Type : Check Valve / Nonreturn Valve / Oneway Valve Port Size : DN15~DN2000 Features : Automatic operation, no power required, prevent backflow, suppress water hammer, flexible installation Disc : 304/316 stainless steel, Stellite hardfacing

Send Inquiry

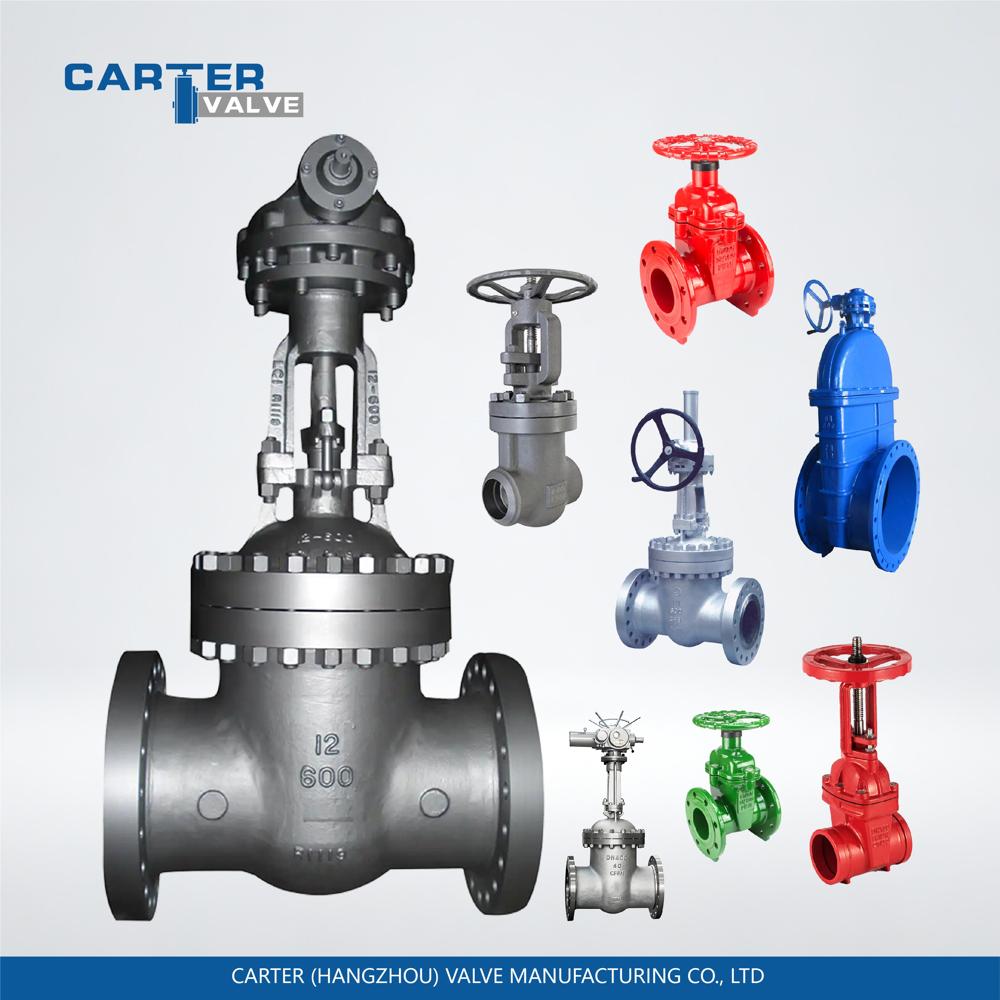

Gate Valve / Knife Gate Valve, Ductile Iron, Wafer, Pneumatic Actuated, Through-Conduit Structure, Slurry/Pulp, MSS SP-81 Standard Price : 800.0 INR/Piece Minimum Order Quantity : 1 Media : Gas, Base, Water, Oil, Acid Temperature : 29 ~ 550 (depending on material) Celsius (oC) Material : Gray cast iron HT200, ductile iron QT45010, carbon steel WCB/A105, stainless steel CF8/CF8M Pressure : mpa Size : DN15 ~ DN1400 Valve Type : Gate Valve Control System : Manual / Gear operated / Electric / Pneumatic Application : Water, oil products, steam, natural gas, weakly corrosive media Sealing : Softseated (EPDM/NBR/PTFE) / Hardseated (hard alloy/stainless steel) Product Type : Gate Valve Connection Type : Flanged / Welded / Threaded Structure : Gate Valve Size : DN15 ~ DN1400 Usage : Industrial pipelines, water supply, oil & gas, steam systems, HVAC, chemical plants Type : Gate Valve Port Size : DN15 ~ DN1400 Features : Low flow resistance, bidirectional flow, low operating torque, good sealing, long service life, easy maintenance Disc : Gate (2Cr13, 304, 316, Stellite alloy overlay)

Send Inquiry

Air Release Valve Air Vent Valve Automatic Air Valve Air Relief Valve Bleed Valve Float Type Single Orifice Double Orifice Combination Air Micro Air Release Price : 500.0 INR/Piece Minimum Order Quantity : 1 Media : Water, Gas, Base, Oil, Acid, Other Temperature : 30 ~ 120 (depending on model) Celsius (oC) Material : Gray cast iron HT200, ductile iron QT450, brass, stainless steel 304/316L Pressure : P, N, ., 0, , , /, 1, /, , 1, ., 6, 5, M, P, a, , 2, ., mpa Size : DN15 ~ DN400 Valve Type : Air Release Valve Control System : Automatic (float/piston operated, no external control required) Application : Clean water, sewage, circulating water, hightemperature and corrosive media Sealing : NBR / FKM / EPDM seals, tight sealing, no leakage Product Type : Air Release Valve Connection Type : Flanged / Threaded Structure : Other Valve Size : DN15 ~ DN400 Usage : Municipal water supply & drainage, HVAC, industrial fluid systems, sewage networks, water hammer protection pipelines Type : Compound, micro, quick release, sewage, water hammer protection Port Size : DN15 ~ DN400 Features : Air release, air intake, negative pressure protection, water hammer elimination, automatic operation, low maintenance Disc : Float / float bowl (stainless steel 304 / engineering plastic)

Send Inquiry

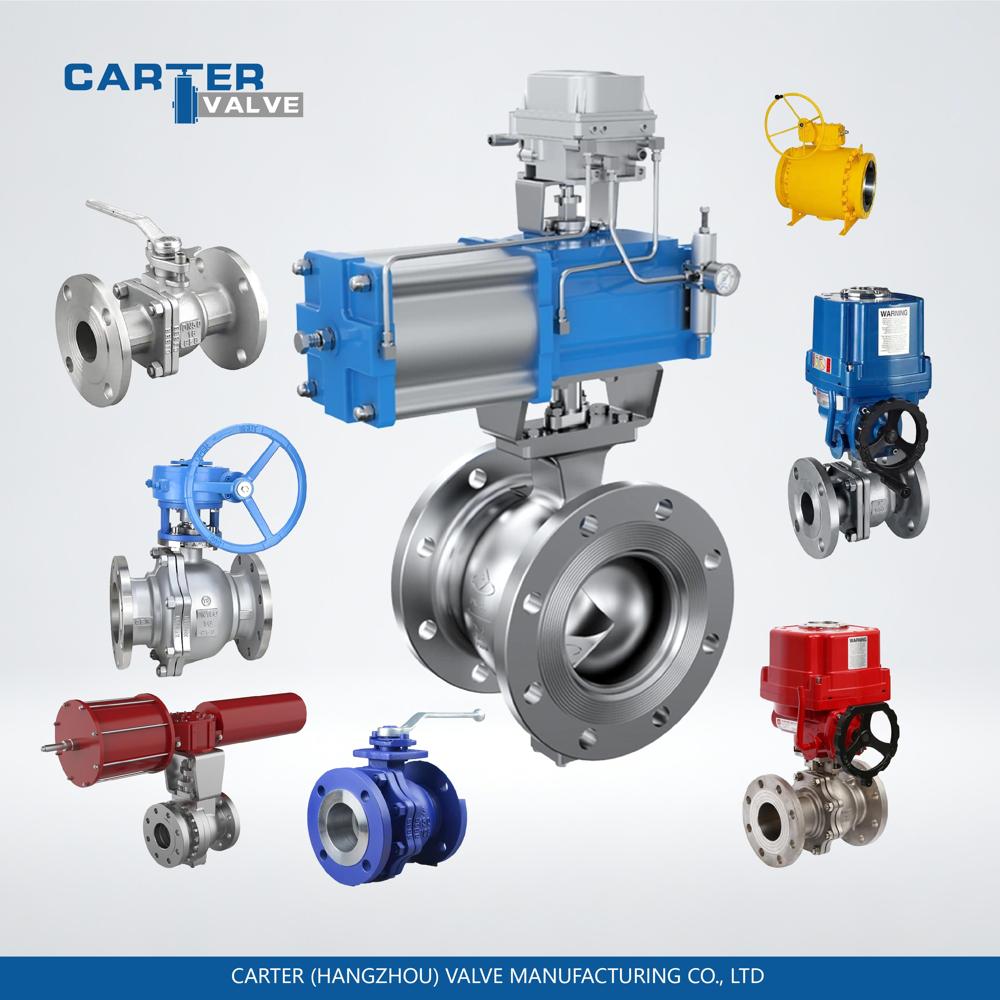

Ball Valve / Trunnion Mounted Ball Valve, Forged Steel, Butt Weld, Gear Operated, Three-Piece Body, Natural Gas/Oil, API 6D Standard Price : 200.0 INR/Piece Minimum Order Quantity : 1 Media : Gas, Base, Water, Oil, Acid, Other Temperature : Softseated: 40 ~ 200/260 ; Hardseated: 196 ~ 550 (special up to 1100 ) Celsius (oC) Material : Softseated (Class VI zero leakage); Hardseated (API 598, ISO 14316) Pressure : P, N, 1, P, N, 6, 0, 0, 6, mpa Size : DN15 ~ DN1200 (NPS " ~ 48") Valve Type : Ball Control System : Manual, gear operated, pneumatic, electric, hydraulic Application : Water, steam, oil products, gas, corrosive media, etc. Sealing : Softseated (Class VI zero leakage); Hardseated (API 598, ISO 14316) Product Type : Ball Valve Connection Type : langed, threaded, socket weld, butt weld, grooved, wafer Structure : Ball Valve Size : DN15 ~ DN1200 Usage : Petrochemical, municipal, power energy, food & beverage, metallurgy, marine, building automation Type : 2way, 3way L/Ttype, Vtype, full bore / reduced bore Port Size : DN15 ~ DN1200 (NPS " ~ 48")
