Product Description

Product Introduction

Technical Specifications

• Nominal Pressure: PN10 / PN16
• Body Material: Cast steel / Stainless steel; Corrosion-resistant lined type with F46 / PTFE

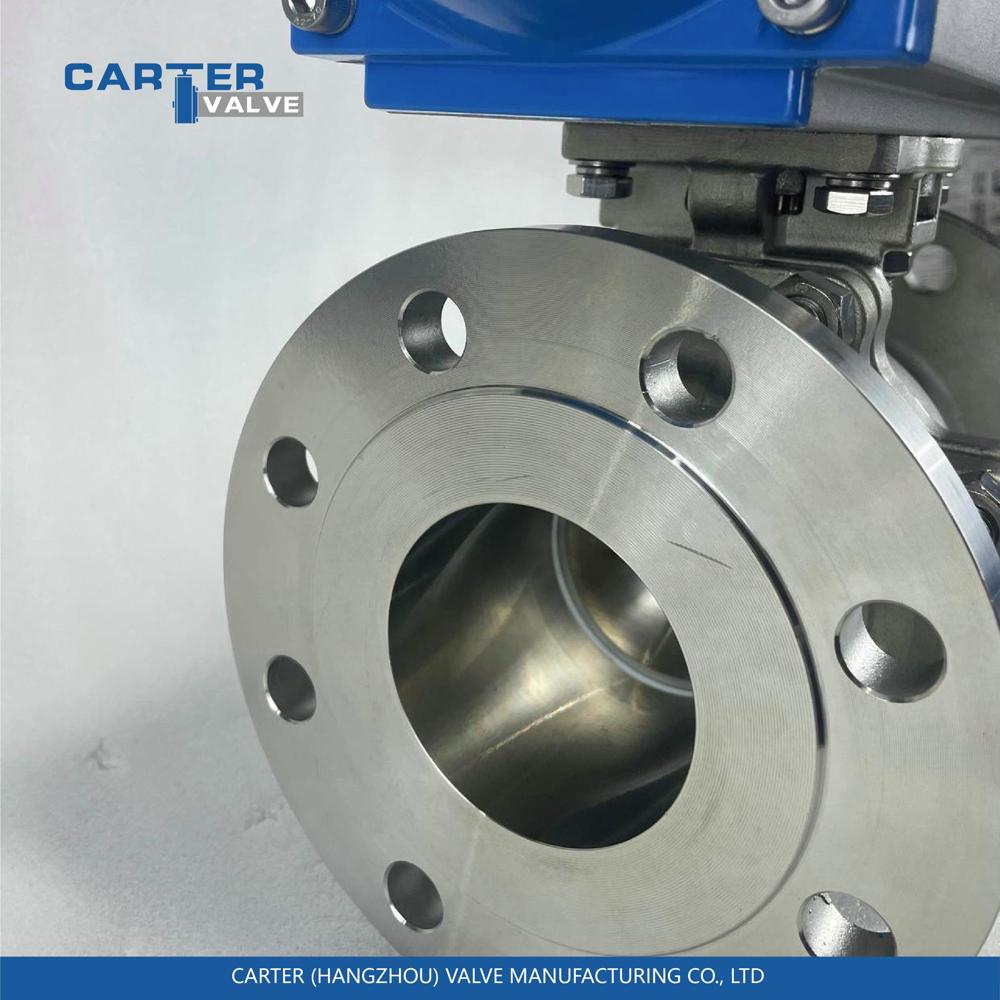

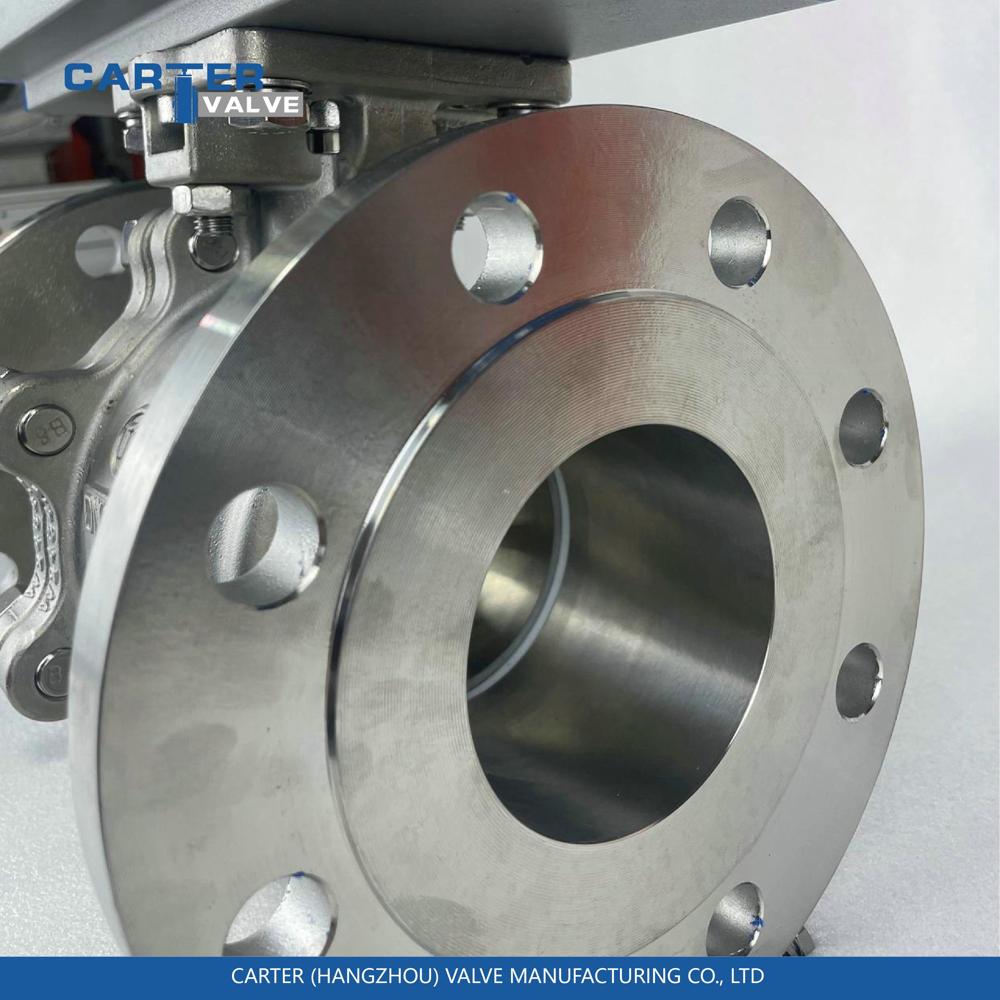

• Connection Type: Flanged

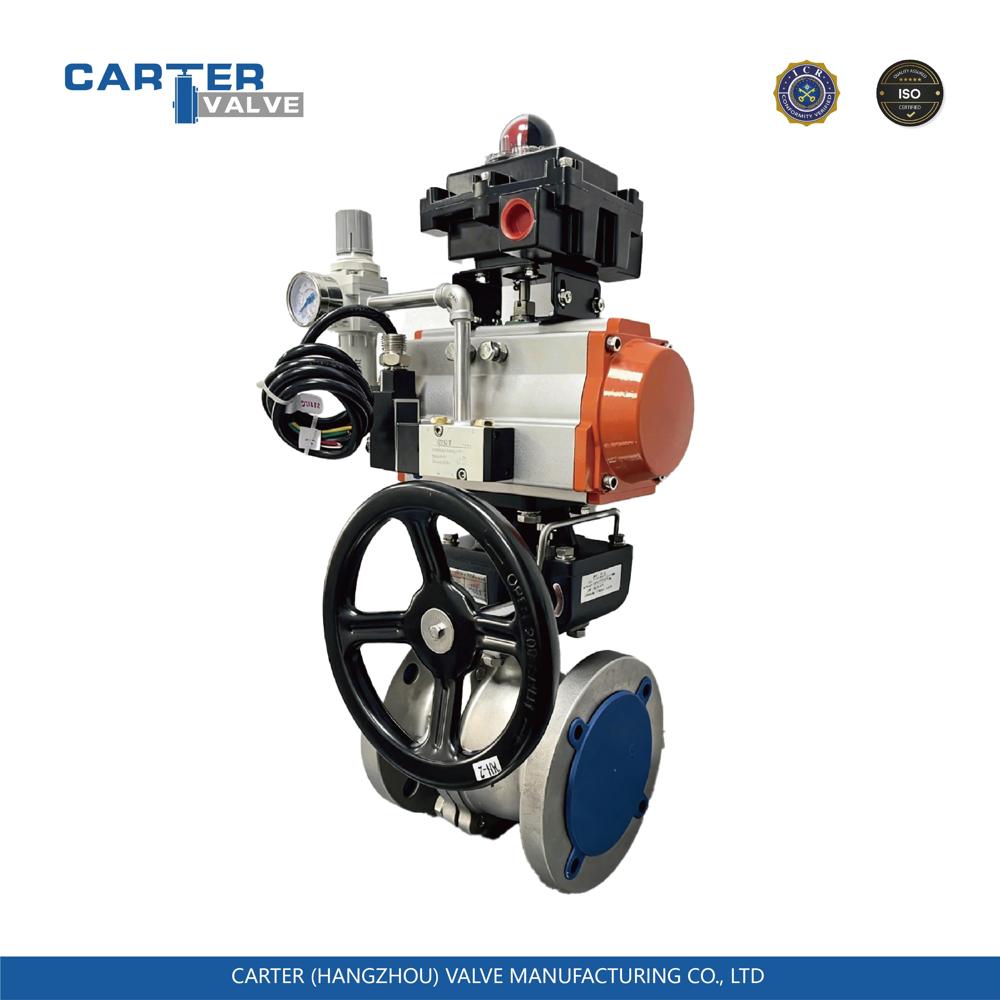

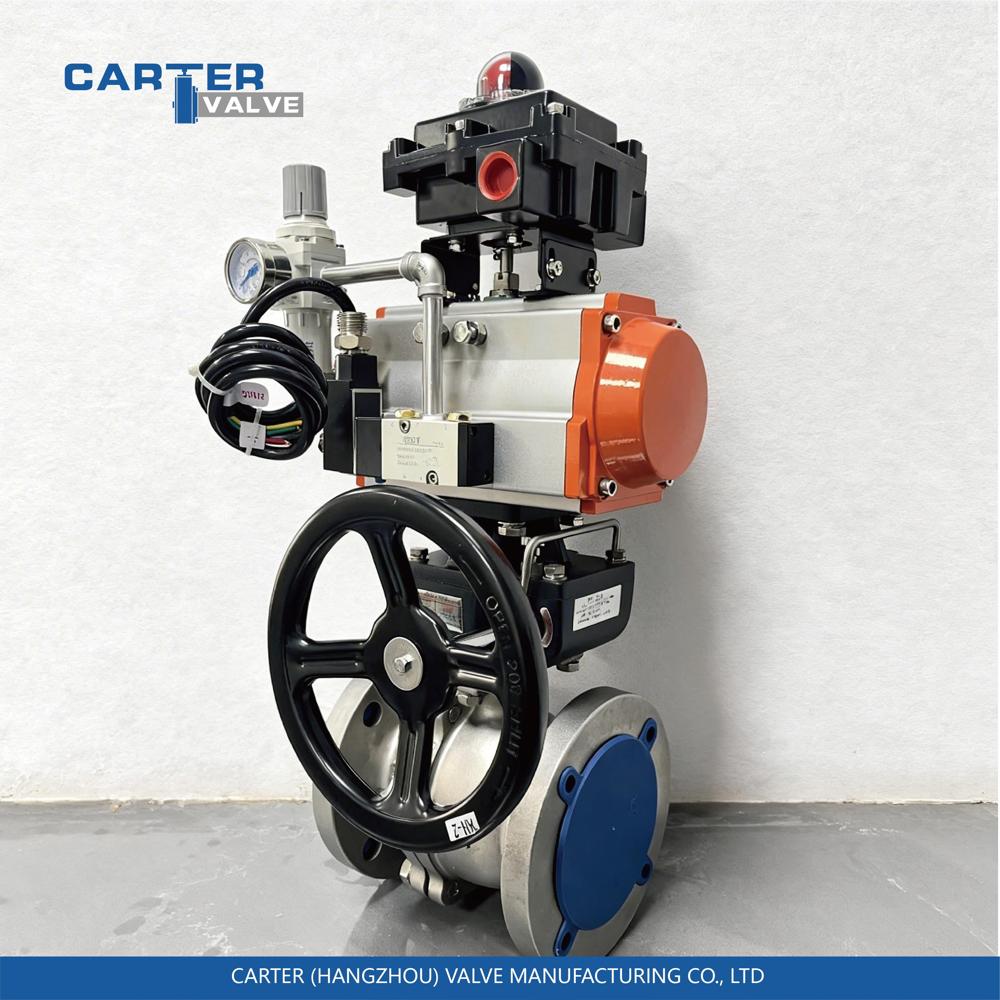

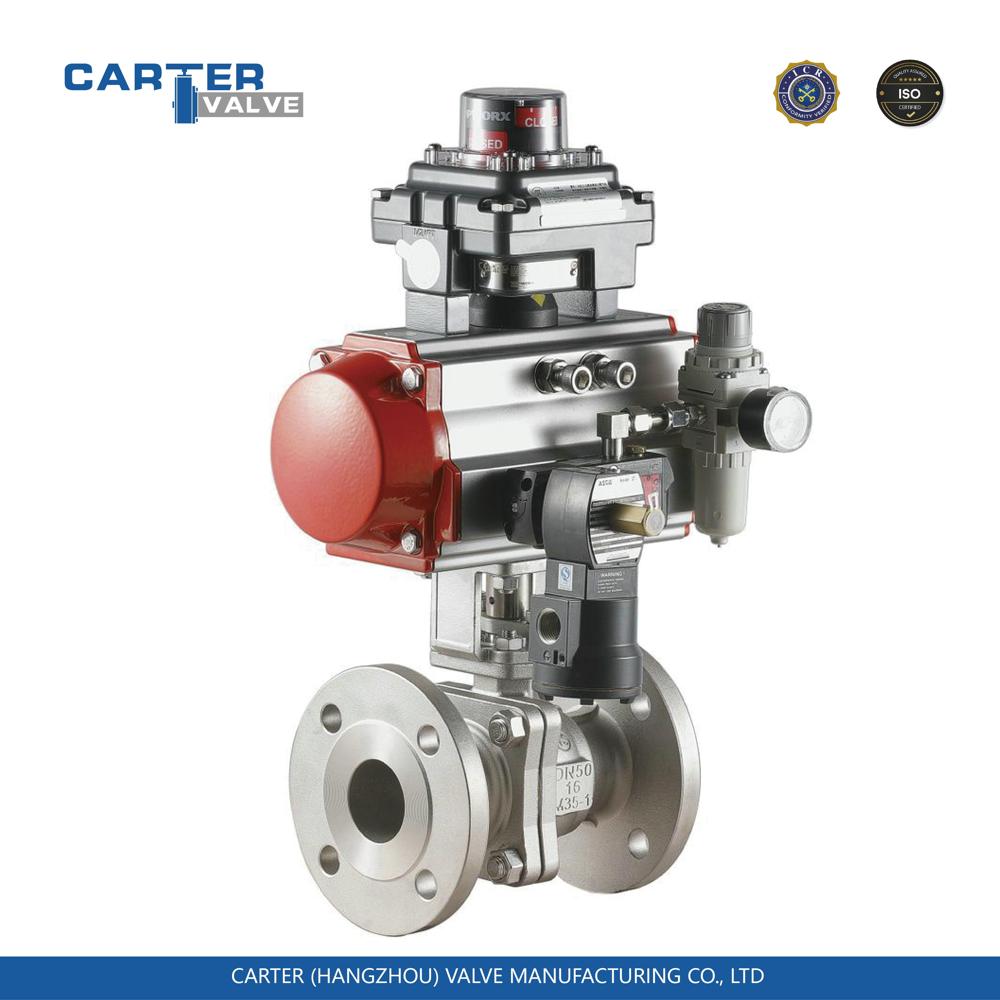

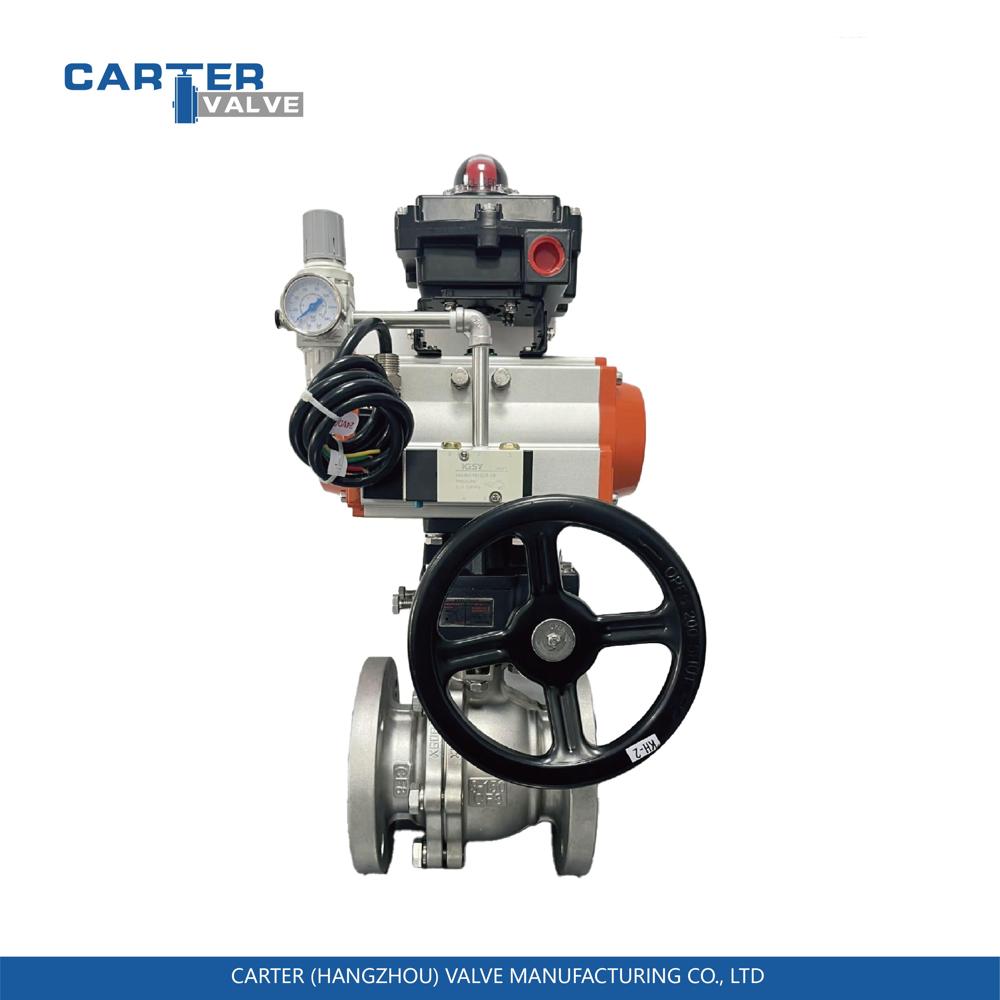

• Actuation Type: On-off type / Regulating type (4-20mA)
• Protection Grade: IP65 (indoor) / IP67 (outdoor)
• Power Supply: AC220V / AC380V
• Sealing Grade: Class VI zero leakage
• Applicable Media: Water, oil, gas; strong acid and strong alkali media (for lined fluorine versions)

Product Features

1. Valve Seat Sealing Structure

   The floating ball valve adopts a double-inclined elastic sealing ring or V-groove elastic sealing ring design to ensure reliable sealing. For low-pressure, ultra-low-pressure or vacuum conditions, a spring-loaded valve seat sealing structure is used to ensure long-term reliable sealing. Valve seat materials for medium and high-temperature ball valves can be selected as ( polyphenylene) or metal materials.
2. Automatic Pressure Relief Structure

   When the pressure in the middle cavity rises abnormally, the medium in the middle cavity can automatically push the valve seat to release pressure, ensuring the safety of the valve body.
3. Reliable Valve Stem Sealing

   The valve stem adopts a bottom-loaded structure with inverted sealing. The sealing force of the inverted seal increases with medium pressure, ensuring reliable sealing of the valve stem. Additionally, when the valve cavity pressure rises abnormally, the stem will not blow out.
4. Fire-Safe Structure

   The ball valve can be designed with a fire-safe structure according to working conditions and user requirements. The fire-safe design complies with standards such as API 607, API 6FA, and JB/T 6899. If the soft sealing ring is damaged by fire, the fire-safe structure prevents large-scale medium leakage and stops the fire from spreading.
5. Anti-Static Structure

   Friction between the ball and valve seat during operation generates static electricity that accumulates on the ball. To prevent static sparks, an anti-static device is installed on the valve to discharge the accumulated charge from the ball.
6. Locking Device

   Lockable structures are designed at the fully open and fully closed positions of manual ball valves to prevent misoperation and unintended switching caused by unpredictable line vibration. This feature is particularly valuable in flammable petroleum and chemical production lines, as well as outdoor piping applications.
7. Full Bore and Reduced Bore Structures

   To meet different user needs, the ball valve is available in both full bore and reduced bore versions. Full bore ball valves have a channel inner diameter consistent with the pipe inner diameter, facilitating line cleaning. Reduced bore ball valves are relatively lighter, offering broader application prospects.
